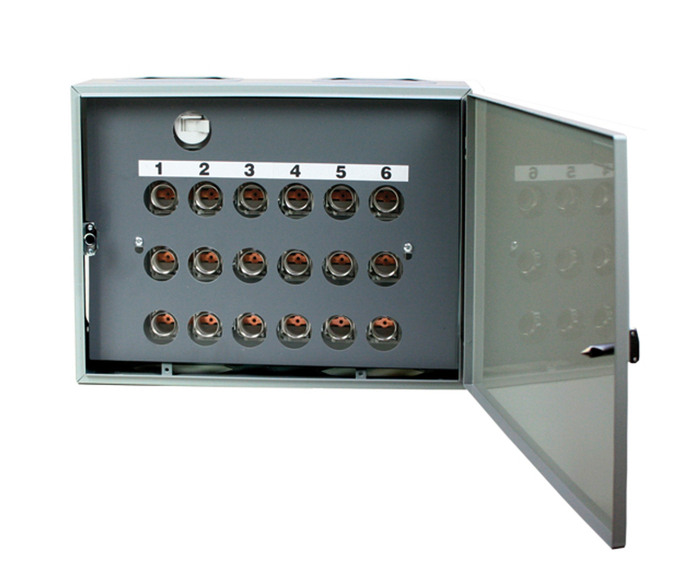

Switchboards for fuse base DZ with main switch

Switchboards with 1 and 3-pole fuse protected groups positioned on one row for 3-phase connection. Equipped with switch, disconnectable neutral rail and earth conductor rail. Switchboard with swich 25A 6groups 3-pole fuse base
E-number
2383218
Article number
2383218
Rated current [A] 25
Degree of protection [IP] 43
Colour RAL7035 Grey
Standard 61439-3
Height [mm] 330
Depth [mm] 120
Materials Sheet steel
Fuse size DII
Name SWITCHBOARD W SW 25A 6/3 SP
E-number 2383218
Article number 2383218
Type designation GPH 25/3118
Netweight [kg] 8.80
Width [mm] 440
Switch [A] 3x80
No.of poles [pcs] 6/3

More variants of Switchboards for fuse base DZ with main switch

E-number Article number Type designation Netweight [kg] Width [mm] Switch [A] No.of poles [pcs]
SWITCHB W SW 25A 2/1+2/3 SP 2383208 2383208 GPH 25/318 5.30 220 3x40 2/1+2/3
SWITCHBOARD  W SW 25A 6/3 SP 2383218 2383218 GPH 25/3118 8.80 440 3x80 6/3
