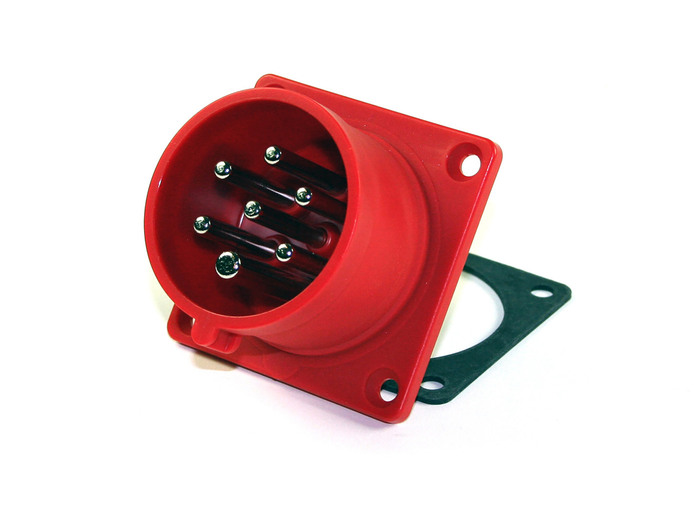

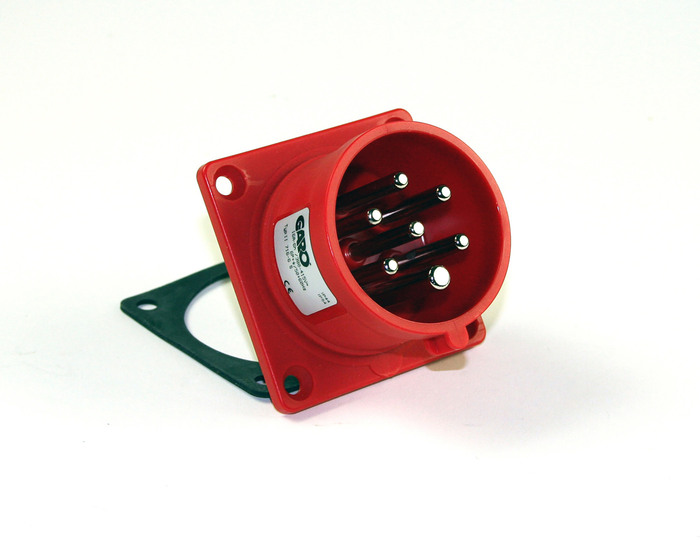

Flanged plugs with straight mount pl 32A IP44 7P
Flanged plugs with straight mount pl 32A IP44 7P Inlet straight basic 7-poles 32A 6h.
E-number
2425913
2425913
Article number
107753
107753
Type designation | II 732-6S |
---|---|
Rated current [A] | 32 |
No.of Poles [pcs] | 7P |
Rated voltage [V AC] | 400 |
Frequency [Hz] | 50/60 |
Degree of protection [IP] | 67 |
Colour | Red |
Standard | Class 1 EN 60044-8 |
Width [mm] | 70 |
Height [mm] | 70 |
Depth [mm] | 51 |
Netweight [kg] | 0.22 |
Materials | Plastic |
Function | Basic |
Position of earth [h] | 6 |
Mounting method | Recessed mounting |
RAL-nummer | RAL3000 |
Name | INLET STRAIGHT 7P 32A 6h |
---|---|
E-number | 2425913 |
Article number | 107753 |
