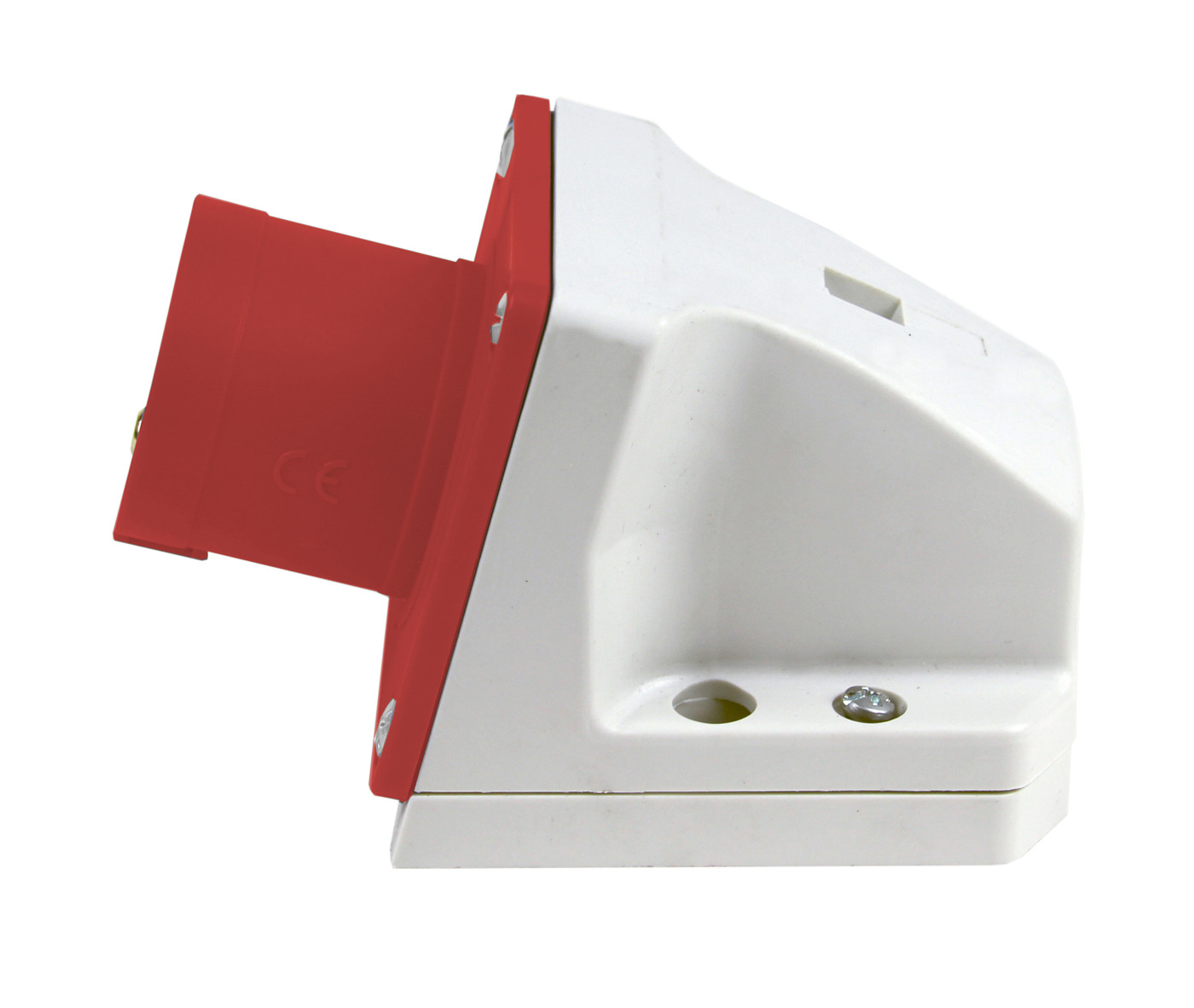

WALL INLET TT 3P 32A 6h

Inlet wallmounted Quick 32A IP44

Quick, our screwless range with quick connections that require no tools, just a simple push of the thumb. Wall socket 32A suitable for wall mounting and engine mounting with cable connectivity from both the top and bottom. Wall inlet quick conection 3-poles 32A 6h
E-number
2425630
Article number
2425630
Support
Wire flexible [mm²] 2,5-6
Rated current [A] 32
Degree of protection [IP] 44
Package size [pcs] 10
Width [mm] 70.50
Materials Plastic
Location Surface
Function Quick
Wire solid [mm²] 2,5-10
Name WALL INLET TT 3P 32A 6h
E-number 2425630
Article number 2425630
Type designation II 332-6 Q+RI
Colour Red
Frequency [Hz] 50/60
Rated voltage [V AC] 400
Netweight [kg] 0.28
Height [mm] 131
Depth [mm] 82
No.of Poles [pcs] 4/3P+E
Position of earth [h] 6
RAL-nummer RAL3000

More variants of Inlet wallmounted Quick 32A IP44

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] Height [mm] Depth [mm] No.of Poles [pcs] Position of earth [h] RAL-nummer
WALL INLET TT 3P 32A 2h 2425627 2425627 II 332-2 Q+RI Green >300-500 >50 0.28 131 82 4/3P+E 2 RAL6010
WALL INLET TT 3P 32A 3h 2425628 2425628 II 332-3 Q+RI Red 50/60 380-440 0.28 131 82 4/3P+E 3 RAL3000
WALL INLET TT 3P 32A 4h 2425629 2425629 II 332-4 Q+RI Yellow 50/60 100-130 0.28 131 82 4/3P+E 4 RAL1023
WALL INLET TT 3P 32A 6h 2425630 2425630 II 332-6 Q+RI Red 50/60 400 0.28 131 82 4/3P+E 6 RAL3000
WALL INLET TT 3P 32A 7h 2425631 2425631 II 332-7 Q+RI Black 50/60 480-500 0.28 131 82 4/3P+E 7 RAL9005
WALL INLET TT 3P 32A 9h 2425632 2425632 II 332-9 Q+RI Blue 50/60 230 0.28 131 82 4/3P+E 9 RAL5017
WALL INLET TT 3P 32A 10h 2425633 2425633 II 332-10 Q+RI Green 100-300 >50 0.28 131 82 4/3P+E 10 RAL6010
WALL INLET TT 3P 32A 11h 2425634 2425634 II 332-11 Q+RI Blue 60 440-460 0.28 131 82 4/3P+E 11 RAL5017
WALL INLET TT 4P 32A 2h 2425635 2425635 II 432-2 Q+RI Green >300-500 >50 132 85 5/3PN+E 2 RAL6010
WALL INLET TT 4P 32A 3h 2425636 2425636 II 432-3 Q+RI Red 50-60 380-440 132 85 5/3PN+E 3 RAL3000
WALL INLET TT 4P 32A 4h 2425637 2425637 II 432-4 Q+RI Yellow 50/60 100-130 132 85 5/3PN+E 4 RAL1023
WALL INLET TT 4P 32A 5h 2425638 2425638 II 432-5 Q+RI Black 50/60 600-690 132 85 5/3PN+E 5 RAL9005
WALL INLET TT 4P 32A 6h 2425639 2425639 II 432-6 Q+RI Red 50/60 230/400 0.27 132 85 5/3PN+E 6 RAL3000
WALL INLET TT 4P 32A 7h 2425640 2425640 II 432-7 Q+RI Black 50/60 480-500 132 85 5/3PN+E 7 RAL9005
WALL INLET TT 4P 32A 9h 2425641 2425641 II 432-9 Q+RI Blue 50/60 208-250 132 85 5/3PN+E 9 RAL5017
WALL INLET TT 4P 32A 11h 2425642 2425642 II 432-11 Q+RI Red 60 440-460 132 85 5/3PN+E 11 RAL3000
