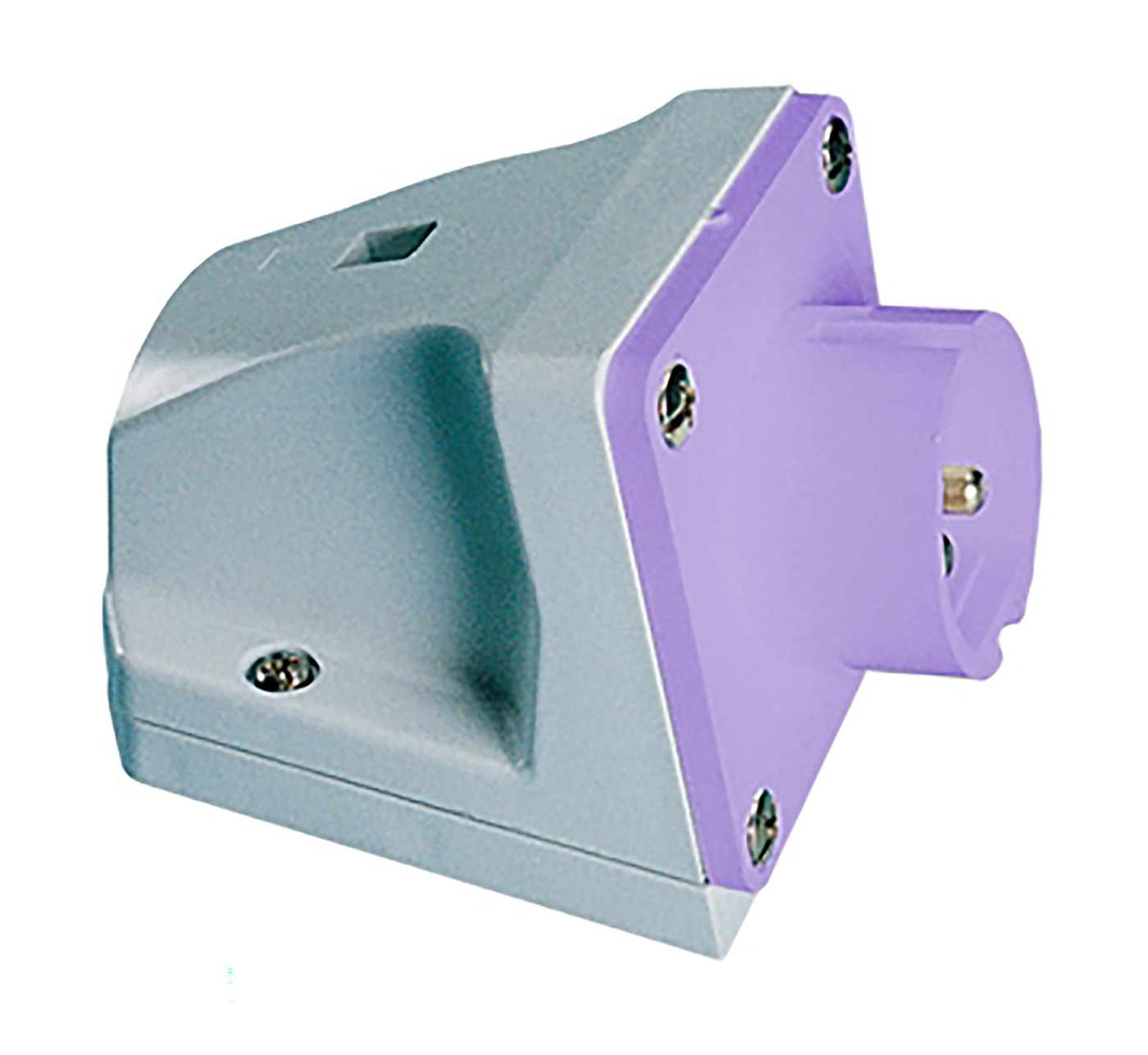

Inlet wallmounted low voltage 16A IP44

Plugs and sockets for low voltages of <50V with rated currents of 16A and 32A. The connectors are designed to meet the requirements in the standards IEC 60 309-2 and BS 43 43. The frequency and voltage are determined by the location of the sub-alignment guide on the socket. The main alignment guide/slot width, which is always at the 6 o'clock position, is determined by the current: 16A (wide version) and 32A (narrow version) respectively. This is to prevent a 32A plug with a narrow guide from being connected to a 16A socket with a wide slot. Wall inlet low-voltage 2-poles 16A.
E-number
2425728
Article number
2425728
Wire flexible [mm²] 4-10
Rated current [A] 16
Degree of protection [IP] 44
Package size [pcs] 10
Width [mm] 70
Height [mm] 106
Depth [mm] 77
Materials Plastic
Location Surface
Function Low voltage
Name WALL INLET LOW VOLT. 2P 16A
E-number 2425728
Article number 2425728
Type designation IIBK 216 S
Colour Purple
Frequency [Hz] 50/60
Rated voltage [V AC] 20-25
Netweight [kg] 0.16
No.of Poles [pcs] 2P
RAL-nummer RAL4005

More variants of Inlet wallmounted low voltage 16A IP44

E-number Article number Type designation Colour Frequency [Hz] Rated voltage [V AC] Netweight [kg] No.of Poles [pcs] RAL-nummer
WALL INLET LOW VOLT. 2P 16A 2425728 2425728 IIBK 216 S Purple 50/60 20-25 0.16 2P RAL4005
WALL INLET LOW VOLT. 2P 16A 10h 2425729 2425729 IIBK 216-10 S Grey DC 20-25,40-50 0.16 2P RAL7046
WALL INLET LOW VOLT. 2P 16A 12h 2425730 2425730 IIBK 216-12 S White 50/60 40-50 0.16 2P RAL9016
WALL INLET LOW VOLT. 3P 16A 2425731 2425731 IIBK 316 S Purple 50/60 20-25 0.17 3P RAL4005
WALL INLET LOW VOLT. 3P 16A 10h 2425732 2425732 IIBK 316-4 S Green 100/200 40-50 0.17 3P RAL6010
WALL INLET LOW VOLT. 3P 16A 12h 2425733 2425733 IIBK 316-12 S White 50/60 40-50 0.17 3P RAL9016
