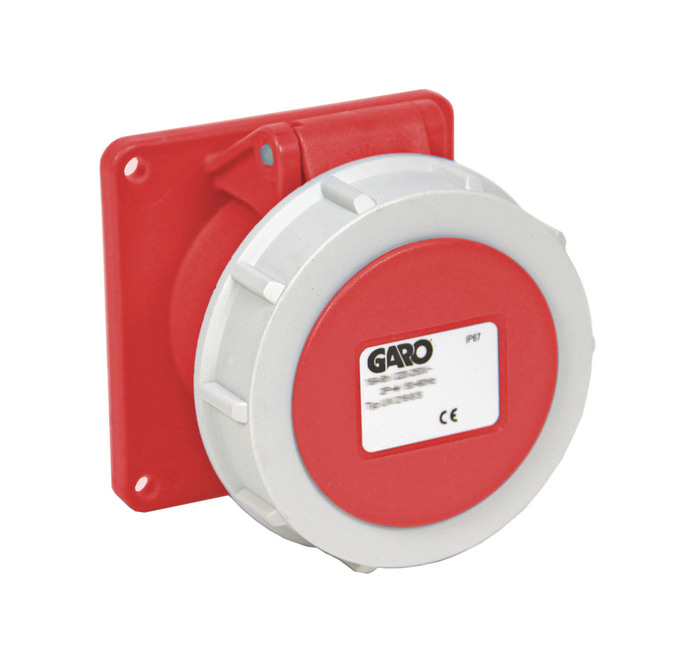

SOCKET STRAIGHT WT 4P 32A 11h

Flanged sockets Basic with straight mounting plate 32A IP67

Basic, our standard range with a screw function. Wall socket 32A recess mounting with straight mounting plate. Supplied including seal. Socket straight basic watertight 4-poles 32A 11h
E-number
2424977
Article number
2424977
Support
Rated current [A] 32
Degree of protection [IP] 67
Wire flexible [mm²] 2,5-6
Standard Class 1 EN 60044-8
Package size [pcs] 10
Width [mm] 70
Height [mm] 70
Materials Plastic
Location Recessed
Function Basic
Wire solid [mm²] 2,5-10
Name SOCKET STRAIGHT WT 4P 32A 11h
E-number 2424977
Article number 2424977
Type designation UIV 332-11 S
No.of Poles [pcs] 4/3P+E
Rated voltage [V AC] 440-460
Frequency [Hz] 60
Colour Red
Depth [mm] 92
Netweight [kg] 0.22
Position of earth [h] 11
RAL-nummer RAL3000

More variants of Flanged sockets Basic with straight mounting plate 32A IP67

E-number Article number Type designation No.of Poles [pcs] Rated voltage [V AC] Frequency [Hz] Colour Depth [mm] Netweight [kg] Position of earth [h] RAL-nummer
SOCKET STRAIGHT WT 3P 32A 4h 2424967 2424967 UIV 232-4 S 3/2P+E 100-130 50/60 Yellow 92 0.20 4 RAL1023
SOCKET STRAIGHT WT 3P 32A 6h 2424968 2424968 UIV 232-6 S 3/2P+E 200-250 50/60 Blue 92 0.20 6 RAL5017
SOCKET STRAIGHT WT 3P 32A 9h 2424969 2424969 UIV 232-9 S 3/2P+E 380-415 50/60 Red 92 0.20 9 RAL3000
SOCKET STRAIGHT WT 4P 32A 2h 2424970 2424970 UIV 332-2 S 4/3P+E >50 >300-500 Green 92 0.22 2 RAL6010
SOCKET STRAIGHT WT 4P 32A 3h 2424971 2424971 UIV 332-3 S 4/3P+E 380-440 50/60 Red 92 0.22 3 RAL3000
SOCKET STRAIGHT WT 4P 32A 4h 2424972 2424972 UIV 332-4 S 4/3P+E 100-130 50/60 Yellow 92 0.22 4 RAL1023
SOCKET STRAIGHT WT 4P 32A 6h 2424973 2424973 UIV 332-6 S 4/3P+E 400 50/60 Red 92 0.22 6 RAL3000
SOCKET STRAIGHT WT 4P 32A 7h 2424974 2424974 UIV 332-7 S 4/3P+E 480-500 50/60 Black 92 0.22 7 RAL9005
SOCKET STRAIGHT WT 4P 32A 9h 2424975 2424975 UIV 332-9 S 4/3P+E 230 50/60 Blue 92 0.22 9 RAL5017
SOCKET STRAIGHT WT 4P 32A 10h 2424976 2424976 UIV 332-10 S 4/3P+E >50 100-300 Green 92 0.22 10 RAL6010
SOCKET STRAIGHT WT 4P 32A 11h 2424977 2424977 UIV 332-11 S 4/3P+E 440-460 60 Red 92 0.22 11 RAL3000
SOCKET STRAIGHT WT 5P 32A 4h 2424978 2424978 UIV 432-4 S 5/3PN+E 100-130 50/60 Yellow 94 0.25 4 RAL1023
SOCKET STRAIGHT WT 5P 32A 6h 2424979 2424979 UIV 432-6 S 5/3PN+E 230/400 50/60 Red 94 0.25 6 RAL3000
SOCKET STRAIGHT WT 5P 32A 9h 2424980 2424980 UIV 432-9 S 5/3PN+E 208-250 50/60 Blue 94 0.25 9 RAL5017
SOCKET STRAIGHT WT 5P 32A 11h 2424981 2424981 UIV 432-11 S 5/3PN+E 440-460 60 Red 94 0.25 11 RAL3000
