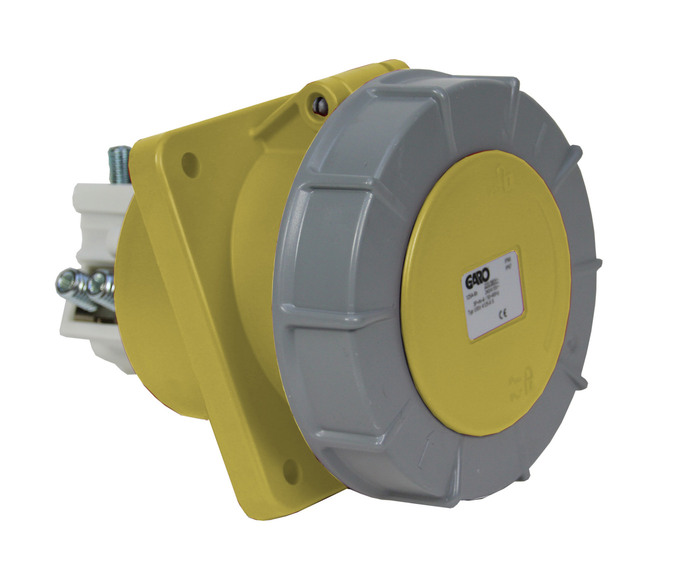

SOCKET SLOPING 5P 63A 4h WT

Flanged sockets Basic Sloping 63A IP67

Basic, our standard range with a screw function. Socket 63A recess mounting with angled mounting plate in a waterproof design. Supplied including seal. Socket sloping basic 5-poles 63A 4h watertight
E-number
E2425112
Article number
2425112
Support
Housing material Plastic
Rated current [A] 63A
Wire flexible [mm²] 6-16mm²
Modelltype Basic
Wire solid [mm²] 6-25mm²
Degree of protection [IP] IP67
Name SOCKET SLOPING 5P 63A 4h WT
E-number E2425112
Article number 2425112
Frequency [Hz] 50/60Hz
Color Yellow
Rated voltage [V AC] 100-130V AC
Number of poles 5/3P+N+E
RAL-number RAL1023
Clock hour position [h] 4h

More variants of Flanged sockets Basic Sloping 63A IP67

SOCKET SLOPING 3P 63A 4h WT
SOCKET SLOPING 3P 63A 4h WT
E-number
E2425103
Article number
2425103
Type designation
Frequency [Hz]
50/60Hz
Color
Yellow
Rated voltage [V AC]
100-130V AC
Number of poles
3/2P+E
RAL-number
RAL1023
Clock hour position [h]
4h
SOCKET SLOPING 3P 63A 6h WT
SOCKET SLOPING 3P 63A 6h WT
E-number
E2425104
Article number
2425104
Type designation
UISV 263-6 S
Frequency [Hz]
50/60Hz
Color
Blue
Rated voltage [V AC]
200-250V AC
Number of poles
3/2P+E
RAL-number
RAL3000
Clock hour position [h]
6h
NetProductWeight
0.54
EngineerWidth
190
EngineerHeight
140
EngineerDepth
290
SOCKET SLOPING 3P 63A 9h WT
SOCKET SLOPING 3P 63A 9h WT
E-number
E2425105
Article number
2425105
Type designation
Frequency [Hz]
50/60Hz
Color
Red
Rated voltage [V AC]
380-415V AC
Number of poles
3/2P+E
RAL-number
RAL3000
Clock hour position [h]
9h
SOCKET SLOPING 4P 63A 6h WT
SOCKET SLOPING 4P 63A 6h WT
E-number
E2425108
Article number
2425108
Type designation
UISV 363-6 S
Frequency [Hz]
50/60Hz
Color
Red
Rated voltage [V AC]
400V AC
Number of poles
4/3P+E
RAL-number
RAL3000
Clock hour position [h]
6h
NetProductWeight
0.6
EngineerWidth
190
EngineerHeight
140
EngineerDepth
290
SOCKET SLOPING 4P 63A 7h WT
SOCKET SLOPING 4P 63A 7h WT
E-number
E2425109
Article number
2425109
Type designation
Frequency [Hz]
50/60Hz
Color
Black
Rated voltage [V AC]
480-500V AC
Number of poles
4/3P+E
RAL-number
RAL9010
Clock hour position [h]
7h
SOCKET SLOPING 4P 63A 9h WT
SOCKET SLOPING 4P 63A 9h WT
E-number
E2425110
Article number
2425110
Type designation
Frequency [Hz]
50/60Hz
Color
Blue
Rated voltage [V AC]
230V AC
Number of poles
4/3P+E
RAL-number
RAL5017
Clock hour position [h]
9h
SOCKET SLOPING 5P 63A 4h WT
SOCKET SLOPING 5P 63A 4h WT
E-number
E2425112
Article number
2425112
Type designation
Frequency [Hz]
50/60Hz
Color
Yellow
Rated voltage [V AC]
100-130V AC
Number of poles
5/3P+N+E
RAL-number
RAL1023
Clock hour position [h]
4h
SOCKET SLOPING 5P 63A 6h WT
SOCKET SLOPING 5P 63A 6h WT
E-number
E2425113
Article number
2425113
Type designation
UISV 463-6 S
Frequency [Hz]
50/60Hz
Color
Red
Rated voltage [V AC]
230/400V AC
Number of poles
5/3P+N+E
RAL-number
RAL3000
Clock hour position [h]
6h
NetProductWeight
0.65
EngineerWidth
190
EngineerHeight
140
EngineerDepth
290
SOCKET SLOPING 5P 63A 11h WT
SOCKET SLOPING 5P 63A 11h WT
E-number
E2425116
Article number
2425116
Type designation
Frequency [Hz]
60Hz
Color
Red
Rated voltage [V AC]
440-460V AC
Number of poles
5/3P+N+E
RAL-number
RAL3000
Clock hour position [h]
11h

More variants of Flanged sockets Basic Sloping 63A IP67

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SOCKET SLOPING 3P 63A 4h WT E2425103 2425103 50/60Hz Yellow 100-130V AC 3/2P+E RAL1023 4h
SOCKET SLOPING 3P 63A 6h WT E2425104 2425104 UISV 263-6 S 50/60Hz Blue 200-250V AC 3/2P+E RAL3000 6h 0.54 190 140 290
SOCKET SLOPING 3P 63A 9h WT E2425105 2425105 50/60Hz Red 380-415V AC 3/2P+E RAL3000 9h
SOCKET SLOPING 4P 63A 6h WT E2425108 2425108 UISV 363-6 S 50/60Hz Red 400V AC 4/3P+E RAL3000 6h 0.6 190 140 290
SOCKET SLOPING 4P 63A 7h WT E2425109 2425109 50/60Hz Black 480-500V AC 4/3P+E RAL9010 7h
SOCKET SLOPING 4P 63A 9h WT E2425110 2425110 50/60Hz Blue 230V AC 4/3P+E RAL5017 9h
SOCKET SLOPING 5P 63A 4h WT E2425112 2425112 50/60Hz Yellow 100-130V AC 5/3P+N+E RAL1023 4h
SOCKET SLOPING 5P 63A 6h WT E2425113 2425113 UISV 463-6 S 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h 0.65 190 140 290
SOCKET SLOPING 5P 63A 11h WT E2425116 2425116 60Hz Red 440-460V AC 5/3P+N+E RAL3000 11h
