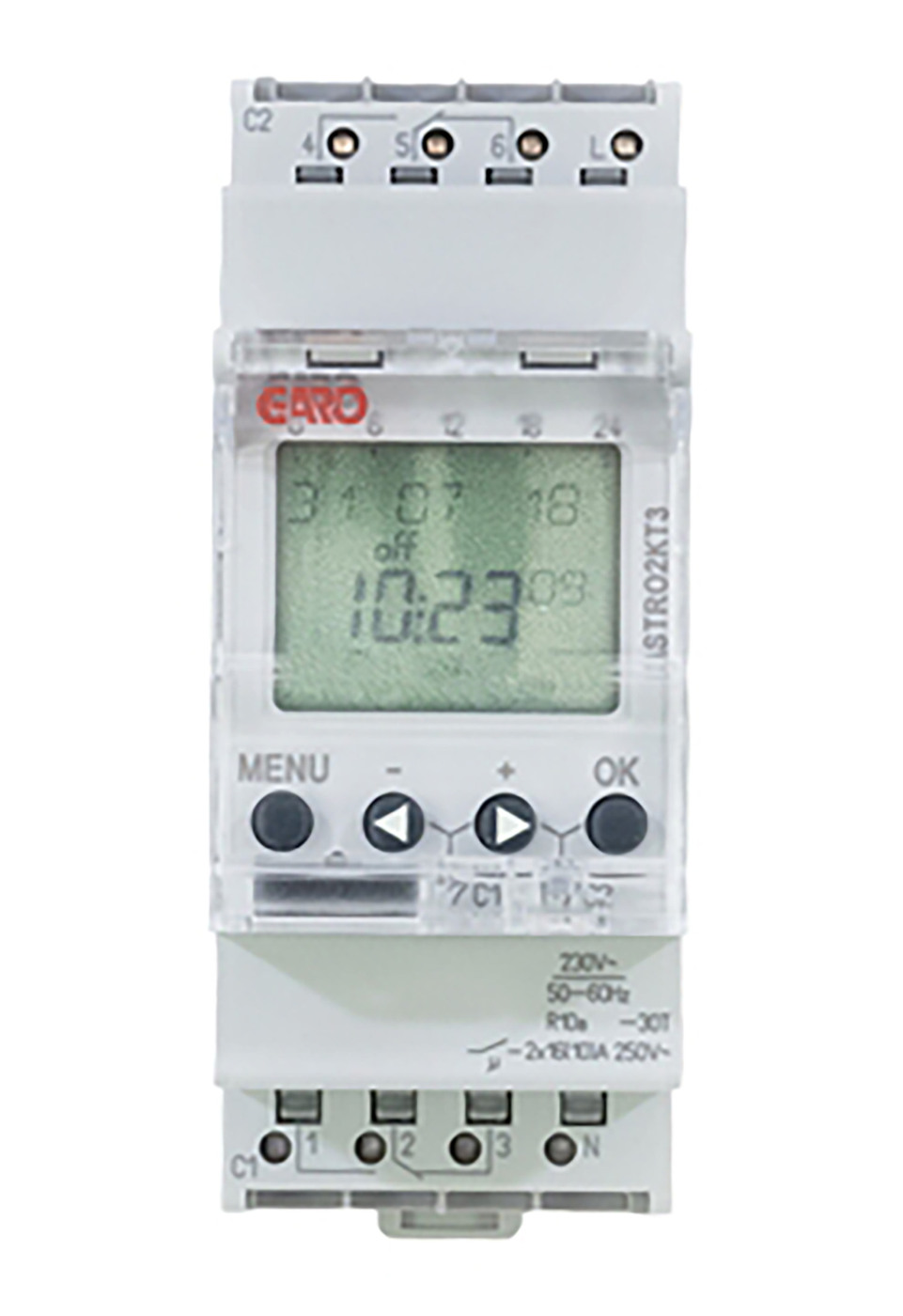

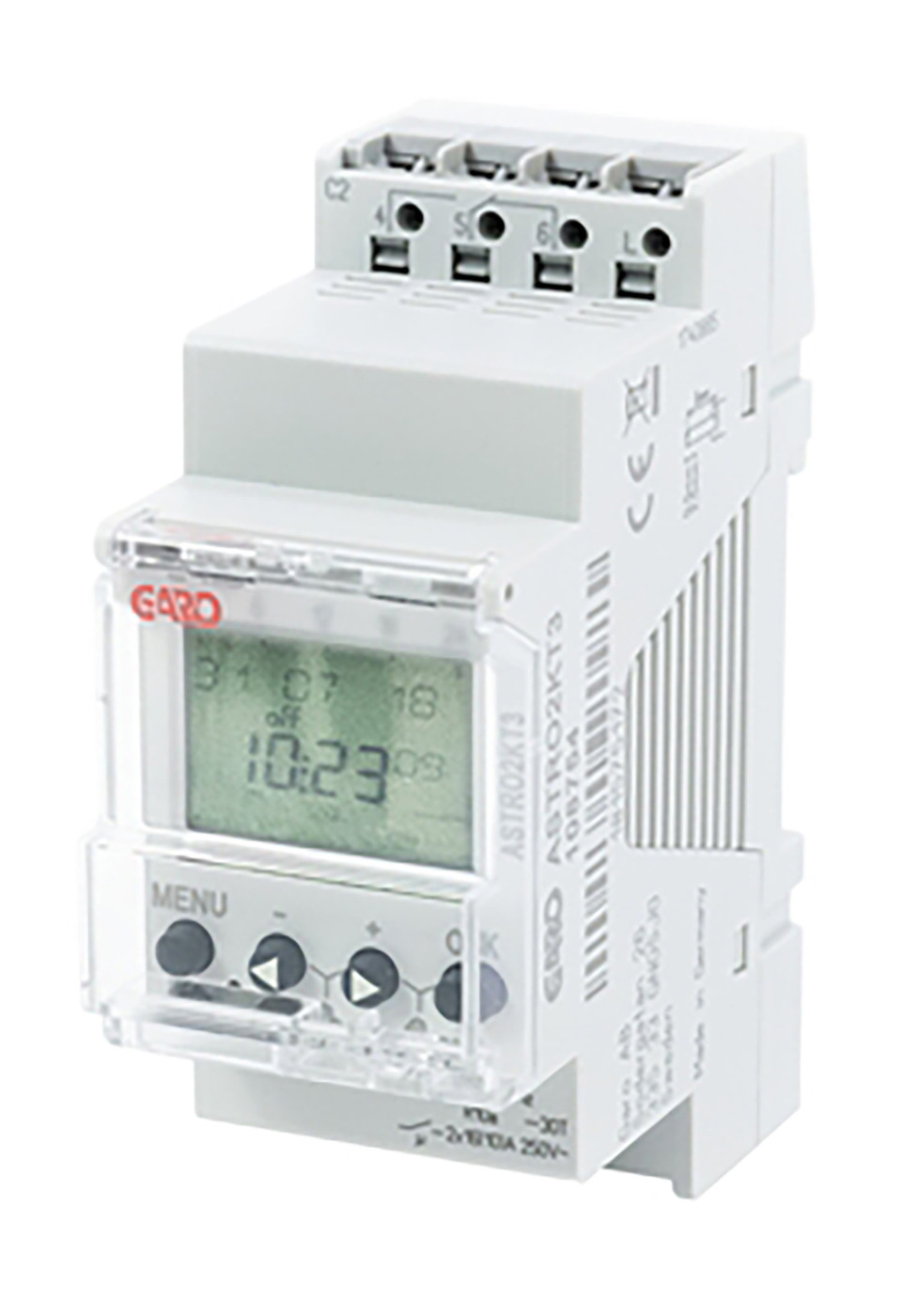

Timer astronomically

Garo astronomical timers are easy to program. Different languages are possible to set and many locations/cities are already pre-programmed into the timers. The purpose of the timers is that the sunset and sunrise is pre-programmed in the timers when user programs a location in the timers. This makes the product ideal for use in the control of e.g. outdoor lighting. The timers is available in 1-channel or 2-channel varants. Time switch 2 channel astro

E-number
1330553

Article number
108754

Support

Frequency [Hz]	50-60
Degree of protection [IP]	20
Colour	Grey
Standard	EN 60730-1
Package size [pcs]	1
Height [mm]	90
Connection type	Quick connection
Function	Astro clock
Manual control	Yes
Mounting method	DIN-rail

Name	TIME SWITCH 2CH ASTRO
E-number	1330553
Article number	108754
Type designation	ASTRO2KT3
Rated current [A]	10
Rated voltage [V AC]	230
Wire flexible [mm²]	1,5-2,5
Temperature range [C]	-20...+40
Modules [pcs]	2
Power loss [W]	0,4
Width [mm]	36
Depth [mm]	64
Netweight [kg]	0.13
Channels [pcs]	2
Contact type	Change-over contacts
Power reserve [year]	3
External input	No

More variants of Timer astronomically

E-number	Article number	Type designation	Rated current [A]	Rated voltage [V AC]	Wire flexible [mm²]	Temperature range [C]	Modules [pcs]	Power loss [W]	Width [mm]	Depth [mm]	Netweight [kg]	Channels [pcs]	Contact type	Power reserve [year]	Operation time meter	External input
1330397	108277	ASTRO1K1M	16(4)	230-240	0,5-2,5	-25...+55	1	0,4	18	60	0.08	1	Closing contact	10	Yes	Yes
1330552	108753	ASTRO1KT3	10	230	0,5-2,5	-20...+40	2	0,4	36	64	0.11	1	Change-over contacts	10	Yes	No
1330553	108754	ASTRO2KT3	10	230	1,5-2,5	-20...+40	2	0,4	36	64	0.13	2	Change-over contacts	3		No

Accessories for Timer astronomically

	Name	E-number	Article number	Type designation	Description
	SOFTWARE KIT AND CARD READER	1330401	108281	G-OB PC	Software kit and card reader
	MEMORY STICK T2 TIME SWITCH	1330554	108755	G-OB-BT	Memory stick T2 time switch bluetooth
