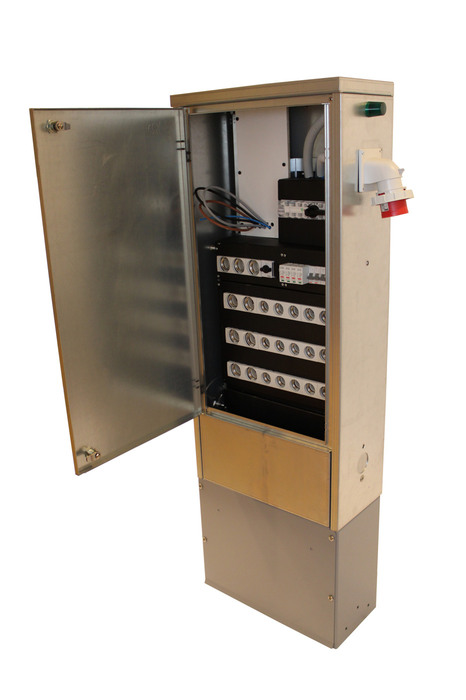

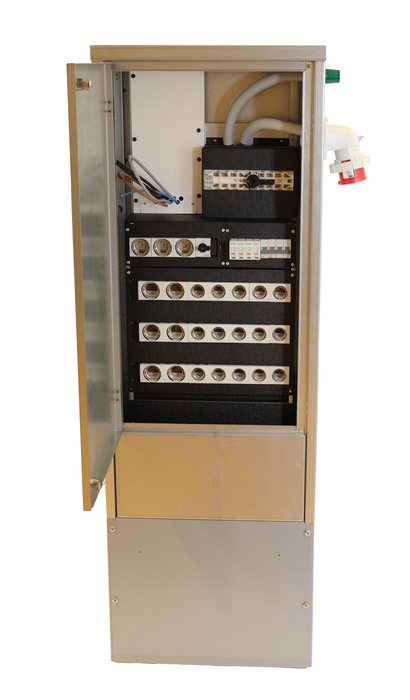

Cable cabinet meter and reserve power 5 groups

Cable cabinet with wooden plate for mounting meters and switches for reserve power. The cabinet is available in two variants with 2 DIII and 5 DII output groups, with inlets 32A or 63A. The cabinets are equipped with an indicator light that tells when the mains voltage has returned. The cabinets are also equipped with surge protection of coarse / medium character. Distribution cabinet measuring and reserve power 5 DII and 2 DIII groups with 32A inlet.
E-number
0736038
Article number
353778
Rated current [A] 63
Degree of protection [IP] 34D
Colour Grå/Grey
Frequency [Hz] 50
Rated voltage [V AC] 400
Standard EN 61439-5
Package size [pcs] 1
Width [mm] 522
Height [mm] 1140
Depth [mm] 250
Materials Magnelis
Short-circuit current [kA] 25
Fuse size 5XDll+2XDlll
Incoming terminal Cu/Al [mm²] 50 Al/Cu
Impact strength IK10
Outgoing terminal [mm²] 16 Cu
Light relay Nej/No
Time switch Nej/No
Measurement Ja/Yes
Name DISTR CABINET 5 ROW RES 32A M
E-number 0736038
Article number 353778
Type designation GFSMR-5D-2-32
Netweight [kg] 68

More variants of Cable cabinet meter and reserve power 5 groups

E-number Article number Type designation Netweight [kg]
DISTR CABINET 5 ROW RES 32A M 0736038 353778 GFSMR-5D-2-32 68
DISTR CABINET 5 ROW RES 63A M 0736039 353779 GFSMR-5D-2-63 69
