• TIME TEMP OUTL CAR RCBO 10A - 1
  • TIME TEMP OUTL CAR RCBO 10A - 2

Outlets with RCBO

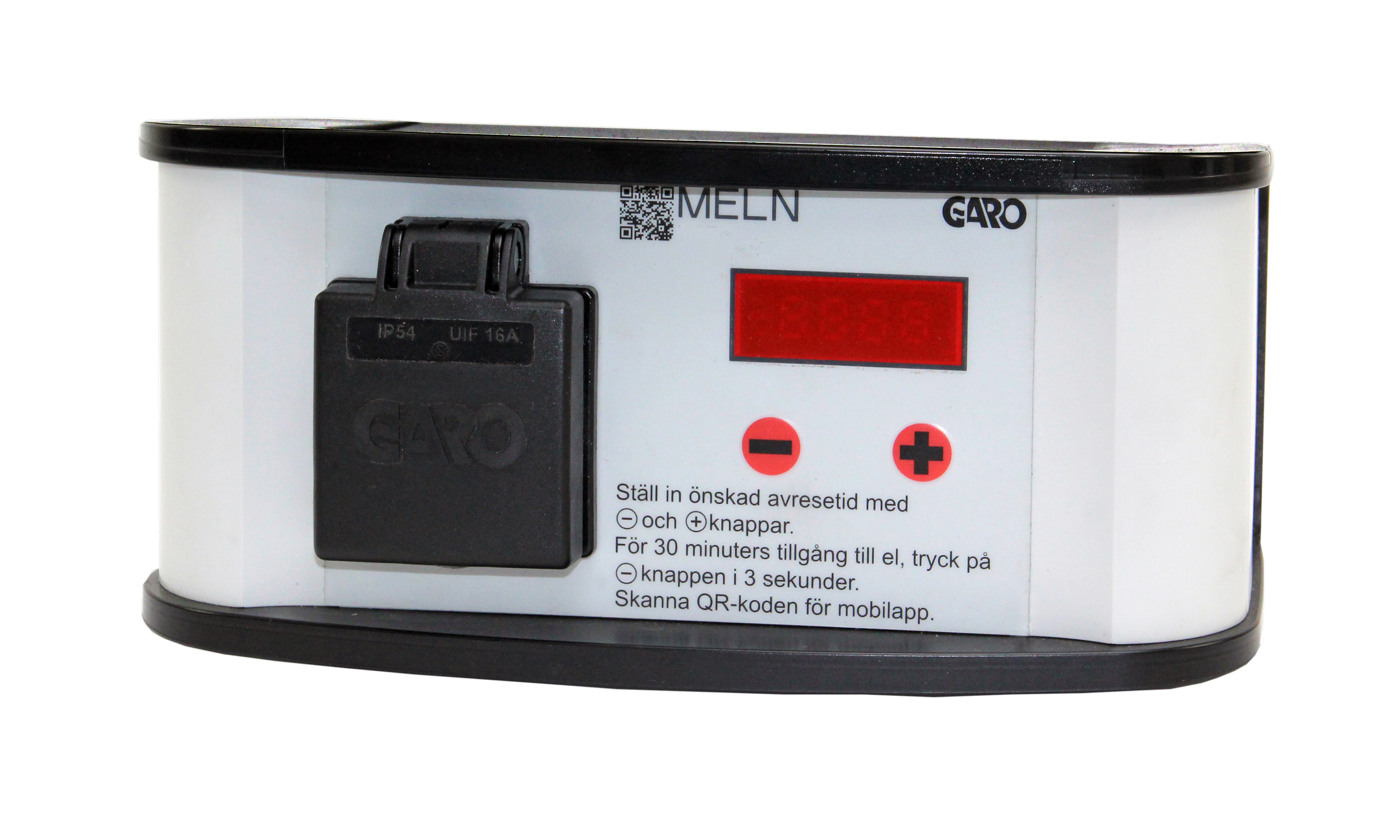

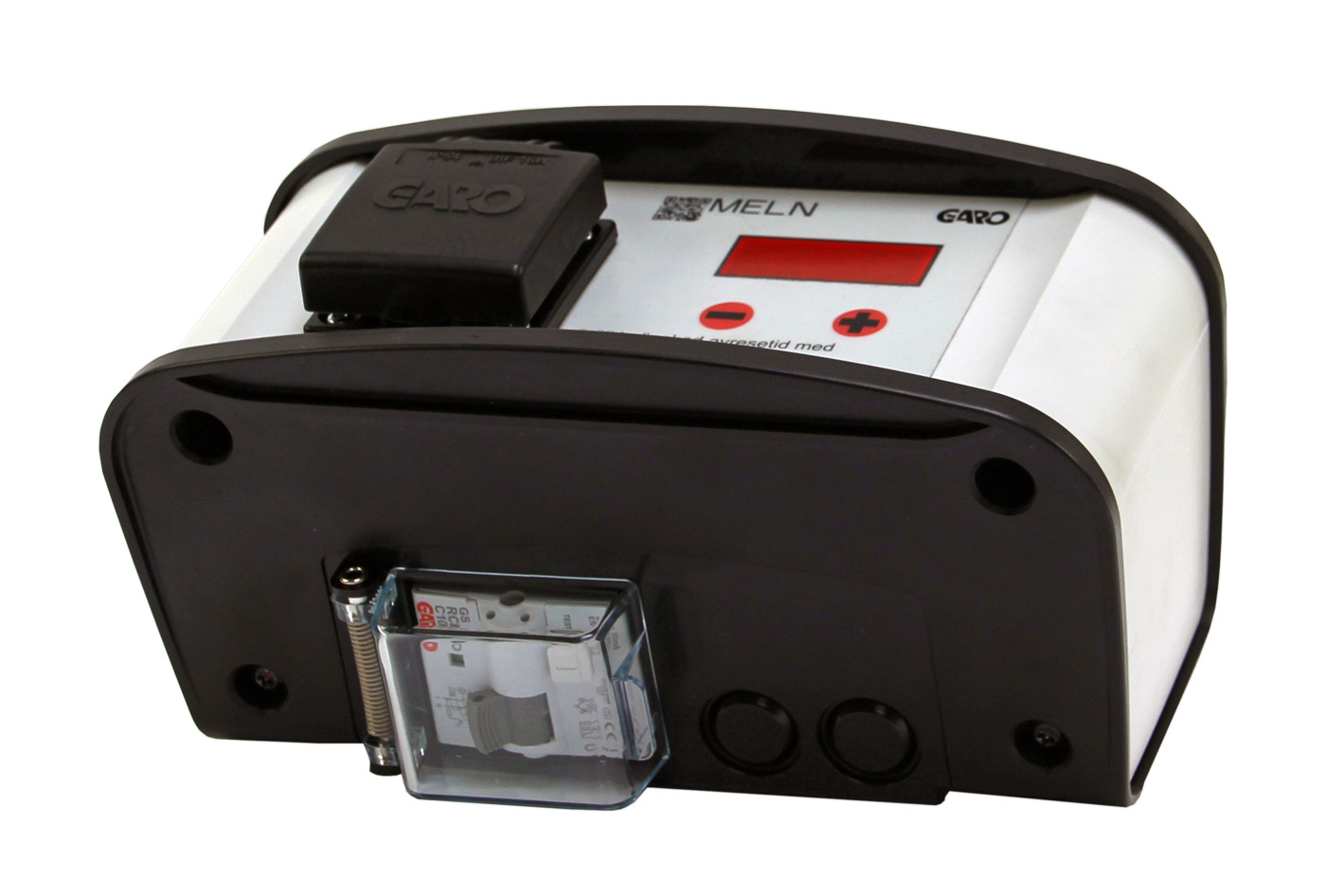

Socket with RCBOs where the set departure time is repeated daily with automatic summer/wintertime changeover and controlled by outside temperature for an efficient heating of the car. The outlet has a function for 30min on time to use as an example for vacuum cleaning the car or electrical equipment in the garden. Time and temperature outlet for car with RCBO 10A
E-number
2449227
Article number
352977
Support
Materials Plastic
Degree of protection [IP] 44
Colour White
Standard EN 61439-3
Package size [pcs] 1
Schuko [pcs] 1
Location Wall
RCCB/RCBO Yes
Name TIME TEMP OUTL CAR RCBO 10A
E-number 2449227
Article number 352977
Type designation MELN-P10
Netweight [kg] 0.90
Width [mm] 212
Height [mm] 112
Depth [mm] 121
Rated current [A] 10
Rated voltage [V AC] 230
Wire flexible [mm²] 5x2,5
WIFI No

More variants of Outlets with RCBO

E-number Article number Type designation Netweight [kg] Width [mm] Height [mm] Depth [mm] Rated current [A] Rated voltage [V AC] Wire flexible [mm²] WIFI
TIME TEMP OUTL CAR RCBO 6A 2449226 352976 MELN-P6 0.90 212 112 121 6 230 5x2,5 No
TIME TEMP OUTL CAR RCBO 10A 2449227 352977 MELN-P10 0.90 212 112 121 10 230 5x2,5 No
