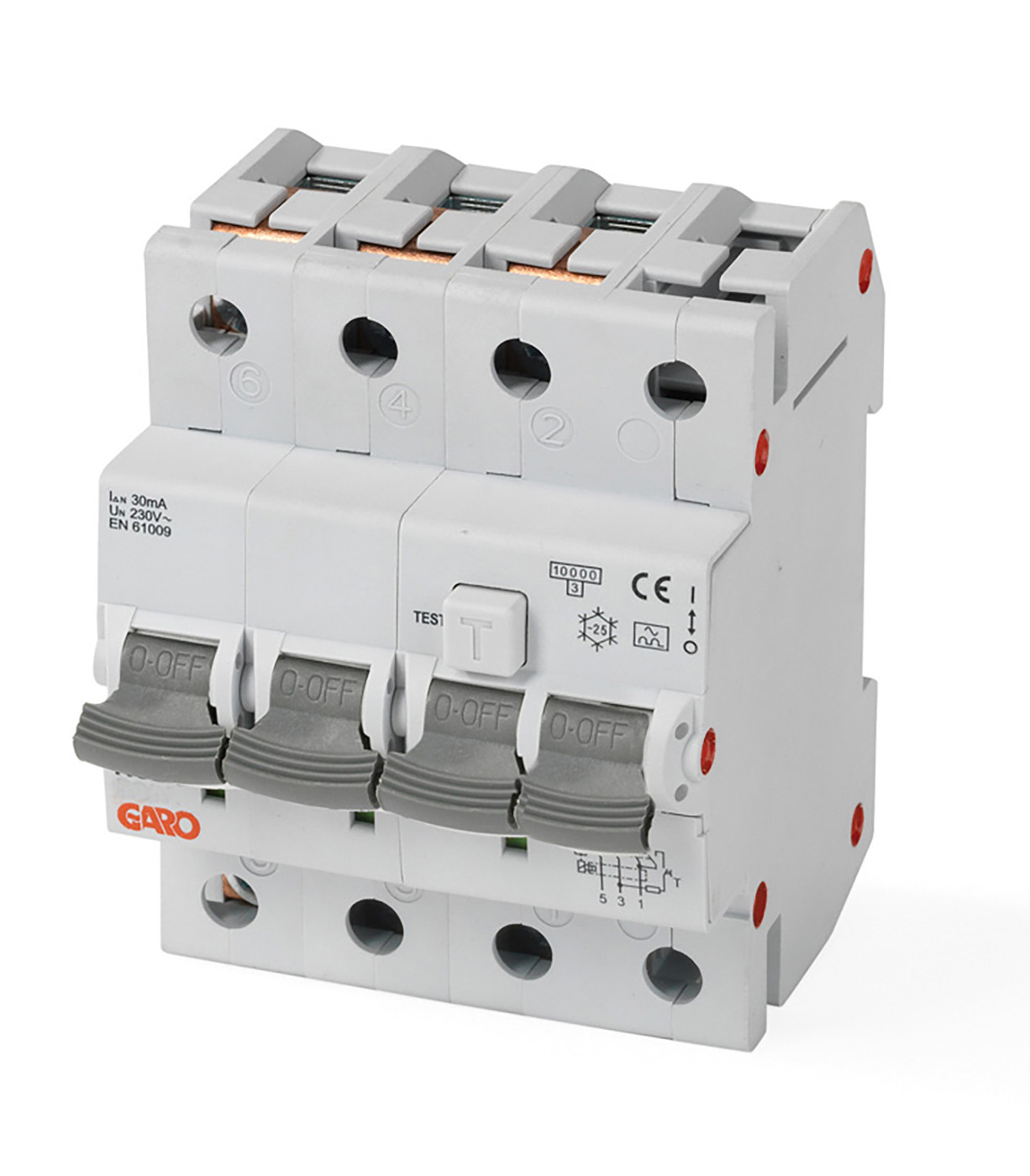

RCBO 6kA 4-pole B-characteristics

RCBOs are used as personal injury and product protection for 3-phase loads and have all-pole breaking. It is possible to connect from both the bottom and top." RCBO GS B-Characteristic 25A 6kA 4-pole
Article number
Wire flexible [mm²] 1,5-25
Degree of protection [IP] 20
Colour Grey
Frequency [Hz] 50/60
Rated voltage [V AC] 230/400
Tightening torque [Nm] 2,5
Temperature range [C] -25...+55
Storage temperature [C] -35...+55
Modules [pcs] 4
Standard EN 61009-1
Package size [pcs] 1
Netweight [kg] 0.50
Width [mm] 72
Height [mm] 90
Depth [mm] 75
Poles 4
Materials Plastic
Rated short-circuit cap. [kA] 6
Connection type Screw
Claim prefuse [A] 125
Tripping characteristics B
Sensitivity [mA] 30
Leakage current A
E-number 2163267
Article number 2163267
Type designation RCBO GS B25A 4P
Rated current [A] 25

More variants of RCBO 6kA 4-pole B-characteristics

E-number Article number Type designation Rated current [A]
RCBO GS B-CHAR 6A 4P 2163262 2163262 RCBO GS B6A 4P 6
RCBO GS B-CHAR 10A 4P 2163263 2163263 RCBO GS B10A 4P 10
RCBO GS B-CHAR 13A 4P 2163264 2163264 RCBO GS B13A 4P 13
RCBO GS B-CHAR 16A 4P 2163265 2163265 RCBO GS B16A 4P 16
RCBO GS B-CHAR 20A 4P 2163266 2163266 RCBO GS B20A 4P 20
RCBO GS B-CHAR 25A 4P 2163267 2163267 RCBO GS B25A 4P 25
RCBO GS B-CHAR 32A 4P 2163268 2163268 RCBO GS B32A 4P 32
