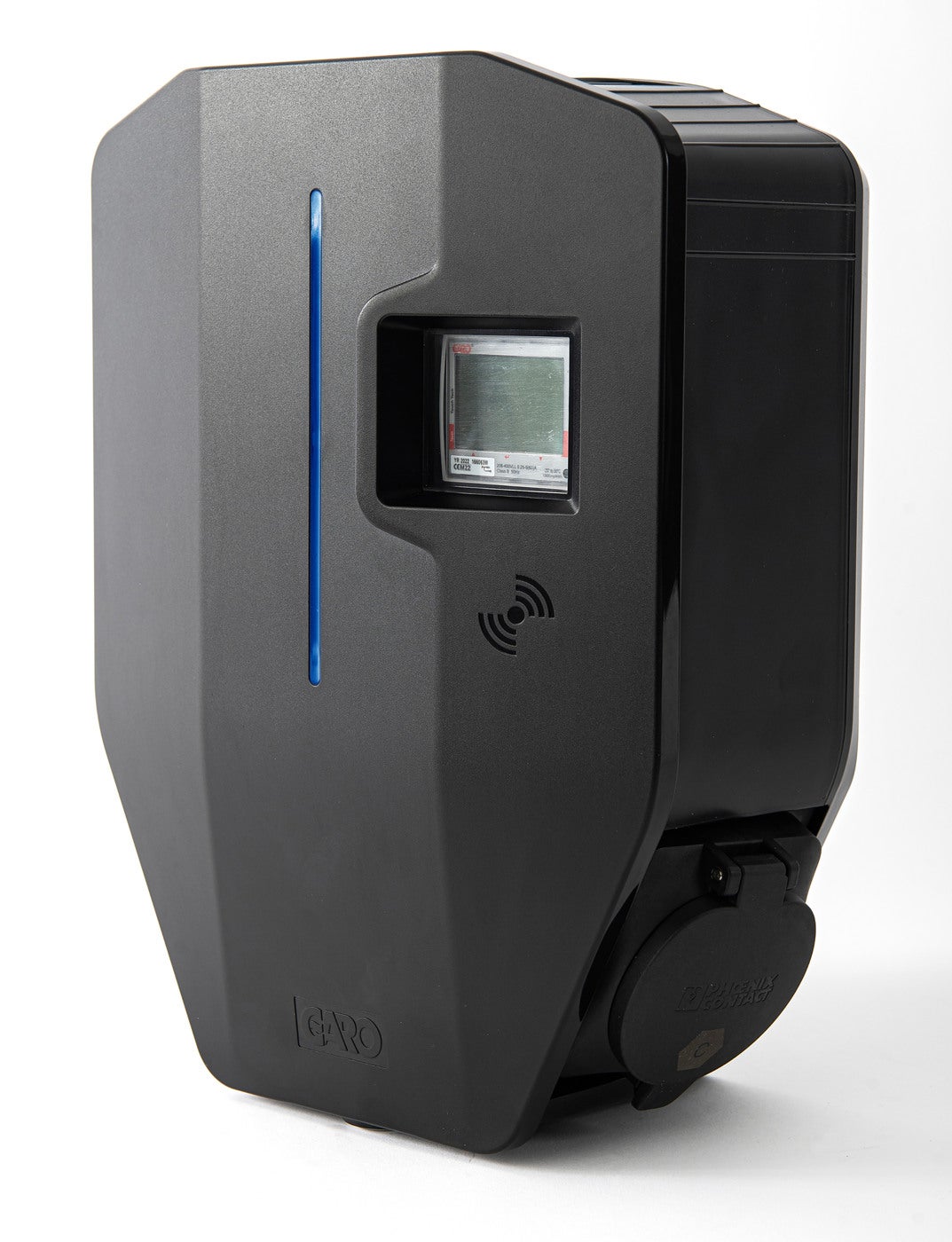

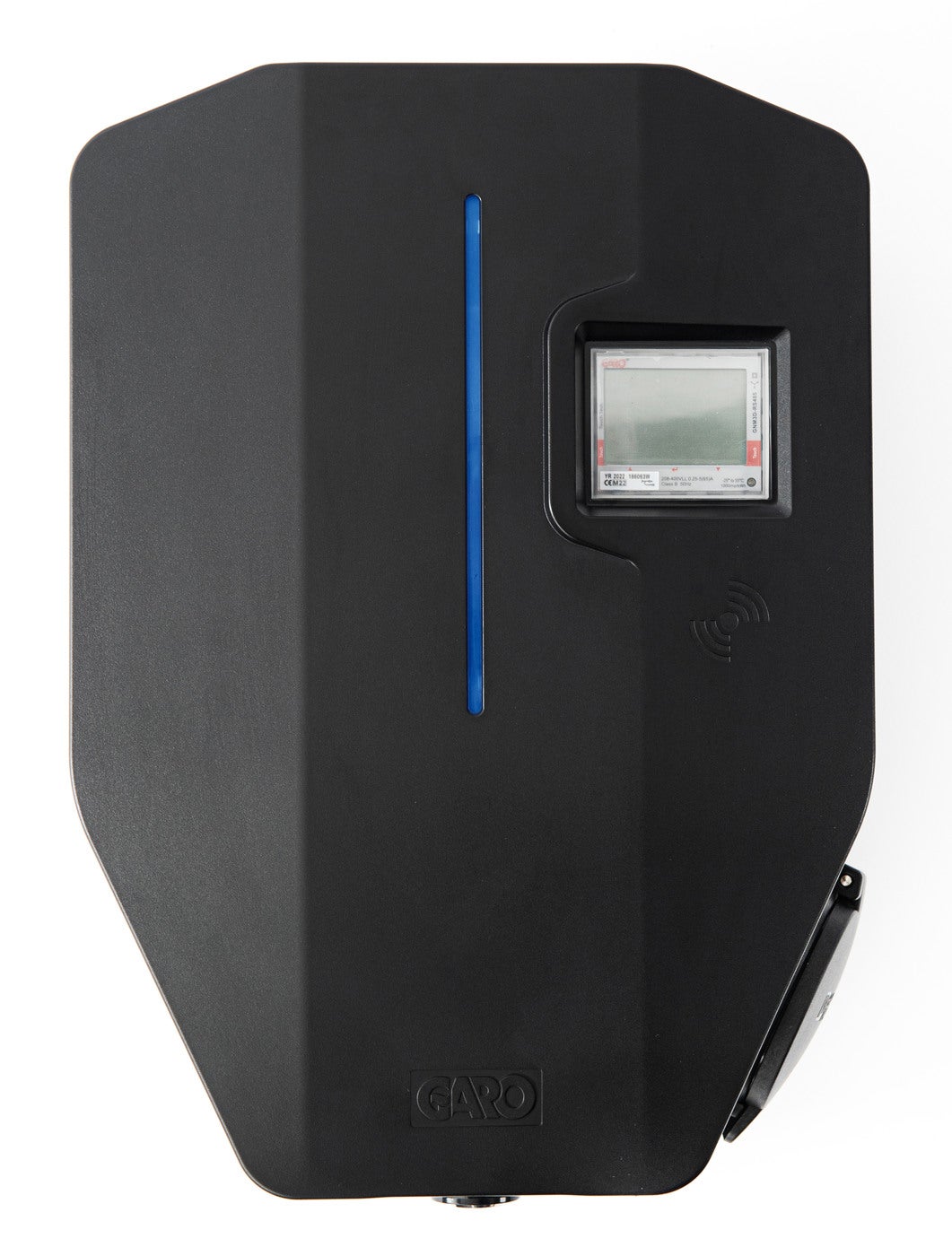

Entity Pro outlet single
Entity PRO complete wallbox with following components: An installation bracket, a charging unit and a front panel. Available for purchase in a single or dual version. Entity PRO comes with a fixed cable available in various lengths or an outlet. Built-in Energymeter or visible MID meter. Integrated residual current device (RCD) with an all-pole mechanical circuit breaker for AC and DC that meets all requirements. The wallboxes can communicate with each other over Ethernet or mesh Wi-Fi and the internet over Charging station Entity Pro 22kW with outlet, phasebalancing, visible meter MID and modem with SIM for Garo Connect
| Standard | EN61851-1, IEC 62955, ISO15118, EN61008-1, EN60898-1 |
|---|---|
| Short-circuit current [kA] | 10kA |
| Storage temperature [C] | -40C...+40C |
| Operation Temperature [C] | -40C...+40C |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Black |
| Rated current [A] | 32A |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Wall mounting |
| Modelltype | Entity Pro |
| Phases [PH] | 3PH |
| Lock | Yes |
| AC/DC output 1 | Type 2 Outlet |
| Power per charging point [kW] | 22kW |
| Local load balance | Yes |
| RAL-number | RAL9011 |
| Dynamic load management | Yes |
| Charging current [A] | 0-32 |
| Degree of protection [IP] | IP54 |
| Impact strength [IK] | IK10 |
| EngineerWidth | 240 |
| EngineerHeight | 340 |
| EngineerDepth | 150 |
| Name | WALLBOX ENTITY PRO 22 MID |
|---|---|
| E-number | E2701003 |
| Article number | 354203 |
| Type designation | EPCSO00332SVGI |
| Energymeter | Visible meter |
| NetProductWeight | 4.2 |
