Terminals installation 2-poles
GARO GKL is a series of terminals for cable from 2.5mm² up to 240mm² copper and aluminum for DIN rail assembly or screw mount. Available for single or double mounting and in three colors: Grey, Blue; Yellow / Green. The products are approved according to IEC 61238-1: 2003, Class A and equipped with a QR code for easy access to the installation manual. Terminal block yellow/green 2-poles for cable from 16mm² up to 95mm² copper and aluminum.
E-number
E2670464
E2670464
Article number
108610
108610
-
TERMINAL 2P GREY 50MM² AL/CUE-number
E2670454Article number
108600 -
TERMINAL 2P BLUE 50MM² AL/CUE-number
E2670456Article number
108602 -
TERMINAL 2P YELLOW/GREEN 50MM² AL/CUE-number
E2670458Article number
108604 -
TERMINAL 2P GREY 95MM2 AL/CUE-number
E2670460Article number
108606 -
TERMINAL 2P BLUE 95MM2 AL/CUE-number
E2670462Article number
108608 -
TERMINAL 2P YELLOW/GREEN 95MM2 AL/CUE-number
E2670464Article number
108610 -
TERMINAL 2P GREY 150MM2 AL/CUE-number
E2670466Article number
108612 -
TERMINAL 2P BLUE 150MM2 AL/CUE-number
E2670468Article number
108614 -
TERMINAL 2P YELLOW/GREEN 150MM2 AL/CUE-number
E2670470Article number
108616 -
TERMINAL 2P GREY 240mm² Al/CUE-number
E2670472Article number
108618 -
TERMINAL 2P BLUE 240mm² Al/CUE-number
E2670474Article number
108620 -
TERMINAL 2P Y/G 240mm² Al/CUE-number
E2670476Article number
108622
| Standard | IEC61238-1:2003,Class A |
|---|---|
| Operation Temperature [C] | -25C...+80C |
| Housing material | Plastic |
| Rated voltage [V AC] | 1000V AC |
| Number of poles | 2 |
| Connection type | Screw |
| Mounting method | DIN-rail |

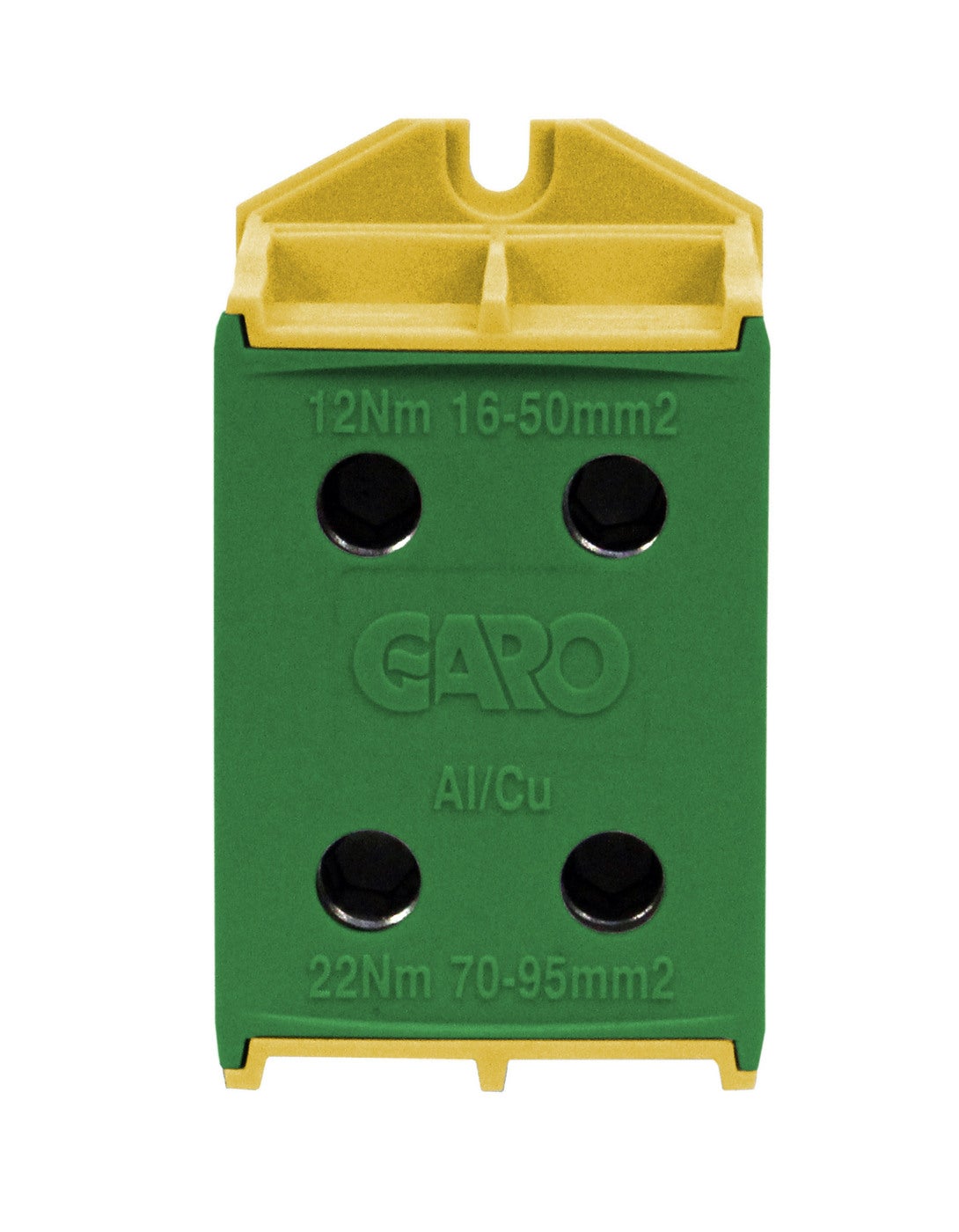

| Name | TERMINAL 2P YELLOW/GREEN 95MM2 AL/CU |
|---|---|
| E-number | E2670464 |
| Article number | 108610 |
| Type designation | GKL 2x95 G/G |
| Color | Yellow/Green |
| Rated current [A] | Al: 250A / Cu 320A |
| Tightening torque [Nm] | 12-22Nm |
| Connectable conductor cross sect | 95mm² |
| NetProductWeight | 0.12 |
| EngineerWidth | 42 |
| EngineerHeight | 82 |
| EngineerDepth | 49 |
