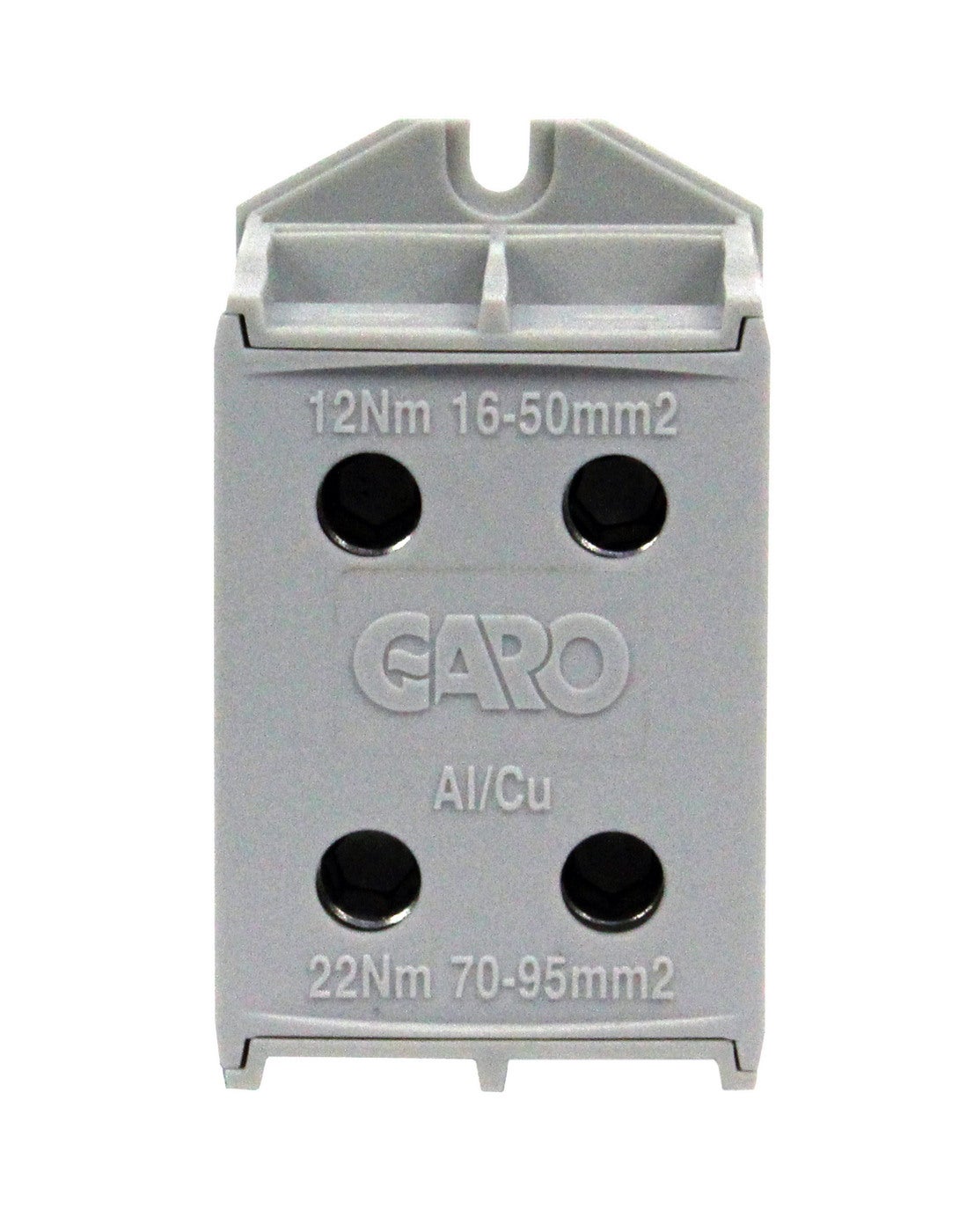

  • TERMINAL 2P GREY 95MM2 AL/CU - 2

Terminals installation 2-poles

GARO GKL is a series of terminals for cable from 2.5mm² up to 240mm² copper and aluminum for DIN rail assembly or screw mount. Available for single or double mounting and in three colors: Grey, Blue; Yellow / Green. The products are approved according to IEC 61238-1: 2003, Class A and equipped with a QR code for easy access to the installation manual. Terminal block grey 2-poles for cable from 16mm² up to 95mm² copper and aluminum.
E-number
E2670460
Article number
108606
Support
Name TERMINAL 2P GREY 95MM2 AL/CU
E-number E2670460
Article number 108606
Type designation GKL 2x95 GRÅ
NetProductWeight 0.12
EngineerWidth 42
EngineerHeight 82
EngineerDepth 49

More variants of Terminals installation 2-poles

E-number Article number Type designation Standard Operation Temperature [C] Housing material Color Rated current [A] Rated voltage [V AC] Number of poles Tightening torque [Nm] Mounting method Connectable conductor cross sect NetProductWeight EngineerWidth EngineerHeight EngineerDepth
TERMINAL 2P GREY 50MM² AL/CU E2670454 108600 GKL 2x50 GRÅ 0.07 31 82 42
TERMINAL 2P BLUE 50MM² AL/CU E2670456 108602 GKL 2x50 BLÅ IEC61238-1:2003,Class A -25C...+80C Plastic Blue Al: 160A / Cu 320A 1000V AC 2 5-10Nm Floor fastening 50mm² 0.07 31 82 42
TERMINAL 2P YELLOW/GREEN 50MM² AL/CU E2670458 108604 GKL 2x50 G/G 0.07 31 82 42
TERMINAL 2P GREY 95MM2 AL/CU E2670460 108606 GKL 2x95 GRÅ 0.12 42 82 49
TERMINAL 2P BLUE 95MM2 AL/CU E2670462 108608 GKL 2x95 BLÅ 0.12 42 82 49
TERMINAL 2P YELLOW/GREEN 95MM2 AL/CU E2670464 108610 GKL 2x95 G/G 0.12 42 82 49
TERMINAL 2P GREY 150MM2 AL/CU E2670466 108612 GKL 2x150 GRÅ 0.26 53 106 57
TERMINAL 2P BLUE 150MM2 AL/CU E2670468 108614 GKL 2x150 BLÅ 0.26 53 106 57
TERMINAL 2P YELLOW/GREEN 150MM2 AL/CU E2670470 108616 GKL 2x150 G/G 0.26 53 106 57
PLINT GRÅ 240mm² Al/CU 2P E2670472 108618 GKL 2x240 GRÅ 0.49 66 118 67
PLINT BLÅ 240mm² Al/CU 2P E2670474 108620 GKL 2x240 BLÅ 0.49 66 118 67
PLINT GUL/GRÖN 240mm² Al/CU 2P E2670476 108622 GKL 2x240 G/G 0.49 66 118 67
