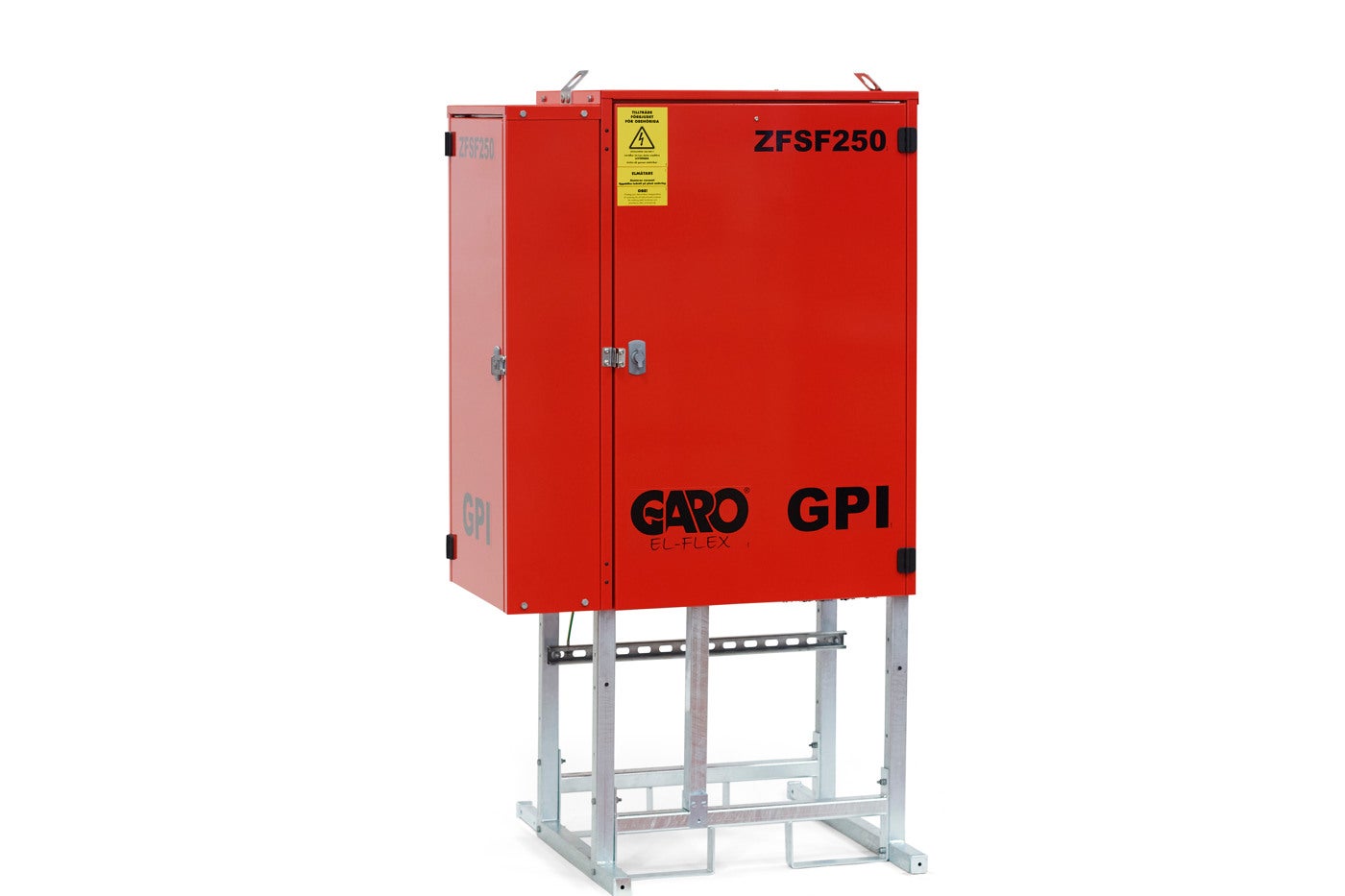

  • TEMP POWER MET UNIT 250A GPI/EB M - 2

Measurement devices module 400A

Main distribution assembly 400A (HC400) built in the GPI system. This distribution assembly is equipped with a separate side cabinet for connection of incoming cables from the energy provider (2 x fuse switches of 250A) and common fuse switch 400A with current transformer. This distribution assembly is normally used for the construction of large apartment blocks, hotels large events, etc. The distribution assembly is equipped with different outputs for onward feed with earth cables (Type AKKJ 16-95 mm² and Main distribution assembly 250A GPI/EB/2xSLK160 2x63 2x32 1x16 3x13
E-number
E2469131
Article number
353913
Support
Standard EN61439-4
Frequency [Hz] 50Hz
Housing material Sheet steel
Color Red
Rated current [A] 250A
Rated voltage [V AC] 400V AC
Number of Schuko[pcs] 3pcs
CEE socket outlet 63A 2pcs 5P 63A 230/400V
Number of RCCB [pcs] 2 2pcs 4P 63A 300mA
Space for meters [pcs] 1
Degree of protection [IP] IP44
EngineerHeight 1662
EngineerDepth 506
Name TEMP POWER MET UNIT 250A GPI/EB M
E-number E2469131
Article number 353913
Type designation ZFSF 250 GPI/EB/02/22103
CEE socket outlet 16A 1pcs 5P 16A 230/400V
Number of MCB 3P (1) 2pcs C332
Number of MCB 3P (2) 2pcs C363
Number of RCCB [pcs] 1 3pcs 4P 40A
CEE socket outlet 32A 2pcs 5P 32A 230/400V
NetProductWeight 170
EngineerWidth 905

More variants of Measurement devices module 400A

E-number Article number Type designation CEE socket outlet 16A Number of MCB 1P (1) Number of MCB 1P (2) Number of MCB 3P (1) Number of MCB 3P (2) Number of RCCB [pcs] 1 CEE socket outlet 32A Fixed connection NH00 Fixed connection NH1-2 NetProductWeight EngineerWidth
TEMP POWER MET UNIT 250A GPI/EB E2469125 353728 ZFSF 250 GPI/EB/12/23303 3pcs 5P 16A 230/400V 3pcs C332 3pcs C316 3pcs C332 2pcs 4P 63A 300mA 3pcs 5P 32A 230/400V 2X160A 1x250A 224 1305
TEMP POWER MET UNIT 250A GPI/EB M E2469131 353913 ZFSF 250 GPI/EB/02/22103 1pcs 5P 16A 230/400V 2pcs C332 2pcs C363 3pcs 4P 40A 2pcs 5P 32A 230/400V 170 905

Accessories for Measurement devices module 400A

Name E-number Article number Type designation Description
RCCB 4P 63A 10kA 30mA RCCB 4P 63A 10kA 30mA 107978 Residual current circuit breaker 4-poles 63A 10kA 30mA GD
RCCB 4P 63A 10kA 300mA RCCB 4P 63A 10kA 300mA 108029 Residual current circuit breaker 4-poles 63A 10kA 300mA GD
OUTLET SCHUKO 10/16A OUTLET SCHUKO 10/16A E1896880 1896880 UIF 10/16 Outlet schuko 10/16A
MCB C 1P 13A 10kA GS MCB C 1P 13A 10kA GS E2142707 2142707 MCB GS C113 MCB GS C-Characteristic 13A 10kA 1-pole
MCB C 3P 32A 10kA GS MCB C 3P 32A 10kA GS E2142756 2142756 MCB GS C332 MCB GS C-Characteristic 32A 10kA 3-pole
MCB C 3P 63A 10kA GS MCB C 3P 63A 10kA GS E2142759 2142759 MCB GS C363 MCB GS C-Characteristic 63A 10kA 3-pole
SOCKET STRAIGHT 5P 16A 6h SOCKET STRAIGHT 5P 16A 6h E2424909 2424909 UI 416-6 S Socket straight basic 5-poles 16A 6h
SOCKET STRAIGHT 5P 32A 6h SOCKET STRAIGHT 5P 32A 6h E2424930 2424930 UI 432-6 S Socket straight basic 5-poles 32A 6h
SOCKET STRAIGHT 5P 63A 6h SOCKET STRAIGHT 5P 63A 6h E2424949 2424949 UI 463-6 S Socket straight basic 5-poles 63A 6h
SOCKET SLOPING 5P 63A 6h SOCKET SLOPING 5P 63A 6h E2425071 2425071 UIS 463-6 S Socket sloping basic 5-poles 63A 6h
POWERDISTR 63A STEELFRAME 3RCB POWERDISTR 63A STEELFRAME 3RCB E2469015 2469015 U GBSN 463-6/00/12306-21 Distribution panel 63A RCCB 6xschuko 3x16A outlet 2x32A outlet 1x63A outlet
POWER DISTR 125A 5XRCCB POWER DISTR 125A 5XRCCB E2469043 2469043 GSF 125/01/12303-41 Portable distribution board on stand 125A with socket outlets 13-63A
COVER MODULE GPI 1M 50MM COVER MODULE GPI 1M 50MM E2469101 2469101 BM-1 Cover module GPI 1 module 50mm
COVER MODULE GPI 3M 150MM COVER MODULE GPI 3M 150MM E2469102 2469102 BM-3 Cover module GPI 3 module 150mm
COVER MODULE GPI 200MM COVER MODULE GPI 200MM E2469103 2469103 BM-4 Cover module GPI 4 modules
CONTACT KIT PROTECT GPI CONTACT KIT PROTECT GPI E2469104 2469104 BS-GPI Contact kit protect for hardwire cables
TRANSPORT SECURITY GPI TRANSPORT SECURITY GPI E2469107 2469107 TF Transport security GPI for outletmodule
POWERDISTR 32A ALUFR 01306 JFB POWERDISTR 32A ALUFR 01306 JFB E2469110 2469110 U GBSA 432-6/00/01306-30 Distribution panel 32A RCCB 6xschuko 3x16A outlet 1x32A outlet
DIVISIBLE TERMINAL KIT 10-95 DIVISIBLE TERMINAL KIT 10-95 E2466339 351982 PE/N 10-95 Divisible terminal kit PE/N 10-95mm² GPI.
DIVISIBLE TERMINAL KIT 95-240 DIVISIBLE TERMINAL KIT 95-240 E2466340 351983 PE/N 95-240 Divisible terminal kit PE/N 95-240mm²
SUPPORT INSERT FOR UPI 3M 80793 Protection cover support insert for outlet-modules 3 modules fits GPI-system.
SUPPORT INSERT FOR UPI 4M 80794 Protection cover support insert for outlet-modules 4 modules fits GPI-system.
SUPPORT INSERT FOR UPI 5M 80795 Protection cover support insert for outlet-modules 5modules fits GPI-system.
