Measurement devices module 400A
Main distribution assembly 400A (HC400) built in the GPI system. This distribution assembly is equipped with a separate side cabinet for connection of incoming cables from the energy provider (2 x fuse switches of 250A) and common fuse switch 400A with current transformer. This distribution assembly is normally used for the construction of large apartment blocks, hotels large events, etc. The distribution assembly is equipped with different outputs for onward feed with earth cables (Type AKKJ 16-95 mm² and Main distribution assembly 250A GPI/EB/1xSLK400 2xSLK160 2x63 3x32 3x16 3x13.
| Standard | EN61439-4 |
|---|---|
| Frequency [Hz] | 50Hz |
| Housing material | Sheet steel |
| Color | Red |
| Rated current [A] | 250A |
| Rated voltage [V AC] | 400V AC |
| Number of Schuko[pcs] | 3pcs |
| CEE socket outlet 63A | 2pcs 5P 63A 230/400V |
| Number of RCCB [pcs] 2 | 2pcs 4P 63A 300mA |
| Space for meters [pcs] | 1 |
| Degree of protection [IP] | IP44 |
| EngineerHeight | 1662 |
| EngineerDepth | 506 |

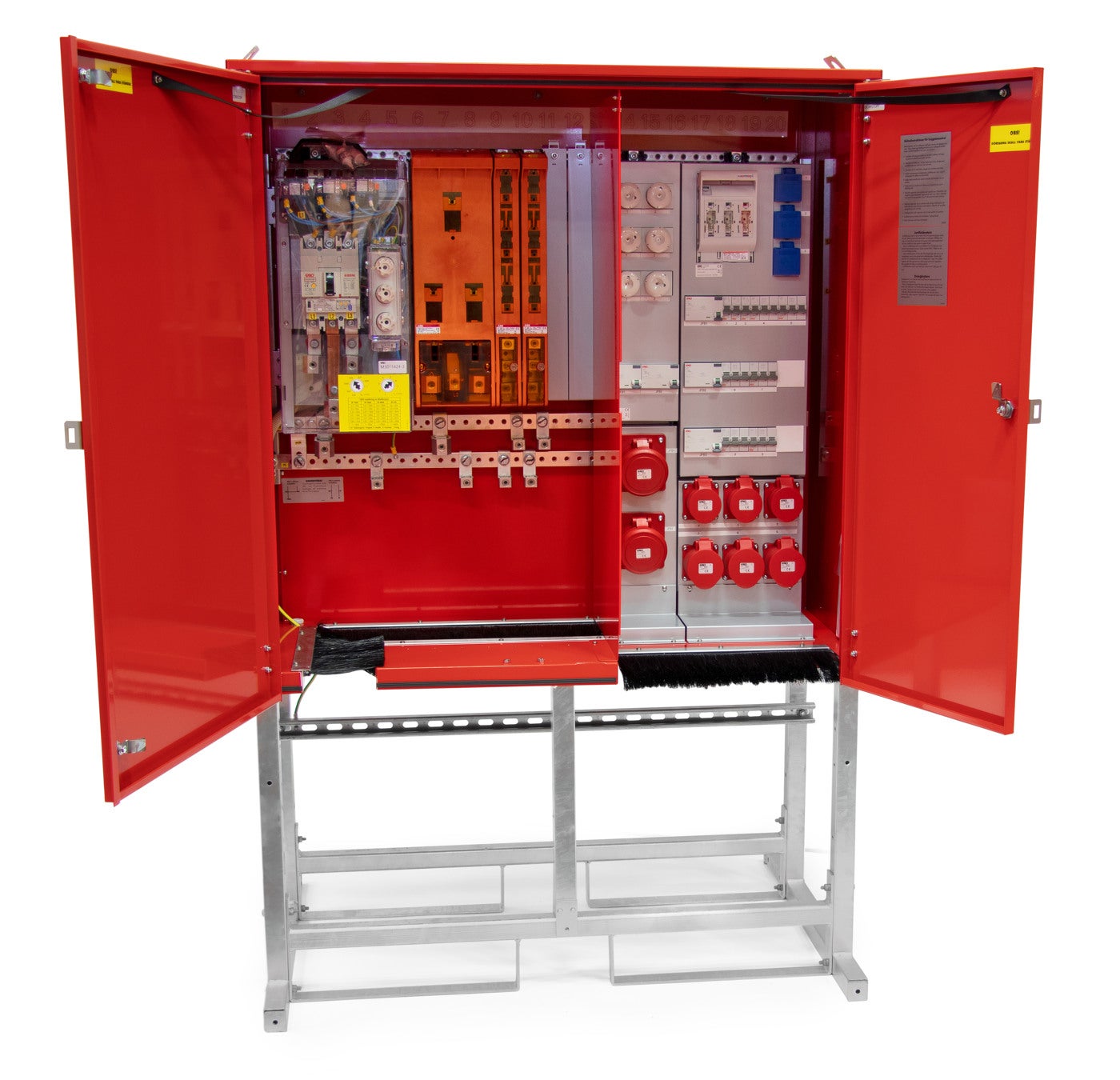

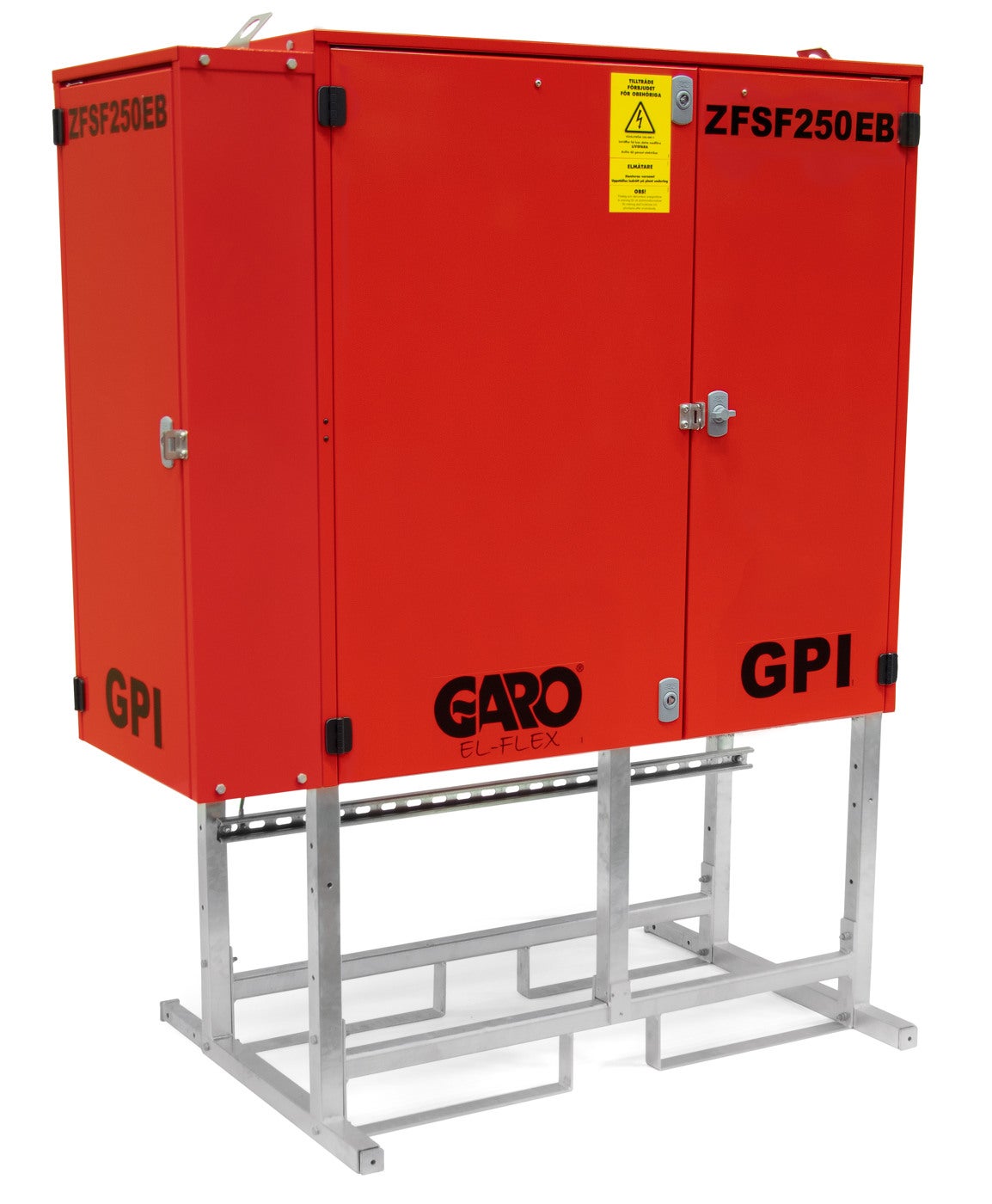

| Name | TEMP POWER MET UNIT 250A GPI/EB |
|---|---|
| E-number | E2469125 |
| Article number | 353728 |
| Type designation | ZFSF 250 GPI/EB/12/23303 |
| CEE socket outlet 16A | 3pcs 5P 16A 230/400V |
| Number of MCB 1P (1) | 3pcs C332 |
| Number of MCB 1P (2) | 3pcs C316 |
| Number of MCB 3P (1) | 3pcs C332 |
| Number of RCCB [pcs] 1 | 2pcs 4P 63A 300mA |
| CEE socket outlet 32A | 3pcs 5P 32A 230/400V |
| Fixed connection NH00 | 2X160A |
| Fixed connection NH1-2 | 1x250A |
| NetProductWeight | 224 |
| EngineerWidth | 1305 |
