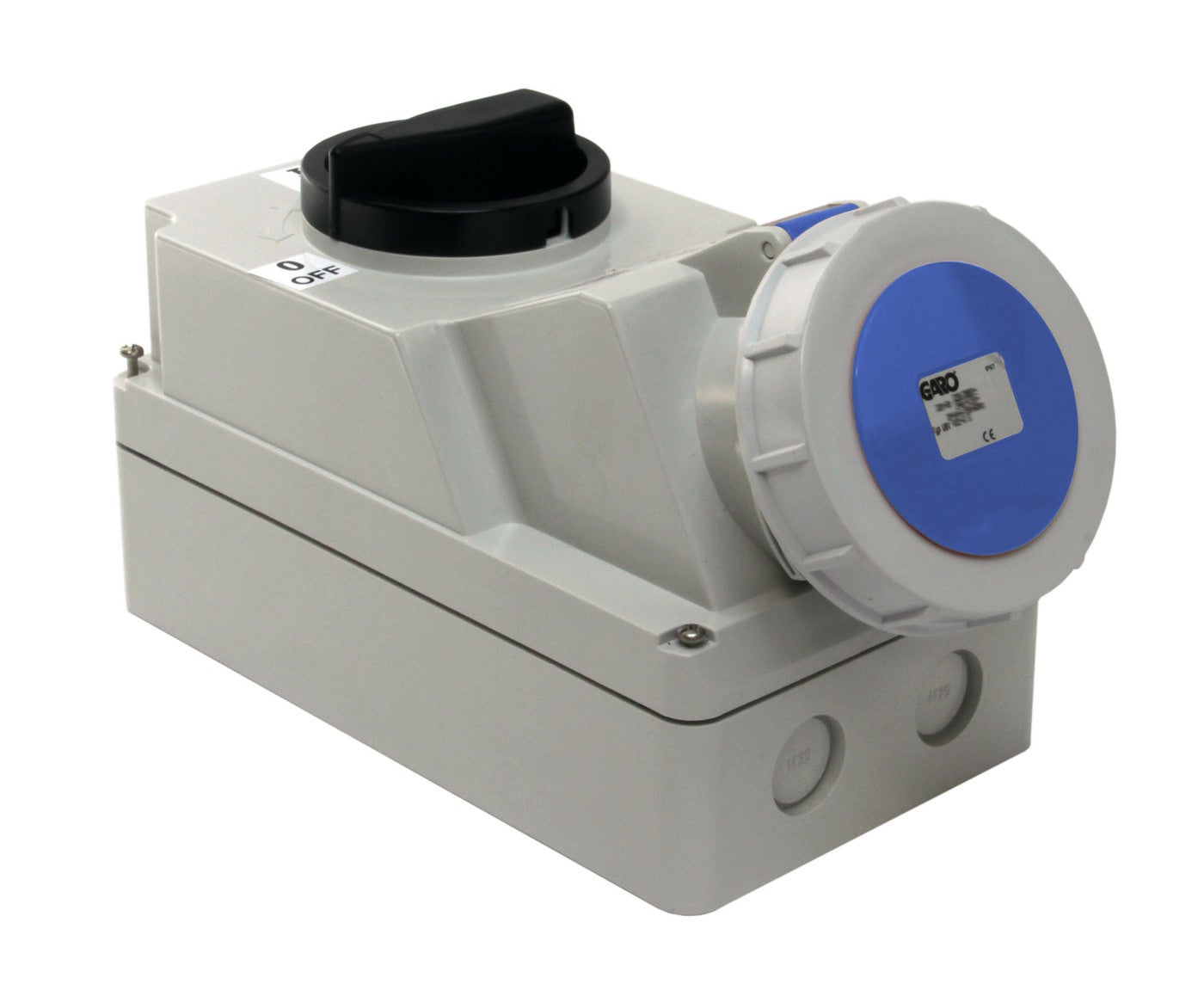

• INTERLOCKED SOCKET 3P 32A 6h WT - 1

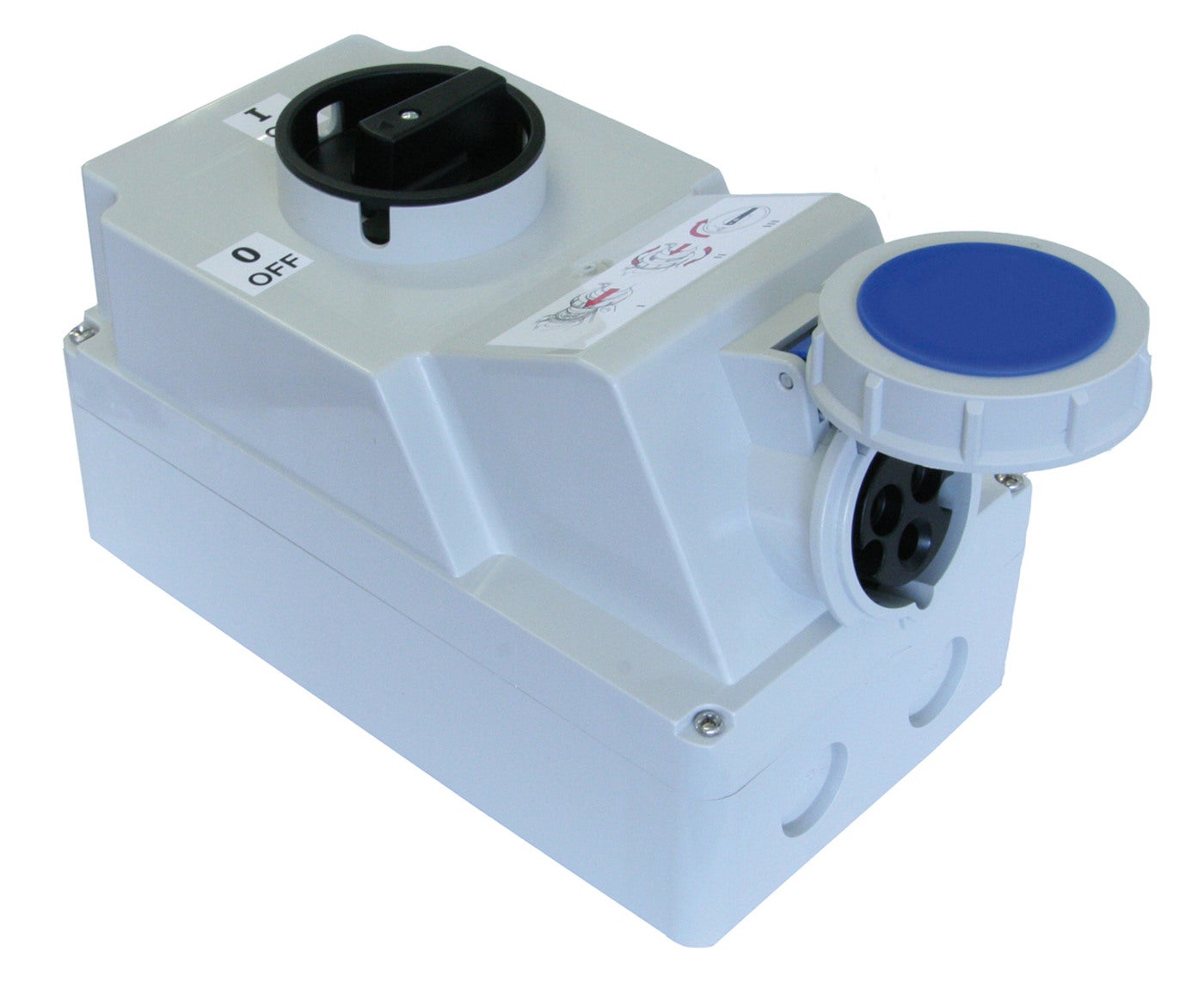

  • INTERLOCKED SOCKET 3P 32A 6h WT - 2

Interlocked socket 32A IP67

GARO’s interlocked socket in a waterproof design for wall mounting with one IEC/CEE socket on the front panel is lockable in open and closed positions, ample connection area with knockouts at the top and bottom. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Interlocked socket 3-poles 32A 6h watertight
E-number
E2425806
Article number
2425806
Support
Standard EN61439-4
Frequency [Hz] 50/60Hz
Housing material Plastic
Rated current [A] 32A
Earthing terminal block Yes
Knockouts Ø25 Down [pcs] 2x25
Knockouts Ø25 Up [pcs] 1x25
Degree of protection [IP] IP67
Name INTERLOCKED SOCKET 3P 32A 6h WT
E-number E2425806
Article number 2425806
Type designation UBV 232-6 S
Color Blue
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E
Clock hour position [h] 6h

More variants of Interlocked socket 32A IP67

E-number Article number Type designation Color Rated voltage [V AC] Number of poles Clock hour position [h]
INTERLOCKED SOCKET 3P 32A 6h WT E2425806 2425806 UBV 232-6 S Blue 200-250V AC 3/2P+E 6h

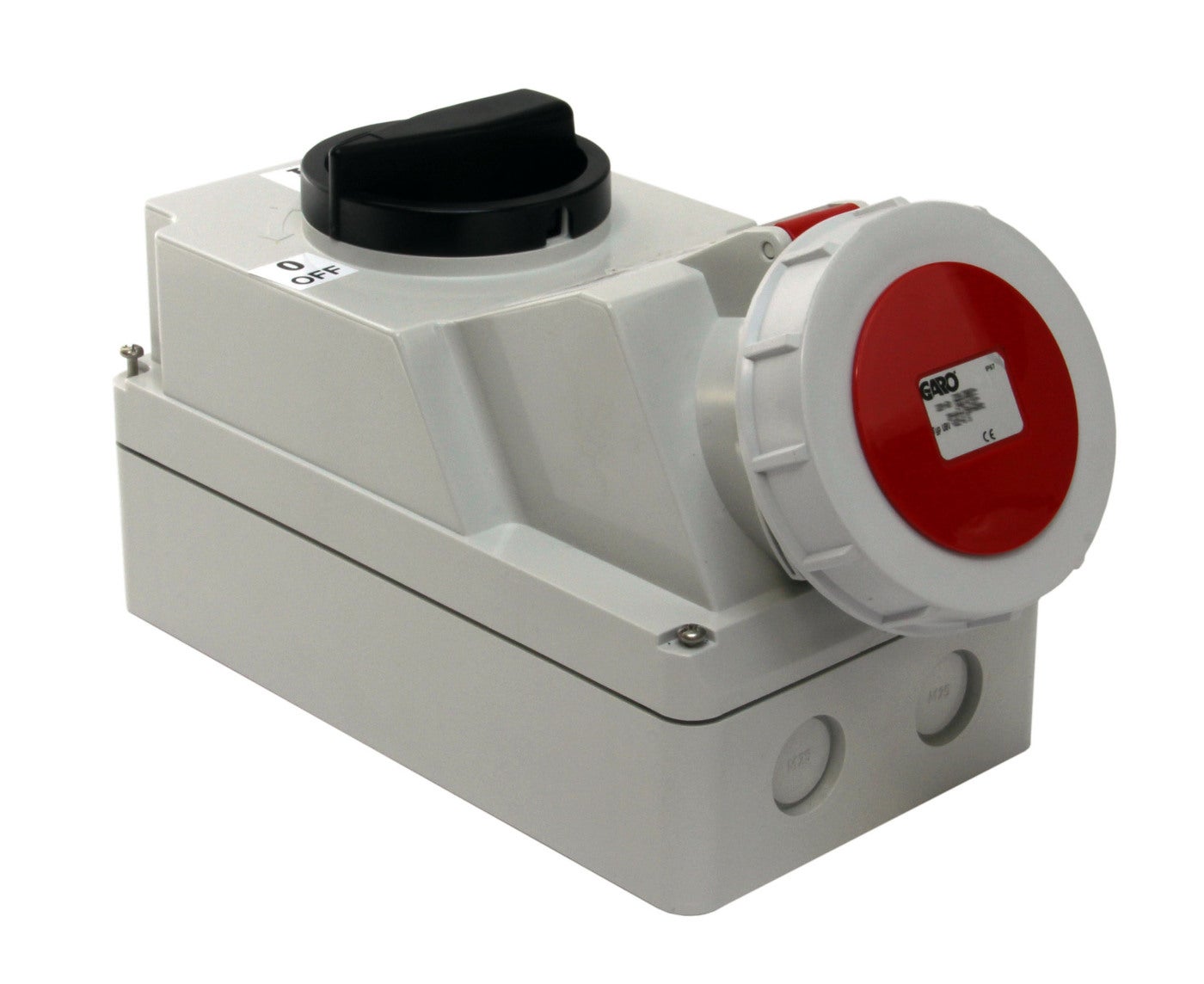

INTERLOCKED SOCKET 4P 32A 3h WT E2425808 2425808 UBV 332-3 S Red 380-440V AC 4/3P+E 3h
INTERLOCKED SOCKET 4P 32A 6h WT E2425810 2425810 UBV 332-6 S Red 400V AC 4/3P+E 6h

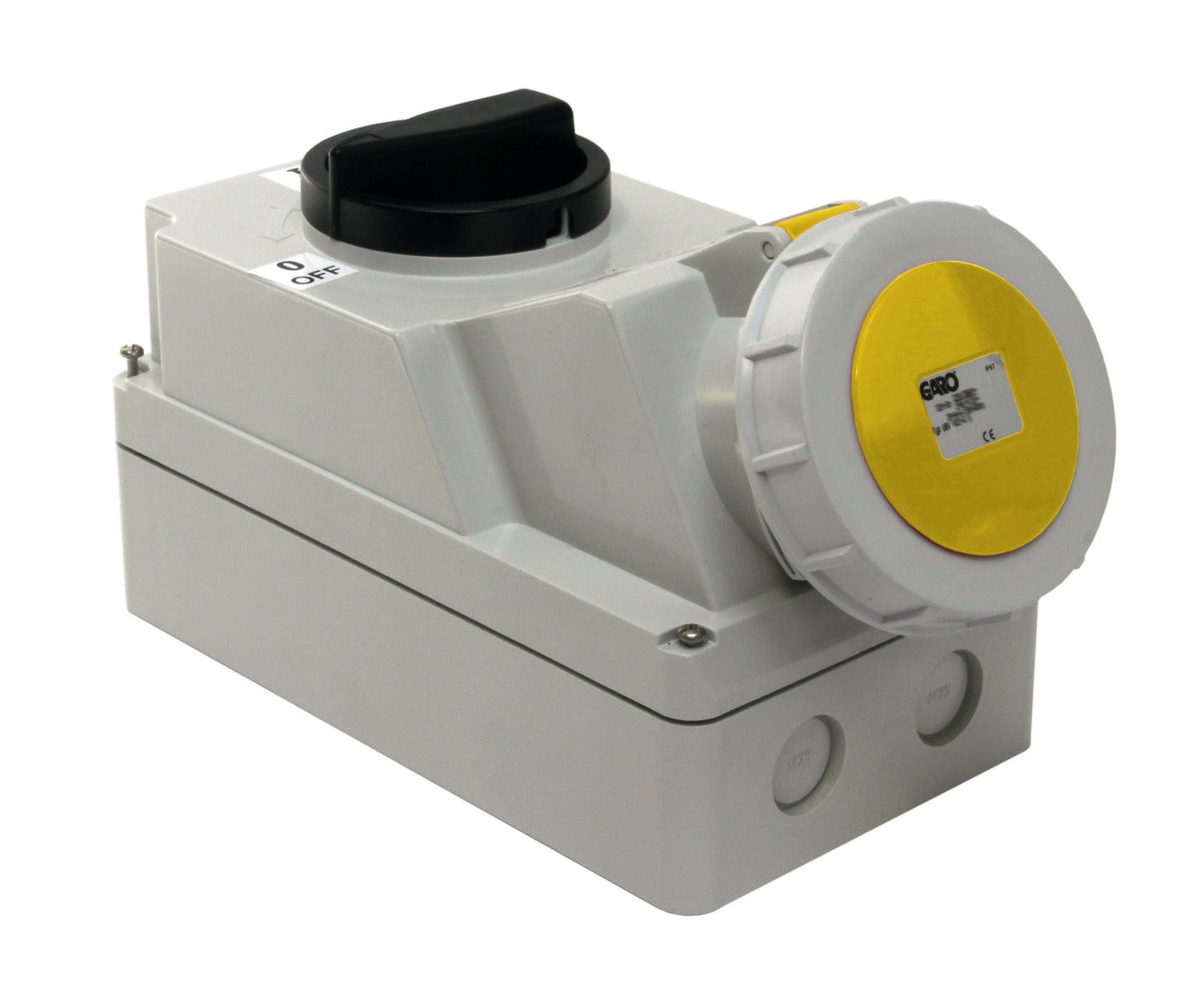

INTERLOCKED SOCKET 5P 32A 4h WT E2425813 2425813 UBV 432-4 S Yellow 100-130V AC 5/3P+N+E 4h
INTERLOCKED SOCKET 5P 32A 6h WT E2425814 2425814 UBV 432-6 S Red 230/400V AC 5/3P+N+E 6h
