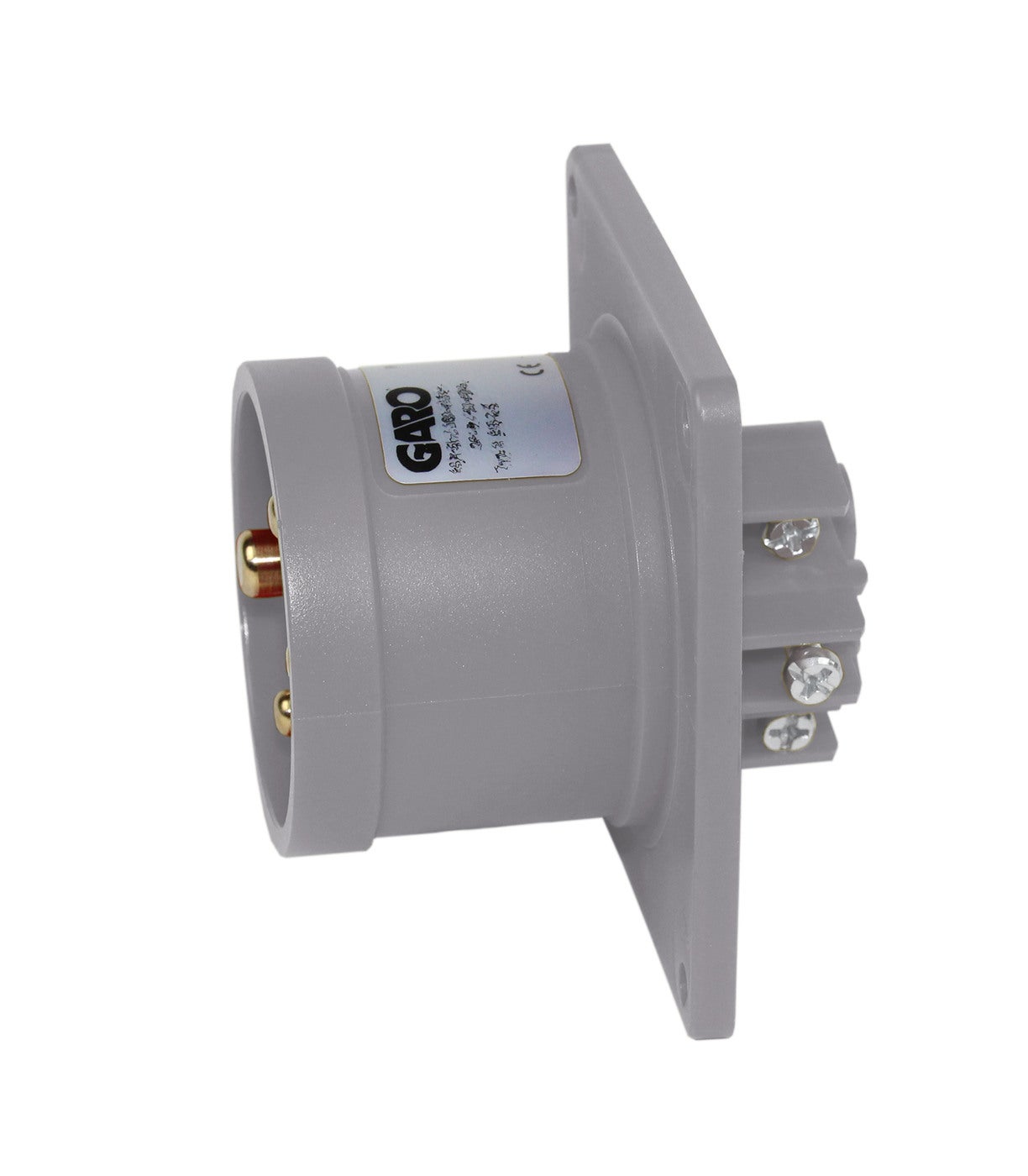

INLET STRAIGHT 3P 16A 3h

Flanged plugs Basic Straight 16A IP44

Basic, our standard range with a screw function. Wall socket 16A recess mounting with straight mounting plate. Supplied including seal. Inlet straight basic 3-poles 16A 3h
E-number
E2425280
Article number
2425280
Support
Materials Plastic
Standard EN60309-2
Rated current [A] 16A
Wire flexible [mm²] 1-2,5mm²
Modelltype Basic
Contact plating Untreated
Plug angle Straight
Pin/Sleeve Pin
Degree of protection [IP] IP44
Name INLET STRAIGHT 3P 16A 3h
E-number E2425280
Article number 2425280
Type designation II 216-3 S
Frequency [Hz] DC
Color Grey
Rated voltage [V AC] >50-250V AC
Number of poles 3/2P+E
RAL-number RAL7046
Clock hour position [h] 3h

More variants of Flanged plugs Basic Straight 16A IP44

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
INLET STRAIGHT 3P 16A 3h E2425280 2425280 II 216-3 S DC Grey >50-250V AC 3/2P+E RAL7046 3h
INLET STRAIGHT 3P 16A 4h E2425281 2425281 II 216-4 S 50/60Hz Yellow 100-130V AC 3/2P+E RAL1023 4h

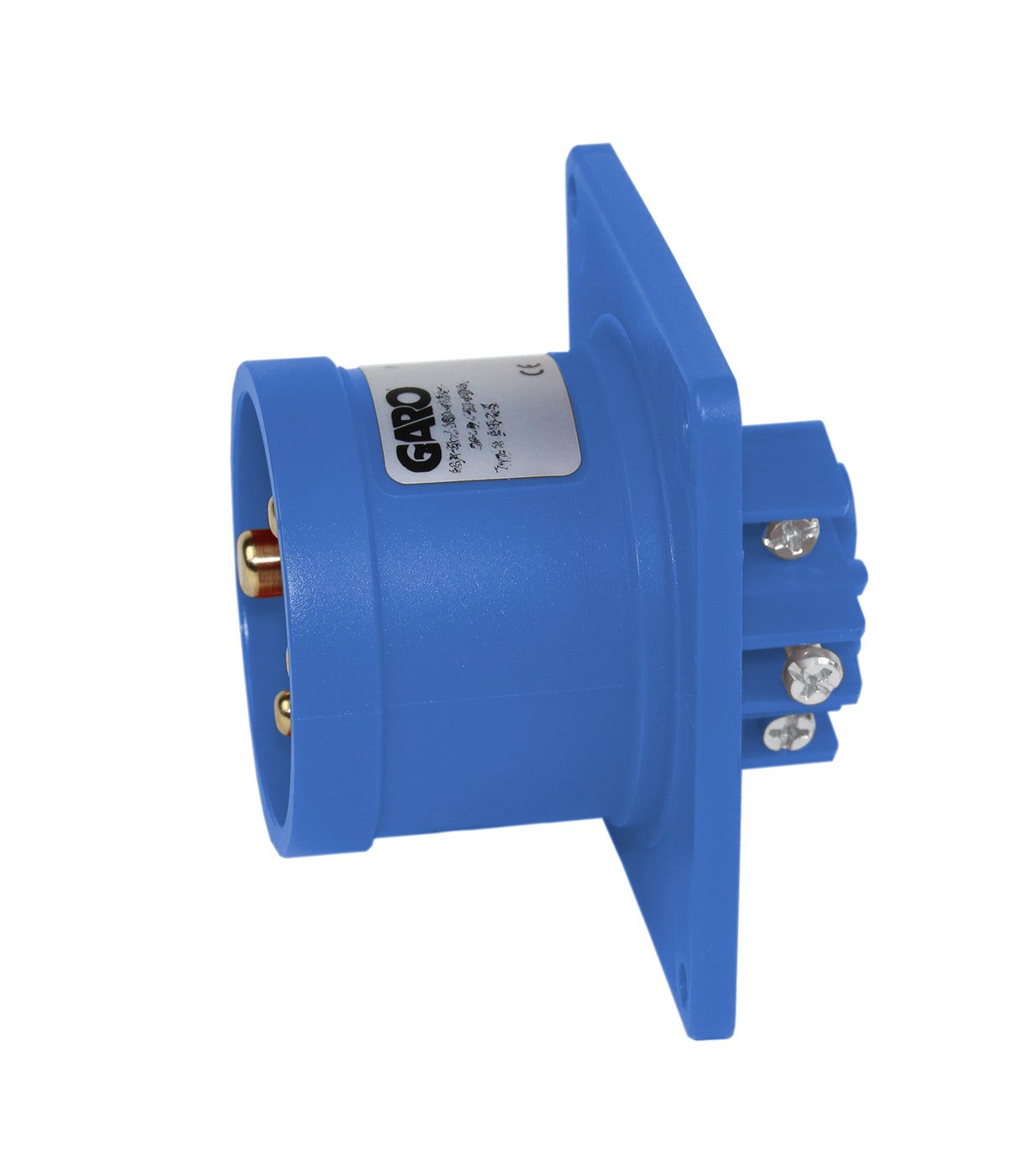

INLET STRAIGHT 3P 16A 6h E2425283 2425283 II 216-6 S 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h 0.09 190 140 290

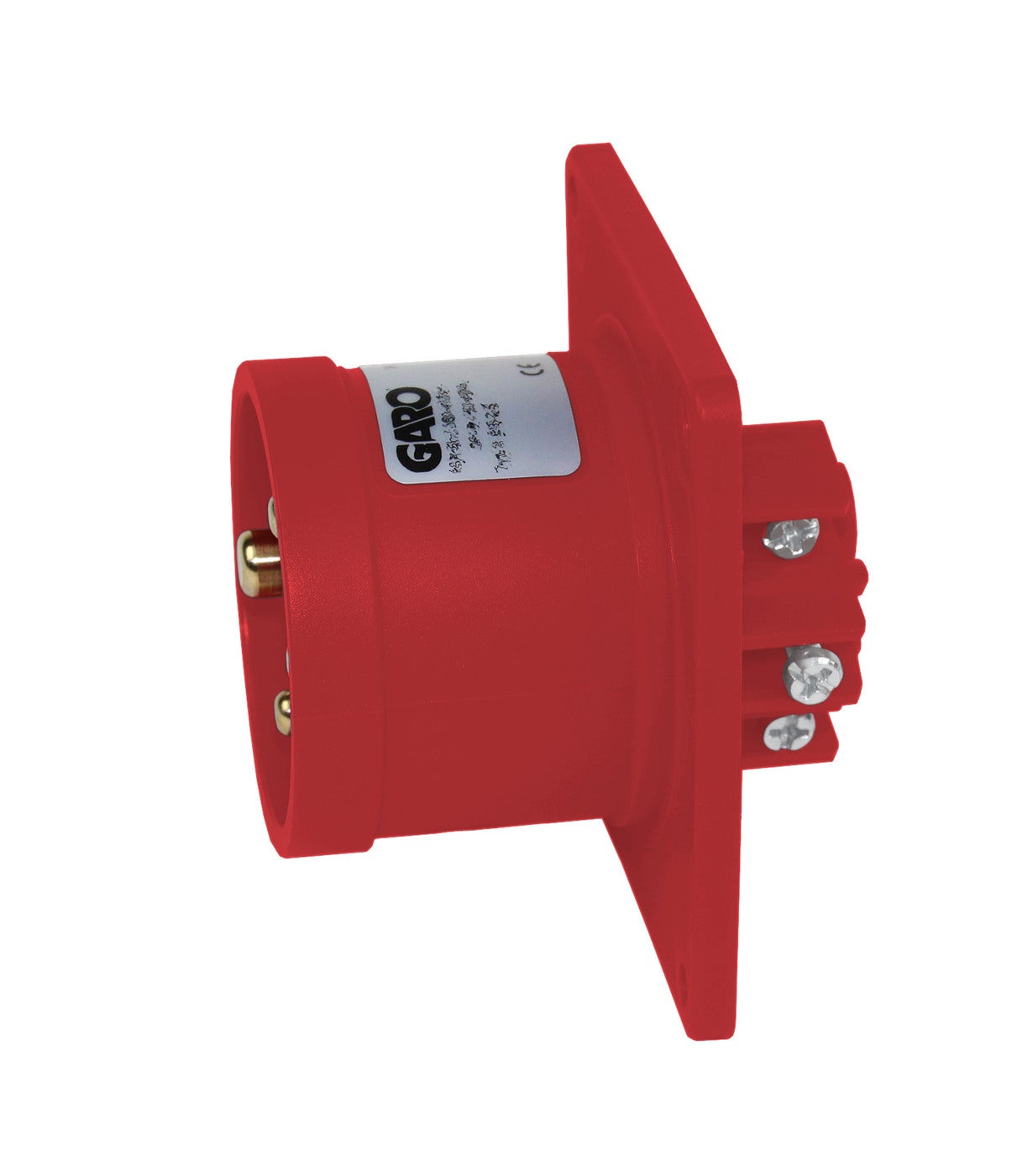

INLET STRAIGHT 3P 16A 9h E2425285 2425285 II 216-9 S 50/60Hz Red 380-415V AC 3/2P+E RAL3000 9h
INLET STRAIGHT 4P 16A 2h E2425287 2425287 II 316-2 S 300-500Hz Green >50V AC 4/3P+E RAL6010 2h
INLET STRAIGHT 4P 16A 3h E2425288 2425288 II 316-3 S 50/60Hz Red 380-440V AC 4/3P+E RAL3000 3h

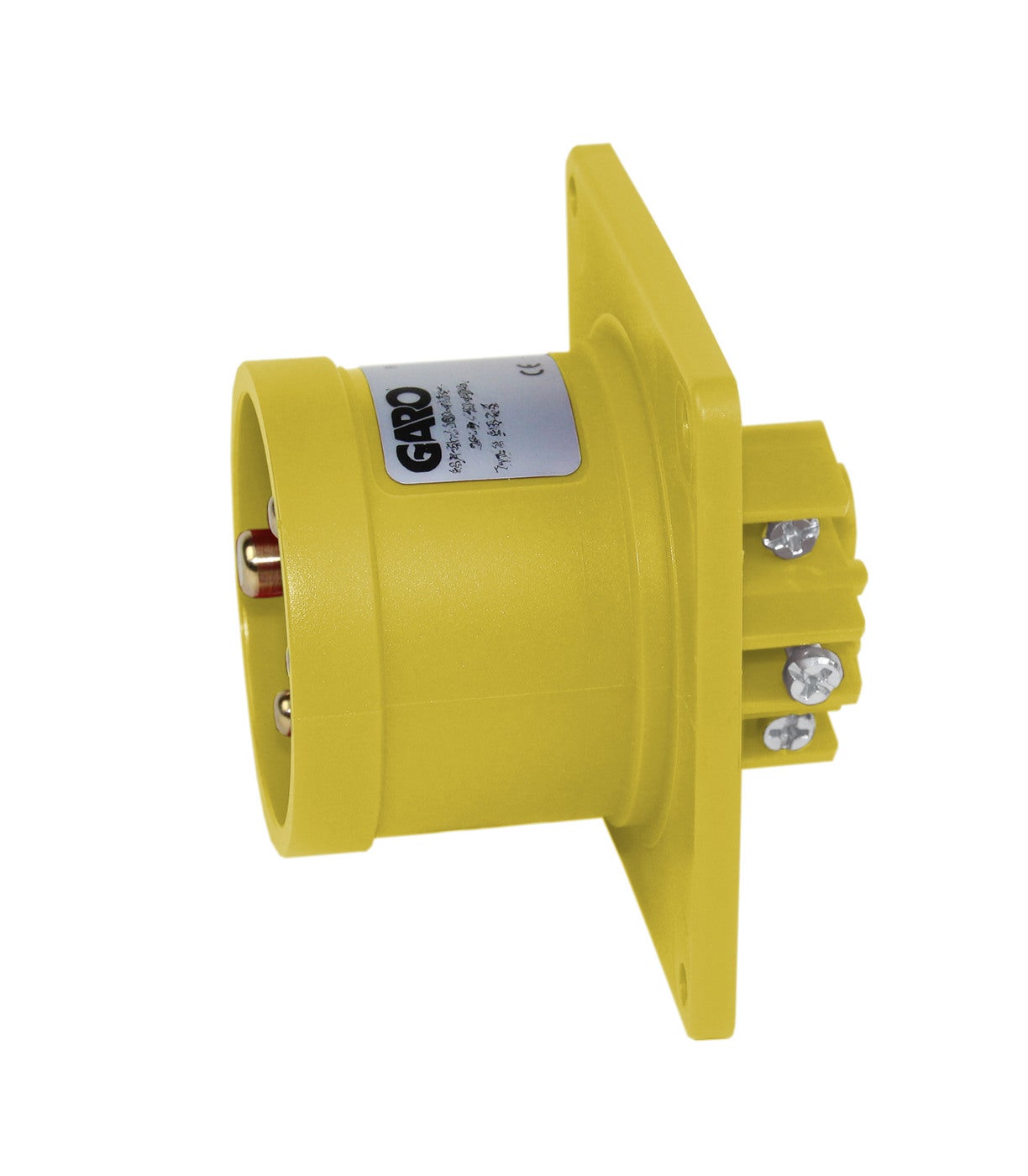

INLET STRAIGHT 4P 16A 4h E2425289 2425289 II 316-4 S 50/60Hz Yellow 100-130V AC 4/3P+E RAL1023 4h
INLET STRAIGHT 4P 16A 6h E2425290 2425290 II 316-6 S 50/60Hz Red 400V AC 4/3P+E RAL3000 6h
INLET STRAIGHT 4P 16A 7h E2425291 2425291 II 316-7 S 50/60Hz Black 480-500V AC 4/3P+E RAL9005 7h
INLET STRAIGHT 4P 16A 9h E2425292 2425292 II 316-9 S 50/60Hz Blue 230V AC 4/3P+E RAL5017 9h
INLET STRAIGHT 4P 16A 11h E2425294 2425294 II 316-11 S 60Hz Red 440-460V AC 4/3P+E RAL3000 11h
INLET STRAIGHT 5P 16A 2h E2425295 2425295 II 416-2 S 300-500Hz Green >50V AC 5/3P+N+E RAL6010 2h
INLET STRAIGHT 5P 16A 3h E2425296 2425296 II 416-3 S 50/60Hz Red 380-440V AC 5/3P+N+E RAL3000 3h

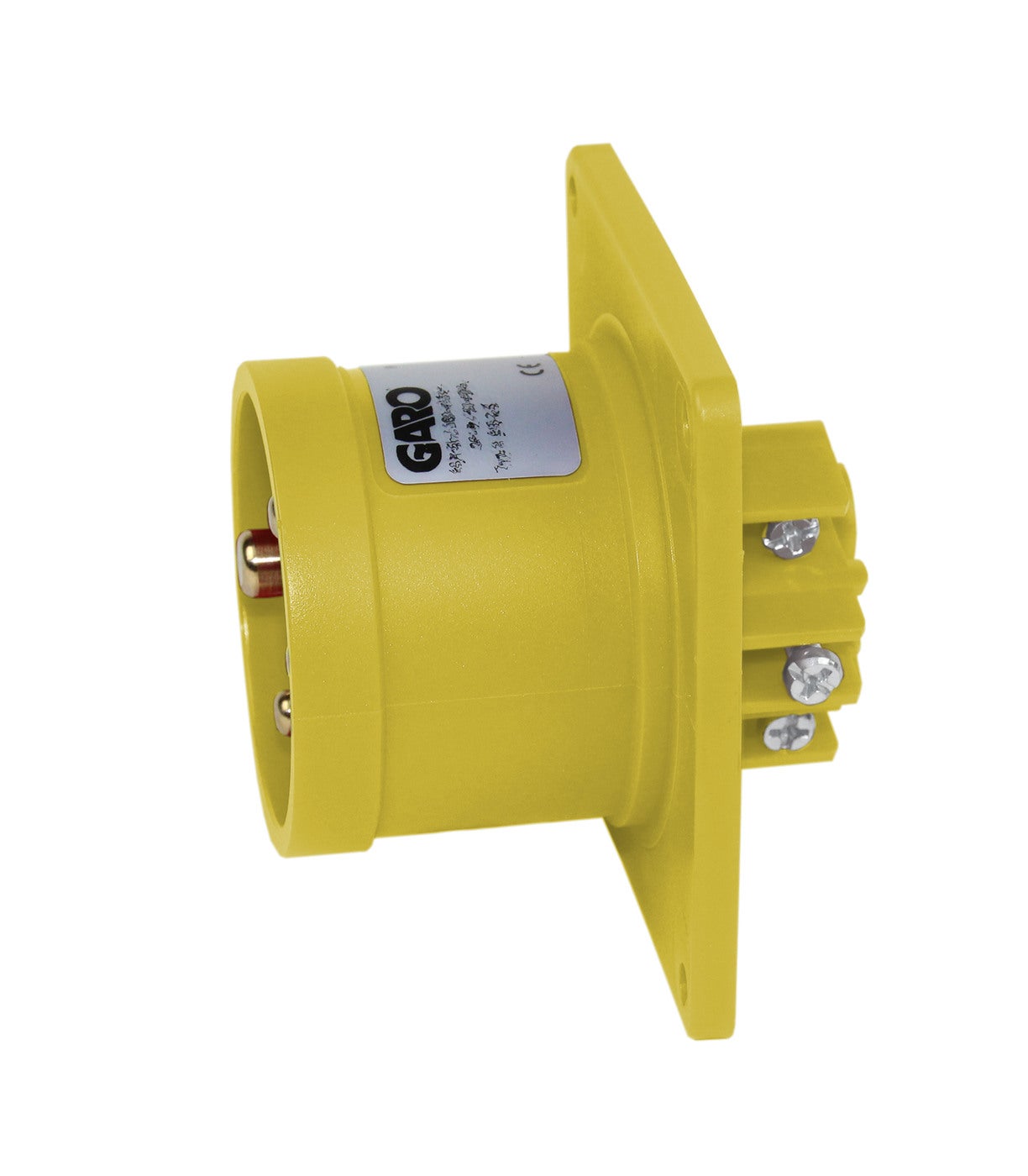

INLET STRAIGHT 5P 16A 4h 2425297 2425297 II 416-4 S 50/60Hz Yellow 100-130V AC 5/3P+N+E RAL1023 4h
INLET STRAIGHT 5P 16A 6h E2425298 2425298 II 416-6 S 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h 0.11 75 75 62

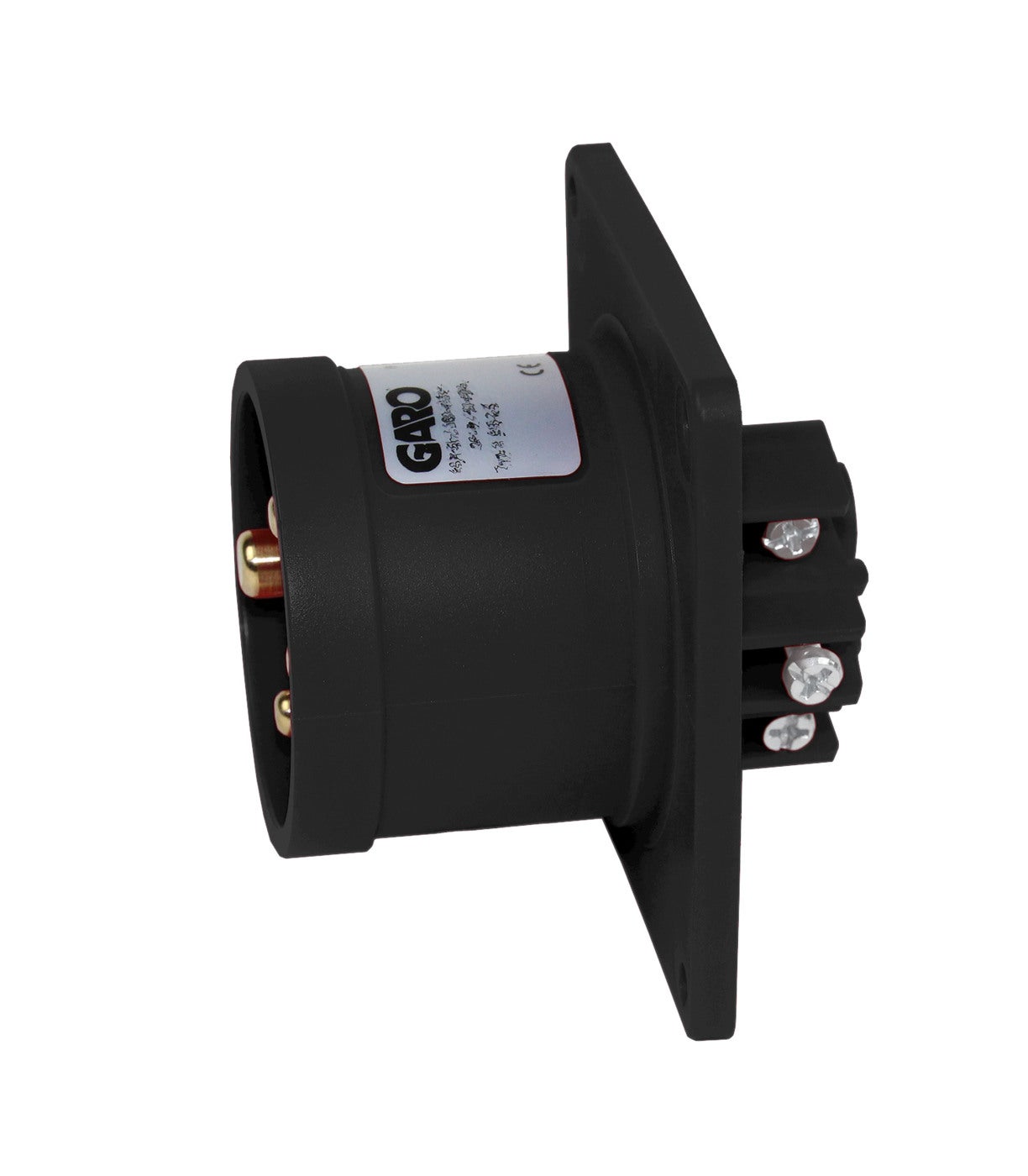

INLET STRAIGHT 5P 16A 7h E2425299 2425299 II 416-7 S 50/60Hz Black 480-500V AC 5/3P+N+E RAL9005 7h
INLET STRAIGHT 5P 16A 9h E2425300 2425300 II 416-9 S 50/60Hz Blue 208-250V AC 5/3P+N+E RAL5017 9h
INLET STRAIGHT 5P 16A 11h E2425301 2425301 II 416-11 S 60Hz Red 440-460V AC 5/3P+N+E RAL3000 11h
