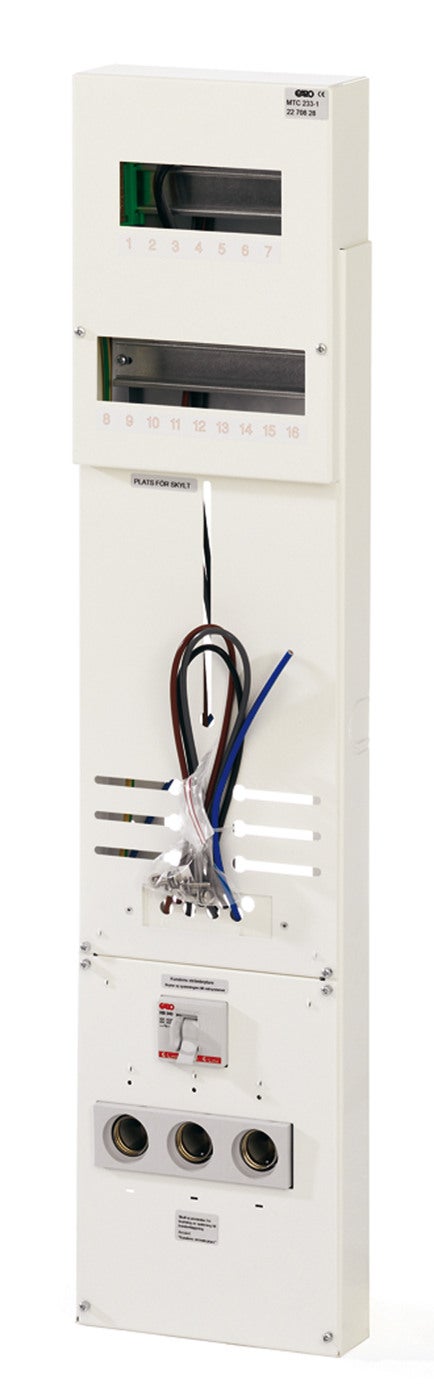

METERBOARD 3P 40A 1PL 16MOD

Meterboard with consumer unit 3P

A practical meter board where customer's power switches are located under the sealable protection by the meter fuses, but break the switchgear above the meter. Meter panel combi with switch and fuse 1-place 2 40A 3phase 16modules.
E-number
E2270828
Article number
2270828
Support
Type designation MTC 233-1
Standard SS 430 01 01
Housing material Sheet steel
Color White
Rated current [A] 25A
Mounting method Wall mounting
RAL-number RAL9010
Connection N [pcs] 11
Connection PE [pcs] 11
Switch [pcs] 1pcs 40A
Incoming terminal [mm²] 5x35mm² Cu
Degree of protection [IP] IP30C
NetProductWeight 5.6
EngineerWidth 205
EngineerHeight 890
EngineerDepth 60
Name METERBOARD 3P 40A 1PL 16MOD
E-number E2270828
Article number 2270828

Manual

Accessories for Meterboard with consumer unit 3P

Name E-number Article number Type designation Description
MAIN SWITCH 3P 40A MAIN SWITCH 3P 40A E2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SWITCH 4P 40A MAIN SWITCH 4P 40A E2142855 2142855 HB 440 Main switch modular 40A 4-pole
MAIN SWITCH 3P 80A MAIN SWITCH 3P 80A E2142856 2142856 HB 380 Main switch modular 80A 3-pole
MAIN SWITCH 4P 80A MAIN SWITCH 4P 80A E2142857 2142857 HB 480 Main switch modular 80A 4-pole
FUSE BASE 1P DII FUSE BASE 1P DII E2260420 2260420 DII Fuse base DII 1 poles 25A 50mm
FUSE BASE 1P DIII FUSE BASE 1P DIII E2260422 2260422 DIII Fuse base DIII 1 poles 63A 52,5mm
TERMINAL BLOCK 5x95 TERMINAL BLOCK 5x95 E2270622 2270622 KACL 595
TBS AL/CU CONNECTION SET TBS AL/CU CONNECTION SET E2270628 2270628 TBS Connectionset TBS Al/Cu
FUSE SEALING II FUSE SEALING II E2270888 2270888 SH II Fuse sealing II
FUSE SEALING III FUSE SEALING III E2270889 2270889 SH III Fuse sealing III
SCREW KIT MFM1 SCREW KIT MFM1 E2270899 2270899 MFMI Screwkit MFM1
CONNECTION CLAMP KKP 416 CONNECTION CLAMP KKP 416 E2394700 2394700 KKP 416 Connection clamp 416
CONNECTION CLAMP KKP 435 L CONNECTION CLAMP KKP 435 L E2394701 2394701 KKP 435L Connection clamp 435L
