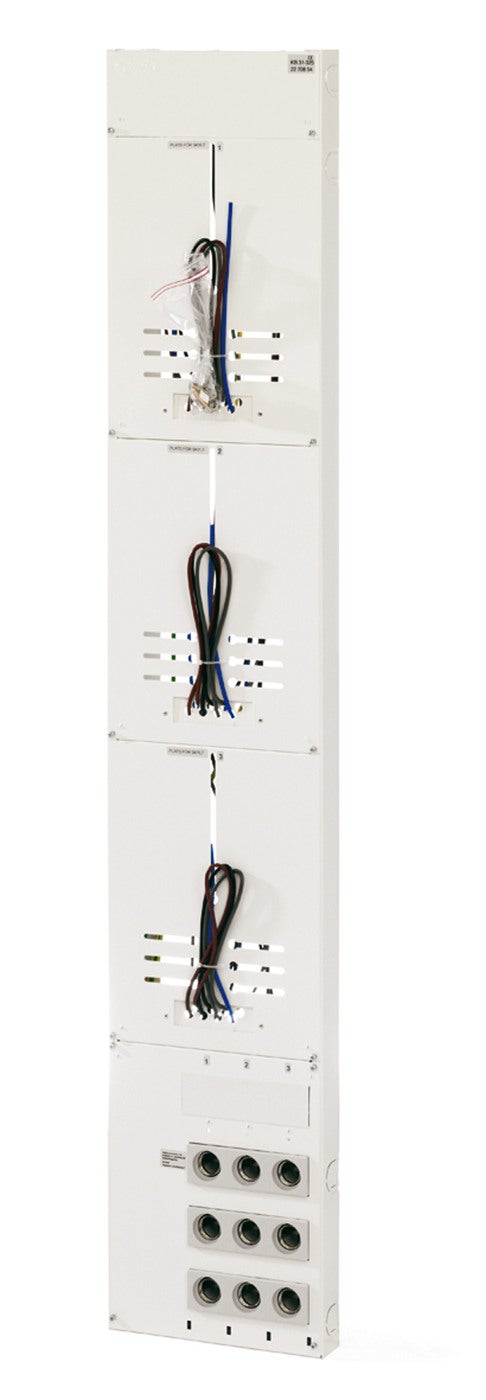

METERBOARD 3PH 25A 3R 3PL

Meterblock 3-poles H1490

The metering block can be connected to 3-phase with max 35mm² CU cable.But with accessories E2270628 TBS 50mm² AI cable. Meter board 25A 3-phase 3rows 3-places
E-number
E2272210
Article number
354649
Support
Materials Sheet steel
Standard SS 430 01 01
Color White
Number of poles 3
Incoming terminal [mm²] 5x35mm² Cu
Connection Cu/Al 16mm² Al/Cu
Degree of protection [IP] IP30C
Name METERBOARD 3PH 25A 3R 3PL
E-number E2272210
Article number 354649
Type designation GMB 31-325
Space for meters [pcs] 3

More variants of Meterblock 3-poles H1490

E-number Article number Type designation Space for meters [pcs]
METERBOARD 3PH 25A 3R 3PL E2272210 354649 GMB 31-325 3

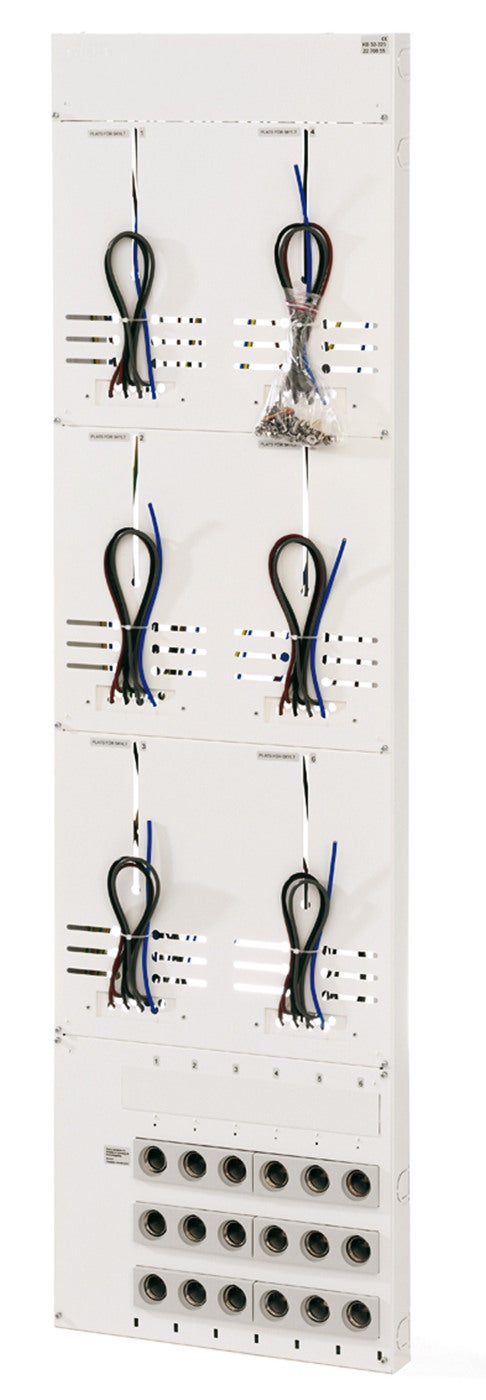

METERBOARD 3PH 25A 3R 6PL E2272211 354650 GMB 32-325 6
E2272212 354651 GMB 33-325 9

Accessories for Meterblock 3-poles H1490

Name E-number Article number Type designation Description
MAIN SWITCH 3P 40A MAIN SWITCH 3P 40A E2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SWITCH 4P 40A MAIN SWITCH 4P 40A E2142855 2142855 HB 440 Main switch modular 40A 4-pole
MAIN SWITCH 3P 80A MAIN SWITCH 3P 80A E2142856 2142856 HB 380 Main switch modular 80A 3-pole
MAIN SWITCH 4P 80A MAIN SWITCH 4P 80A E2142857 2142857 HB 480 Main switch modular 80A 4-pole
FUSE BASE 1P DII FUSE BASE 1P DII E2260420 2260420 DII Fuse base DII 1 poles 25A 50mm
FUSE BASE 1P DIII FUSE BASE 1P DIII E2260422 2260422 DIII Fuse base DIII 1 poles 63A 52,5mm
TERMINAL BLOCK 5x95 TERMINAL BLOCK 5x95 E2270622 2270622 KACL 595
TBS AL/CU CONNECTION SET TBS AL/CU CONNECTION SET E2270628 2270628 TBS Connectionset TBS Al/Cu
FUSE SEALING II FUSE SEALING II E2270888 2270888 SH II Fuse sealing II
FUSE SEALING III FUSE SEALING III E2270889 2270889 SH III Fuse sealing III
KKP 416 CONNECTION CLAMP KKP 416 CONNECTION CLAMP E2394700 2394700 KKP 416 Connection clamp 416
KKP 435 L CONNECTION CLAMP KKP 435 L CONNECTION CLAMP E2394701 2394701 KKP 435L Connection clamp 435L
