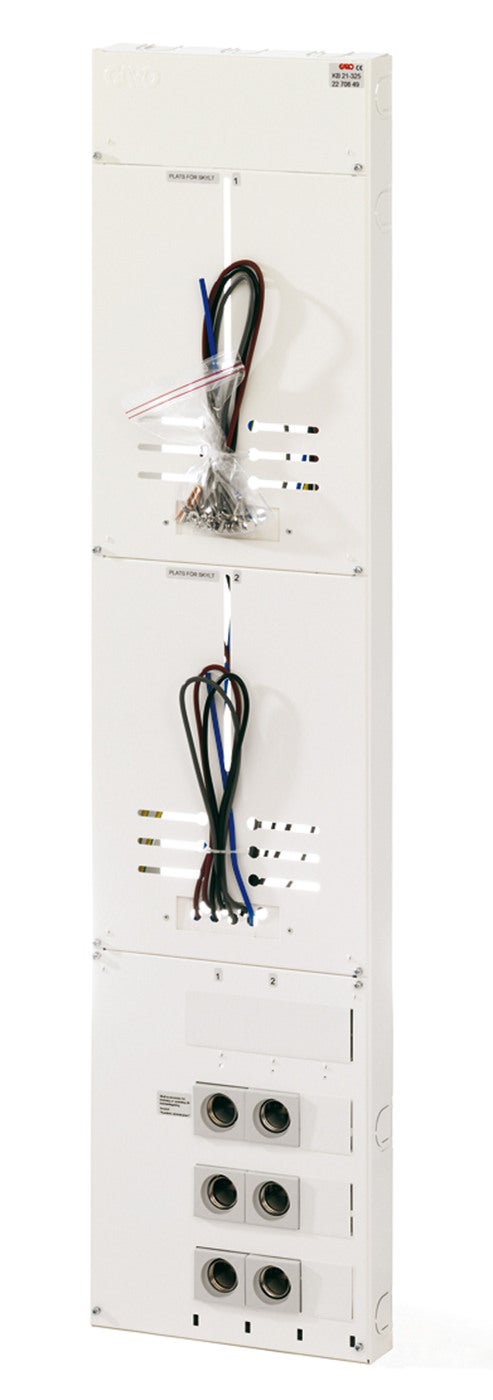

METERBOARD 3PH 25A 2R 2PL

Meterblock 3-poles H1140

The metering block can be connected to 3-phase with max 35mm² CU cable.But with accessories E2270628 TBS 50mm² AI cable. Meter board 3-phase 2rows 2 places 25A
E-number
E2272207
Article number
354646
Support
Materials Sheet steel
Standard SS 430 01 01
Color White
Number of poles 3
Incoming terminal [mm²] 5x35mm² Cu
Connection Cu/Al 16mm² Al/Cu
Degree of protection [IP] IP30C
Name METERBOARD 3PH 25A 2R 2PL
E-number E2272207
Article number 354646
Type designation GMB 21-325
Rated current [A] 25A
Space for meters [pcs] 2

More variants of Meterblock 3-poles H1140

E-number Article number Type designation Rated current [A] Space for meters [pcs]
METERBOARD 3PH 25A 2R 2PL E2272207 354646 GMB 21-325 25A 2

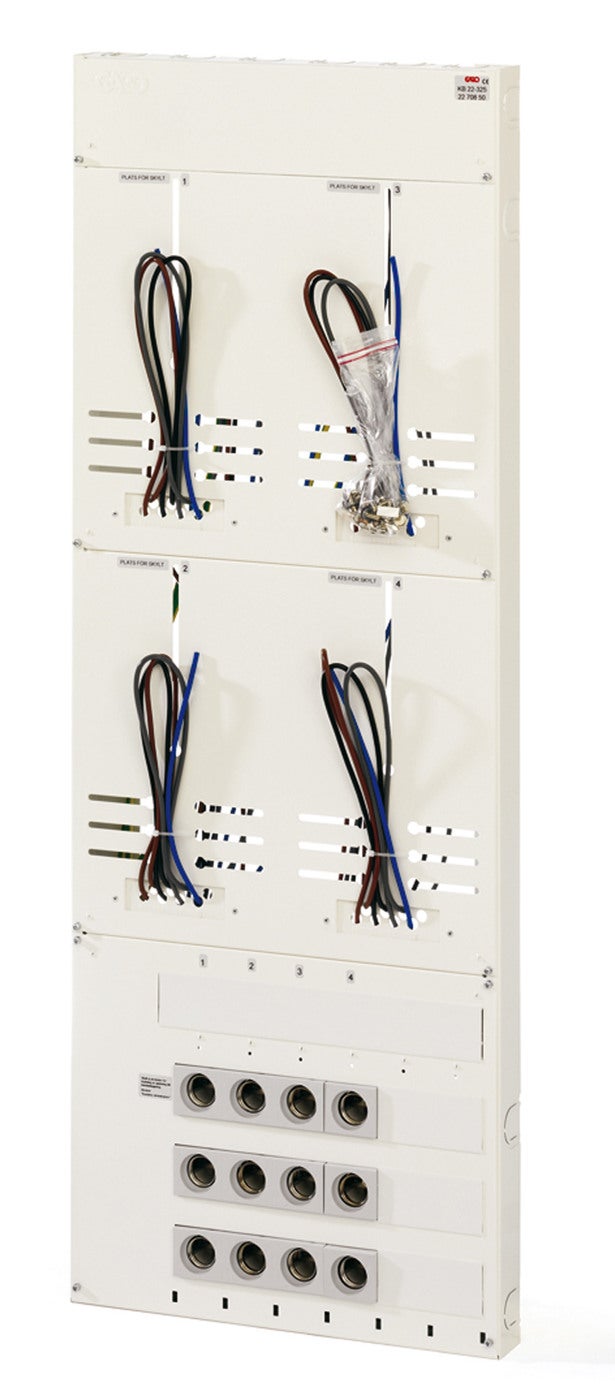

METERBOARD 3PH 25A 2R 4PL E2272208 354647 GMB 22-325 4

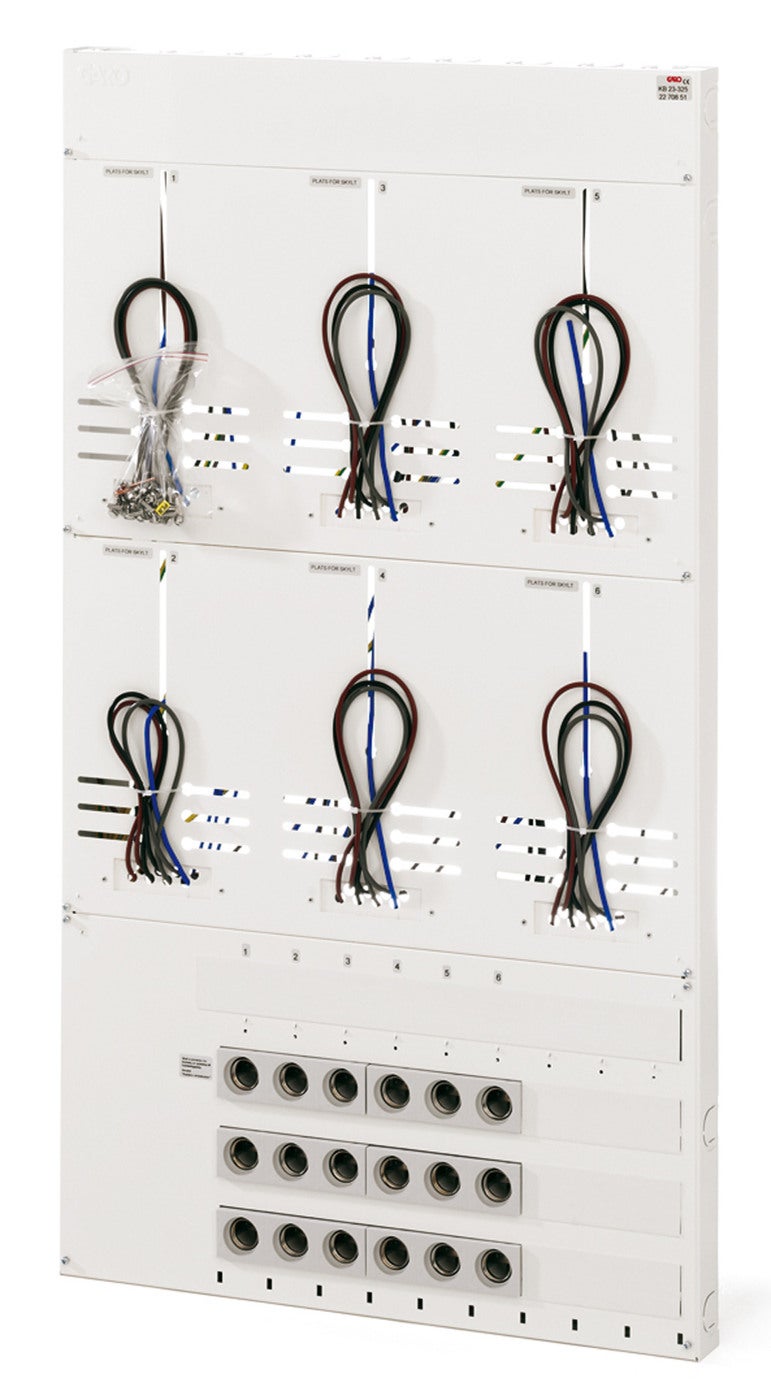

METERBOARD 3PH 25A 2R 6PL E2272209 354648 GMB 23-325 6

Accessories for Meterblock 3-poles H1140

Name E-number Article number Type designation Description
MAIN SWITCH 3P 40A MAIN SWITCH 3P 40A E2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SWITCH 4P 40A MAIN SWITCH 4P 40A E2142855 2142855 HB 440 Main switch modular 40A 4-pole
MAIN SWITCH 3P 80A MAIN SWITCH 3P 80A E2142856 2142856 HB 380 Main switch modular 80A 3-pole
FUSE BASE 1P DII FUSE BASE 1P DII E2260420 2260420 DII Fuse base DII 1 poles 25A 50mm
FUSE BASE 1P DIII FUSE BASE 1P DIII E2260422 2260422 DIII Fuse base DIII 1 poles 63A 52,5mm
TBS AL/CU CONNECTION SET TBS AL/CU CONNECTION SET E2270628 2270628 TBS Connectionset TBS Al/Cu
FUSE SEALING II FUSE SEALING II E2270888 2270888 SH II Fuse sealing II
FUSE SEALING III FUSE SEALING III E2270889 2270889 SH III Fuse sealing III
KKP 416 CONNECTION CLAMP KKP 416 CONNECTION CLAMP E2394700 2394700 KKP 416 Connection clamp 416
KKP 435 L CONNECTION CLAMP KKP 435 L CONNECTION CLAMP E2394701 2394701 KKP 435L Connection clamp 435L
