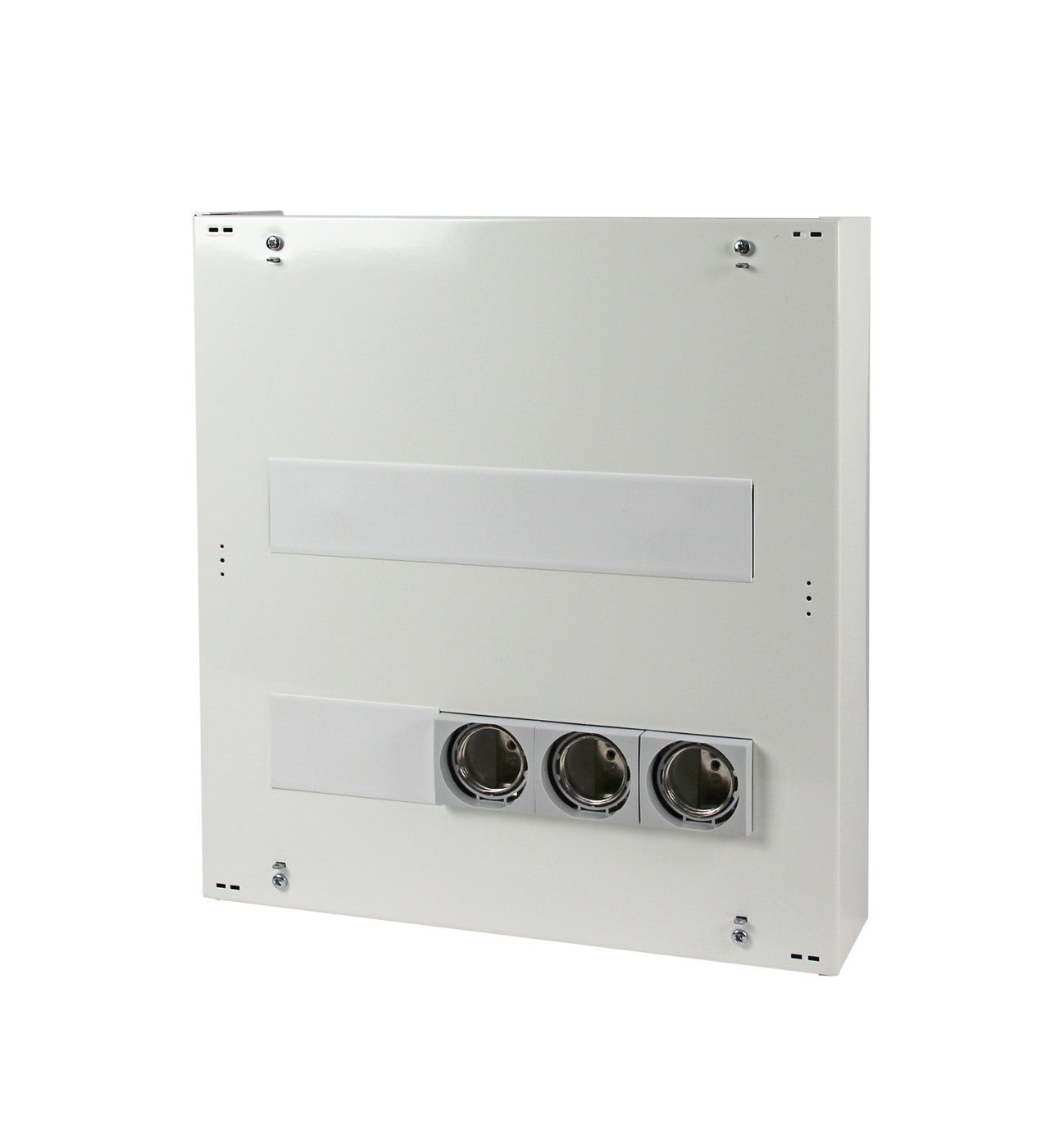

• INLET UNIT METER BOARD - 1

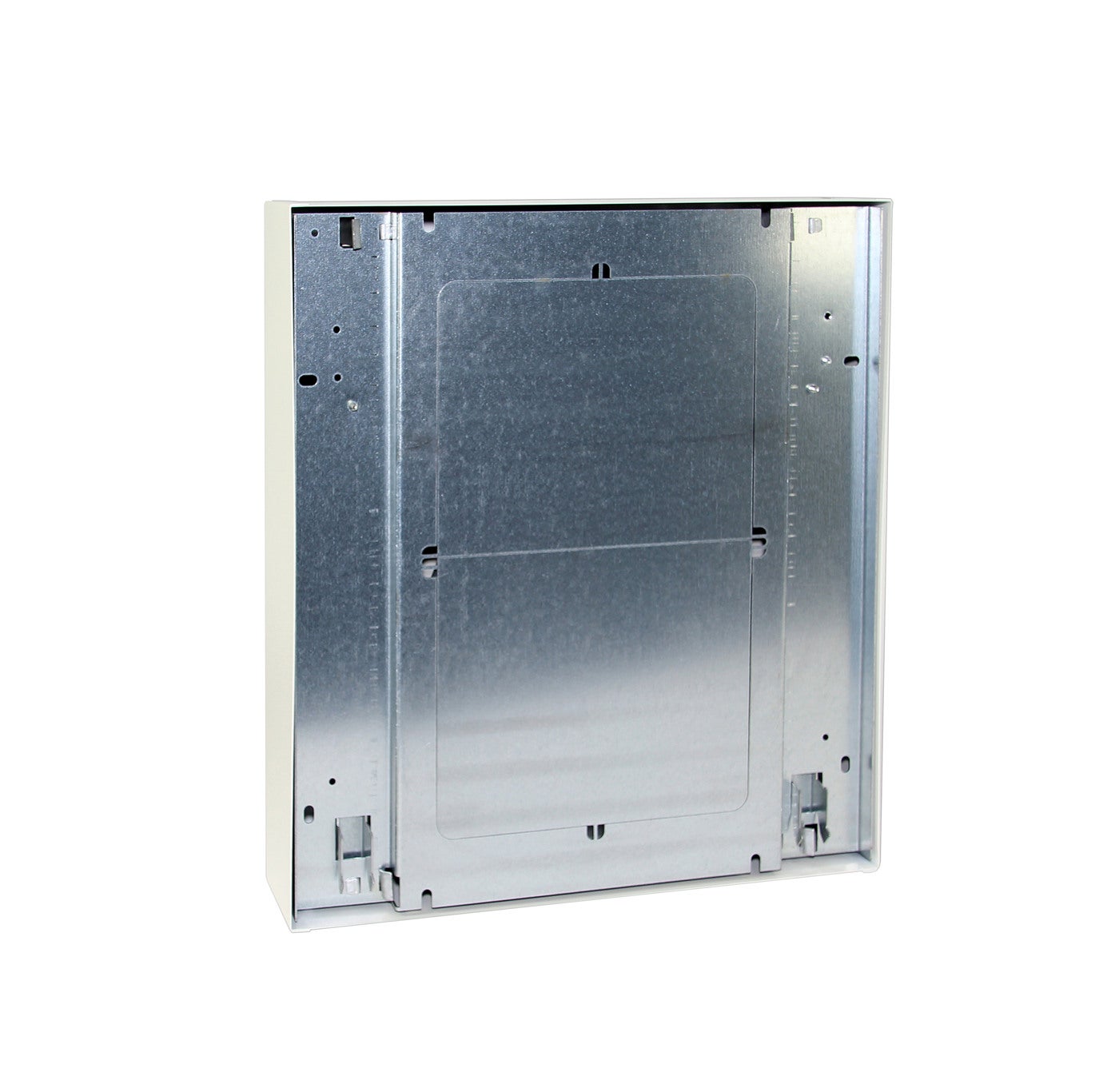

  • INLET UNIT METER BOARD - 2

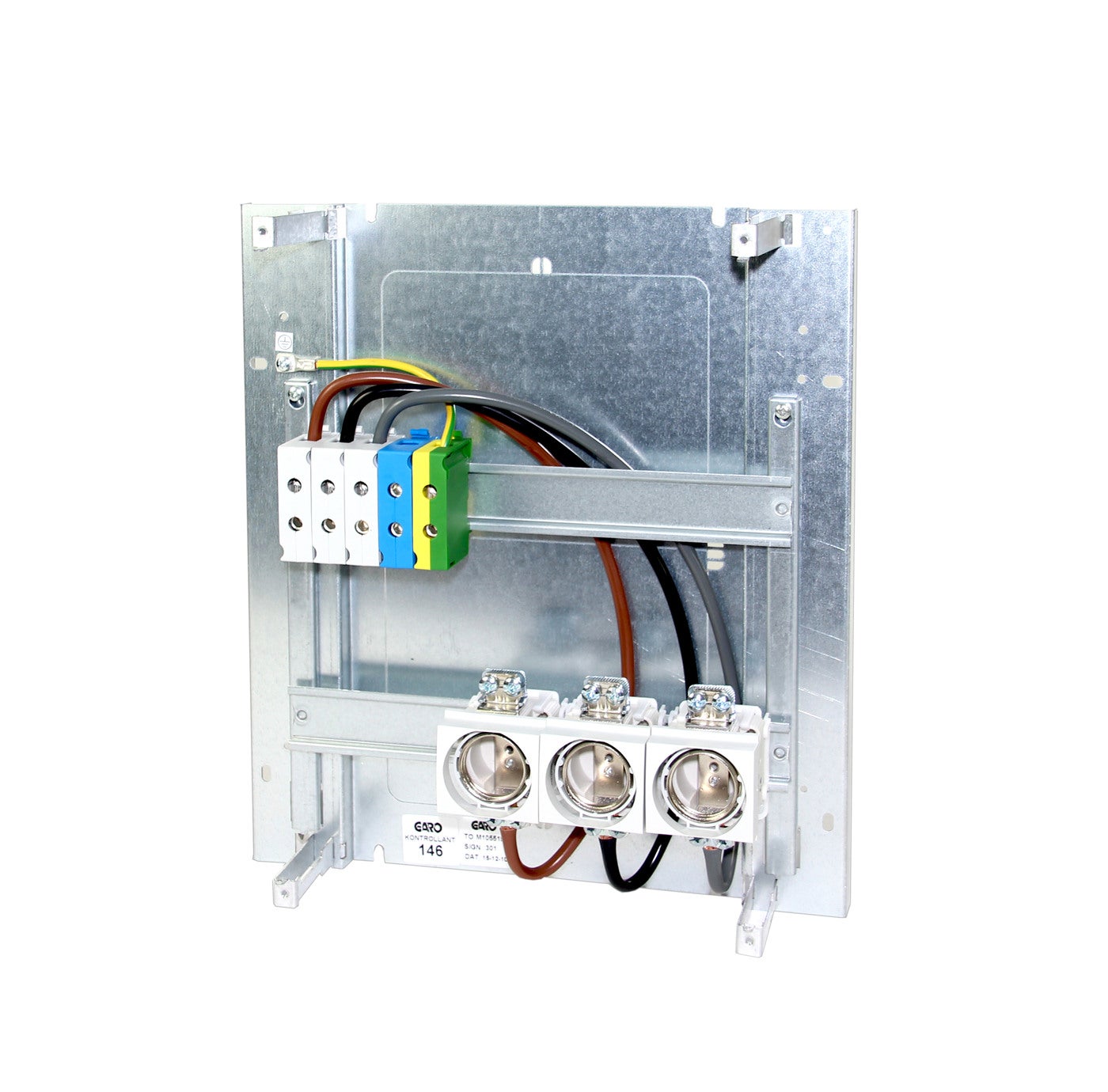

  • INLET UNIT METER BOARD - 3

Meter board Servis H370

For the possibility of main line input, when mounted along with the metering block. Main line fuse bases for the block is mounted in the enclosure. Inlet unit for meter board
E-number
E2200498
Article number
356089
Support
Type designation IME363
Materials Sheet steel
Standard SS 430 01 01
Color White
Incoming terminal [mm²] 50mm² Al/Cu
Degree of protection [IP] IP30C
NetProductWeight 4.5
EngineerWidth 335
EngineerHeight 370
EngineerDepth 108
Name INLET UNIT METER BOARD
E-number E2200498
Article number 356089

Accessories for Meter board Servis H370

MAIN SWITCH 3P 40A
MAIN SWITCH 3P 40A
E-number
E2142854
Article number
2142854
Type designation
HB 340
MAIN SWITCH 4P 40A
MAIN SWITCH 4P 40A
E-number
E2142855
Article number
2142855
Type designation
HB 440
MAIN SWITCH 3P 80A
MAIN SWITCH 3P 80A
E-number
E2142856
Article number
2142856
Type designation
HB 380
MAIN SWITCH 4P 80A
MAIN SWITCH 4P 80A
E-number
E2142857
Article number
2142857
Type designation
HB 480
FUSE BASE 1P DII
FUSE BASE 1P DII
E-number
E2260420
Article number
2260420
Type designation
DII
FUSE BASE 1P DIII
FUSE BASE 1P DIII
E-number
E2260422
Article number
2260422
Type designation
DIII
TERMINAL BLOCK 5x95
TERMINAL BLOCK 5x95
E-number
E2270622
Article number
2270622
Type designation
KACL 595
TBS AL/CU CONNECTION SET
TBS AL/CU CONNECTION SET
E-number
E2270628
Article number
2270628
Type designation
TBS
FUSE SEALING II
FUSE SEALING II
E-number
E2270888
Article number
2270888
Type designation
SH II

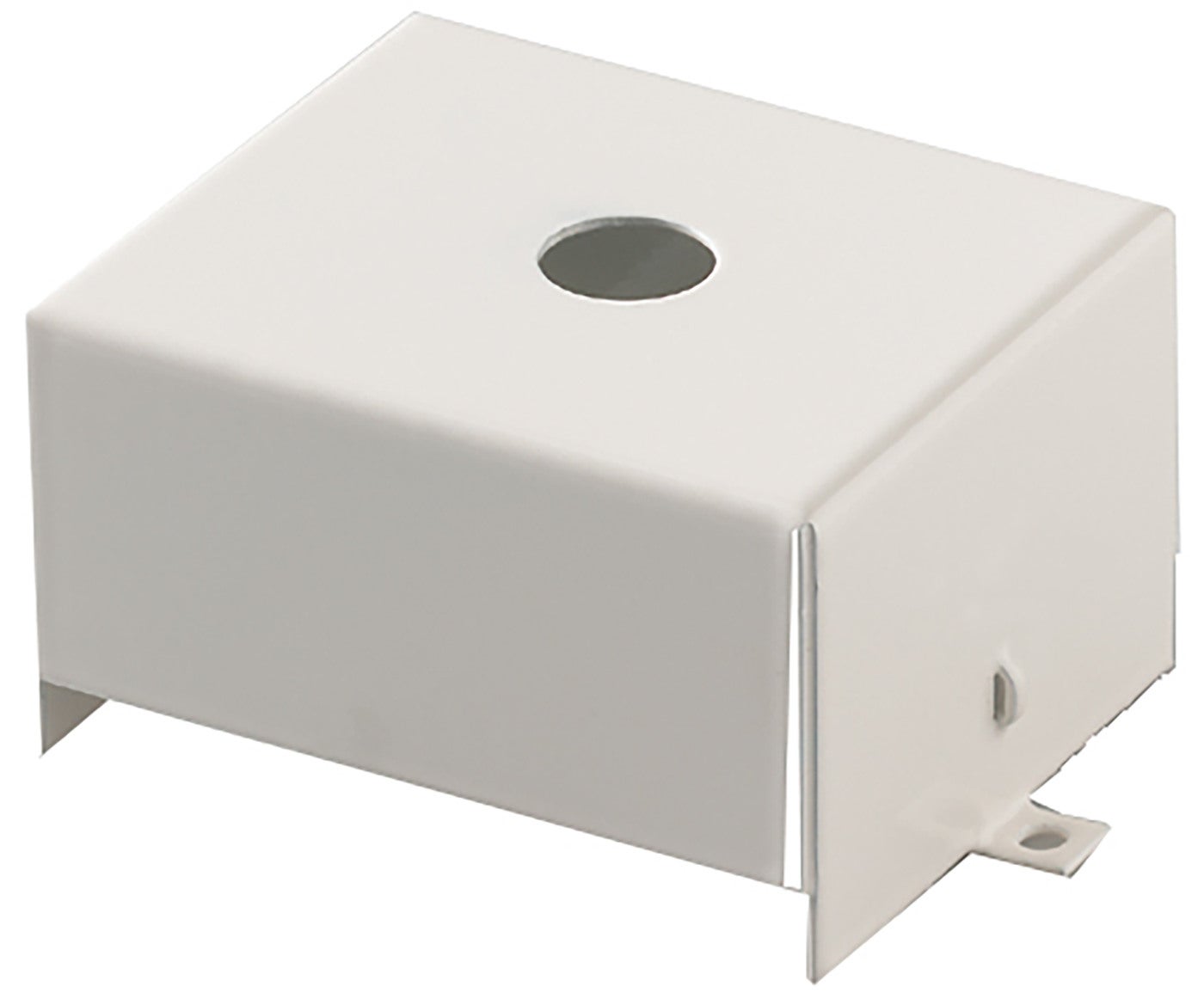

FUSE SEALING III
FUSE SEALING III
E-number
E2270889
Article number
2270889
Type designation
SH III

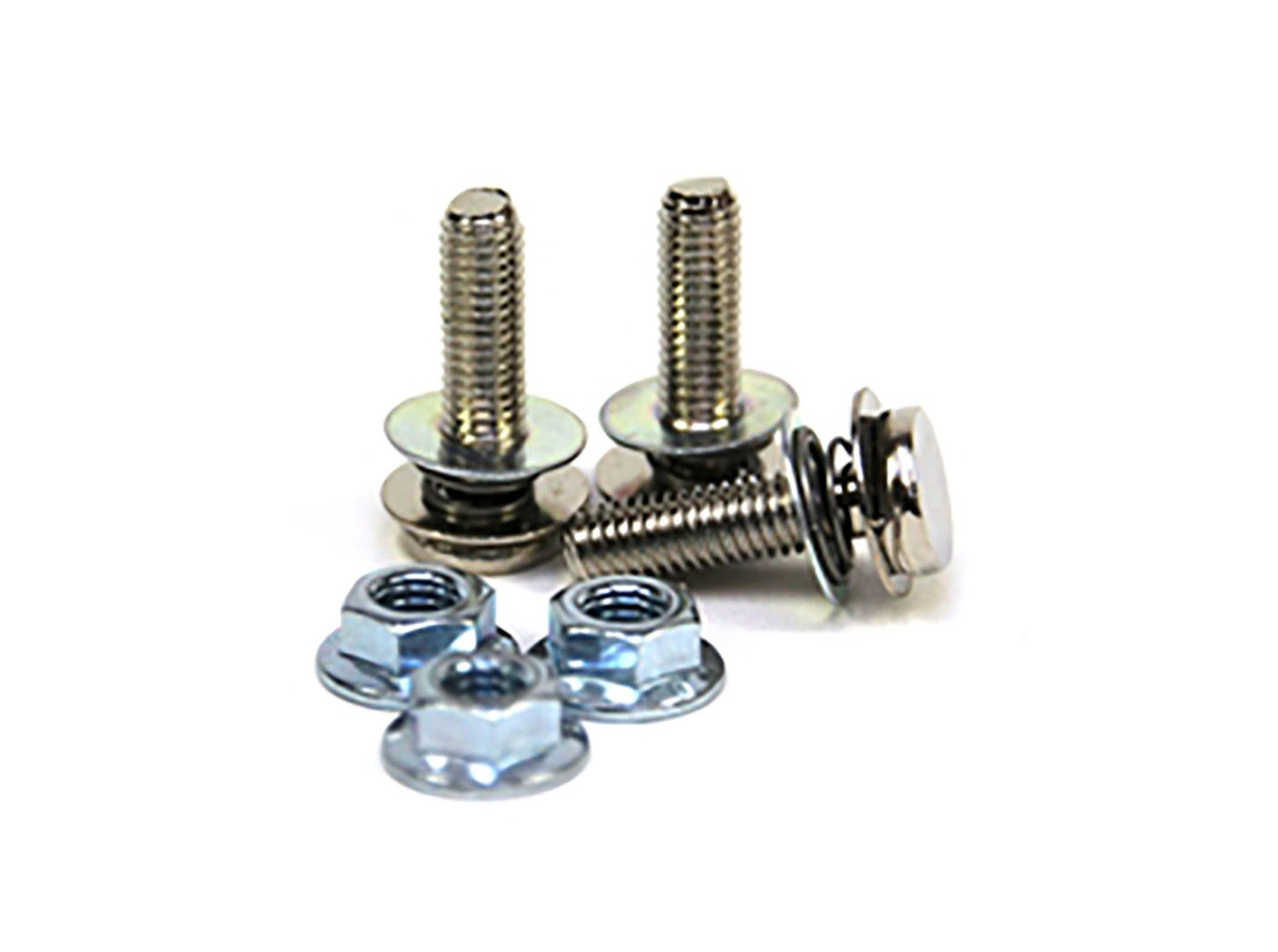

SCREW KIT MFM1
SCREW KIT MFM1
E-number
E2270899
Article number
2270899
Type designation
MFMI

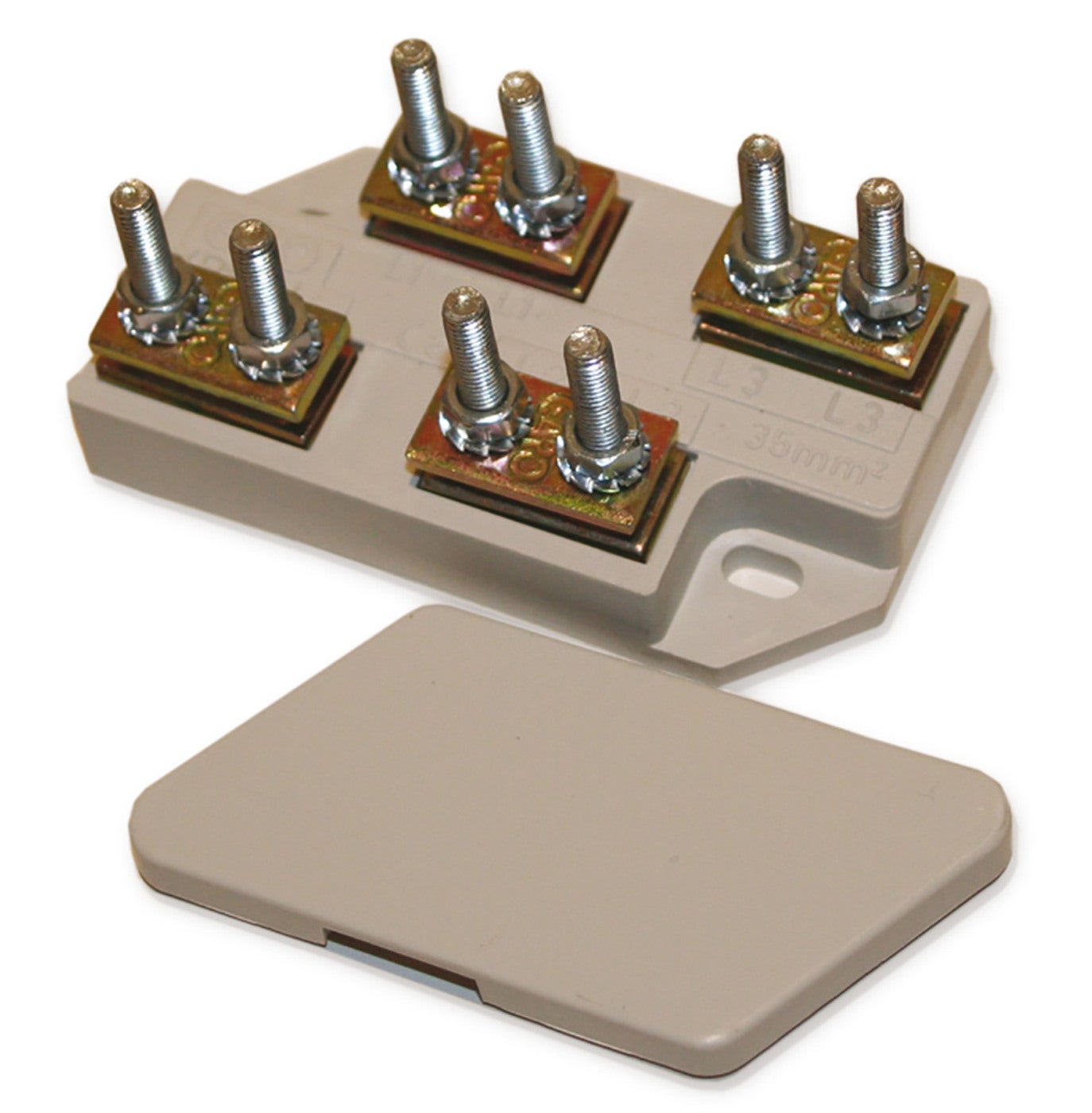

CONNECTION CLAMP KKP 416
CONNECTION CLAMP KKP 416
E-number
E2394700
Article number
2394700
Type designation
KKP 416

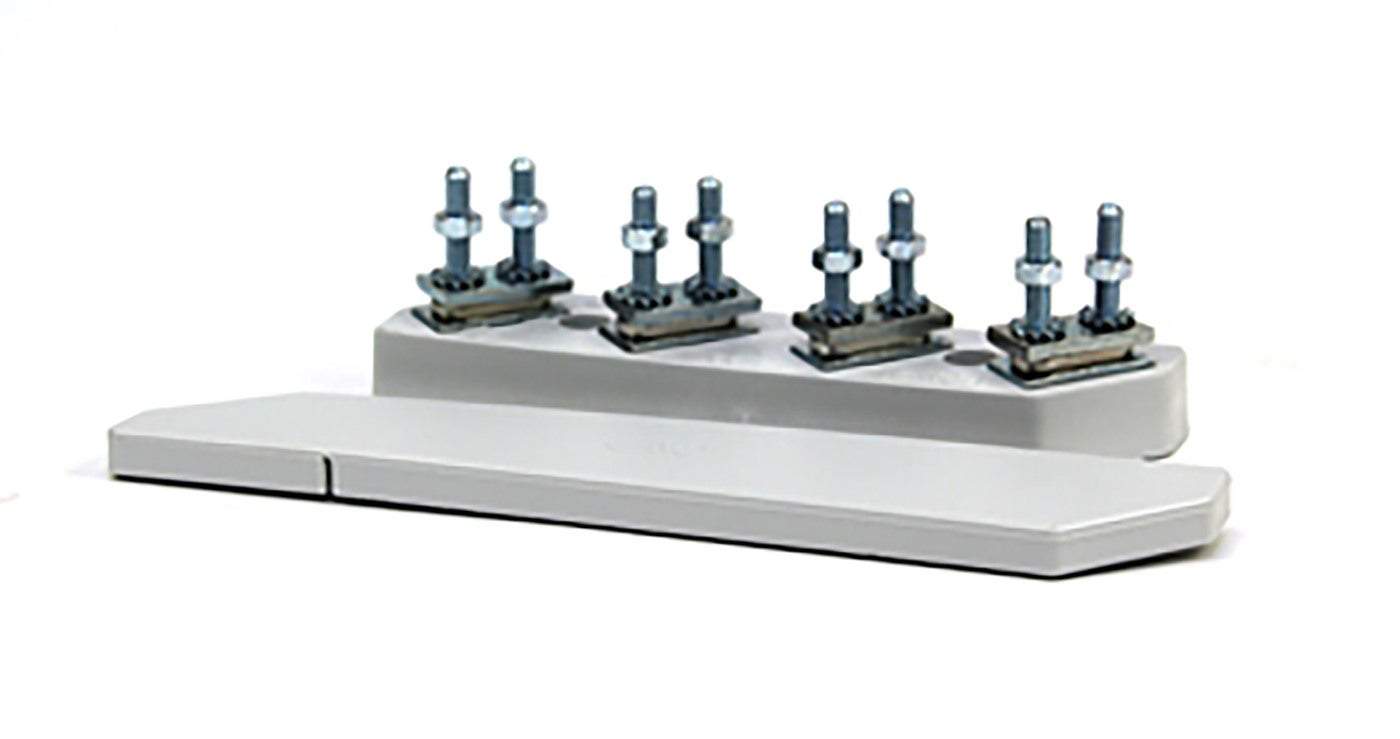

CONNECTION CLAMP KKP 435 L
CONNECTION CLAMP KKP 435 L
E-number
E2394701
Article number
2394701
Type designation
KKP 435L

Accessories for Meter board Servis H370

Name E-number Article number Type designation Description
MAIN SWITCH 3P 40A MAIN SWITCH 3P 40A E2142854 2142854 HB 340 Main switch modular 40A 3-pole
MAIN SWITCH 4P 40A MAIN SWITCH 4P 40A E2142855 2142855 HB 440 Main switch modular 40A 4-pole
MAIN SWITCH 3P 80A MAIN SWITCH 3P 80A E2142856 2142856 HB 380 Main switch modular 80A 3-pole
MAIN SWITCH 4P 80A MAIN SWITCH 4P 80A E2142857 2142857 HB 480 Main switch modular 80A 4-pole
FUSE BASE 1P DII FUSE BASE 1P DII E2260420 2260420 DII Fuse base DII 1 poles 25A 50mm
FUSE BASE 1P DIII FUSE BASE 1P DIII E2260422 2260422 DIII Fuse base DIII 1 poles 63A 52,5mm
TERMINAL BLOCK 5x95 TERMINAL BLOCK 5x95 E2270622 2270622 KACL 595
TBS AL/CU CONNECTION SET TBS AL/CU CONNECTION SET E2270628 2270628 TBS Connectionset TBS Al/Cu
FUSE SEALING II FUSE SEALING II E2270888 2270888 SH II Fuse sealing II
FUSE SEALING III FUSE SEALING III E2270889 2270889 SH III Fuse sealing III
SCREW KIT MFM1 SCREW KIT MFM1 E2270899 2270899 MFMI Screwkit MFM1
CONNECTION CLAMP KKP 416 CONNECTION CLAMP KKP 416 E2394700 2394700 KKP 416 Connection clamp 416
CONNECTION CLAMP KKP 435 L CONNECTION CLAMP KKP 435 L E2394701 2394701 KKP 435L Connection clamp 435L
