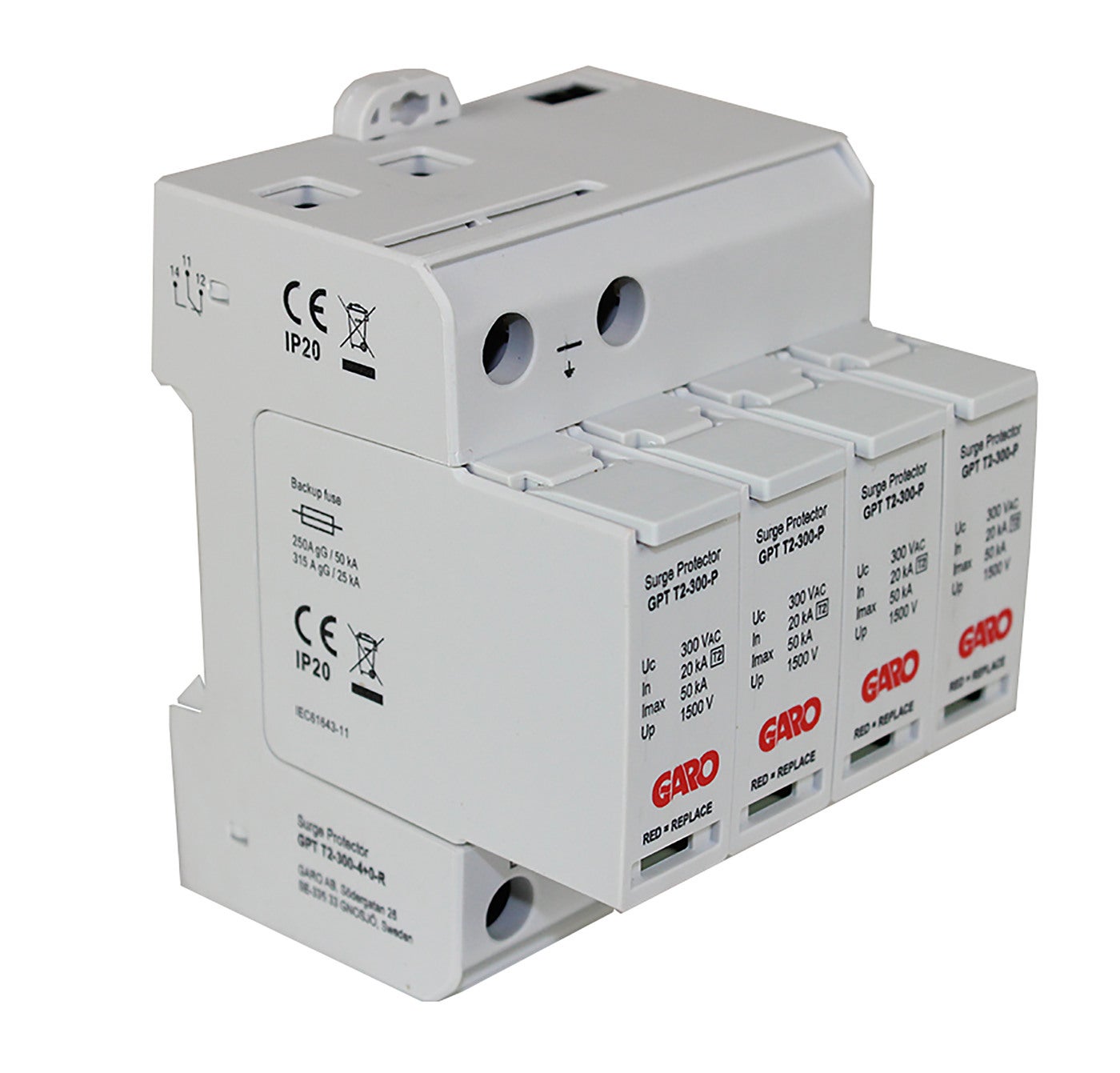

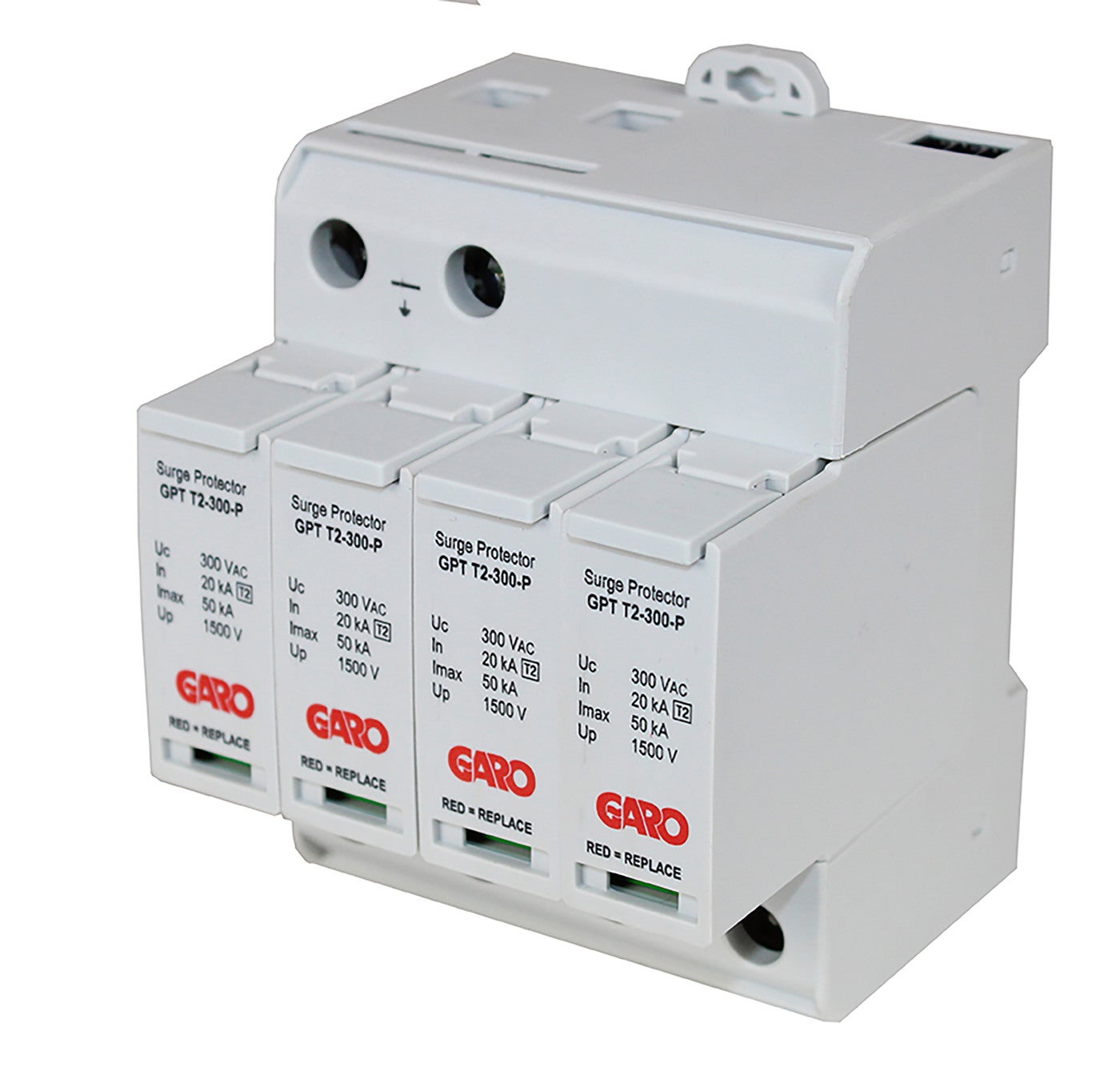

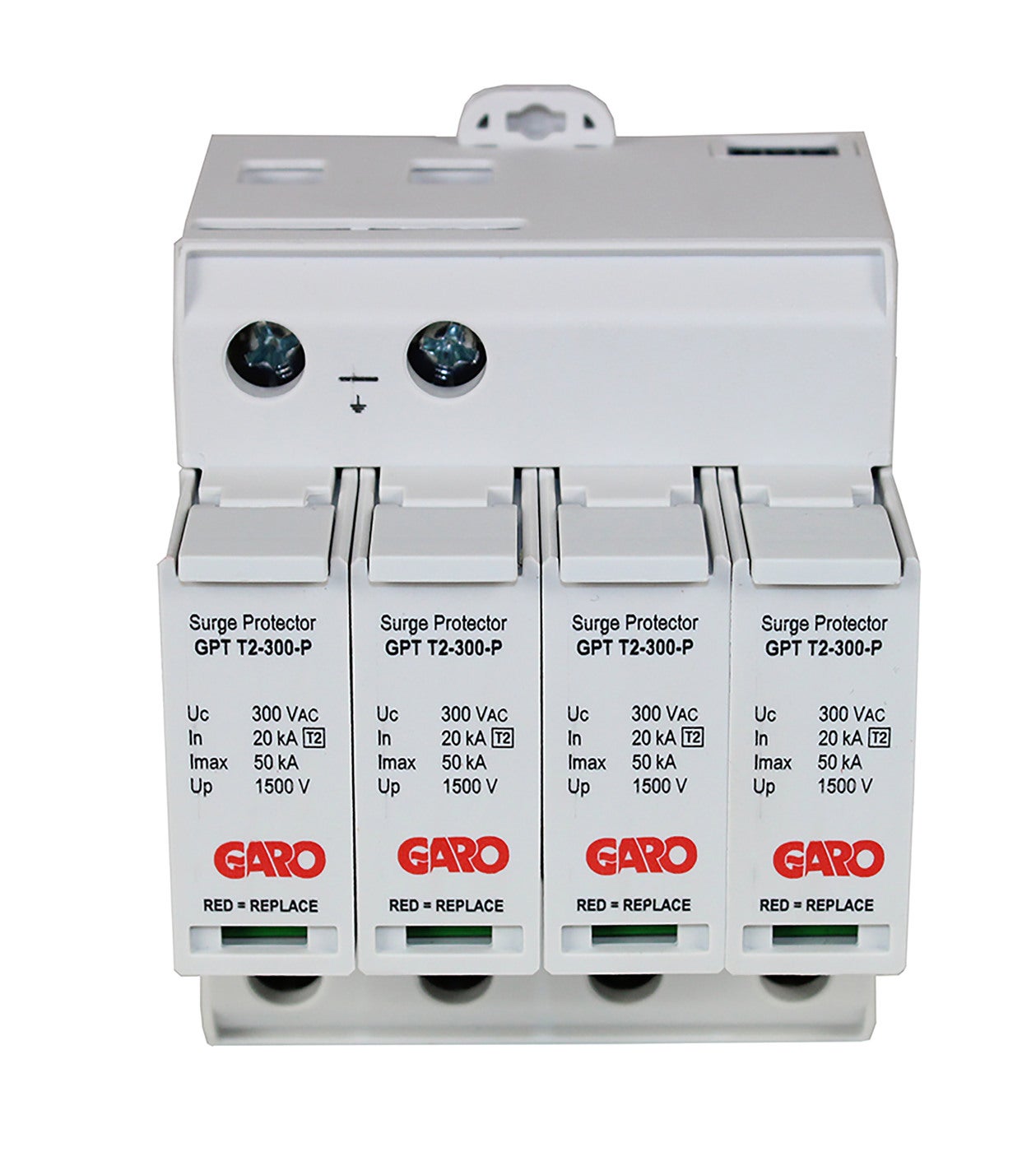

Middle protection 4-poles
GARO’s surge protection is class II protection ideal for use to protect homes in urban areas against power line surges caused by lightening. Middle protection 4-pole 230V
E-number
E5275003
E5275003
Article number
109143
109143
| Standard | EN61643-11 |
|---|---|
| Operation Temperature [C] | -40C...+80C |
| Housing material | Plastic |
| Color | Grey |
| Rated voltage [V AC] | 230V AC |
| Number of modules | 4 |
| Number of poles | 4 |
| Connection type | Screw |
| Wire flexible [mm²] | 25mm² |
| Mounting method | DIN-rail |
| Wire solid [mm²] | 35mm² |
| Degree of protection [IP] | IP20 |
| Claim prefuse [A] | 250A |
| Class | II |
| Max rated voltage [V] | 300V |
| Residual stress 15kA, 8/20u [kV | <0,9kV |
| Max shock current (8/20us) [kA] | 20kA |
| Name | SURGE PROTECTION MIDDLE 230V 4P |
|---|---|
| E-number | E5275003 |
| Article number | 109143 |
| Type designation | GPT T2-300-4+0 |
| NetProductWeight | 0.5 |
| EngineerWidth | 110 |
| EngineerHeight | 100 |
| EngineerDepth | 80 |
