Middle protection 4-poles
GARO’s surge protection is class II protection ideal for use to protect homes in urban areas against power line surges caused by lightening. Surge protection class I+II 4P 230V alarm
E-number
E5271631
E5271631
Article number
109529
109529
| Standard | EN61643-11 |
|---|---|
| Operation Temperature [C] | -40C...+80C |
| Housing material | Plastic |
| Color | Grey |
| Rated voltage [V AC] | 230V AC |
| Number of modules | 4 |
| Number of poles | 4 |
| Connection type | Screw |
| Wire flexible [mm²] | 25mm² |
| Mounting method | DIN-rail |
| Wire solid [mm²] | 35mm² |
| Degree of protection [IP] | IP20 |
| Claim prefuse [A] | 250A |
| Class | II |
| Max rated voltage [V] | 300V |
| Residual stress 15kA, 8/20u [kV | <0,9kV |
| Max shock current (8/20us) [kA] | 20kA |

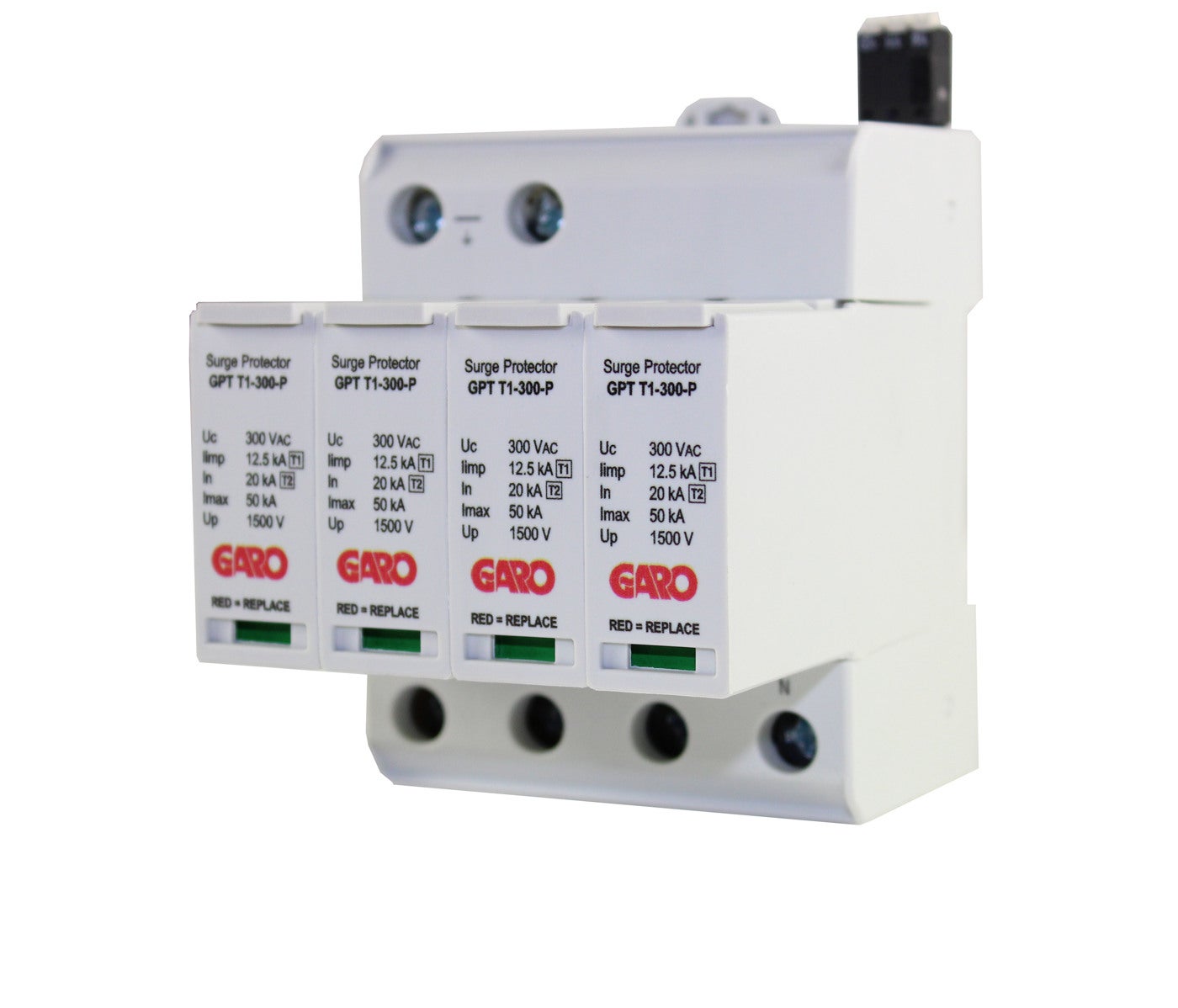

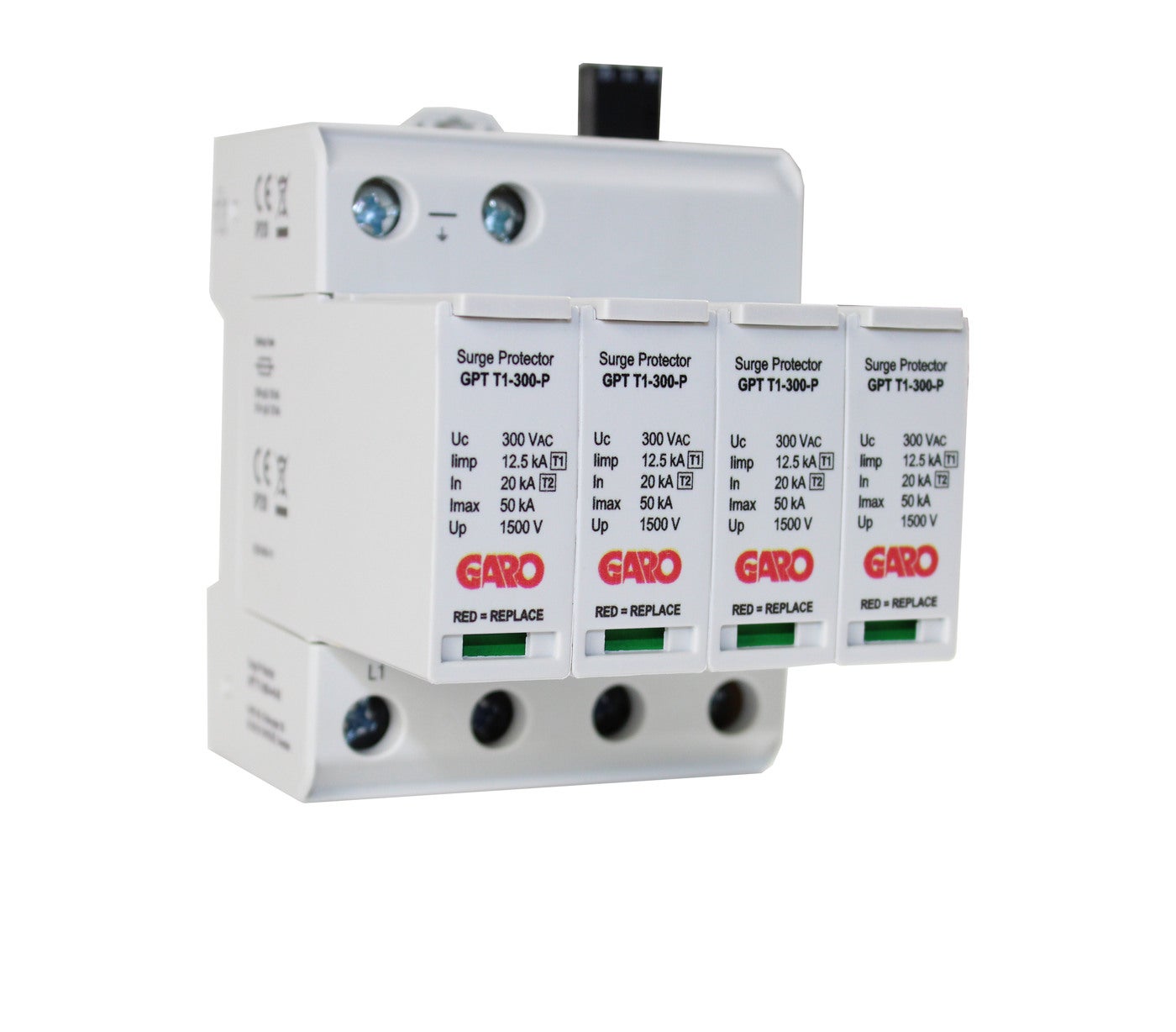

| Name | SURGE PROTECTION CLASS I+II 4P 230V ALARM |
|---|---|
| E-number | E5271631 |
| Article number | 109529 |
| Type designation | GPT T1-300-4+0-R |
| NetProductWeight | 0.65 |
| EngineerWidth | 72 |
| EngineerHeight | 105 |
| EngineerDepth | 86 |
