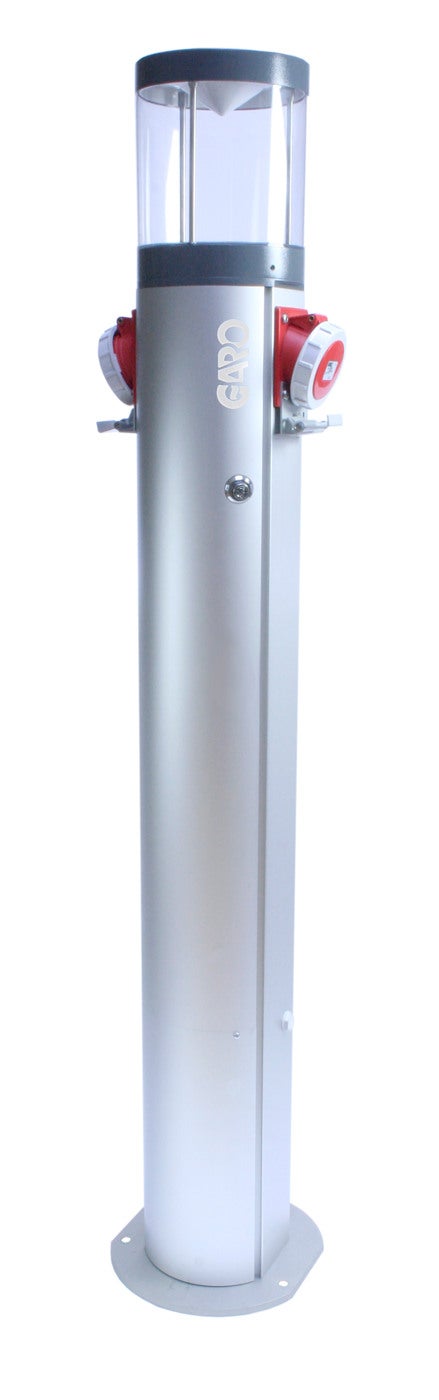

MARINPOST WO MEASURING 2XIEC416 16A

Koster with two 3-phase socket without meter

Koster marina posts with the designation GMS E2 or GMS M2 are ideal for private jetties or for small boat club. The pedestal is equipped with two 230V electrical outlet sockets, type IEC216. The outlet sockets are equipped with hardware for a standard padlock and the outlet sockets can be locked with or without the plug inserted. The posts are supplied with 6, 10 or 16A residual current breaker with overload protection. All posts are prepared to be equipped with water tap and hose reel, which are sold as ac Marinpost without measuring 2xIEC416 outlet 2 RCBO 16A.
E-number
E2449750
Article number
351930
Support
Type designation GMS 3F 16A
Standard EN61439-3
Short-circuit current [kA] 6kA
Frequency [Hz] 50Hz
Housing material Aluminium
Color Grey
Rated current [A] 16A
Wire flexible [mm²] 25mm² Cu
Mounting method Floor fastening
Energymeter No
Lock Yes
CEE socket outlet 16A 2pcs 5P 16A 230/400V
Number of RCBO [pcs] 2pcs C2P 16A
Degree of protection [IP] IPX6
NetProductWeight 11
EngineerWidth 253
EngineerHeight 1300
EngineerDepth 250
Name MARINPOST WO MEASURING 2XIEC416 16A
E-number E2449750
Article number 351930

Accessories for Koster with two 3-phase socket without meter

Name E-number Article number Type designation Description
ENERGYMETER 1PH PULS ENERGYMETER 1PH PULS E0900131 108043 GNM1D Energymeter 1 pole pulse
ENERGYMETER 3P PULS ENERGYMETER 3P PULS E0900134 108046 GNM3D Energymeter 3 pole pulse
TIME SWITCH 2CHANNEL ASTRO TIME SWITCH 2CHANNEL ASTRO E1330553 108754 ASTRO2KT3 Time switch 2 channel astro
MCB C 1P 6A 10kA GS MCB C 1P 6A 10kA GS E2142705 2142705 MCB GS C106 MCB GS C-Characteristic 6A 10kA 1-pole
MCB C 1P 10A 10kA GS MCB C 1P 10A 10kA GS E2142706 2142706 MCB GS C110 Miniature cirucit breaker C-characteristic 1-pole 10A 10kA GS
MCB C 1P 13A 10kA GS MCB C 1P 13A 10kA GS E2142707 2142707 MCB GS C113 MCB GS C-Characteristic 13A 10kA 1-pole
MCB C 1P 16A 10kA GS MCB C 1P 16A 10kA GS E2142708 2142708 MCB GS C116 MCB GS C-Characteristic 16A 10kA 1-pole
RCBO GS C-CHAR 6A 2P RCBO GS C-CHAR 6A 2P E2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO C 2P 10A 10kA RCBO C 2P 10A 10kA E2163248 2163248 RCBO C2P 10A 10kA GS Residual current circuit breaker with overcurrent protection (RCBO) C-characteristic 2-poles 10A 10kA
RCBO C 13A 2P GS RCBO C 13A 2P GS E2163249 2163249 RCBO C2P 13A 10kA GS RCBO GS C-Characteristic 13A 10kA 2-pole
RCBO C 16A 2P GS RCBO C 16A 2P GS E2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole

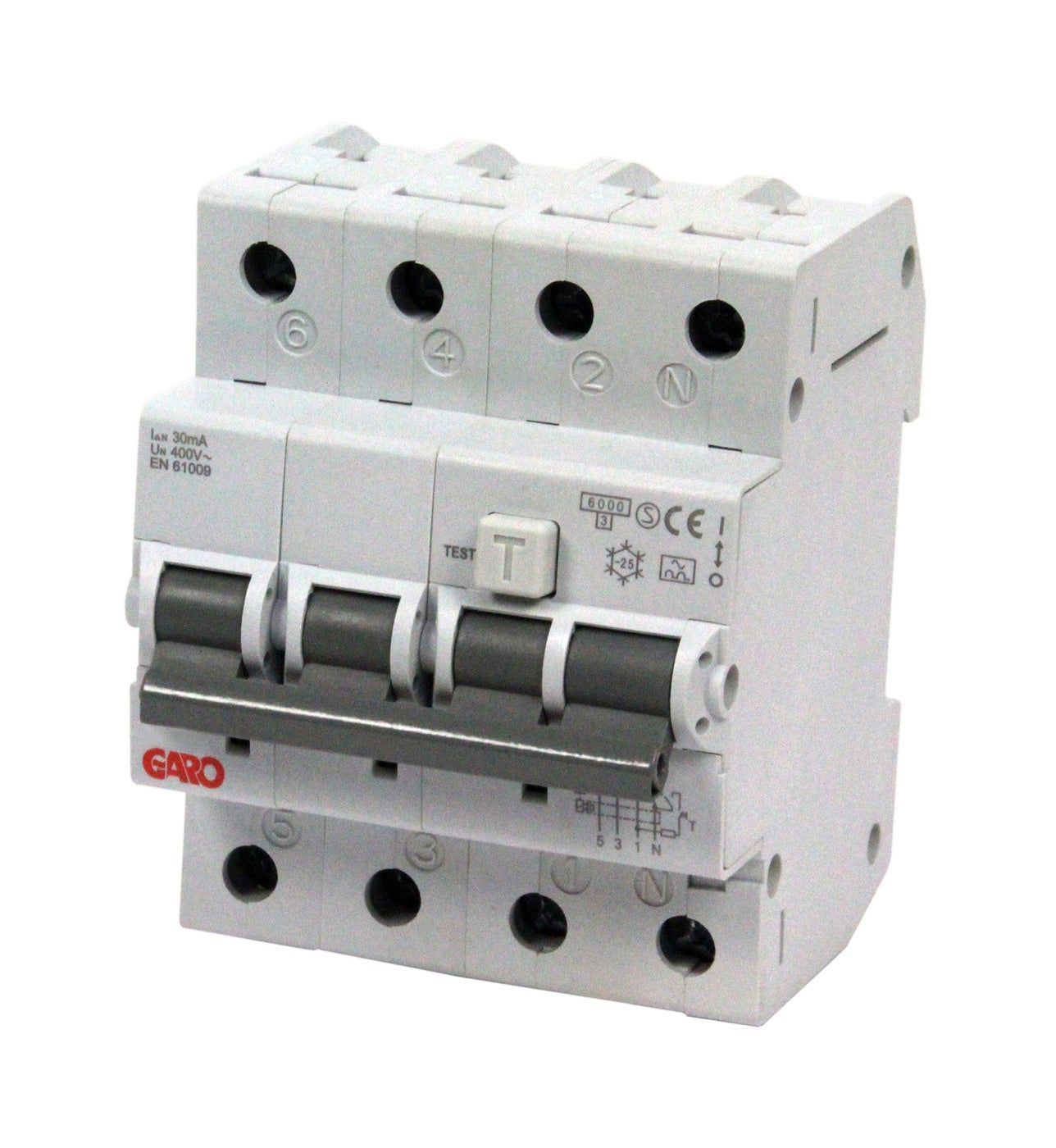

RCBO C 16A 4P GS RCBO C 16A 4P GS E2163272 2163272 RCBO C4P 16A 6kA GS RCBO GS C-Characteristic 16A 6kA 4-pole

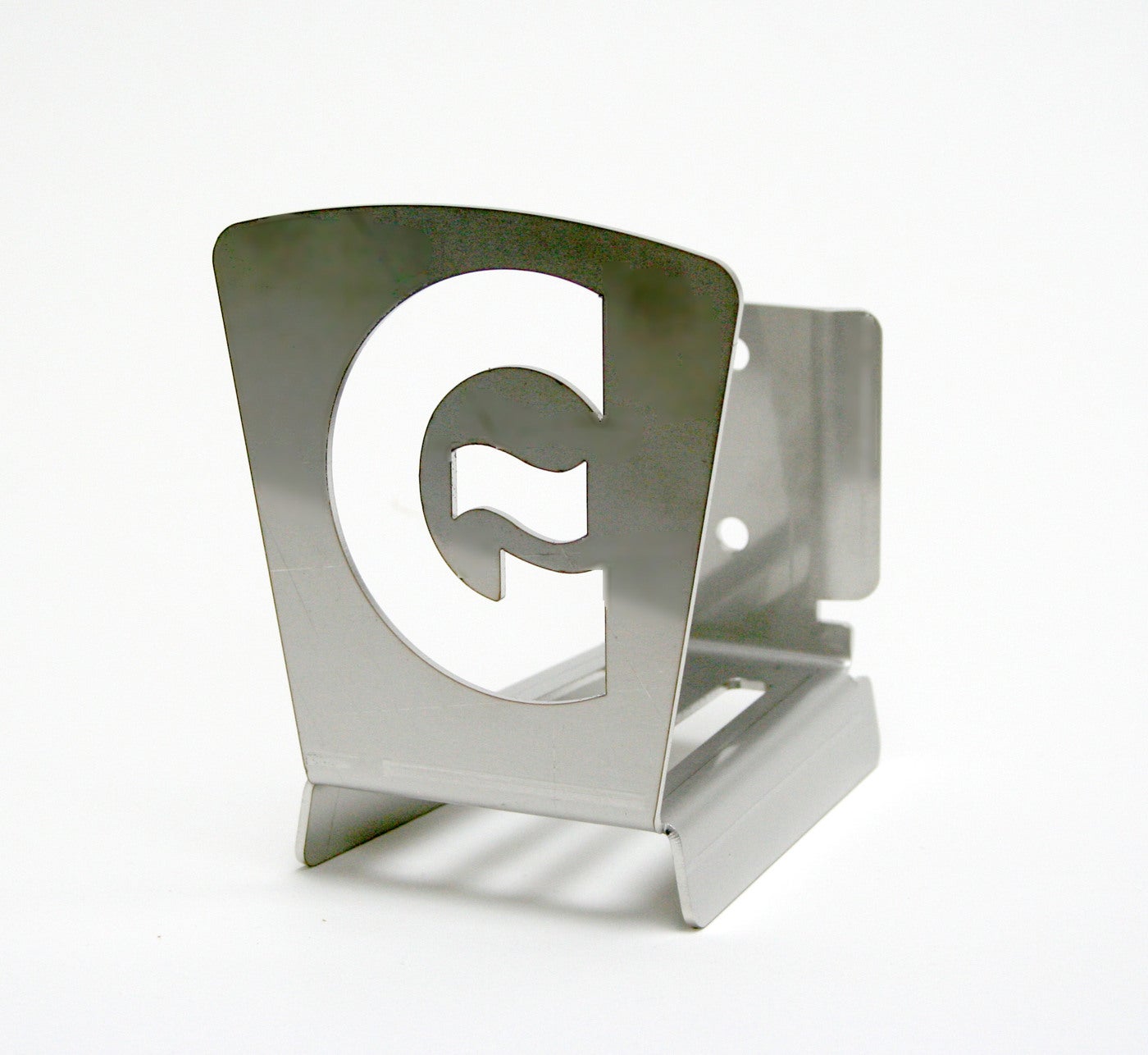

HOSE HOLDER MARINP HOSE HOLDER MARINP E2449756 351937 GMS-SH Hose holder suitable marina pole Koster.
CABLE POWERCL MARINP CABLE POWERCL MARINP E2449757 351955 GMS WL Cable strain relief, incomming and outgoing cable for maria pole Koster.

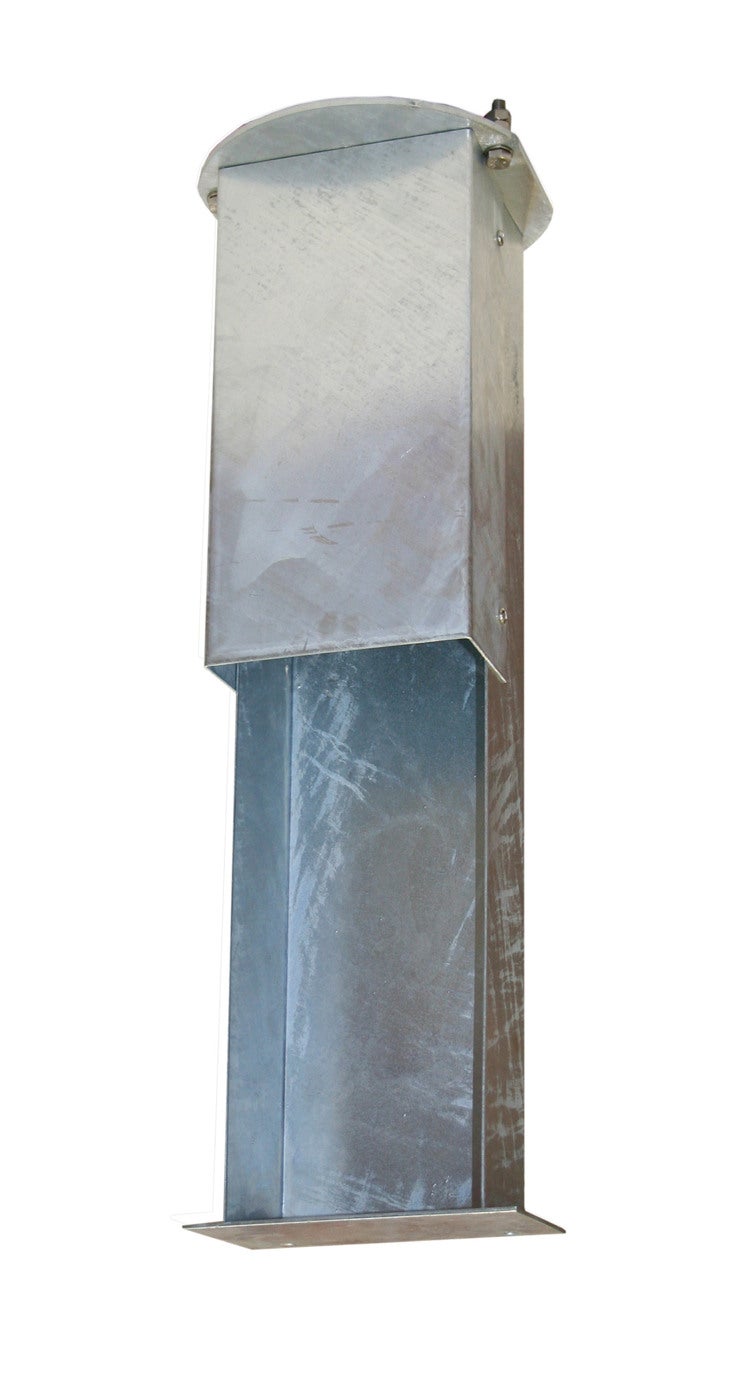

GROUND BASE MARINEPOST GROUND BASE MARINEPOST E2449768 352030 MF-K

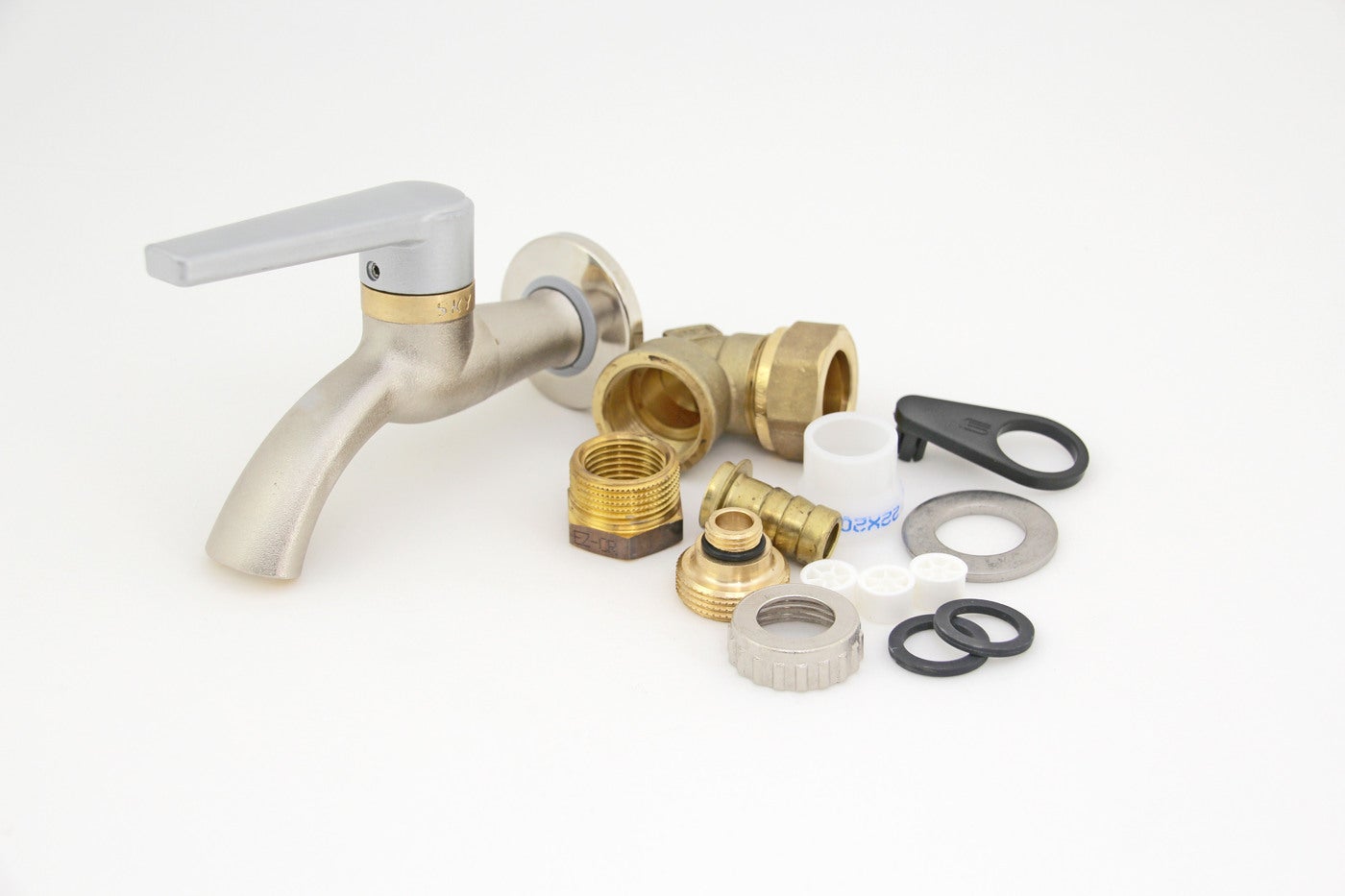

WATERTAP MARIN GMS WATERTAP MARIN GMS E2449844 352711 GMS-VK-SKY Watertap Marin GMS
TERMINAL 5P AL/CU MVC TERMINAL 5P AL/CU MVC E2670477 353155 P5-N Terminal 5-pole Al/Cu MVC
353181 GMS-L
