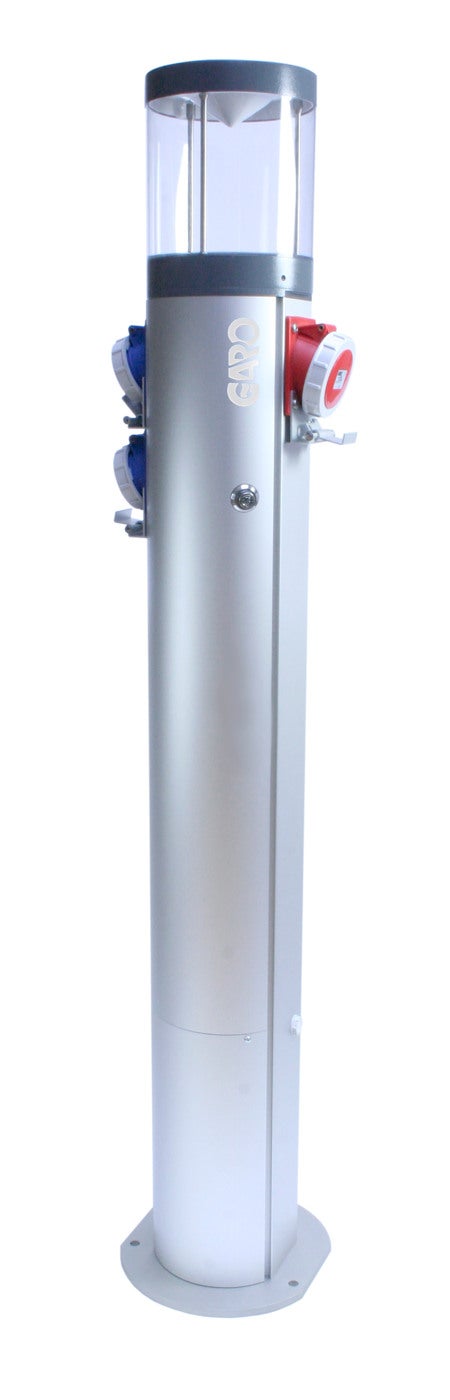

Koster with three 3-phase socket with meter
Posts with 3-phase outlet sockets guarantee that both the largest marinas as well as small fishing boats have high output, shore power connections. The marina posts with type designations GMS E3 3F and GMS M3 3F are equipped with 2 outlet sockets the type IEC216 and 1 outlet socket type IEC416 for 16A 3-phase. The marina posts with designations GMS 3F and GMS 3FM are equipped with 2 outlet sockets of the type IEC416 for 16A 3-phase. Posts are available with or without meters. The meters are MID approved. Th Marinpost with measuring 3xIEC outlet 3 RCBO 3x16A.
| Type designation | GMS M2 16A 3FM 16A |
|---|---|
| Standard | EN61439-3 |
| Short-circuit current [kA] | 6kA |
| Frequency [Hz] | 50Hz |
| Housing material | Aluminium |
| Color | Grey |
| Rated current [A] | 16A |
| Wire flexible [mm²] | 25mm² |
| Mounting method | Floor fastening |
| Modelltype | Koster |
| Energymeter | Yes |
| Lock | Yes |
| RCBO | 1pcs C4P 16A |
| CEE socket outlet 16A | 2pcs 3P 16A 230V |
| Number of RCBO [pcs] | 2pcs C2P 16A |
| Degree of protection [IP] | IPX6 |
| NetProductWeight | 11.6 |
| EngineerWidth | 253 |
| EngineerHeight | 1300 |
| EngineerDepth | 250 |
| CEE socket outlet 16A (2) | 1pcs 5P 16A 230/400V |
| Name | MARINPOST W MEASURING 3XIEC 16A |
|---|---|
| E-number | E2449749 |
| Article number | 351929 |
