MARINPOST WO MEASURING 4XIEC 16A

Koster with four 1-phase socket without meter

Koster marina posts with designation GMS E4 or GMS M4 are designed for the modern marina. The post is equipped with four 230V electrical outlet sockets, type IEC216. The outlet sockets are equipped with hardware for a standard padlock and the outlet sockets can be locked with or without the plug inserted. The posts are supplied with 6, 10 or 16A residual current breaker with overload protection. All posts are prepared to be equipped with water tap and hose reel, which are sold as accessories. The residual c Marinpost without measuring 4xIEC outlet 4 RCBO 16A.
E-number
E2449739
Article number
351898
Support
Standard EN61439-3
Short-circuit current [kA] 10kA
Frequency [Hz] 50Hz
Housing material Aluminium
Color Grey
Wire flexible [mm²] 25mm²
Mounting method Floor fastening
Modelltype Koster
Energymeter No
Lock Yes
CEE socket outlet 16A 4pcs 3P 16A 230V
Degree of protection [IP] IPX6
NetProductWeight 11.2
EngineerWidth 253
EngineerHeight 1300
EngineerDepth 250
Name MARINPOST WO MEASURING 4XIEC 16A
E-number E2449739
Article number 351898
Type designation GMS E4 16A
Rated current [A] 16A
Number of RCBO [pcs] 4pcs C2P 16A

More variants of Koster with four 1-phase socket without meter

E-number Article number Type designation Rated current [A] Number of RCBO [pcs]
MARINPOST WO MEASURING 4XIEC 16A E2449739 351898 GMS E4 16A 16A 4pcs C2P 16A
MARINPOST WO MEASURING 4XIEC 6A E2449737 351918 GMS E4 6A 6A 4pcs C2P 6A
MARINPOST WO MEASURING 4XIEC 10A E2449738 351919 GMS E4 10A 10A 4pcs C2P 10A

Accessories for Koster with four 1-phase socket without meter

Name E-number Article number Type designation Description
ENERGYMETER 1PH PULS ENERGYMETER 1PH PULS E0900131 108043 GNM1D Energymeter 1 pole pulse

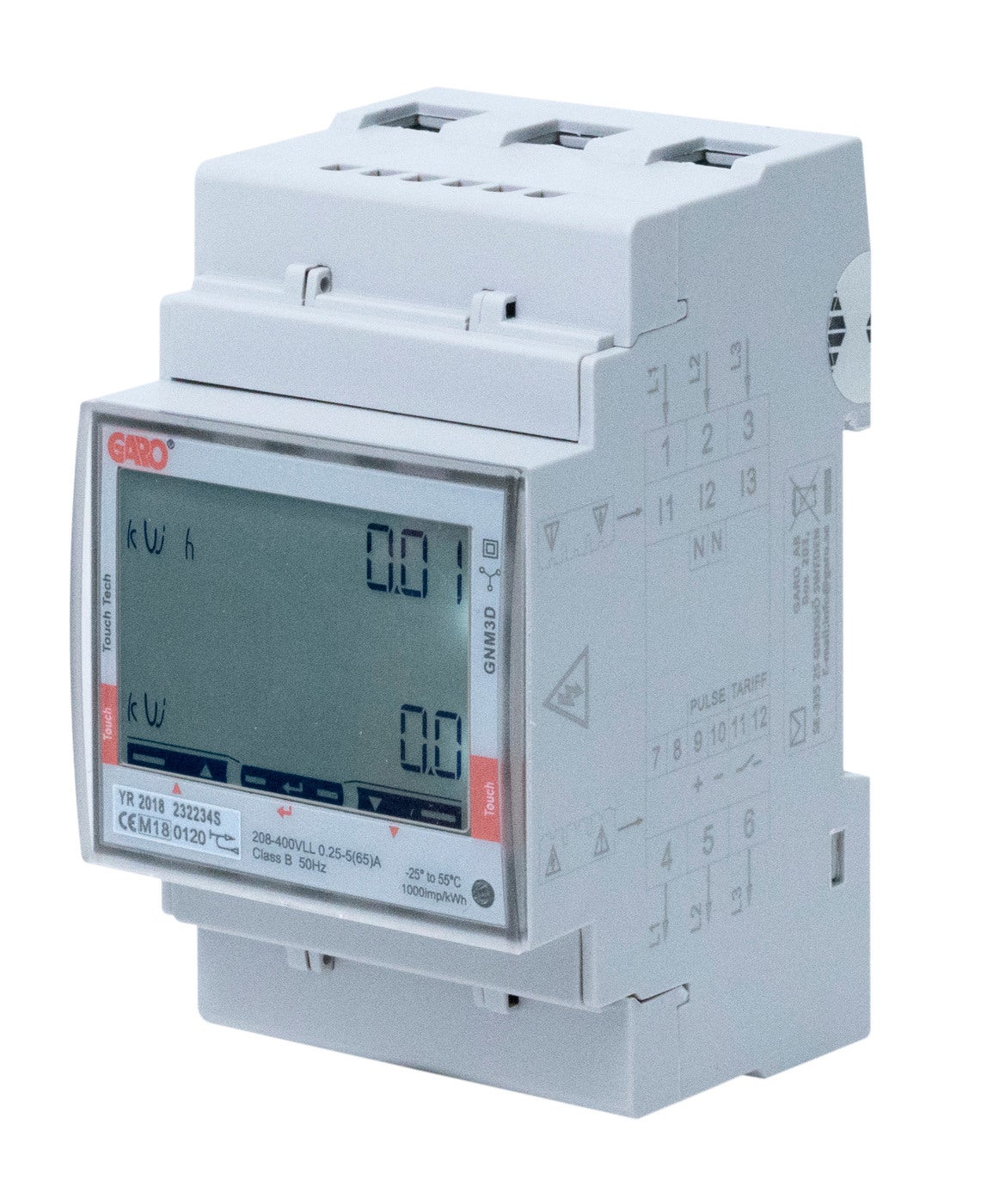

ENERGYMETER 3P PULS ENERGYMETER 3P PULS E0900134 108046 GNM3D Energymeter 3 pole pulse
TIME SWITCH 2CHANNEL ASTRO TIME SWITCH 2CHANNEL ASTRO E1330553 108754 ASTRO2KT3 Time switch 2 channel astro
MCB C 1P 6A 10kA GS MCB C 1P 6A 10kA GS E2142705 2142705 MCB GS C106 MCB GS C-Characteristic 6A 10kA 1-pole
RCBO GS C-CHAR 6A 2P RCBO GS C-CHAR 6A 2P E2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO C 2P 10A 10kA RCBO C 2P 10A 10kA E2163248 2163248 RCBO C2P 10A 10kA GS Residual current circuit breaker with overcurrent protection (RCBO) C-characteristic 2-poles 10A 10kA
RCBO C 16A 2P GS RCBO C 16A 2P GS E2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole
RCBO C 16A 4P GS RCBO C 16A 4P GS E2163272 2163272 RCBO C4P 16A 6kA GS RCBO GS C-Characteristic 16A 6kA 4-pole
HOSE HOLDER MARINP HOSE HOLDER MARINP E2449756 351937 GMS-SH Hose holder suitable marina pole Koster.
CABLE POWERCL MARINP CABLE POWERCL MARINP E2449757 351955 GMS WL Cable strain relief, incomming and outgoing cable for maria pole Koster.
GROUND BASE MARINEPOST GROUND BASE MARINEPOST E2449768 352030 MF-K
WATERTAP MARIN GMS WATERTAP MARIN GMS E2449844 352711 GMS-VK-SKY Watertap Marin GMS
TERMINAL 5P AL/CU MVC TERMINAL 5P AL/CU MVC E2670477 353155 P5-N Terminal 5-pole Al/Cu MVC
353181 GMS-L
