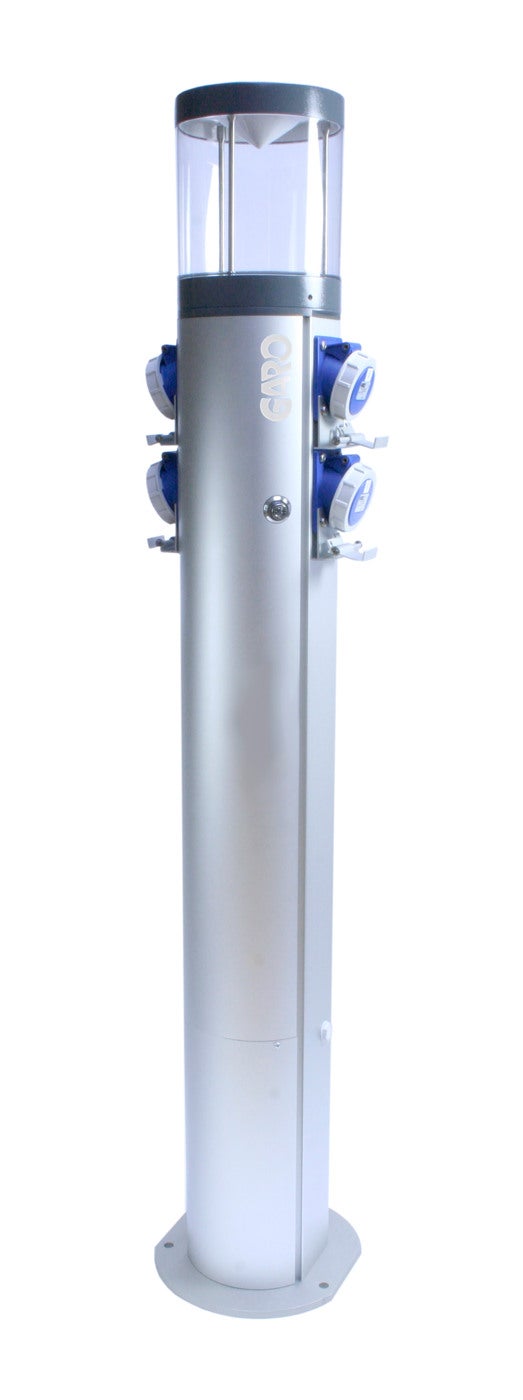

MARINPOST W.MEA 4XIEC 6A

Koster with four 1-phase socket with meter

E-number
E2449743
Article number
351923
Support
Housing material Aluminium
Color Grey
Wire flexible [mm²] 25mm²
Mounting method Floor fastening
Energymeter Yes
Lock Yes
CEE socket outlet 16A 4pcs 3P 16A 230V
Degree of protection [IP] IPX6
Name MARINPOST W.MEA 4XIEC 6A
E-number E2449743
Article number 351923
Standard EN61439-3
Short-circuit current [kA] 10kA
Frequency [Hz] 50Hz
Rated current [A] 6A
Modelltype Koster
Number of RCBO 4pcs C2P 6A

More variants of Koster with four 1-phase socket with meter

E-number Article number Type designation Standard WIFI Short-circuit current [kA] Storage temperature [C] Operation Temperature [C] Frequency [Hz] Rated current [A] Modelltype RCBO Number of RCBO [pcs] Number of RCBO Intergrated in Turbo Impact strength [IK] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
MARINPOST W.MEA 4XIEC 6A E2449743 351923 EN61439-3 10kA 50Hz 6A Koster 4pcs C2P 6A
MARINPOST W MEASURING 4XIEC 10A E2449744 351924 EN61439-3 10kA 50Hz 10A 4pcs C2P 10A 11.4 253 1300 250
MARINPOST W MEASURING 4XIEC 16A E2449745 351925 EN61439-3 10kA 50Hz 16A Koster 4pcs C2P 16A 11.4 253 1300 250
MARINAPOLE 16A 4XIEC WM GCTRL E2449832 352521 GMS GC M4 16A 0 0 0 0 0 0 63A Koster 4pcs C2P 16A 4pcs C2P 16A Yes 0 253 1300 250

Accessories for Koster with four 1-phase socket with meter

Name E-number Article number Type designation Description
ENERGYMETER 1PH PULS ENERGYMETER 1PH PULS E0900131 108043 GNM1D Energymeter 1 pole pulse
ENERGYMETER 3P PULS ENERGYMETER 3P PULS E0900134 108046 GNM3D Energymeter 3 pole pulse
TIME SWITCH 2CHANNEL ASTRO TIME SWITCH 2CHANNEL ASTRO E1330553 108754 ASTRO2KT3 Time switch 2 channel astro
MCB C 1P 6A 10kA GS MCB C 1P 6A 10kA GS E2142705 2142705 MCB C106 MCB GS C-Characteristic 6A 10kA 1-pole
RCBO C 2P 6A 10kA 30mA 2M GS RCBO C 2P 6A 10kA 30mA 2M GS E2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO C 10A 2P 10kA 30mA GS RCBO C 10A 2P 10kA 30mA GS E2163248 2163248 RCBO C2P 10A 10kA GS Residual current circuit breaker with overcurrent protection (RCBO) C-characteristic 2-poles 10A 10kA
RCBO C 16A 2P 10kA 30mA 2M GS RCBO C 16A 2P 10kA 30mA 2M GS E2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole
RCBO C 16A 4P GS RCBO C 16A 4P GS E2163272 2163272 RCBO C4P 16A 6kA GS RCBO GS C-Characteristic 16A 6kA 4-pole
HOSE HOLDER MARINP HOSE HOLDER MARINP E2449756 351937 GMS-SH Hose holder suitable marina pole Koster.
CABLE POWERCL MARINP CABLE POWERCL MARINP E2449757 351955 Cable strain relief, incomming and outgoing cable for maria pole Koster.
GROUND BASE MARINEPOST GROUND BASE MARINEPOST E2449768 352030
WATERTAP MARIN GMS WATERTAP MARIN GMS E2449844 352711 GMS-VK-SKY Watertap Marin GMS
TERMINAL 5P AL/CU MVC TERMINAL 5P AL/CU MVC E2670477 353155 P5-N Terminal 5-pole Al/Cu MVC
353181 GMS-L
