• INSERT CAR 6A WOM MAX 3h - 1

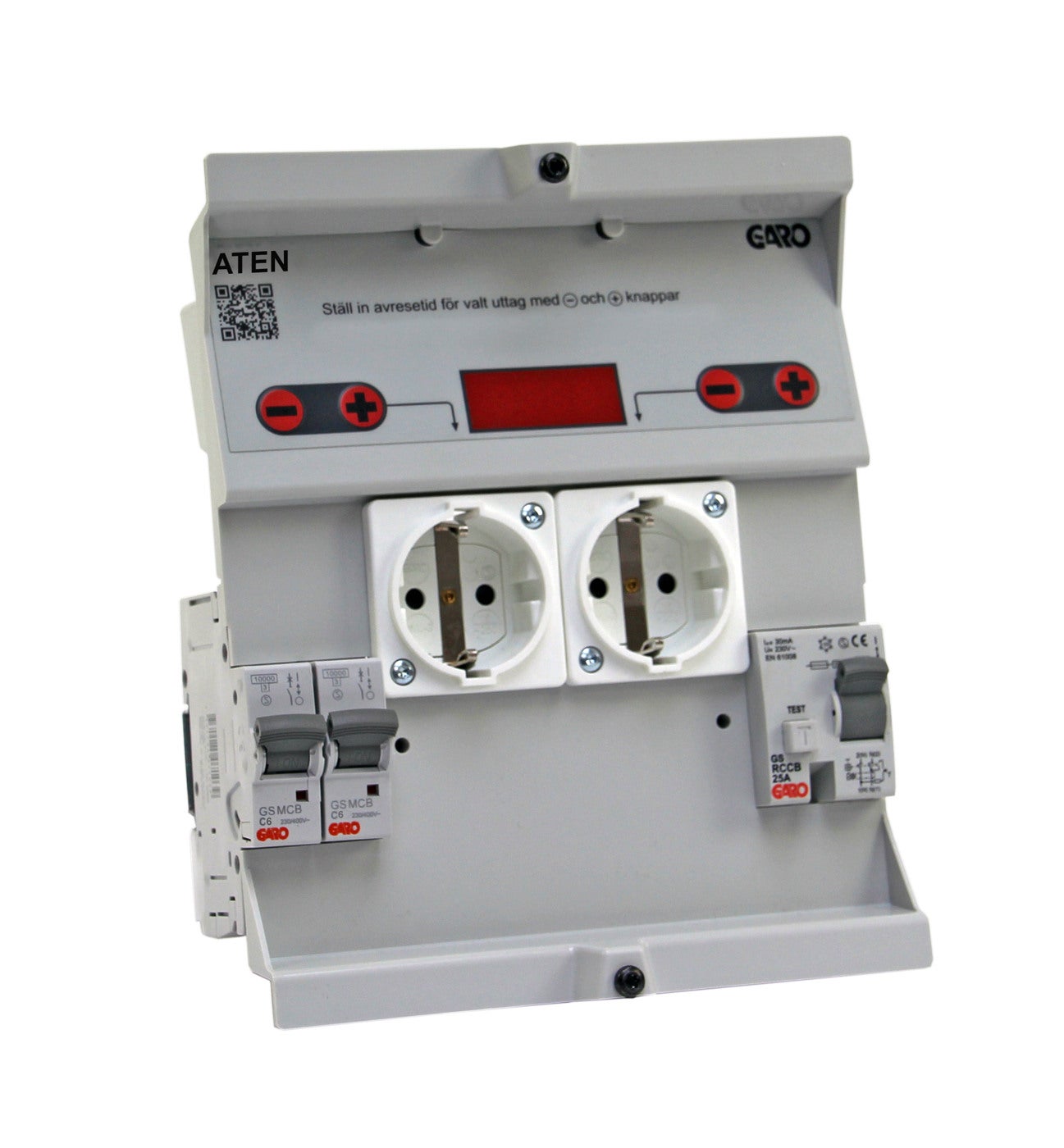

  • INSERT CAR 6A WOM MAX 3h - 2

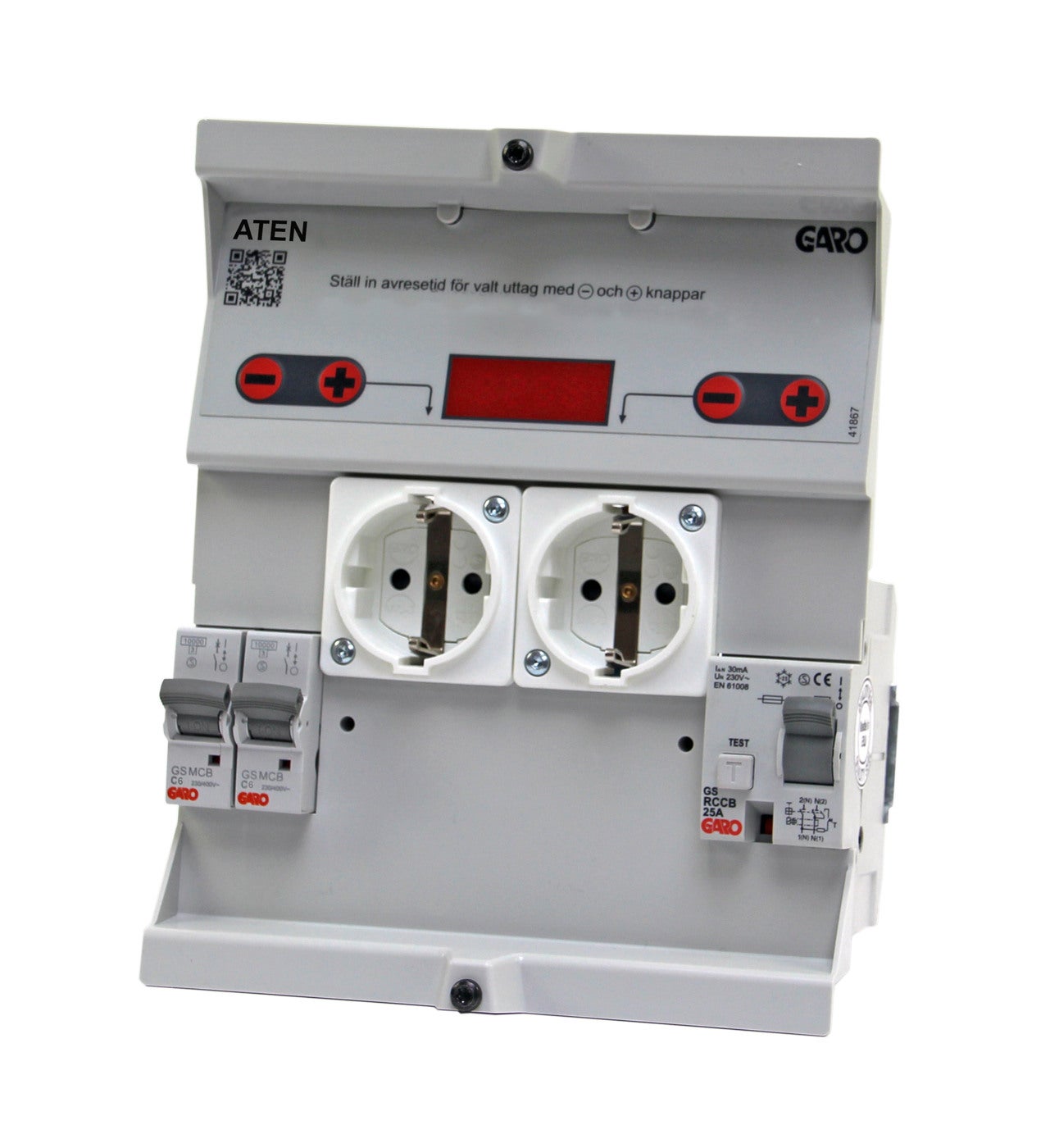

  • INSERT CAR 6A WOM MAX 3h - 3

Inserts Car 3h without meter

GAROs insert ATEN is an electronic timer with a repeating fixed operating time of 3 hours. Equipped with 2 Schuko sockets and 2 RCBOs or RCD and MCB. The components are mounted on a DIN rail, making replacement very easy. The insert has maintenance-free capacitor backup of 48 hours and a clock with automatic summer / wintertime. The insert is compatible and can be used with old series of P100 enclosure. Insert car without measuring, 6A fits PN-system, 3h response time, with RCCB
E-number
E2449219
Article number
353026
Support
Standard EN61439-3
Frequency [Hz] 50Hz
Housing material Plastic
Color Grey
Rated current [A] 16A
Rated voltage [V AC] 230V AC
Modelltype PN100 Insert
Energymeter No
Number of Schuko[pcs] 2pcs
Response time [h] Max 180min
Degree of protection [IP] IP44
EngineerWidth 175
EngineerHeight 220
EngineerDepth 100
Name INSERT CAR 6A WOM MAX 3h
E-number E2449219
Article number 353026
Type designation ATEN 206-1
Short-circuit current [kA] 10kA
Number of MCB 1P (1) 2pcs C106
Number of RCCB [pcs] 1 1pcs 2P 25A
Number of RCBO [pcs] No

Instruction Sheet

Manual

More variants of Inserts Car 3h without meter

E-number Article number Type designation Short-circuit current [kA] Number of MCB 1P (1) Number of RCCB [pcs] 1 Number of RCBO [pcs]
INSERT CAR 6A WOM MAX 3h E2449219 353026 ATEN 206-1 10kA 2pcs C106 1pcs 2P 25A No

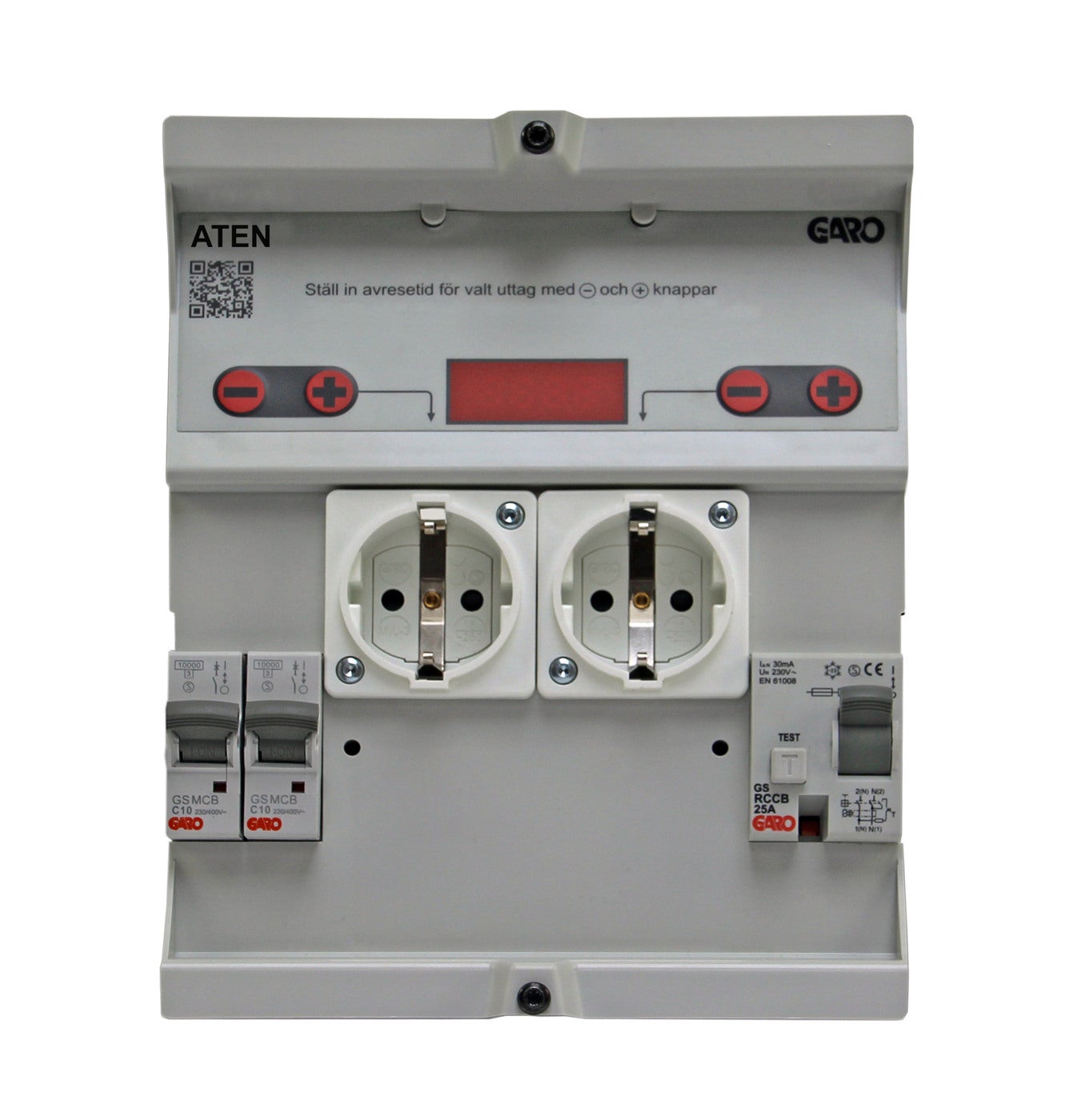

INSERT CAR 10A WOM MAX 3h EE2449220 353027 ATEN 210-1 10kA 2pcs C110 1pcs 2P 25A No

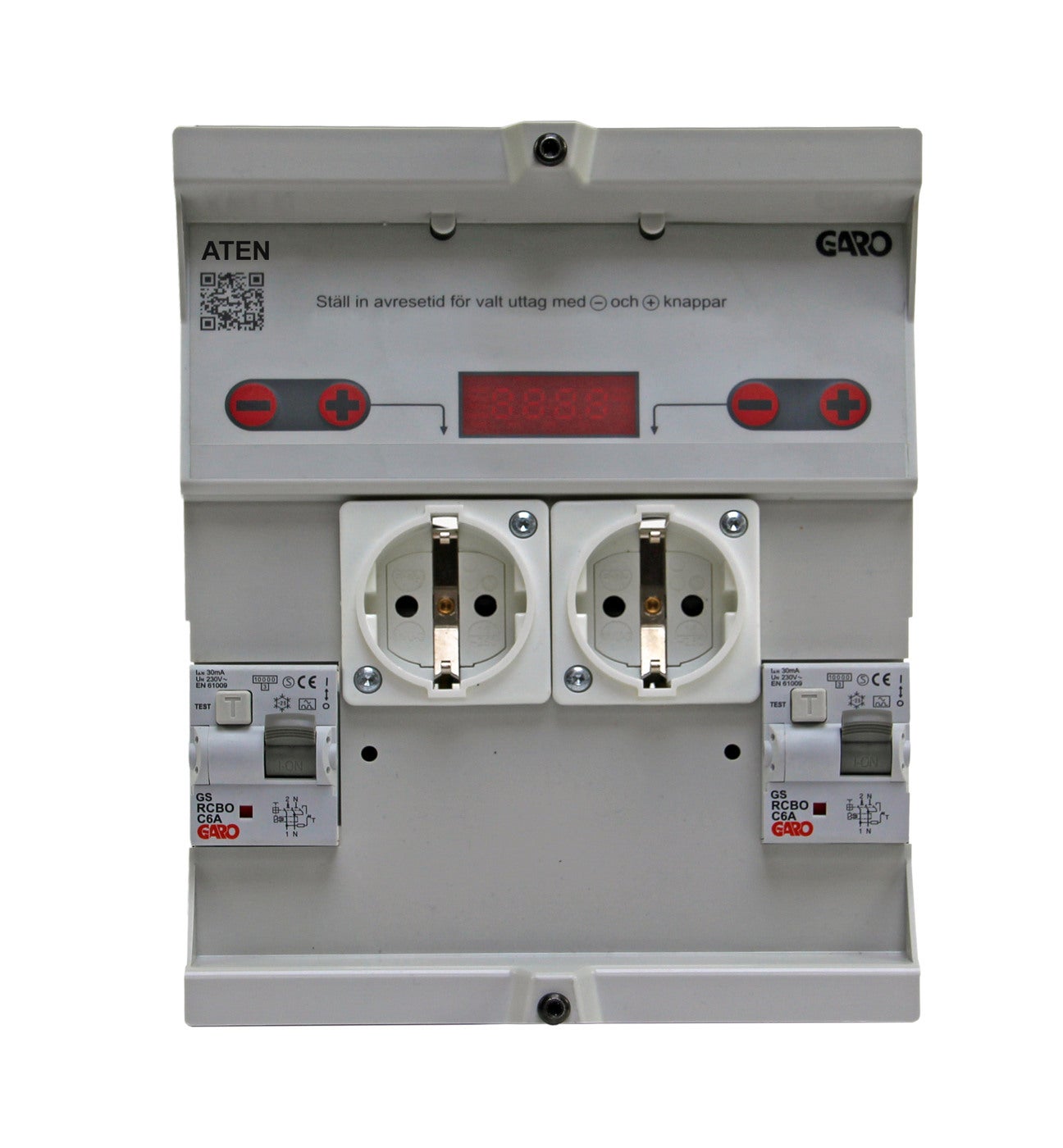

INSERT CAR 6A WOM MAX 3h E2449221 353028 ATEN 206-2 6kA No No 2pcs C2P 6A

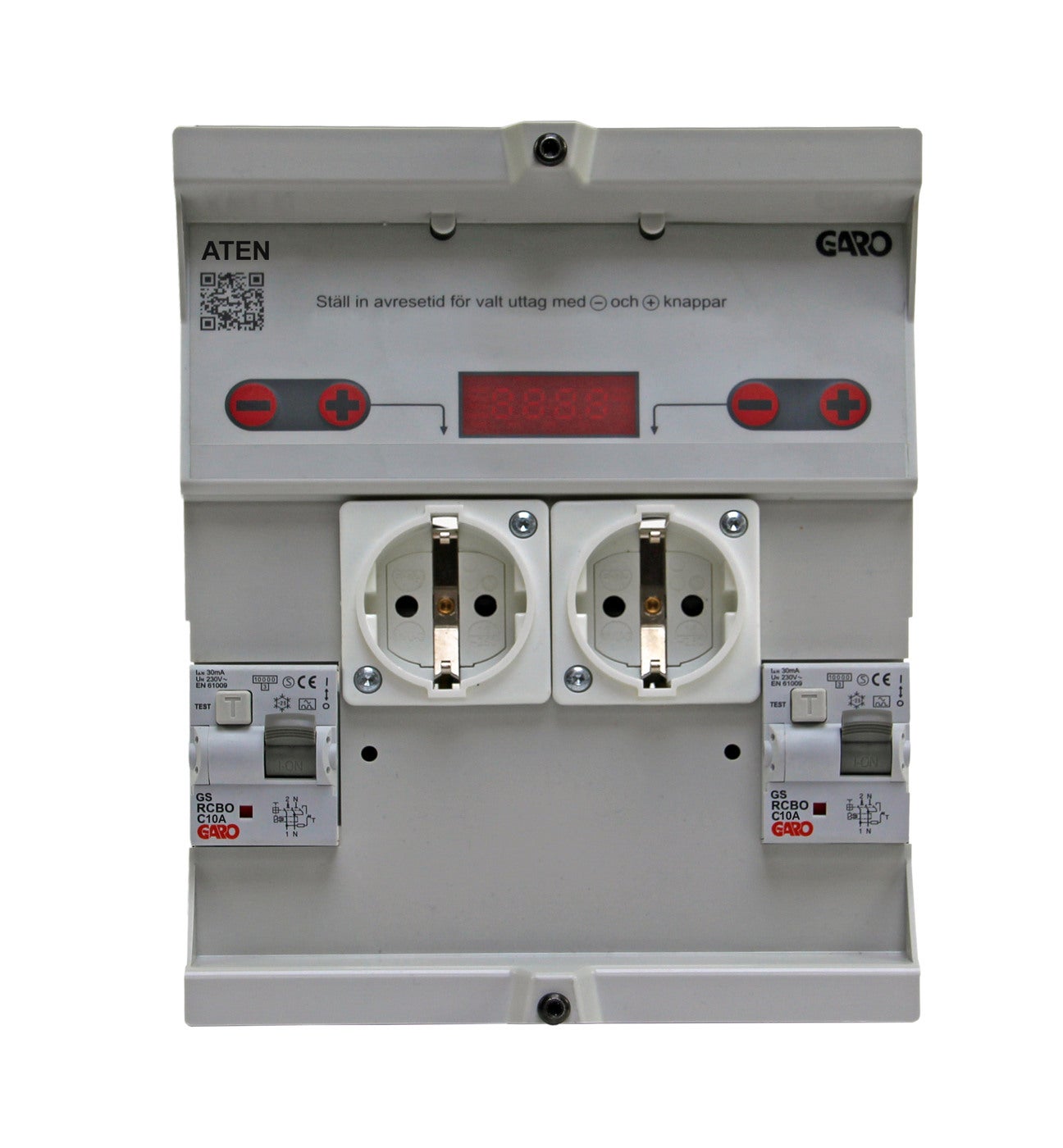

INSERT CAR 10A WOM MAX 3h E2449222 353029 ATEN 210-2 10kA No No 2pcs C2P 10A

Accessories for Inserts Car 3h without meter

Name E-number Article number Type designation Description
RCCB 25A 30mA 10kA 2P RCCB 25A 30mA 10kA 2P E2163321 110092 RCCB 2P 25A 10kA 30mA GS RCCB type GS 25A 2-pole 30mA
MCB C 1P 4A 10kA GS MCB C 1P 4A 10kA GS E2142704 2142704 MCB GS C104 MCB GS C-Characteristic 4A 10kA 1-pole
MCB C 1P 6A 10kA GS MCB C 1P 6A 10kA GS E2142705 2142705 MCB GS C106 MCB GS C-Characteristic 6A 10kA 1-pole

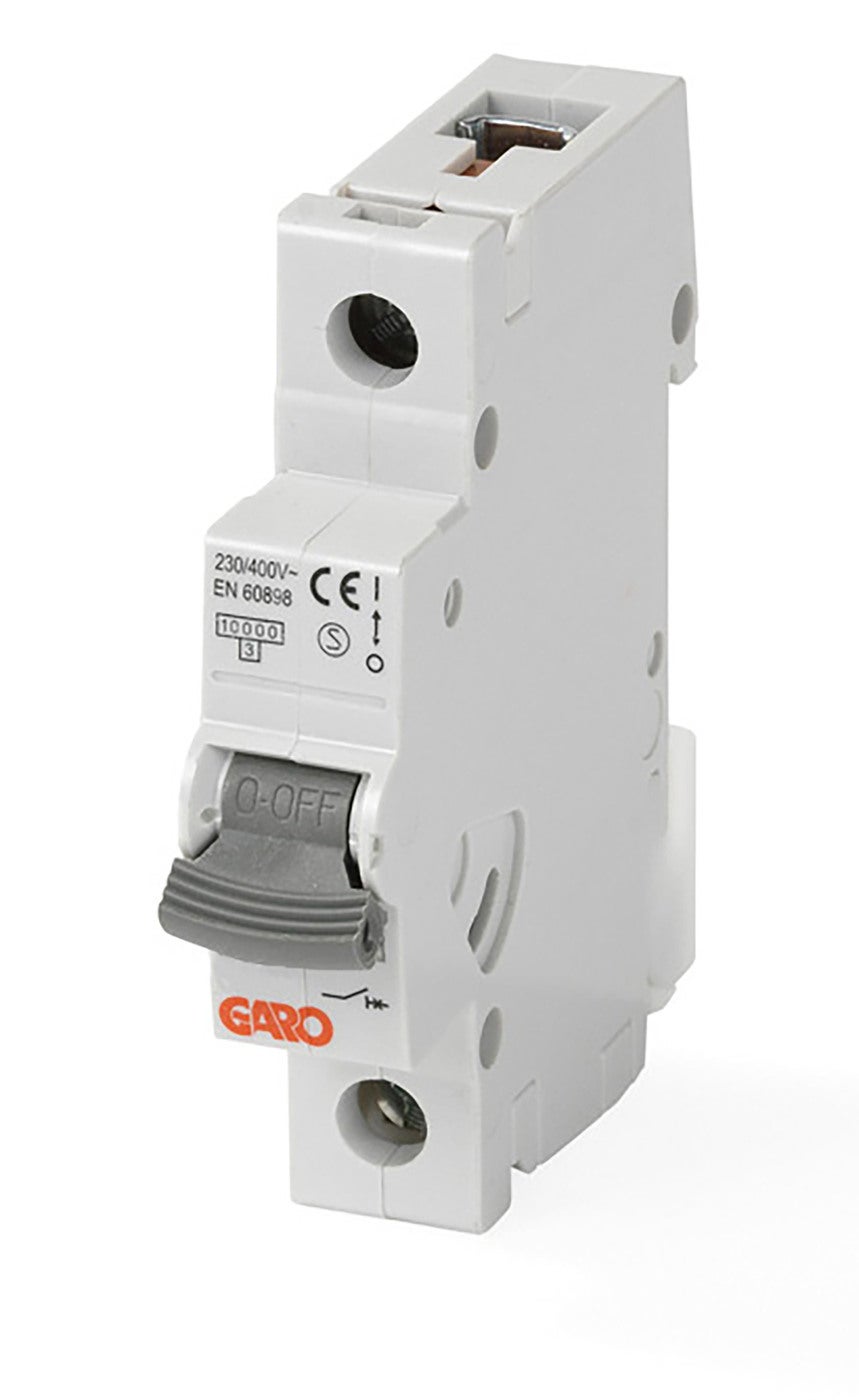

MCB C 1P 10A 10kA GS MCB C 1P 10A 10kA GS E2142706 2142706 MCB GS C110 Miniature cirucit breaker C-characteristic 1-pole 10A 10kA GS
MCB C 1P 13A 10kA GS MCB C 1P 13A 10kA GS E2142707 2142707 MCB GS C113 MCB GS C-Characteristic 13A 10kA 1-pole
LOCKING PIN LOCKING PIN E2163136 2163136 LB 2 Locking pin suitable MCB GS,RCCB GS,RCBO GS,GCB ,GCBO and most other components.
RCBO GS C-CHAR 6A 2P RCBO GS C-CHAR 6A 2P E2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO C 2P 10A 10kA RCBO C 2P 10A 10kA E2163248 2163248 RCBO C2P 10A 10kA GS Residual current circuit breaker with overcurrent protection (RCBO) C-characteristic 2-poles 10A 10kA
RCBO C 13A 2P GS RCBO C 13A 2P GS E2163249 2163249 RCBO C2P 13A 10kA GS RCBO GS C-Characteristic 13A 10kA 2-pole
RCBO C 16A 2P GS RCBO C 16A 2P GS E2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole
RCBO GC C-CHAR 6A 2P RCBO GC C-CHAR 6A 2P 2163283 2163283 RCBO C6A 2P 6kA 1M GS RCBO GC C-Characteristic 6A 6kA 2-pole
RCBO GC C-CHAR 10A 2P RCBO GC C-CHAR 10A 2P E2163284 2163284 RCBO C10A 2P 6kA 1M GS RCBO GC C-Characteristic 10A 6kA 2-pole
RCBO GC C-CHAR 13A 2P RCBO GC C-CHAR 13A 2P 2163285 2163285 RCBO C13A 2P 6kA 1M GS RCBO GC C-Characteristic 13A 6kA 2-pole
RCBO GC C-CHAR 16A 2P RCBO GC C-CHAR 16A 2P 2163286 2163286 RCBO C16A 2P 6kA 1M GS RCBO GC C-Characteristic 16A 6kA 2-pole
SOCKET STRAIGHT 3P 16A 6h S SOCKET STRAIGHT 3P 16A 6h S E2424890 2424890 UIL 216-6 S Socket straight small basic 3-poles 16A 6h
OUTLET INSERT MVU OUTLET INSERT MVU E2449413 2449413 MVU Outlet inserts B50xH50
CONTACT PLUG P100 CONTACT PLUG P100 E2449505 2449505 KD-P Contactplug fits P100 MVC

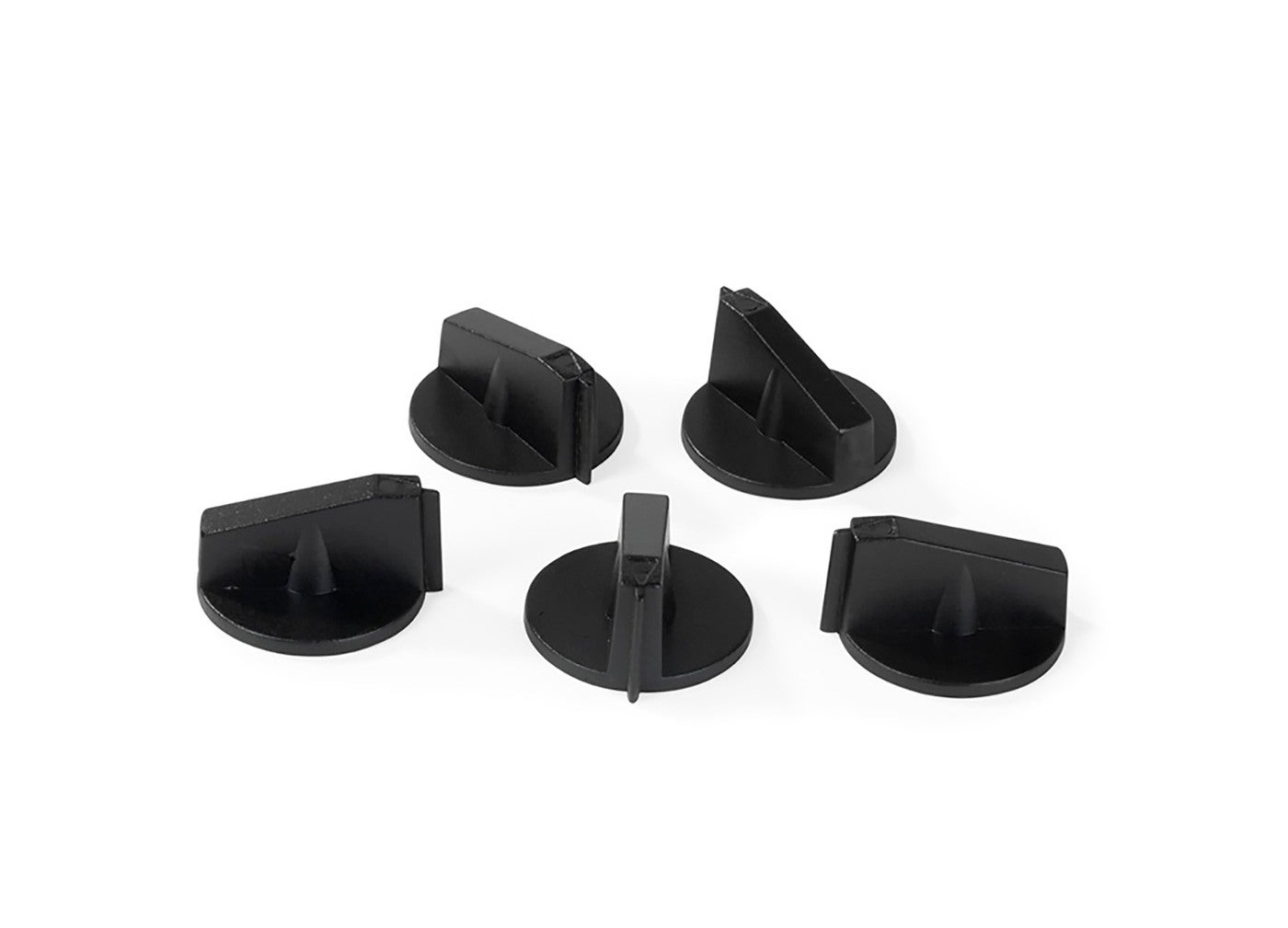

HANDLE MVAT 5-PAC HANDLE MVAT 5-PAC E2449507 2449507 VT Handle MVAT 5-pac

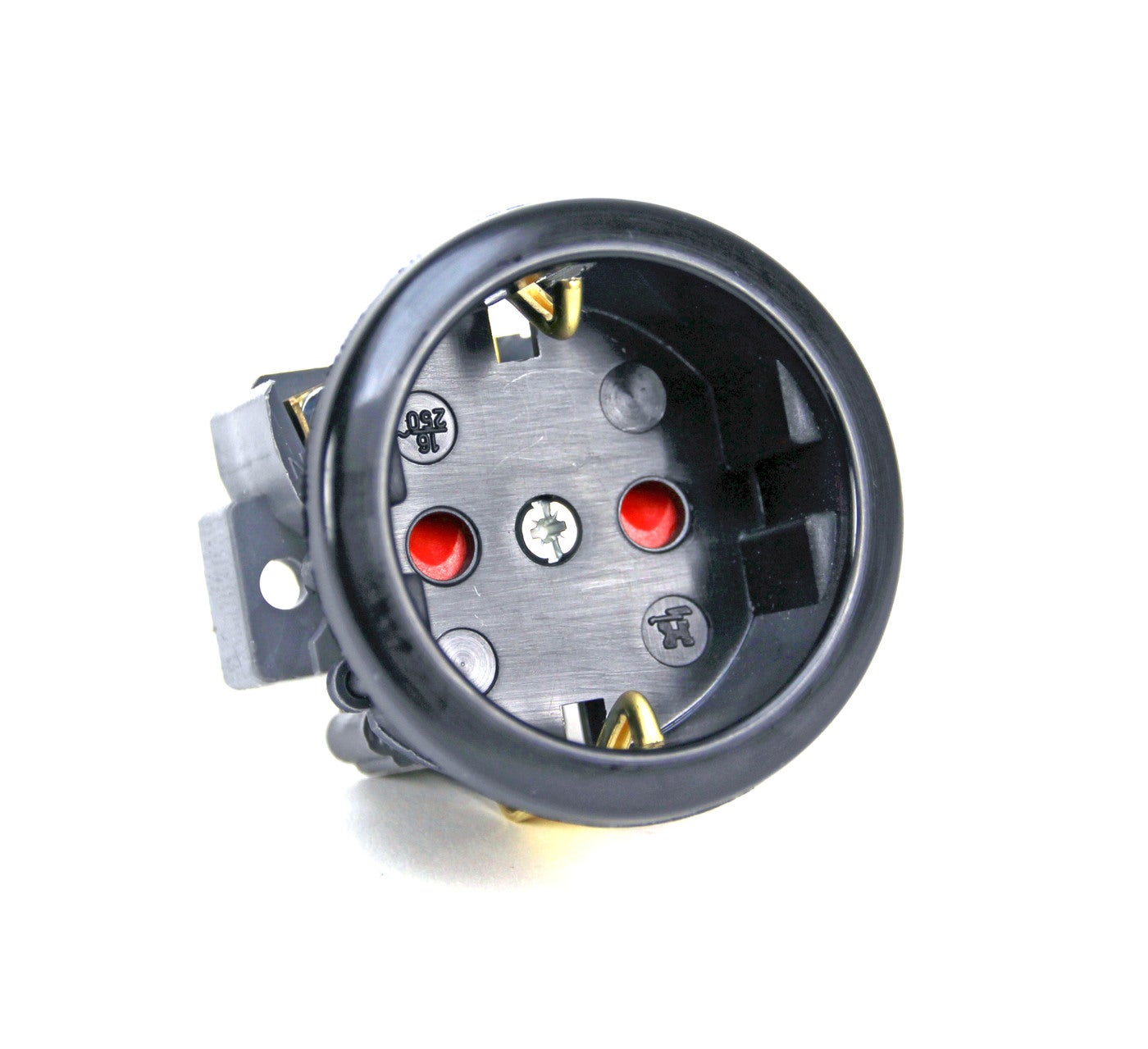

INSERT OUTLET ROUND PET MVV INSERT OUTLET ROUND PET MVV E2449524 2449524 MVV Childproof schuko socket PET round.
TIMER CAR HEATER TIMER CAR HEATER E2449525 2449525 TIMER Timer for carheather. 24H
