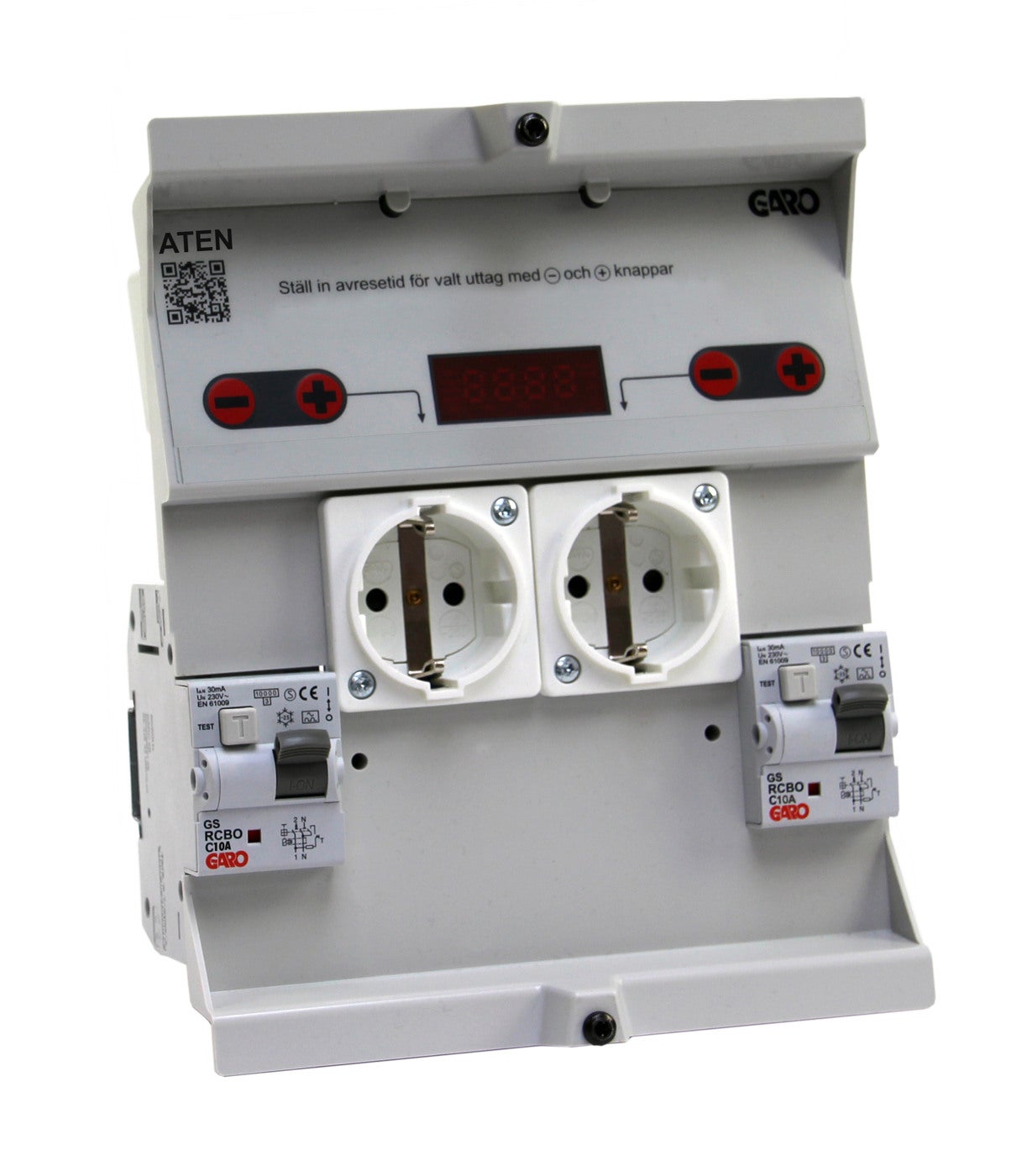

  • INSERT CAR 10A WOM MAX 3h - 2

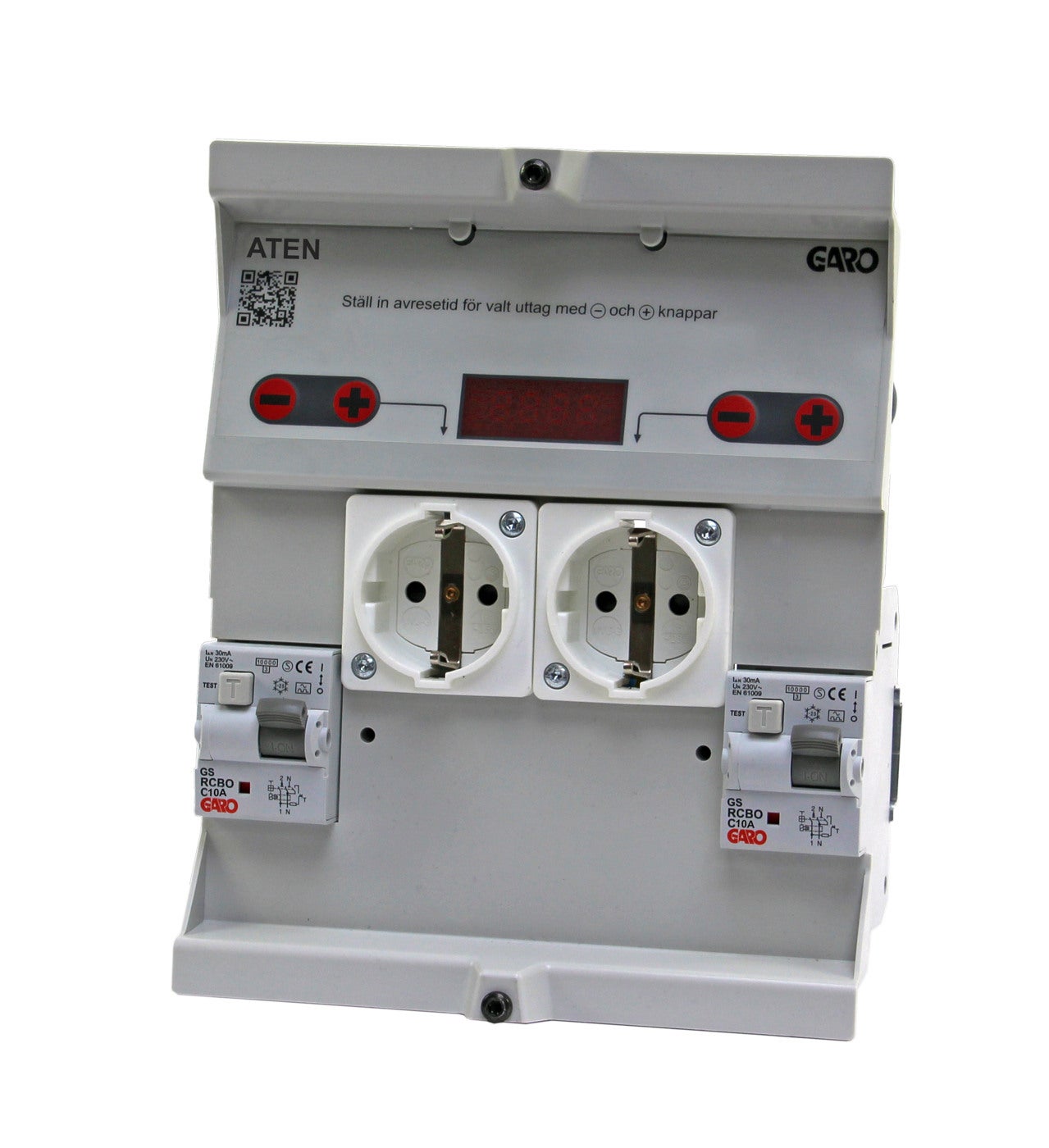

  • INSERT CAR 10A WOM MAX 3h - 3

Inserts Car 3h without meter

GAROs insert ATEN is an electronic timer with a repeating fixed operating time of 3 hours. Equipped with 2 Schuko sockets and 2 RCBOs or RCD and MCB. The components are mounted on a DIN rail, making replacement very easy. The insert has maintenance-free capacitor backup of 48 hours and a clock with automatic summer / wintertime. The insert is compatible and can be used with old series of P100 enclosure. Insert car without measuring, 10A fits PN-system, 3h response time, with RCBO
E-number
E2449222
Article number
353029
Support
Standard EN61439-3
Short-circuit current [kA] 10kA
Frequency [Hz] 50Hz
Housing material Plastic
Color Grey
Rated voltage [V AC] 230V AC
Modelltype PN100 Insert
Energymeter 0
Number of Schuko[pcs] 2pcs
Response time [h] Max 180min
Degree of protection [IP] IP44
EngineerWidth 175
EngineerHeight 220
EngineerDepth 100
Name INSERT CAR 10A WOM MAX 3h
E-number E2449222
Article number 353029
Type designation ATEN 210-2
Rated current [A] 10A
Number of RCCB [pcs] 1 0
Number of RCBO [pcs] 2pcs C2P 10A

Instruction Sheet

Manual

More variants of Inserts Car 3h without meter

INSERT CAR 6A WOM MAX 3h
INSERT CAR 6A WOM MAX 3h
E-number
E2449219
Article number
353026
Type designation
ATEN 206-1
Rated current [A]
6A
Number of MCB 1P (1)
2pcs C106
Number of RCCB [pcs] 1
1pcs 2P 25A
Number of RCBO [pcs]
0
INSERT CAR 10A WOM MAX 3h
INSERT CAR 10A WOM MAX 3h
E-number
EE2449220
Article number
353027
Type designation
ATEN 210-1
Rated current [A]
10A
Number of MCB 1P (1)
2pcs C110
Number of RCCB [pcs] 1
1pcs 2P 25A
Number of RCBO [pcs]
0
INSERT CAR 6A WOM MAX 3h
INSERT CAR 6A WOM MAX 3h
E-number
E2449221
Article number
353028
Type designation
ATEN 206-2
Rated current [A]
6A
Number of MCB 1P (1)
No
Number of RCCB [pcs] 1
0
Number of RCBO [pcs]
2pcs C2P 6A
INSERT CAR 10A WOM MAX 3h
INSERT CAR 10A WOM MAX 3h
E-number
E2449222
Article number
353029
Type designation
ATEN 210-2
Rated current [A]
10A
Number of RCCB [pcs] 1
0
Number of RCBO [pcs]
2pcs C2P 10A

More variants of Inserts Car 3h without meter

E-number Article number Type designation Rated current [A] Number of MCB 1P (1) Number of RCCB [pcs] 1 Number of RCBO [pcs]
INSERT CAR 6A WOM MAX 3h E2449219 353026 ATEN 206-1 6A 2pcs C106 1pcs 2P 25A 0
INSERT CAR 10A WOM MAX 3h EE2449220 353027 ATEN 210-1 10A 2pcs C110 1pcs 2P 25A 0
INSERT CAR 6A WOM MAX 3h E2449221 353028 ATEN 206-2 6A No 0 2pcs C2P 6A
INSERT CAR 10A WOM MAX 3h E2449222 353029 ATEN 210-2 10A 0 2pcs C2P 10A

Accessories for Inserts Car 3h without meter

RCCB 25A 30mA 10kA 2P
RCCB 25A 30mA 10kA 2P
E-number
E2163321
Article number
110092
Type designation
RCCB GS 25A 30mA 10kA 2P
MCB C 1P 4A 10kA GS
MCB C 1P 4A 10kA GS
E-number
E2142704
Article number
2142704
Type designation
MCB C104
MCB C 1P 6A 10kA GS
MCB C 1P 6A 10kA GS
E-number
E2142705
Article number
2142705
Type designation
MCB C106
MCB C 1P 10A 10kA GS
MCB C 1P 10A 10kA GS
E-number
E2142706
Article number
2142706
Type designation
MCB GS C110
MCB C 1P 13A 10kA GS
MCB C 1P 13A 10kA GS
E-number
E2142707
Article number
2142707
Type designation
MCB C113
LOCKING PIN RCCB/MCB
LOCKING PIN RCCB/MCB
E-number
E2163136
Article number
2163136
Type designation
LB 2
RCBO C 2P 6A 10kA 30mA 2M GS
RCBO C 2P 6A 10kA 30mA 2M GS
E-number
E2163247
Article number
2163247
Type designation
RCBO C2P 6A 10kA GS
RCBO C 10A 2P 10kA 30mA GS
RCBO C 10A 2P 10kA 30mA GS
E-number
E2163248
Article number
2163248
Type designation
RCBO C2P 10A 10kA GS
RCBO C 13A 2P 10kA 30mA 2M GS
RCBO C 13A 2P 10kA 30mA 2M GS
E-number
E2163249
Article number
2163249
Type designation
RCBO C2P 13A 10kA GS
RCBO C 16A 2P 10kA 30mA 2M GS
RCBO C 16A 2P 10kA 30mA 2M GS
E-number
E2163250
Article number
2163250
Type designation
RCBO C2P 16A 10kA GS
RCBO GC C-CHAR 6A 2P
RCBO GC C-CHAR 6A 2P
E-number
2163283
Article number
2163283
Type designation
RCBO C6A 2P 6kA 1M GS
RCBO GC C-CHAR 10A 2P
RCBO GC C-CHAR 10A 2P
E-number
E2163284
Article number
2163284
Type designation
RCBO C2P 10A 6kA 1M GS
RCBO GC C-CHAR 13A 2P
RCBO GC C-CHAR 13A 2P
E-number
2163285
Article number
2163285
Type designation
RCBO C13A 2P 6kA 1M GS
RCBO GC C-CHAR 16A 2P
RCBO GC C-CHAR 16A 2P
E-number
2163286
Article number
2163286
Type designation
SOCKET STRAIGHT 3P 16A 6h S
SOCKET STRAIGHT 3P 16A 6h S
E-number
E2424890
Article number
2424890
Type designation
OUTLET INSERT MVU
OUTLET INSERT MVU
E-number
E2449413
Article number
2449413
Type designation
MVU
CONTACT PLUG P100
CONTACT PLUG P100
E-number
E2449505
Article number
2449505
Type designation
KD-P
HANDLE MVAT 5-PAC
HANDLE MVAT 5-PAC
E-number
E2449507
Article number
2449507
Type designation
VT
INSERT OUTLET ROUND PET MVV
INSERT OUTLET ROUND PET MVV
E-number
E2449524
Article number
2449524
Type designation
MVV
TIMER CAR HEATER
TIMER CAR HEATER
E-number
E2449525
Article number
2449525
Type designation
TIMER

Accessories for Inserts Car 3h without meter

Name E-number Article number Type designation Description
RCCB 25A 30mA 10kA 2P RCCB 25A 30mA 10kA 2P E2163321 110092 RCCB GS 25A 30mA 10kA 2P RCCB type GS 25A 2-pole 30mA
MCB C 1P 4A 10kA GS MCB C 1P 4A 10kA GS E2142704 2142704 MCB C104 MCB GS C-Characteristic 4A 10kA 1-pole
MCB C 1P 6A 10kA GS MCB C 1P 6A 10kA GS E2142705 2142705 MCB C106 MCB GS C-Characteristic 6A 10kA 1-pole
MCB C 1P 10A 10kA GS MCB C 1P 10A 10kA GS E2142706 2142706 MCB GS C110 Miniature cirucit breaker C-characteristic 1-pole 10A 10kA GS
MCB C 1P 13A 10kA GS MCB C 1P 13A 10kA GS E2142707 2142707 MCB C113 MCB GS C-Characteristic 13A 10kA 1-pole
LOCKING PIN RCCB/MCB LOCKING PIN RCCB/MCB E2163136 2163136 LB 2 Locking pin suitable MCB GS,RCCB GS,RCBO GS,GCB ,GCBO and most other components.
RCBO C 2P 6A 10kA 30mA 2M GS RCBO C 2P 6A 10kA 30mA 2M GS E2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO C 10A 2P 10kA 30mA GS RCBO C 10A 2P 10kA 30mA GS E2163248 2163248 RCBO C2P 10A 10kA GS Residual current circuit breaker with overcurrent protection (RCBO) C-characteristic 2-poles 10A 10kA
RCBO C 13A 2P 10kA 30mA 2M GS RCBO C 13A 2P 10kA 30mA 2M GS E2163249 2163249 RCBO C2P 13A 10kA GS RCBO GS C-Characteristic 13A 10kA 2-pole
RCBO C 16A 2P 10kA 30mA 2M GS RCBO C 16A 2P 10kA 30mA 2M GS E2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole
RCBO GC C-CHAR 6A 2P RCBO GC C-CHAR 6A 2P 2163283 2163283 RCBO C6A 2P 6kA 1M GS RCBO GC C-Characteristic 6A 6kA 2-pole
RCBO GC C-CHAR 10A 2P RCBO GC C-CHAR 10A 2P E2163284 2163284 RCBO C2P 10A 6kA 1M GS RCBO GC C-Characteristic 10A 6kA 2-pole
RCBO GC C-CHAR 13A 2P RCBO GC C-CHAR 13A 2P 2163285 2163285 RCBO C13A 2P 6kA 1M GS RCBO GC C-Characteristic 13A 6kA 2-pole
RCBO GC C-CHAR 16A 2P RCBO GC C-CHAR 16A 2P 2163286 2163286 RCBO GC C-Characteristic 16A 6kA 2-pole
SOCKET STRAIGHT 3P 16A 6h S SOCKET STRAIGHT 3P 16A 6h S E2424890 2424890 Socket straight small basic 3-poles 16A 6h
OUTLET INSERT MVU OUTLET INSERT MVU E2449413 2449413 MVU Outlet inserts B50xH50
CONTACT PLUG P100 CONTACT PLUG P100 E2449505 2449505 KD-P Contactplug fits P100 MVC
HANDLE MVAT 5-PAC HANDLE MVAT 5-PAC E2449507 2449507 VT Handle MVAT 5-pac
INSERT OUTLET ROUND PET MVV INSERT OUTLET ROUND PET MVV E2449524 2449524 MVV Childproof schuko socket PET round.
TIMER CAR HEATER TIMER CAR HEATER E2449525 2449525 TIMER Timer for carheather. 24H
