Inserts Car time & temperature controll with meter

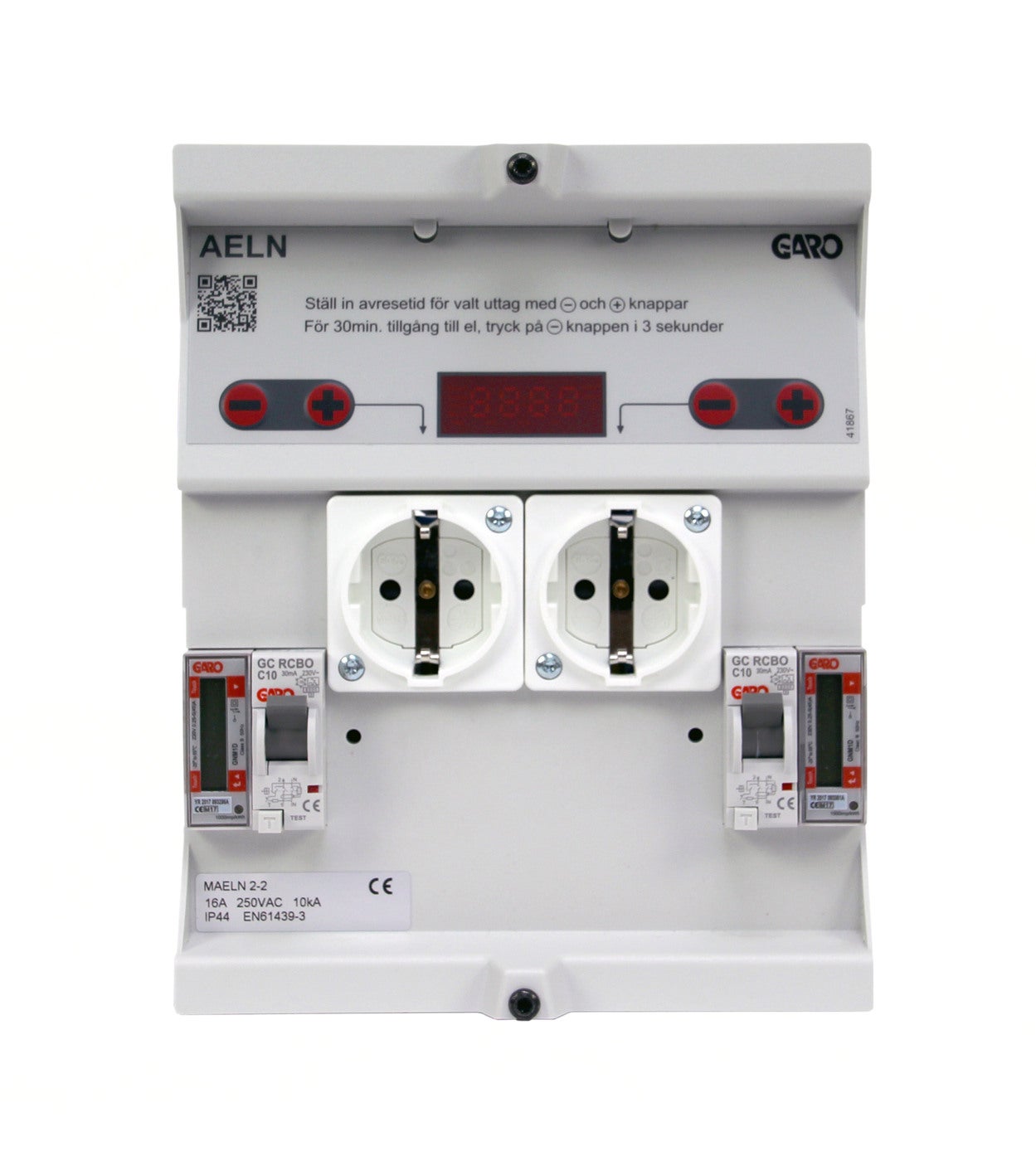

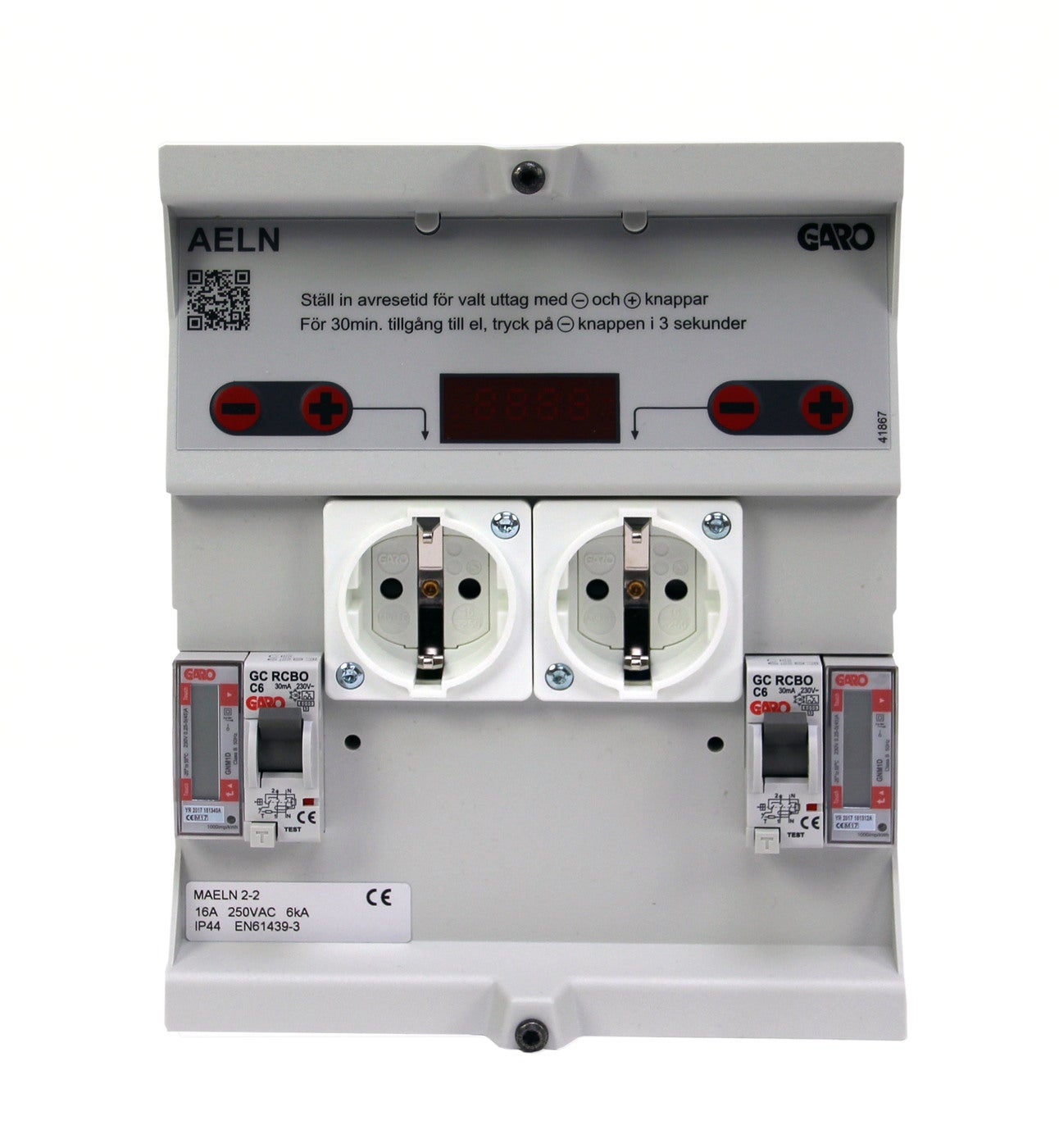

GAROs Insert MAELN, for repetitive time-and temperature controlled socket with metering. The inserts are equipped with 2 Schuko sockets with separate RCBOs and metering as well as with illuminated overlay, outlets and setting buttons. The time-and temperature-controlled socket is controlled by the set departure time and the current outdoor temperature and is equipped with a maintenance-free capacitor backup to withstand power fail for 48 hours. The components are mounted on a DIN rail, making replacement ve Insert car with meausuring 6A fits PN-system, time&temperatur controlled, with RCBO
| Standard | EN61439-3 |
|---|---|
| Short-circuit current [kA] | 6kA |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Grey |
| Rated voltage [V AC] | 230V AC |
| Modelltype | PN100 Insert |
| Energymeter | Yes |
| Number of MCB 1P (1) | No |
| Number of Schuko[pcs] | 2pcs |
| Number of RCCB [pcs] 1 | No |
| Response time [h] | Max 180min |
| Degree of protection [IP] | IP44 |
| EngineerWidth | 175 |
| EngineerHeight | 220 |
| EngineerDepth | 100 |
| Name | INSERT CAR 6A WM TIMETEMP |
|---|---|
| E-number | E2449218 |
| Article number | 353020 |
| Type designation | MAELN 206-2 |
| Rated current [A] | 6A |
| Number of RCBO [pcs] | 2pcs C2P 6A |
