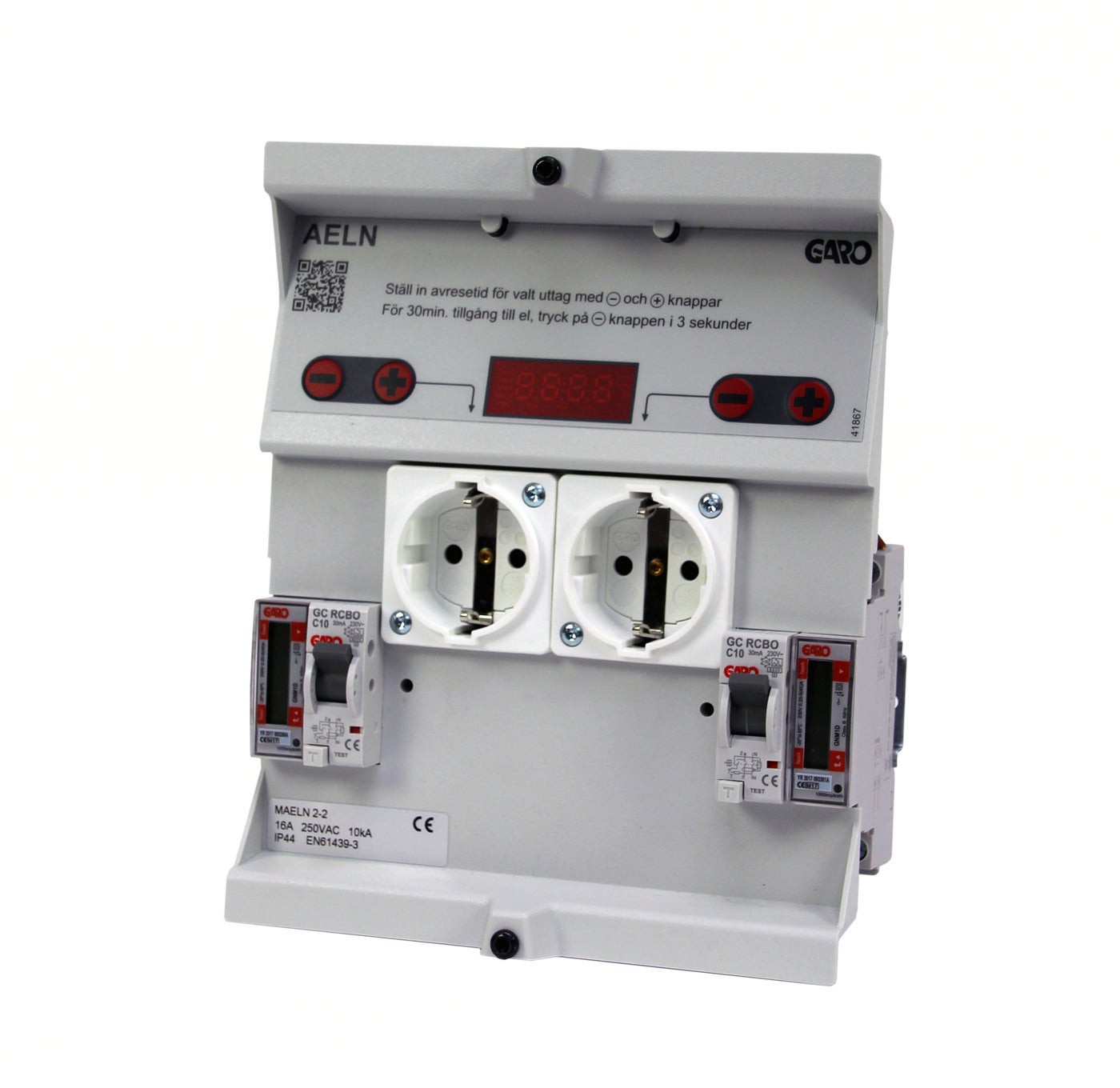

  • INSERT CAR 10A WM TIMETEMP - 2

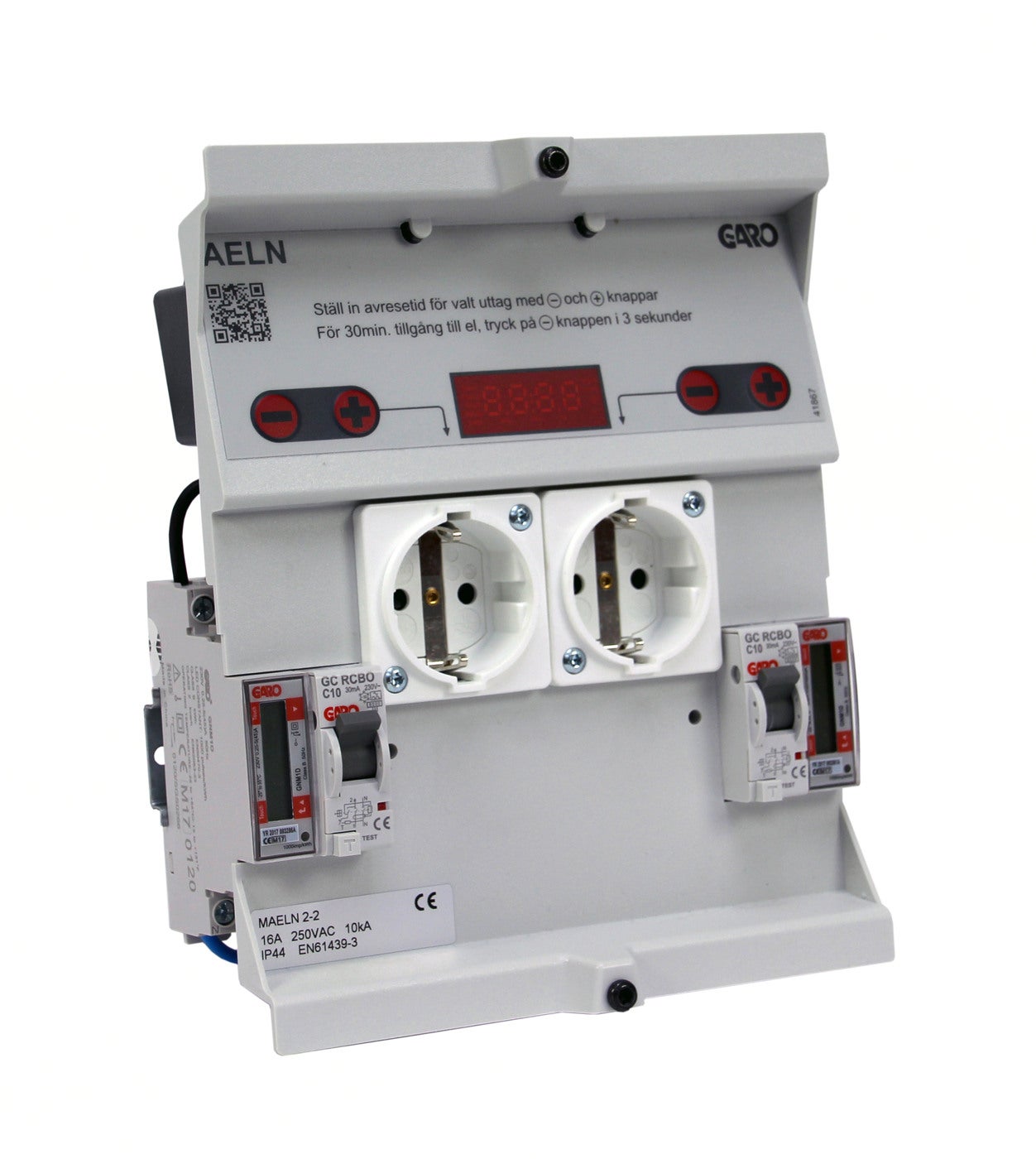

  • INSERT CAR 10A WM TIMETEMP - 3

Inserts Car time & temperature controll with meter

GAROs Insert MAELN, for repetitive time-and temperature controlled socket with metering. The inserts are equipped with 2 Schuko sockets with separate RCBOs and metering as well as with illuminated overlay, outlets and setting buttons. The time-and temperature-controlled socket is controlled by the set departure time and the current outdoor temperature and is equipped with a maintenance-free capacitor backup to withstand power fail for 48 hours. The components are mounted on a DIN rail, making replacement ve Insert car with meausuring 10A fits PN-system, time&temperatur controlled, with RCBO
E-number
E2449217
Article number
353019
Support
Standard EN61439-3
Short-circuit current [kA] 6kA
Frequency [Hz] 50Hz
Housing material Plastic
Color Grey
Rated current [A] 16A
Rated voltage [V AC] 230V AC
Modelltype PN100 Insert
Number of MCB 1P (1) No
Number of Schuko[pcs] 2pcs
Number of RCCB [pcs] 1 No
Degree of protection [IP] IP44
EngineerWidth 175
EngineerHeight 220
EngineerDepth 100
Name INSERT CAR 10A WM TIMETEMP
E-number E2449217
Article number 353019
Type designation MAELN 210-2
Energymeter Yes
Number of RCBO [pcs] 2pcs C2P 10A

Instruction Sheet

Manual

More variants of Inserts Car time & temperature controll with meter

E-number Article number Type designation Energymeter Number of RCBO [pcs]
INSERT CAR 10A WM TIMETEMP E2449217 353019 MAELN 210-2 Yes 2pcs C2P 10A
INSERT CAR 6A WM TIMETEMP E2449218 353020 MAELN 206-2 No 2pcs C2P 6A

Accessories for Inserts Car time & temperature controll with meter

Name E-number Article number Type designation Description
ENERGYMETER 1PH PULS ENERGYMETER 1PH PULS E0900131 108043 GNM1D Energymeter 1 pole pulse
LOCKING PIN LOCKING PIN E2163136 2163136 LB 2 Locking pin suitable MCB GS,RCCB GS,RCBO GS,GCB ,GCBO and most other components.
RCBO GC C-CHAR 6A 2P RCBO GC C-CHAR 6A 2P 2163283 2163283 RCBO C6A 2P 6kA 1M GS RCBO GC C-Characteristic 6A 6kA 2-pole
RCBO GC C-CHAR 10A 2P RCBO GC C-CHAR 10A 2P E2163284 2163284 RCBO C10A 2P 6kA 1M GS RCBO GC C-Characteristic 10A 6kA 2-pole
RCBO GC C-CHAR 13A 2P RCBO GC C-CHAR 13A 2P 2163285 2163285 RCBO C13A 2P 6kA 1M GS RCBO GC C-Characteristic 13A 6kA 2-pole
RCBO GC C-CHAR 16A 2P RCBO GC C-CHAR 16A 2P 2163286 2163286 RCBO C16A 2P 6kA 1M GS RCBO GC C-Characteristic 16A 6kA 2-pole
OUTLET INSERT MVU OUTLET INSERT MVU E2449413 2449413 MVU Outlet inserts B50xH50
CONTACT PLUG P100 CONTACT PLUG P100 E2449505 2449505 KD-P Contactplug fits P100 MVC
HANDLE MVAT 5-PAC HANDLE MVAT 5-PAC E2449507 2449507 VT Handle MVAT 5-pac
INSERT OUTLET ROUND PET MVV INSERT OUTLET ROUND PET MVV E2449524 2449524 MVV Childproof schuko socket PET round.
TIMER CAR HEATER TIMER CAR HEATER E2449525 2449525 TIMER Timer for carheather. 24H
