Measurement devices flex wire 25A

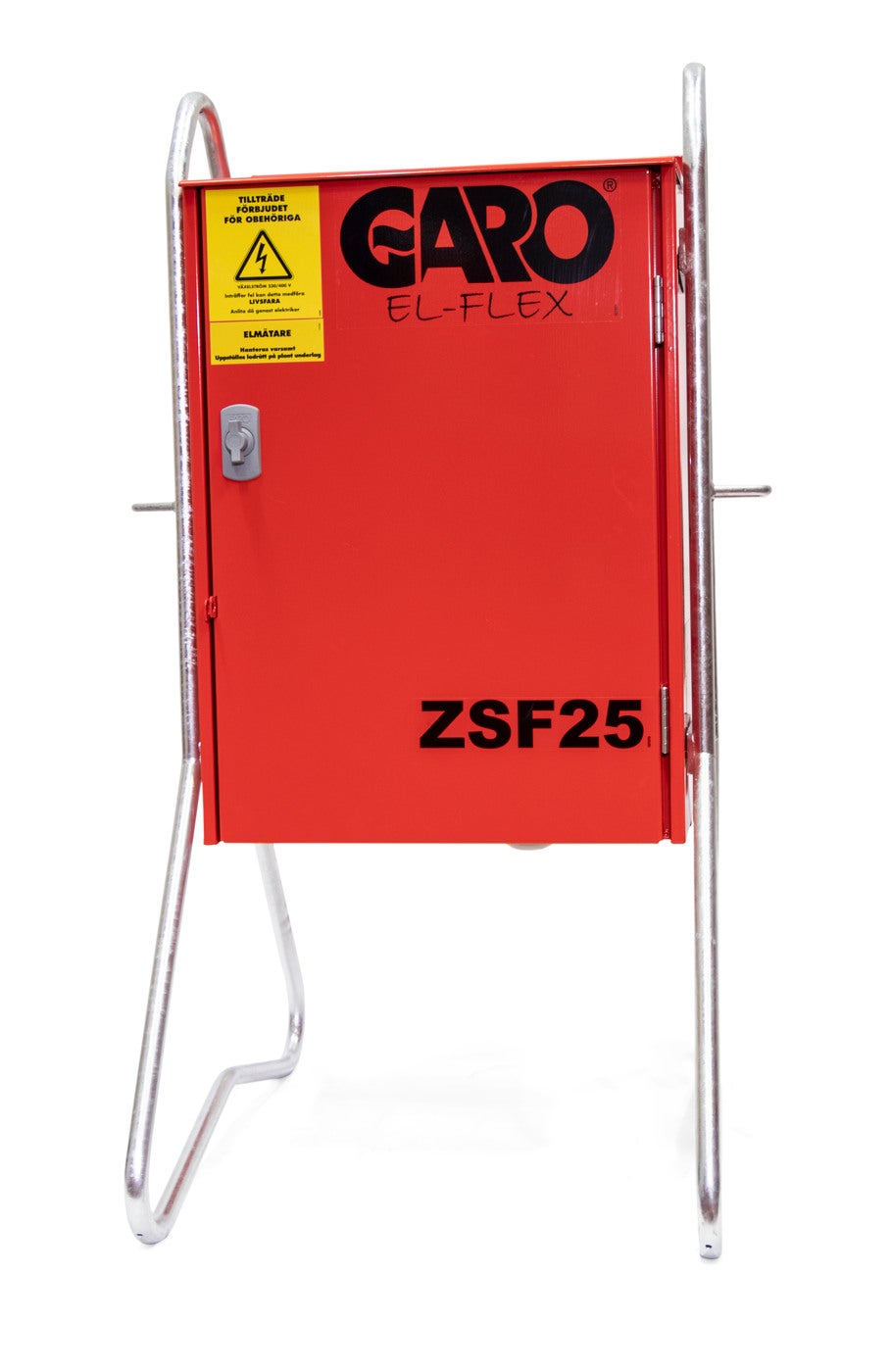

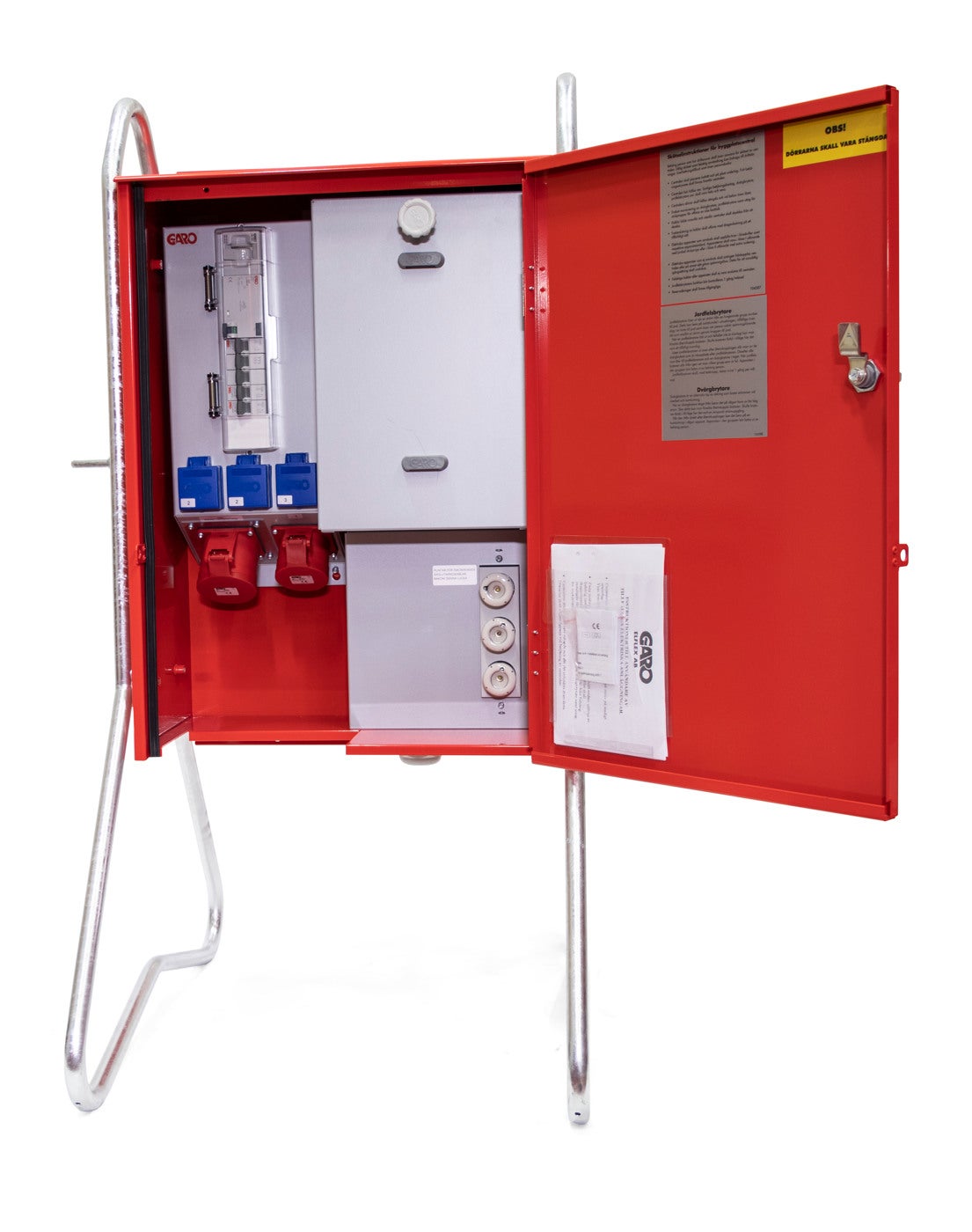

Mains distribution assembly 25A (HC25) is normally used for the construction of small houses and detached houses, etc. The distribution assembly is equipped with sockets 13-32A which are preceded by residual current devices and miniature circuit breakers. Equipped with a hot-dip galvanized stand and lockable door. Main distribution assembly 25A RCCB 3xschuko 1x16A outlet 1x32A outlet
| Type designation | ZSF GB 25/00/01103-10 |
|---|---|
| Standard | EN61439-4 |
| Frequency [Hz] | 50Hz |
| Housing material | Sheet steel |
| Color | Red |
| Rated current [A] | 25A |
| Rated voltage [V AC] | 400V AC |
| CEE socket outlet 16A | 1pcs 5P 16A 230/400V |
| Number of MCB 1P (1) | 2pcs C113 |
| Number of MCB 1P (2) | 1pcs C316 |
| Number of Schuko[pcs] | 3pcs |
| Number of RCCB [pcs] 1 | 1pcs 4P 40A |
| CEE socket outlet 32A | 1pcs 5P 32A 230/400V |
| Space for meters [pcs] | 1 |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 31 |
| EngineerWidth | 525 |
| EngineerHeight | 1100 |
| EngineerDepth | 650 |
| Name | TEMP POWER MET UNIT 25A RCCB |
|---|---|
| E-number | E2469016 |
| Article number | 2469016 |
