Enclosure with metercabinet 1100mm

Enclosure with metercabinet 1100mm GPI temporary power distribution board 1100mm 20modules with meter cabinet

E-number
E2469066

Article number
2469066

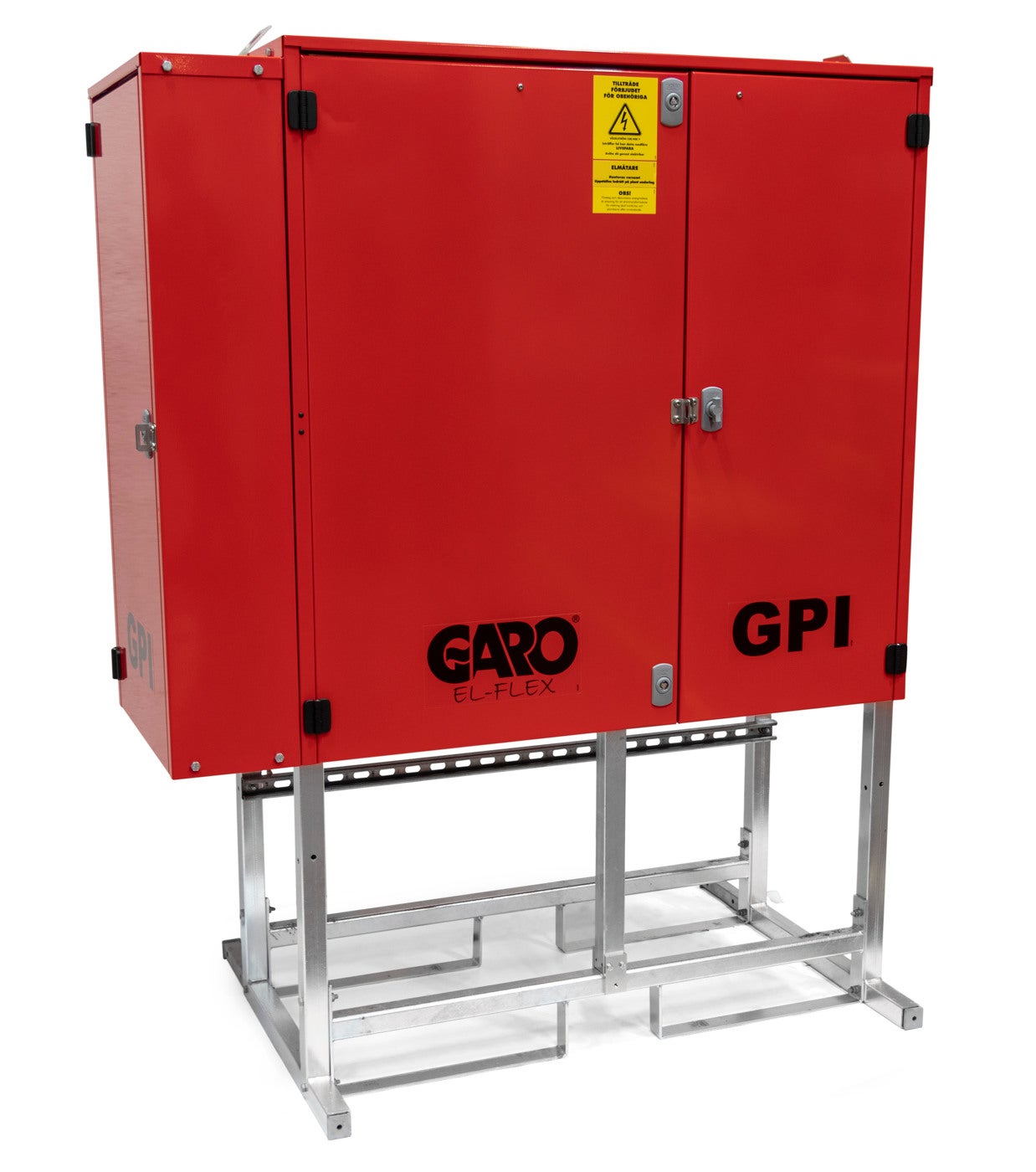

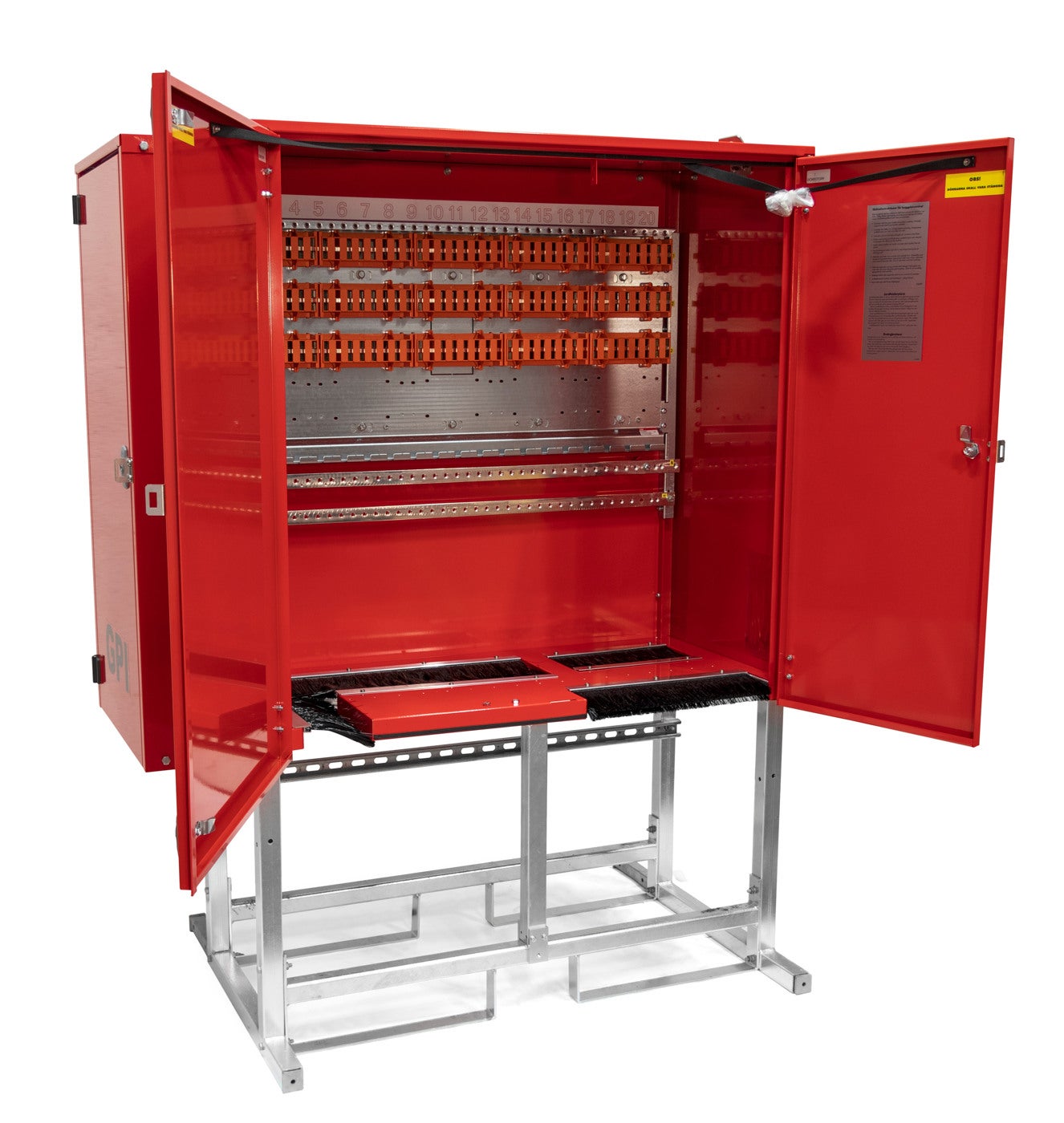

GPI TEMP POWER METER 1100MM 20

E-number
E2469066

Article number
2469066

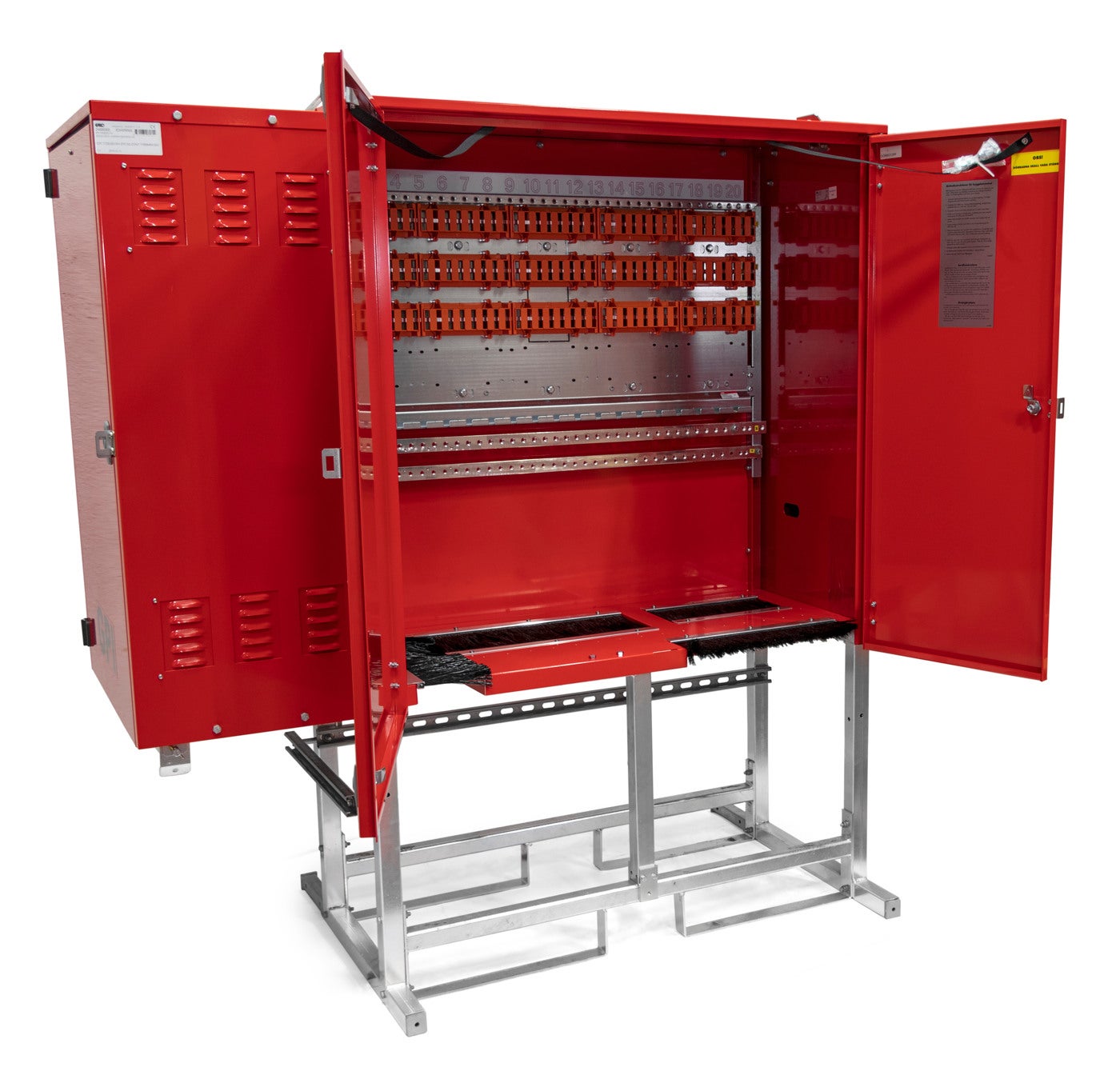

GPI IN TEMP POW METR 1100MM 20

E-number
E2469068

Article number
2469068

Materials	Sheet metal
Standard	EN61439-4
Frequency [Hz]	50Hz
Color	Red
Rated current [A]	630A
Rated voltage [V AC]	230/400V AC
Number of modules	20
Degree of protection [IP]	IP44
EngineerWidth	1100
EngineerHeight	1662
EngineerDepth	506

Name	GPI TEMP POWER METER 1100MM 20
E-number	E2469066
Article number	2469066
Type designation	GPI 1100/20-M
NetProductWeight	178

More variants of Enclosure with metercabinet 1100mm

	E-number	Article number	Type designation	NetProductWeight
	E2469066	2469066	GPI 1100/20-M	178
	E2469068	2469068	GPI 1100/20-IM	198

Accessories for Enclosure with metercabinet 1100mm

	Name	E-number	Article number	Type designation	Description
	COVER MODULE GPI 1M 50MM	E2469101	2469101	BM-1	Cover module GPI 1 module 50mm
	COVER MODULE GPI 3M 150MM	E2469102	2469102	BM-3	Cover module GPI 3 module 150mm
	COVER MODULE GPI 200MM	E2469103	2469103	BM-4	Cover module GPI 4 modules
	CONTACT KIT PROTECT GPI	E2469104	2469104	BS-GPI	Contact kit protect for hardwire cables
	TRANSPORT SECURITY GPI	E2469107	2469107	TF	Transport security GPI for outletmodule
	DIVISIBLE TERMINAL KIT 10-95	E2466339	351982	PE/N 10-95	Divisible terminal kit PE/N 10-95mm² GPI.
	DIVISIBLE TERMINAL KIT 95-240	E2466340	351983	PE/N 95-240	Divisible terminal kit PE/N 95-240mm²
	SUPPORT INSERT FOR UPI 3M		80793		Protection cover support insert for outlet-modules 3 modules fits GPI-system.
	SUPPORT INSERT FOR UPI 4M		80794		Protection cover support insert for outlet-modules 4 modules fits GPI-system.
	SUPPORT INSERT FOR UPI 5M		80795		Protection cover support insert for outlet-modules 5modules fits GPI-system.
