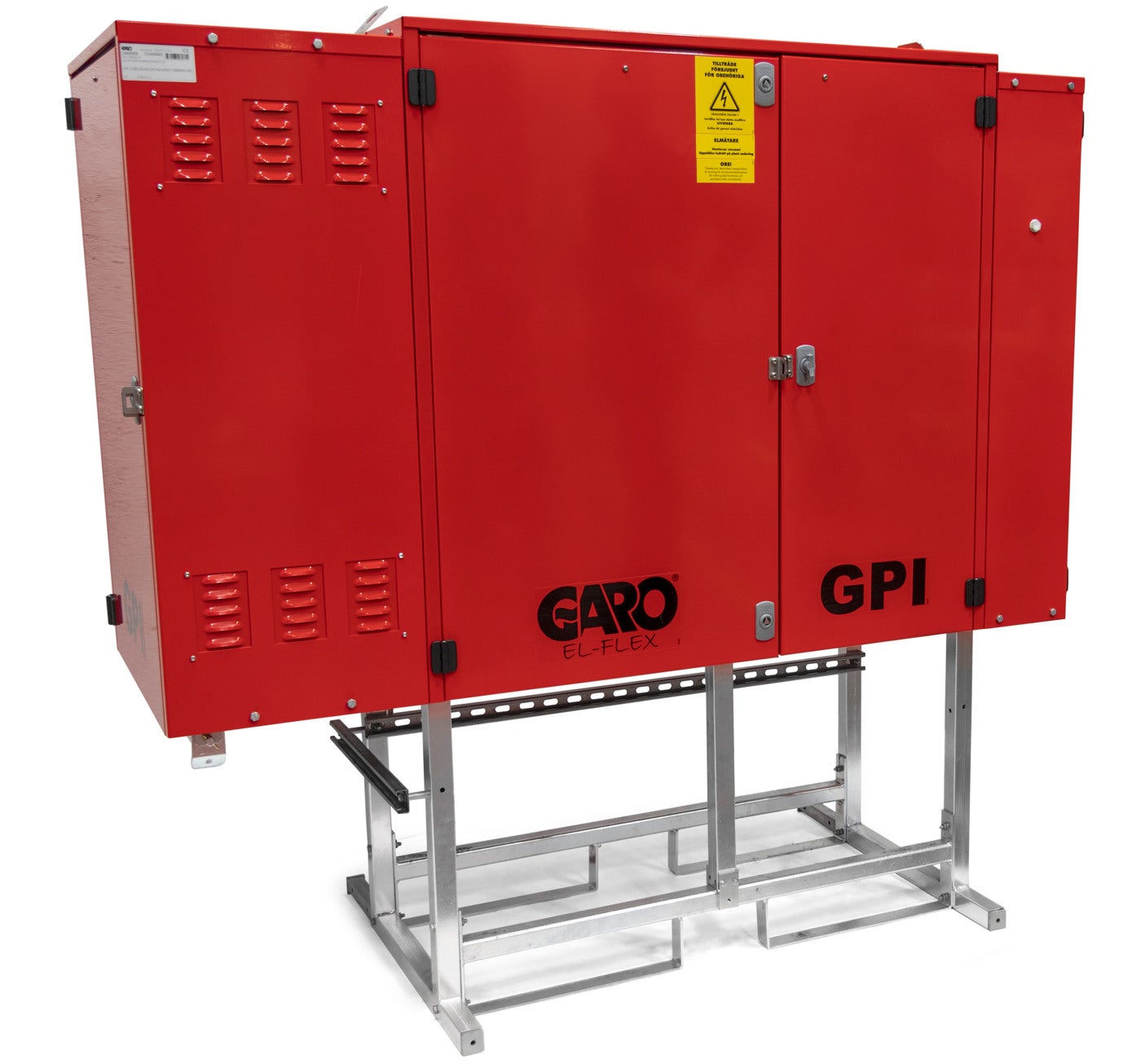

  • GPI IN TEMP POW METR 1100MM 20 - 2

Enclosure with metercabinet 1100mm

Enclosure with metercabinet 1100mm GPI temporary power distribution board 1100mm 20modules with incoming,- and meter,-cabinet
E-number
E2469068
Article number
2469068
Support
Materials Sheet metal
Standard EN61439-4
Frequency [Hz] 50Hz
Color Red
Rated current [A] 630A
Rated voltage [V AC] 230/400V AC
Number of modules 20
Degree of protection [IP] IP44
EngineerWidth 1100
EngineerHeight 1662
EngineerDepth 506
Name GPI IN TEMP POW METR 1100MM 20
E-number E2469068
Article number 2469068
Type designation GPI 1100/20-IM
NetProductWeight 198

More variants of Enclosure with metercabinet 1100mm

GPI TEMP POWER METER 1100MM 20
GPI TEMP POWER METER 1100MM 20
E-number
E2469066
Article number
2469066
Type designation
GPI 1100/20-M
NetProductWeight
178
GPI IN TEMP POW METR 1100MM 20
GPI IN TEMP POW METR 1100MM 20
E-number
E2469068
Article number
2469068
Type designation
GPI 1100/20-IM
NetProductWeight
198

More variants of Enclosure with metercabinet 1100mm

E-number Article number Type designation NetProductWeight
GPI TEMP POWER METER 1100MM 20 E2469066 2469066 GPI 1100/20-M 178
GPI IN TEMP POW METR 1100MM 20 E2469068 2469068 GPI 1100/20-IM 198

Accessories for Enclosure with metercabinet 1100mm

COVER MODULE GPI 1M 50MM
COVER MODULE GPI 1M 50MM
E-number
E2469101
Article number
2469101
Type designation
BM-1
COVER MODULE GPI 3M 150MM
COVER MODULE GPI 3M 150MM
E-number
E2469102
Article number
2469102
Type designation
BM-3
COVER MODULE GPI 200MM
COVER MODULE GPI 200MM
E-number
E2469103
Article number
2469103
Type designation
BM-4
CONTACT KIT PROTECT GPI
CONTACT KIT PROTECT GPI
E-number
E2469104
Article number
2469104
Type designation
BS-GPI
TRANSPORT SECURITY GPI
TRANSPORT SECURITY GPI
E-number
E2469107
Article number
2469107
Type designation
TF
DIVISIBLE TERMINAL KIT 10-95
DIVISIBLE TERMINAL KIT 10-95
E-number
E2466339
Article number
351982
Type designation
PE/N 10-95
DIVISIBLE TERMINAL KIT 95-240
DIVISIBLE TERMINAL KIT 95-240
E-number
E2466340
Article number
351983
Type designation
PE/N 95-240
SUPPORT INSERT FOR UPI 3M
E-number
Article number
80793
Type designation
SUPPORT INSERT FOR UPI 4M
E-number
Article number
80794
Type designation
SUPPORT INSERT FOR UPI 5M
E-number
Article number
80795
Type designation

Accessories for Enclosure with metercabinet 1100mm

Name E-number Article number Type designation Description
COVER MODULE GPI 1M 50MM COVER MODULE GPI 1M 50MM E2469101 2469101 BM-1 Cover module GPI 1 module 50mm
COVER MODULE GPI 3M 150MM COVER MODULE GPI 3M 150MM E2469102 2469102 BM-3 Cover module GPI 3 module 150mm
COVER MODULE GPI 200MM COVER MODULE GPI 200MM E2469103 2469103 BM-4 Cover module GPI 4 modules
CONTACT KIT PROTECT GPI CONTACT KIT PROTECT GPI E2469104 2469104 BS-GPI Contact kit protect for hardwire cables
TRANSPORT SECURITY GPI TRANSPORT SECURITY GPI E2469107 2469107 TF Transport security GPI for outletmodule
DIVISIBLE TERMINAL KIT 10-95 DIVISIBLE TERMINAL KIT 10-95 E2466339 351982 PE/N 10-95 Divisible terminal kit PE/N 10-95mm² GPI.
DIVISIBLE TERMINAL KIT 95-240 DIVISIBLE TERMINAL KIT 95-240 E2466340 351983 PE/N 95-240 Divisible terminal kit PE/N 95-240mm²
SUPPORT INSERT FOR UPI 3M 80793 Protection cover support insert for outlet-modules 3 modules fits GPI-system.
SUPPORT INSERT FOR UPI 4M 80794 Protection cover support insert for outlet-modules 4 modules fits GPI-system.
SUPPORT INSERT FOR UPI 5M 80795 Protection cover support insert for outlet-modules 5modules fits GPI-system.
