Shed units 16A
Cabin distribution board 16-32A, mounted on modular buildings, portable cabins, site huts, containers, etc. Equipped with CEE inputs and CEE outputs and terminal connection of outgoing cable. Cabin distribution board 16A
E-number
E2469038
E2469038
Article number
2469038
2469038
| Type designation | GBA 416-6 |
|---|---|
| Materials | Sheet metal |
| Standard | EN61439-3 |
| Frequency [Hz] | 50/60Hz |
| Color | Grey |
| Rated current [A] | 16A |
| Rated voltage [V AC] | 230/400V AC |
| Number of poles | 5/3P+N+E |
| CEE socket outlet 16A | 1pcs 5P 16A 230/400V |
| CEE socket inlet 16A | 1pcs 5P 16A 230/400V |
| Degree of protection [IP] | IP44 |

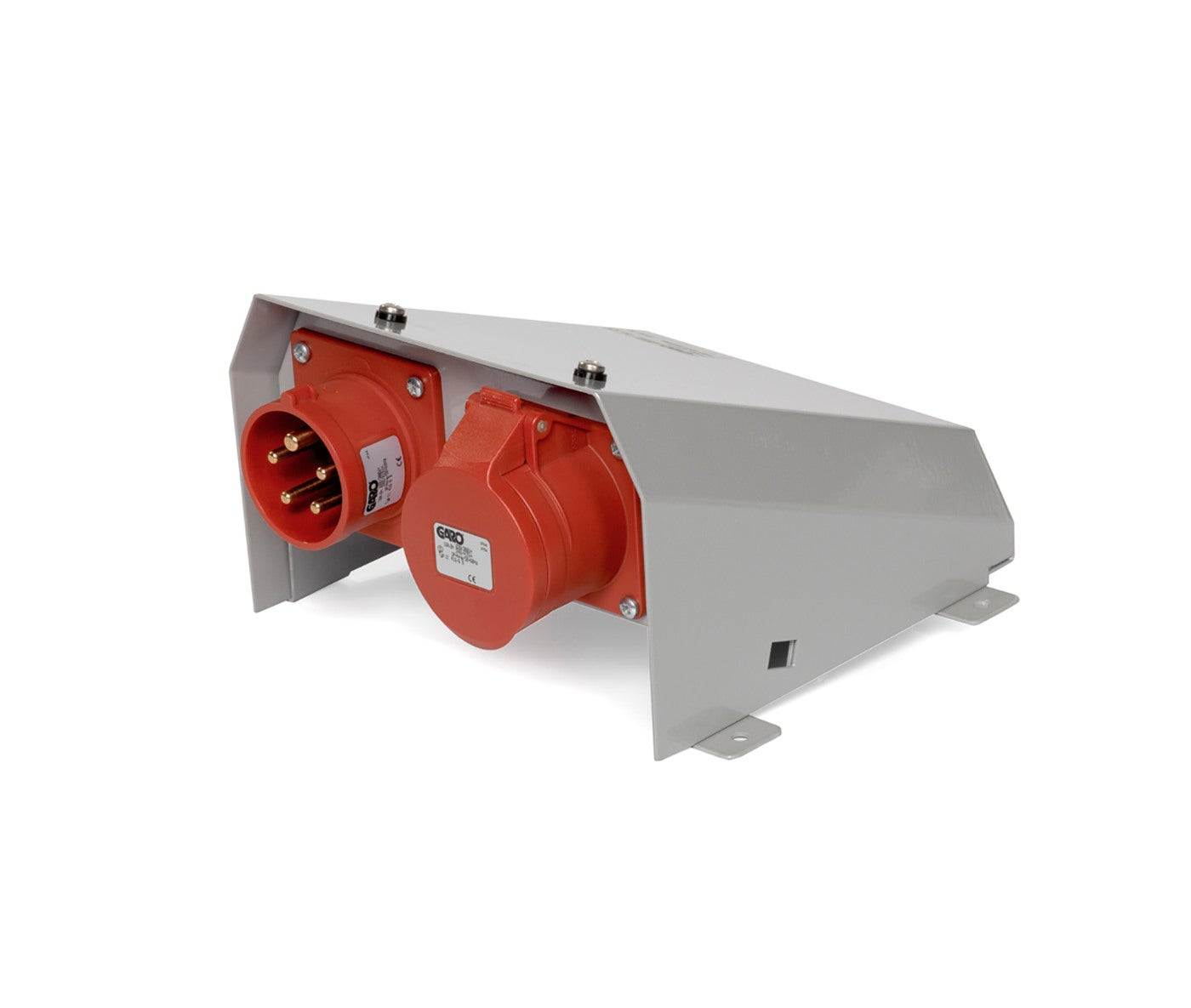

| Name | INLETBOX MODULAR UNIT 16A |
|---|---|
| E-number | E2469038 |
| Article number | 2469038 |
