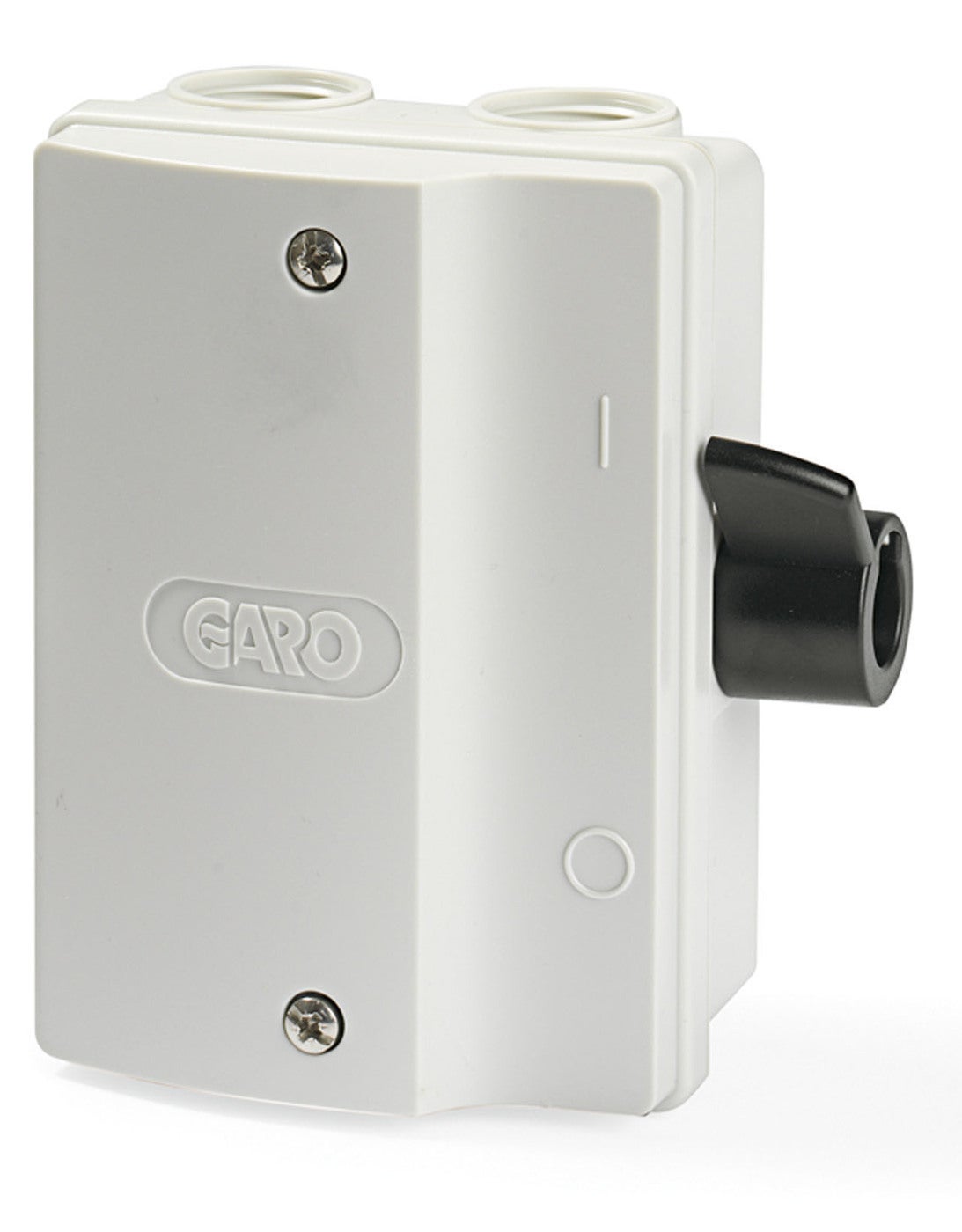

SWITCH 4P 16A GREY

Switches 4-poles 16A

GARO’s power switch 16A is available in 2-, 3- or 4-pole variants designed for imaginable environments such as industrial, residential and public environments, partly as it is available in either a white or grey finish. All power switches are also approved for agricultural environments. Supplied as standard with connection options for neutral and protective conductors and the neutral pole in the 4-pole switches features delayed opening and an earlier closing operation compared to the phase poles. The power Switch grey 4 pole 16A
E-number
E3155004
Article number
3155004
Support
Standard EN60947-3
Housing material Plastic
Rated current [A] 16A
Number of poles 4P
Isolation voltage [V] 690V AC
With lighting No
Degree of protection [IP] IP65
EngineerWidth 117
EngineerHeight 137
EngineerDepth 62
Name SWITCH 4P 16A GREY
E-number E3155004
Article number 3155004
Type designation BGG 416
Color Grey
Mounting method Wall mounting
RAL-number RAL7035
Connection PE [mm²] 6mm²
NetProductWeight 0.32

More variants of Switches 4-poles 16A

E-number Article number Type designation Color Mounting method RAL-number Connection PE [mm²] NetProductWeight
SWITCH 4P 16A GREY E3155004 3155004 BGG 416 Grey Wall mounting RAL7035 6mm² 0.32

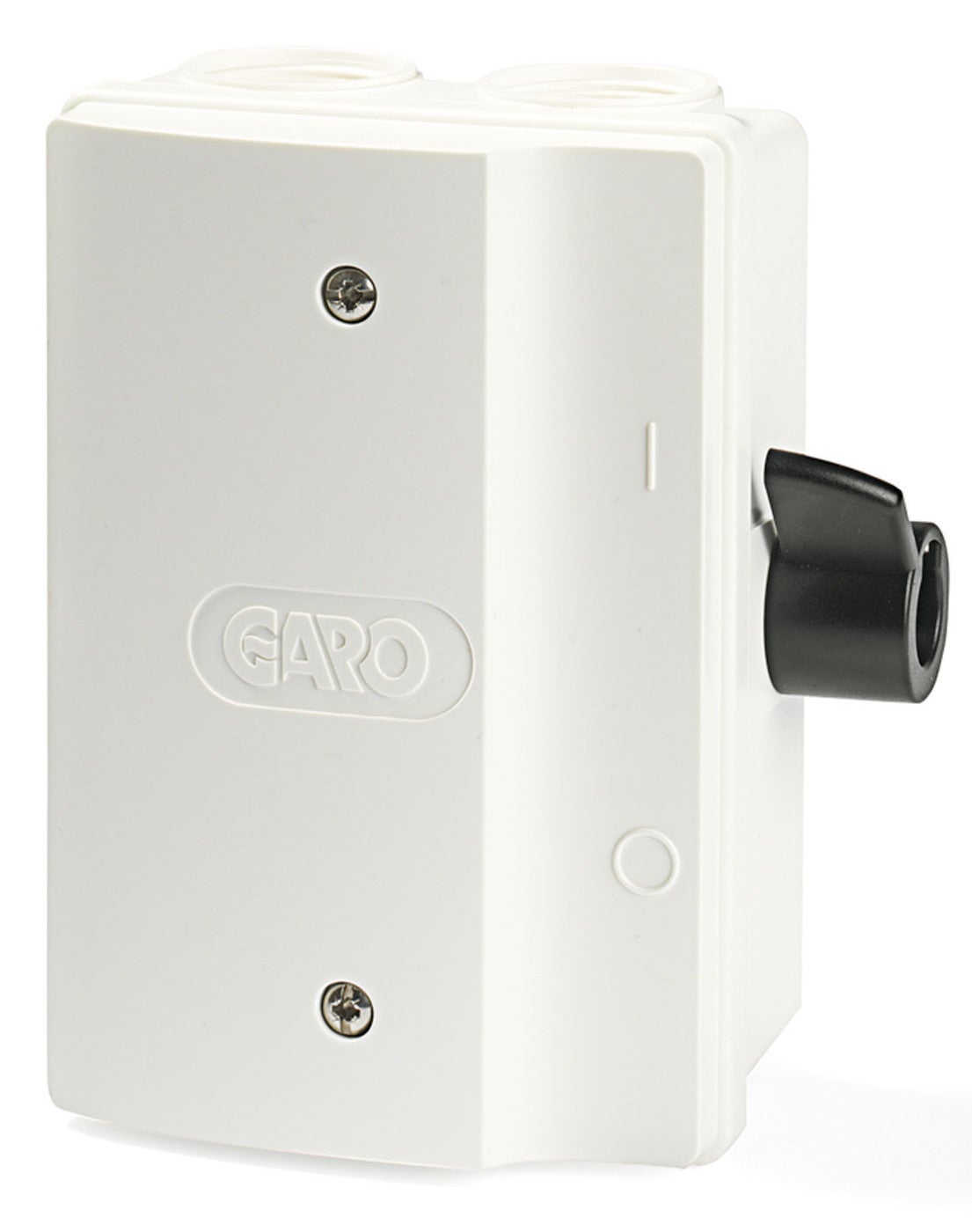

SWITCH 4P 16A WHITE E3155005 3155005 BGV 416 White Floor fastening RAL9010 0.31

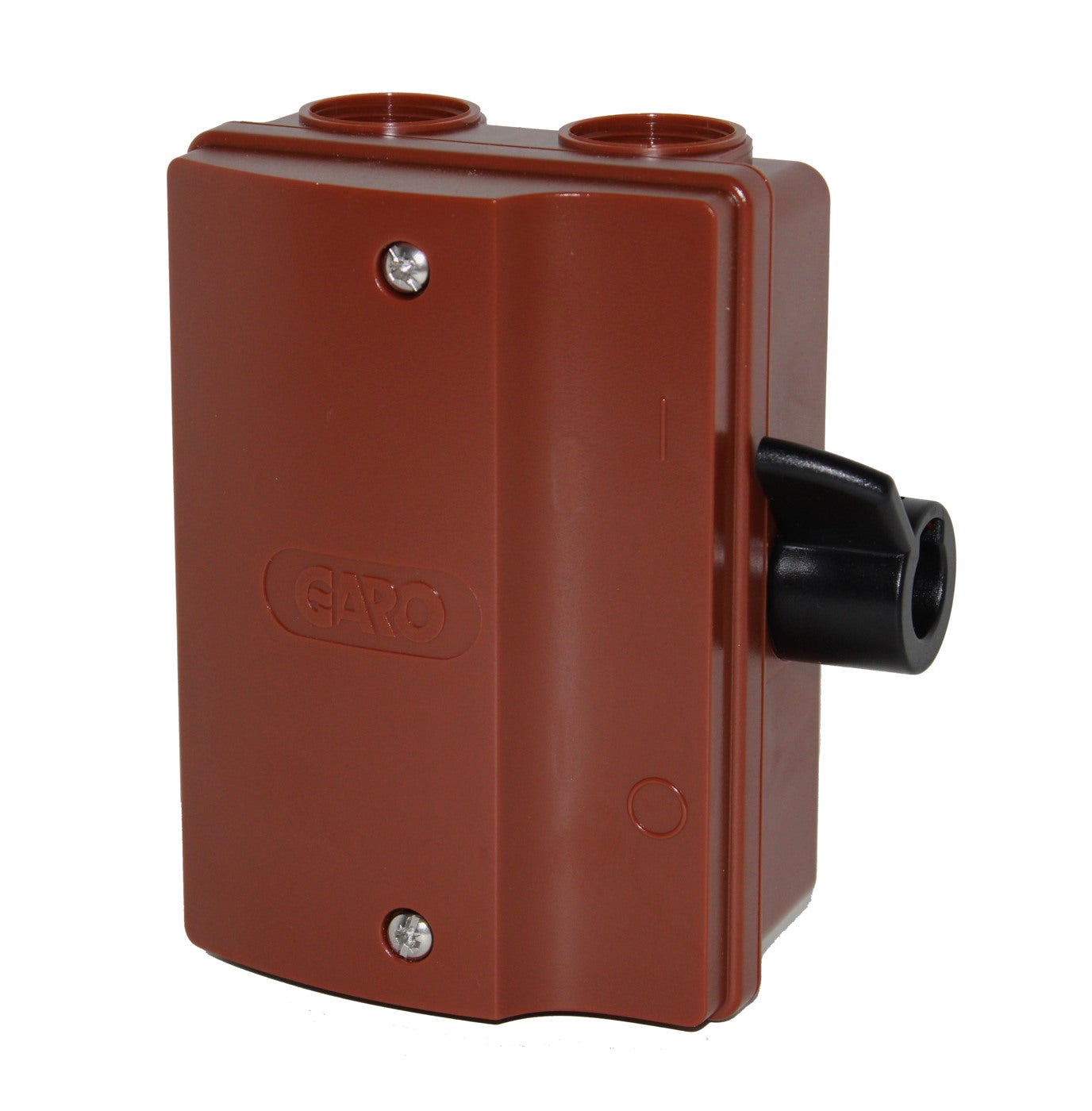

SWITCH 4P 16A RED E3135615 354102 BGR 416 Red Floor fastening RAL3009

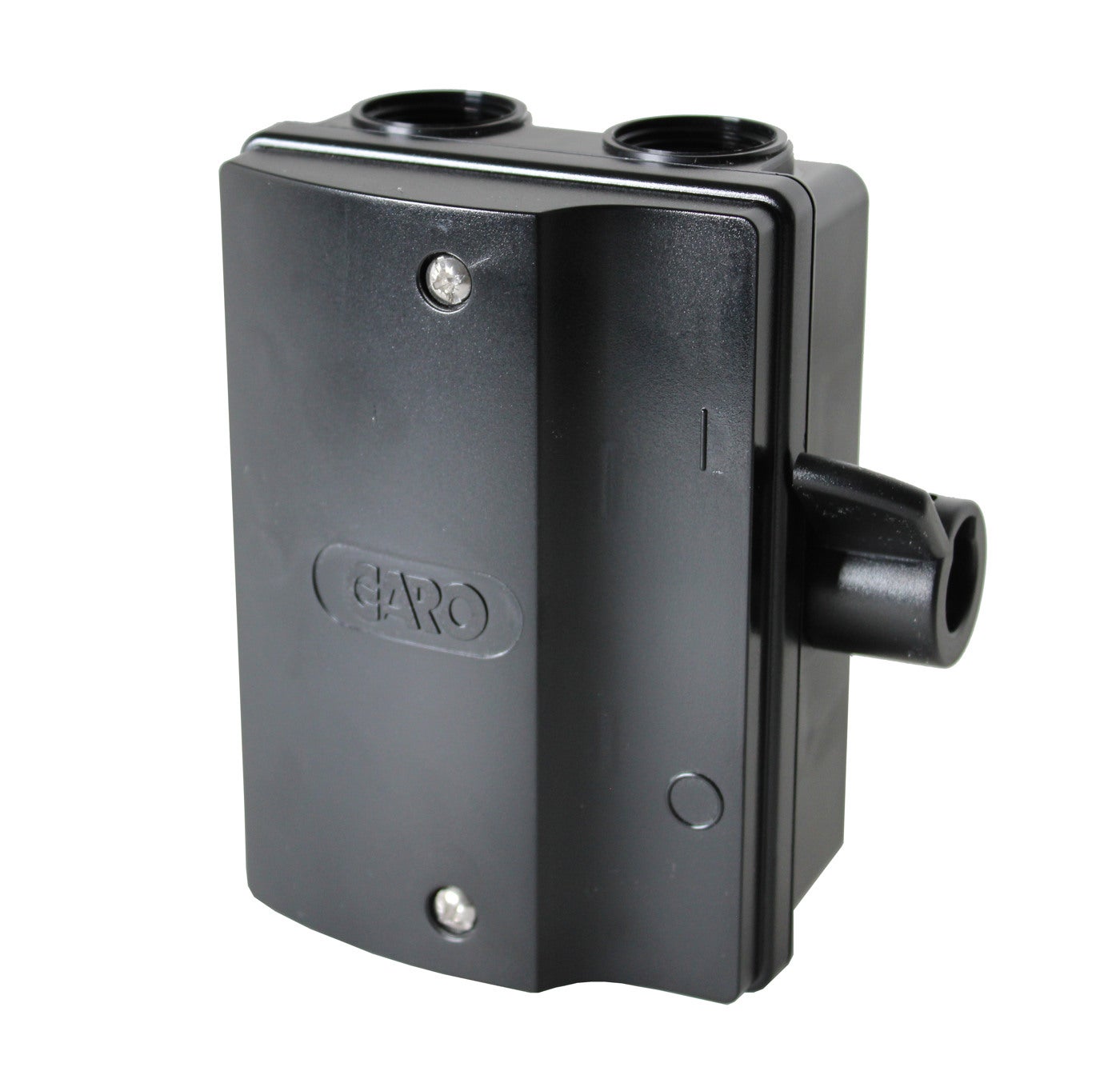

SWITCH 4P 16A BLACK E3135616 354103 BGS 416 Black Floor fastening RAL9005
