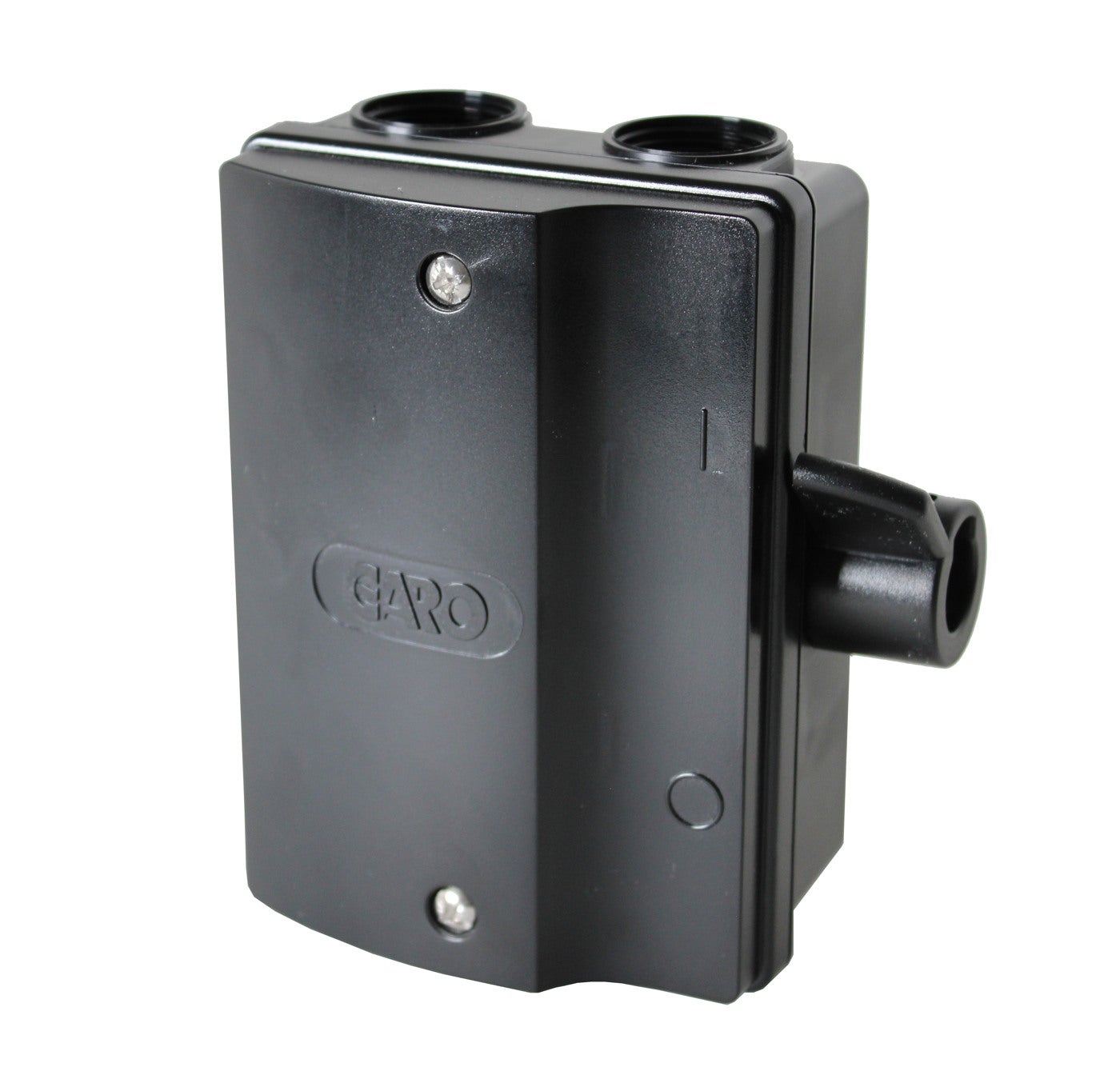

SWITCH 4P 16A BLACK

Switches 4-poles 16A

GARO’s power switch 16A is available in 2-, 3- or 4-pole variants designed for imaginable environments such as industrial, residential and public environments, partly as it is available in either a white or grey finish. All power switches are also approved for agricultural environments. Supplied as standard with connection options for neutral and protective conductors and the neutral pole in the 4-pole switches features delayed opening and an earlier closing operation compared to the phase poles. The power Switch black 4-pole 16A
E-number
E3135616
Article number
354103
Support
Standard EN60947-3
Housing material Plastic
Rated current [A] 16A
Number of poles 4P
Mounting method Wall mounting
Isolation voltage [V] 690V AC
With lighting No
Degree of protection [IP] IP65
Connection PE [mm²] 6mm²
Connection area Max 16mm²
EngineerWidth 117
EngineerHeight 137
EngineerDepth 62
Name SWITCH 4P 16A BLACK
E-number E3135616
Article number 354103
Type designation BGS 416
Color Black
RAL-number RAL9005
Connection Cu/Al 1,5-16mm²

Manual

More variants of Switches 4-poles 16A

E-number Article number Type designation Color RAL-number Connection Cu/Al NetProductWeight
SWITCH 4P 16A GREY E3155004 3155004 BGG 416 Grey RAL7035 1,5-6mm² 0.32
SWITCH 4P 16A WHITE E3155005 3155005 BGV 416 White RAL9010 1,5-16mm² 0.31
SWITCH 4P 16A RED E3135615 354102 BGR 416 Red RAL3009 1,5-16mm²
SWITCH 4P 16A BLACK E3135616 354103 BGS 416 Black RAL9005 1,5-16mm²
