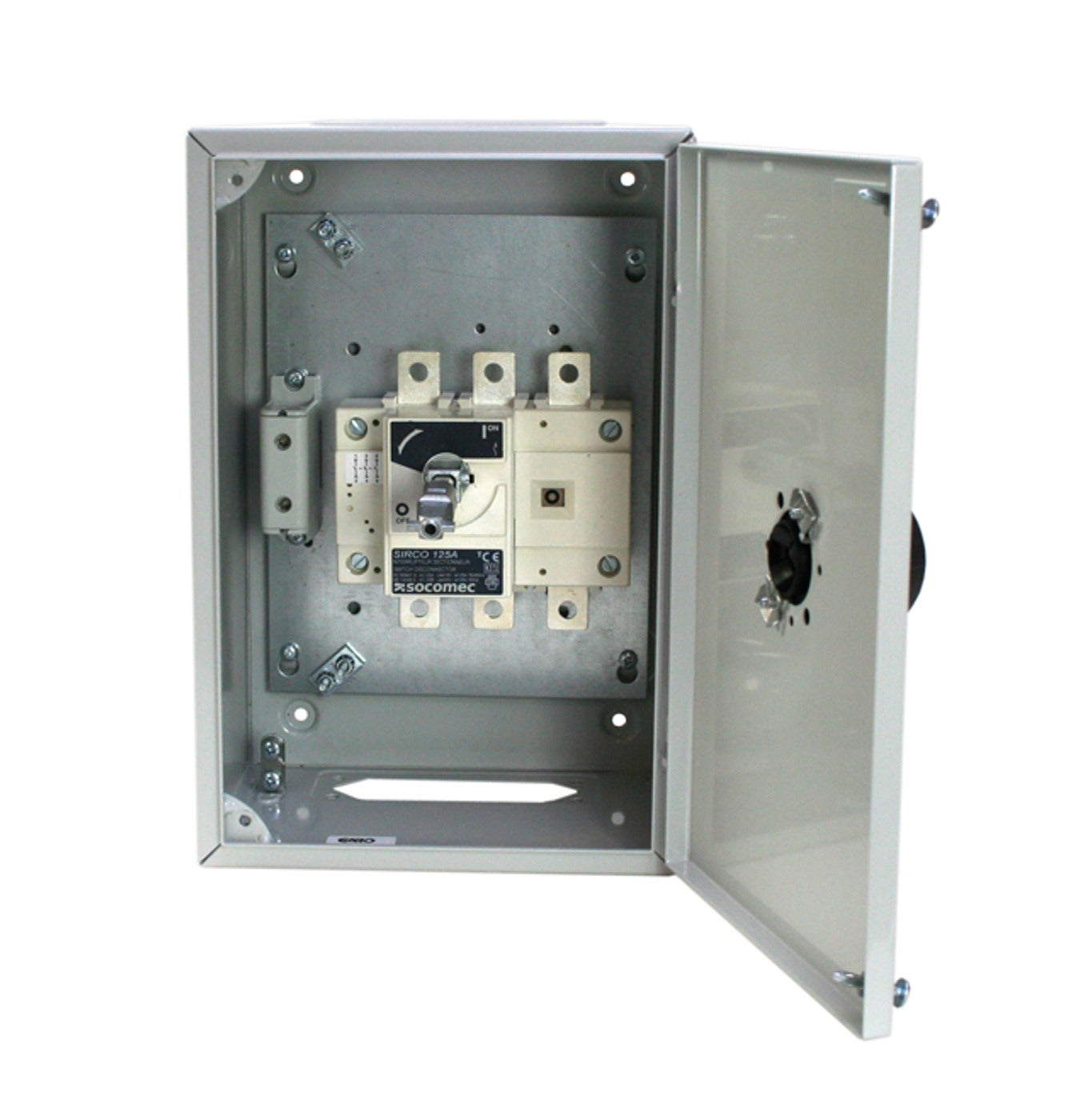

Load break enclosures FL13

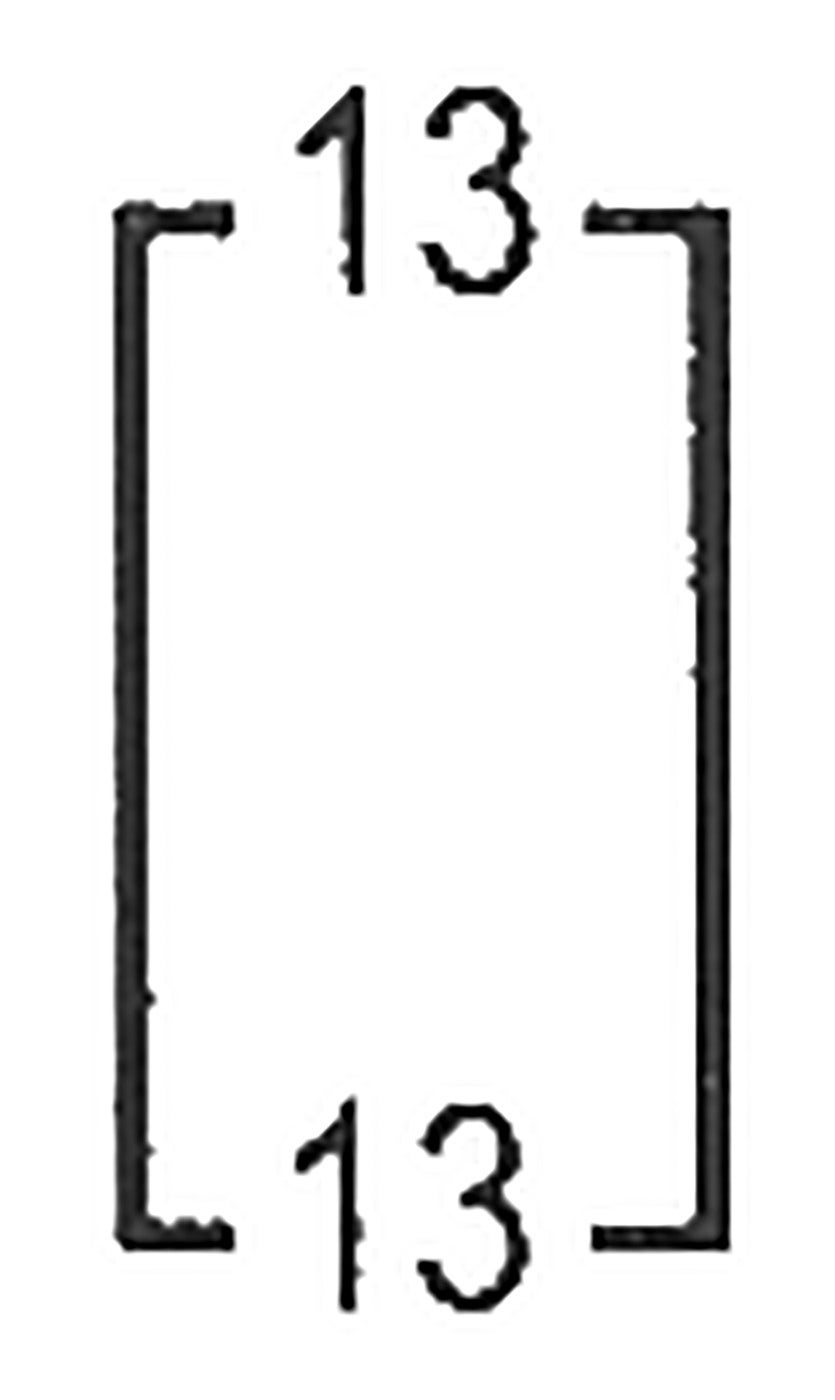

Switches are 3-pole and front-operated. Equipped with neutral terminal and earth conductor terminal. It is also possible to lock the operating mechanism with a padlock in the OFF position. Connectable conductor cross-sections and breaking values Load break switch 125A 3-pole flange 13 up/down
E-number
E2384031
Article number
2384031
Support
Materials Sheet steel
Standard EN61439-3
Color Grey
Degree of protection [IP] IP43
EngineerDepth 120
Name LOAD BREAKER ENCLOSURE 125A SP
E-number E2384031
Article number 2384031
Type designation LSPE 3125
NetProductWeight 5.8
EngineerWidth 215
EngineerHeight 330

More variants of Load break enclosures FL13

E-number Article number Type designation NetProductWeight EngineerWidth EngineerHeight
LOAD BREAKER ENCLOSURE 80A SP E2384004 2384004 LSP 380 2.3 215 165
LOAD BREAKER ENCLOSURE 80A-4 SP E2384014 2384014 LSP 380-4 2.6 220 220
LOAD BREAKER ENCLOSURE 125A SP E2384031 2384031 LSPE 3125 5.8 215 330
