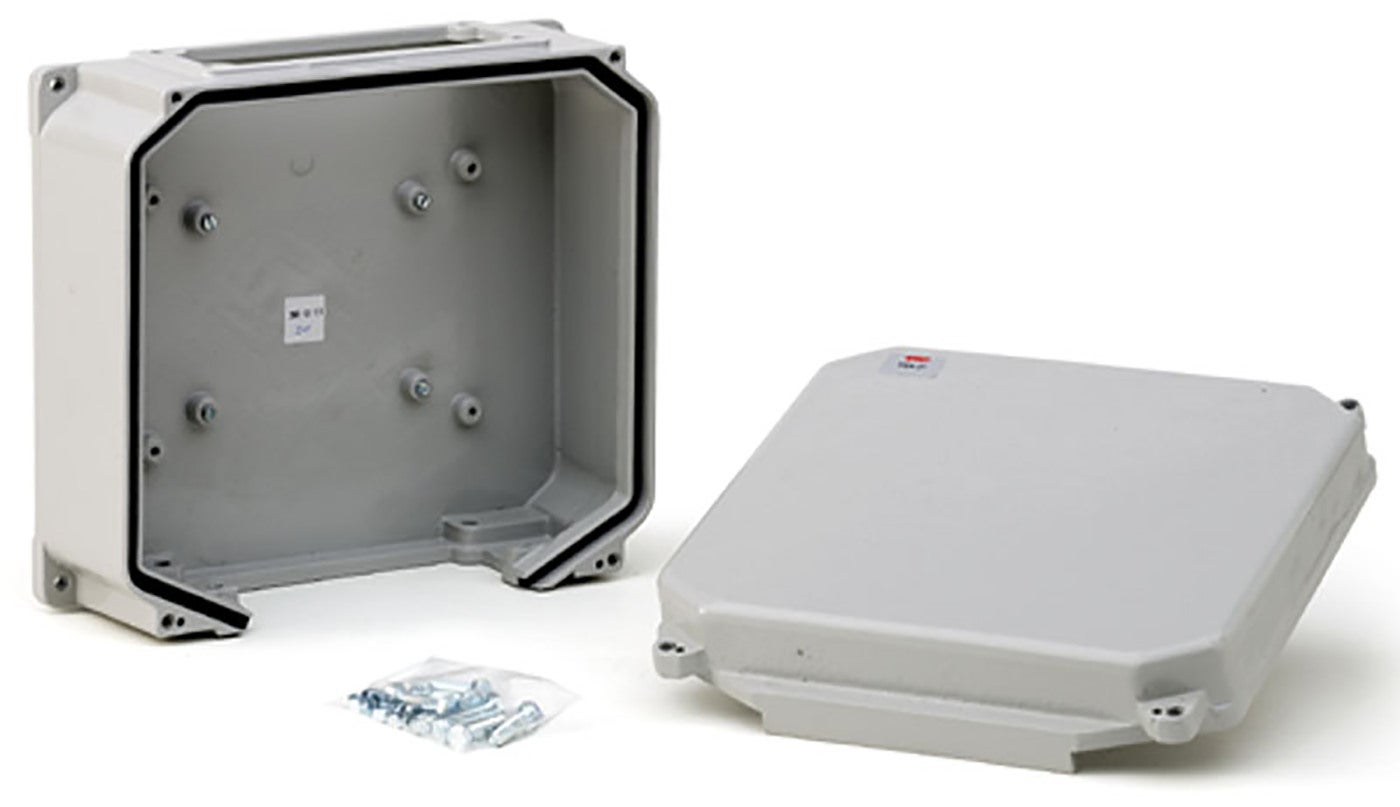

Connection boxes FSK
The junction boxes are primarily adapted to be mounted on enclosed distribution boxes. The boxes are designed with one flange opening open when the lid is removed. This permits easier connection of cables, which can be routed in from the front of the box with the cable flange mounted without be threaded through the flange opening. Connection box FSK 21 Aloy
E-number
E2394102
E2394102
Article number
2394102
2394102
| Type designation | FSK 21 |
|---|---|
| Standard | EN61439-3 |
| Frequency [Hz] | 50Hz |
| Housing material | Light metal |
| Rated voltage [V AC] | 690V AC |
| RAL-number | RAL7044 |
| Degree of protection [IP] | IP65 |
| NetProductWeight | 4 |
| EngineerWidth | 330 |
| EngineerHeight | 300 |
| EngineerDepth | 145 |
| Name | CONNECTION BOX-FSK LM |
|---|---|
| E-number | E2394102 |
| Article number | 2394102 |
