Mountingplates MPM

The mounting plates are suitable for frontchassie, used for equipment assemblies. Mounting plate 5row 100modules

E-number
E2290061

Article number
356066

Materials	Sheet steel
Standard	EN61439-3
Color	White
Degree of protection [IP]	IP20
NetProductWeight	1.75
EngineerDepth	3

Name	MOUNTING PLATE 5R 100M
E-number	E2290061
Article number	356066
Type designation	MPM 100-5
Number of modules	100
EngineerWidth	376
EngineerHeight	712

More variants of Mountingplates MPM

E-number

E2290059

Article number

356064

Type designation

MPM 60-3

Number of modules

EngineerWidth

376

EngineerHeight

453

E-number

E2290060

Article number

356065

Type designation

MPM 80-4

Number of modules

EngineerWidth

376

EngineerHeight

587

E-number

E2290061

Article number

356066

Type designation

MPM 100-5

Number of modules

100

EngineerWidth

376

EngineerHeight

712

E-number

E2290080

Article number

356088

Type designation

MPM 75-3

EngineerWidth

436

EngineerHeight

453

More variants of Mountingplates MPM

E-number	Article number	Type designation	Number of modules	EngineerWidth	EngineerHeight
E2290059	356064	MPM 60-3	60	376	453
E2290060	356065	MPM 80-4	80	376	587
E2290061	356066	MPM 100-5	100	376	712
E2290080	356088	MPM 75-3		436	453

Accessories for Mountingplates MPM

E-number

E2260586

Article number

2260586

Type designation

MP-T

E-number

E2260587

Article number

2260587

Type designation

M-D

E-number

E2270720

Article number

2270720

Type designation

MP RJ-24

E-number

E2270868

Article number

2270868

Type designation

MPGM

E-number

E2270881

Article number

2270881

Type designation

MPRM

E-number

E2270882

Article number

2270882

Type designation

MPHM

E-number

E2270883

Article number

2270883

Type designation

MPMM

E-number

E2270884

Article number

2270884

Type designation

MPMS

E-number

E2271017

Article number

2271017

Type designation

MP-LEX-12

E-number

E2271018

Article number

2271018

Type designation

MP-LEX-6

E-number

E2271019

Article number

2271019

Type designation

MP-ELKO

E-number

E2271020

Article number

2271020

Type designation

MPRM-6

Accessories for Mountingplates MPM

Name	E-number	Article number	Type designation	Description
MOUNTING PLATE TRAFO	E2260586	2260586	MP-T

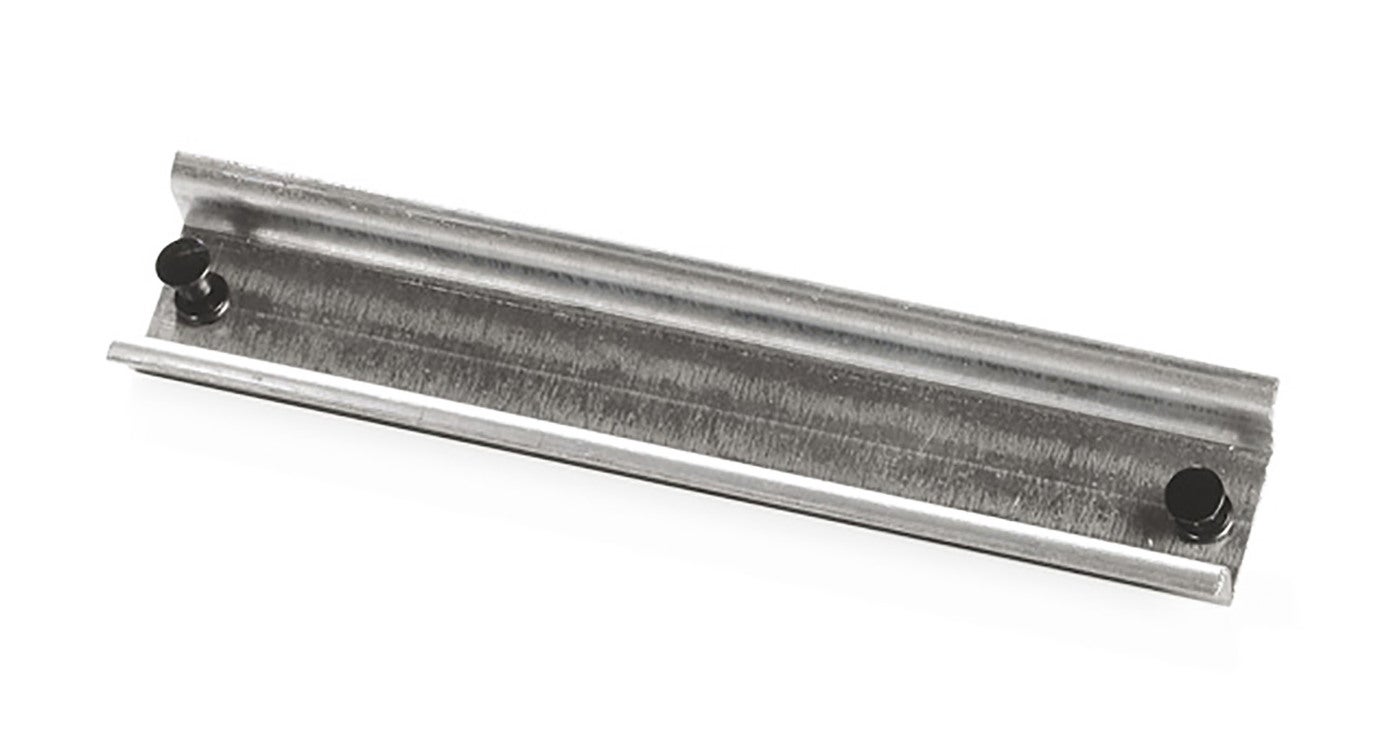

DINRAIL MEDIA	E2260587	2260587	M-D	Dinrail media for DIN-mounted components

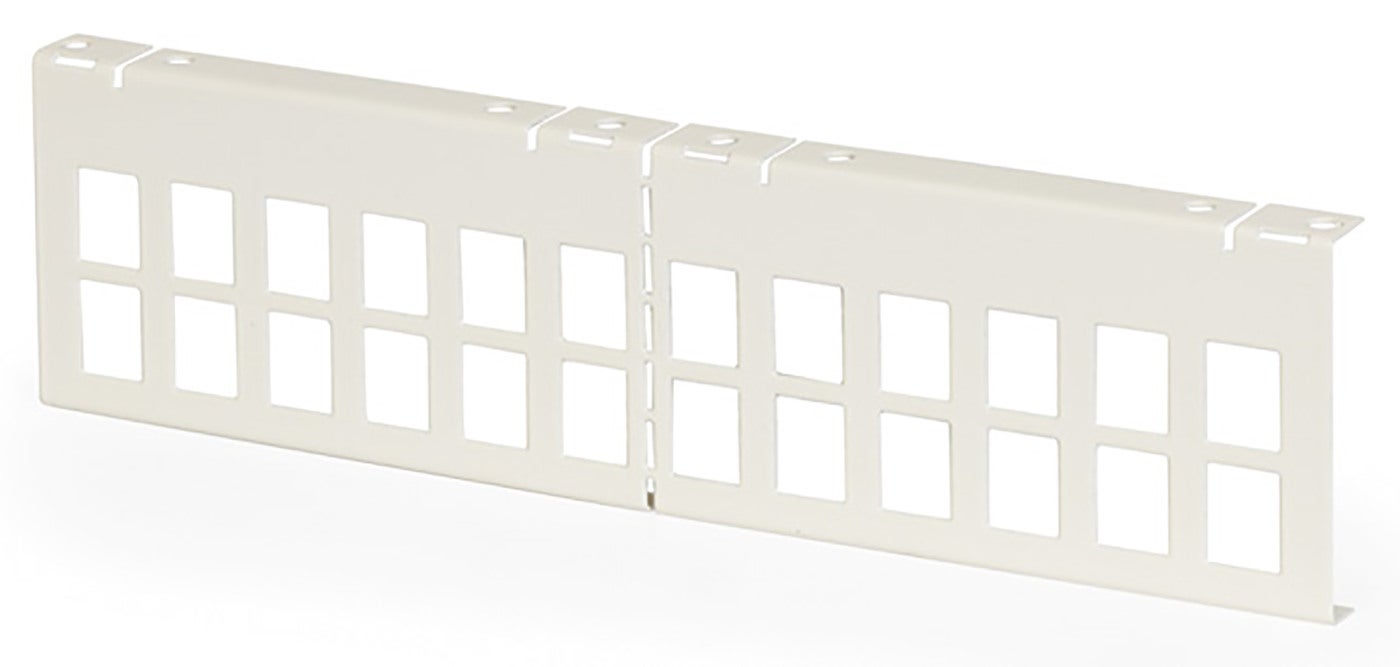

MOUNTING PLATE RJ24	E2270720	2270720	MP RJ-24	Mounting plate RJ45 contacts, 24 outlets á 20x14mm,L10xW290xH77.

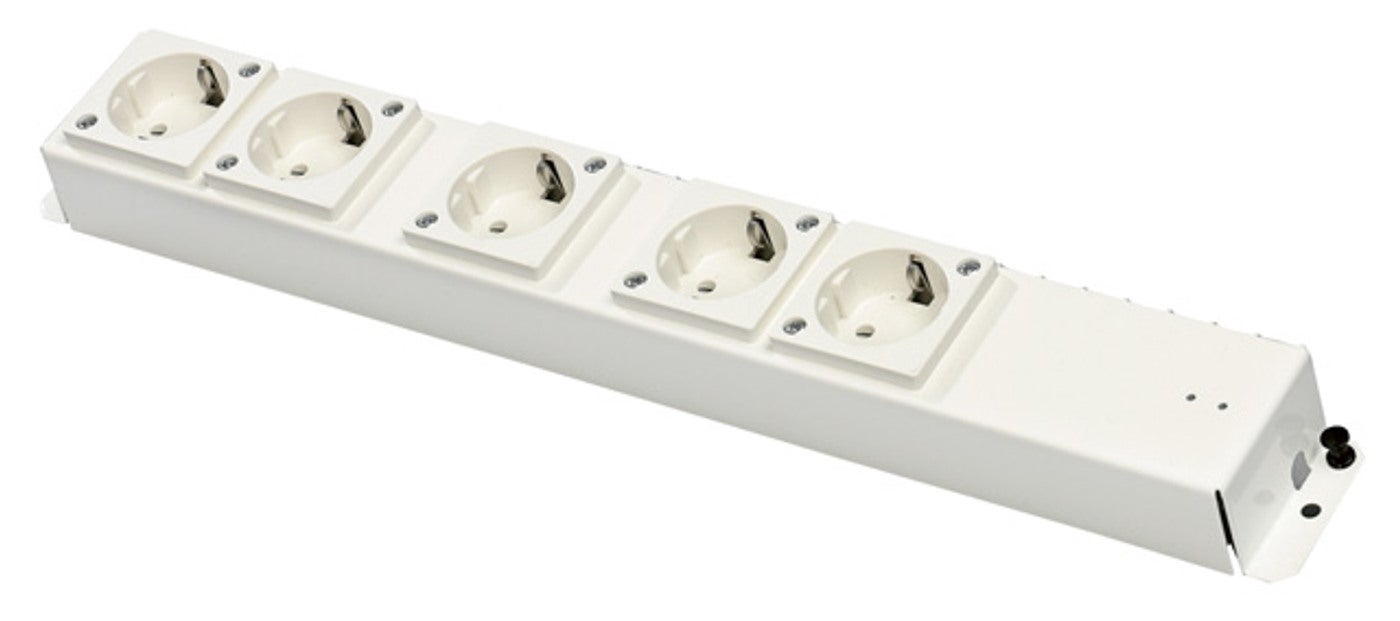

DISTRIBUTION BOX 5xSCHUKO	E2270868	2270868	MPGM	Distribution boxes with 5 schukooutlets,fits media mounting plate .

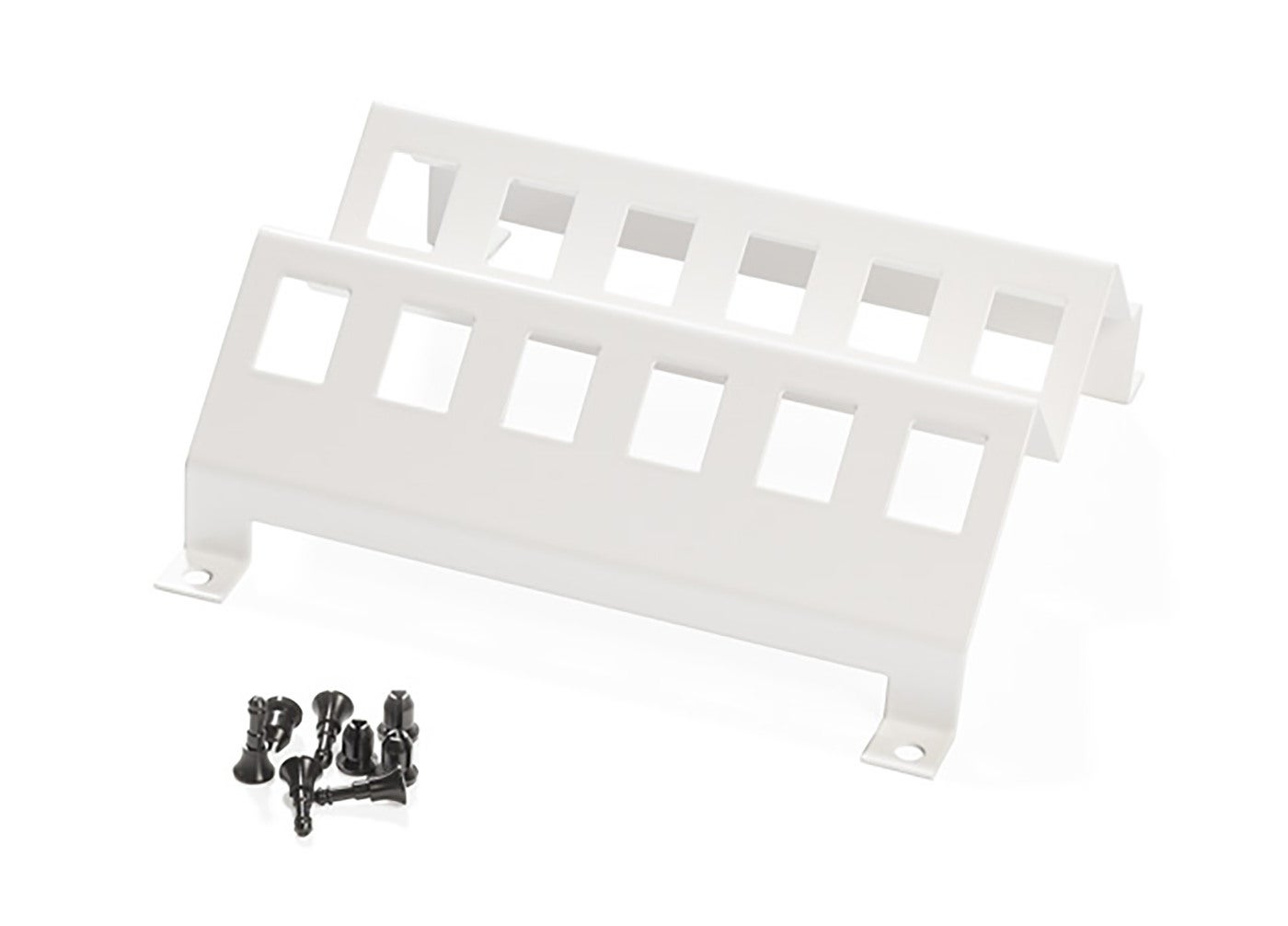

MOUNTING PLATE RJ45	E2270881	2270881	MPRM	Mounting plate for RJ45 contacts, 12 outlets á 15x20mm,L58XW166XH166,fits media mounting plates.

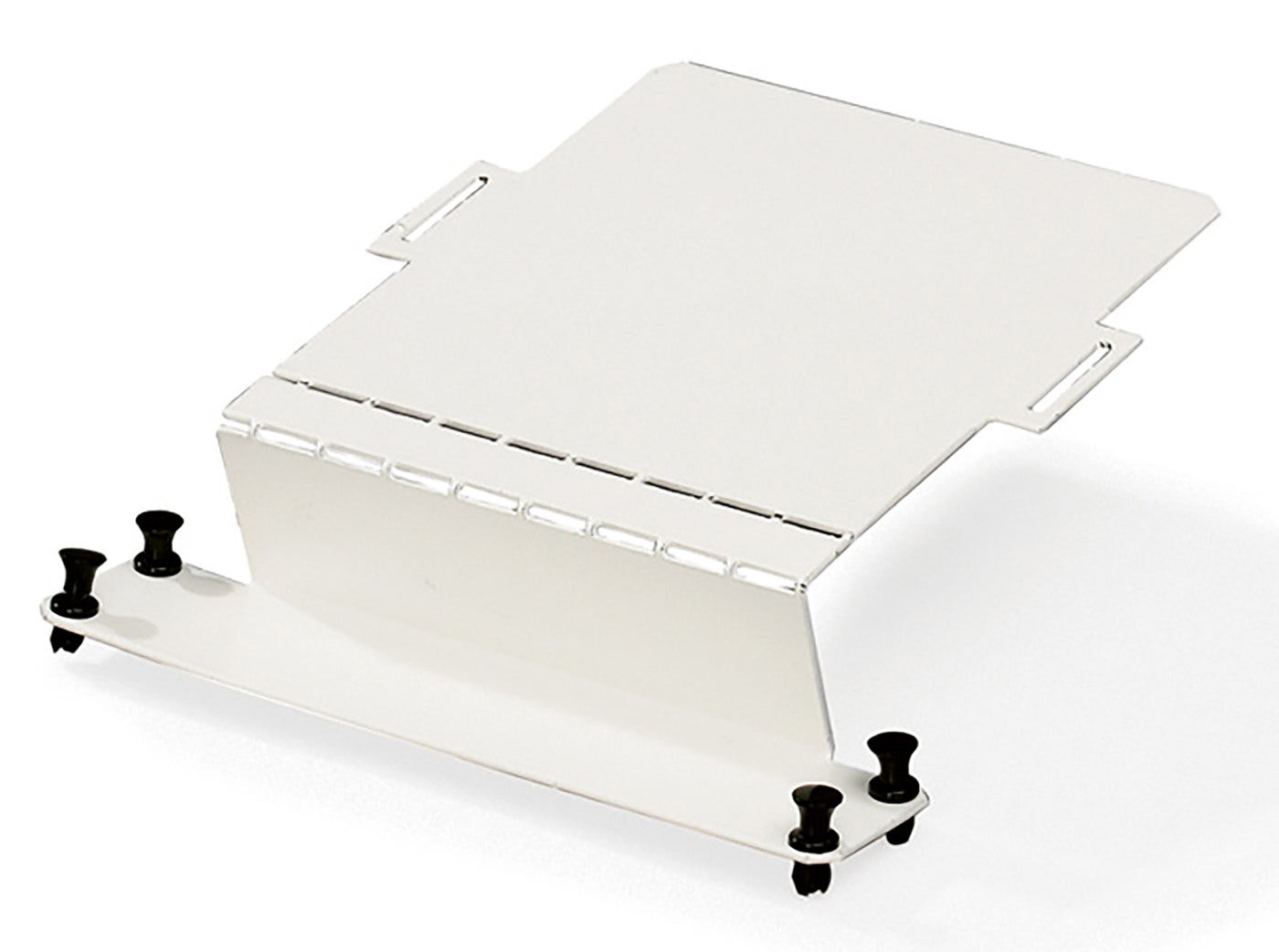

MOUNTING PLATE SHELVES	E2270882	2270882	MPHM	Mounting plate shelves,fits media mounting plate.

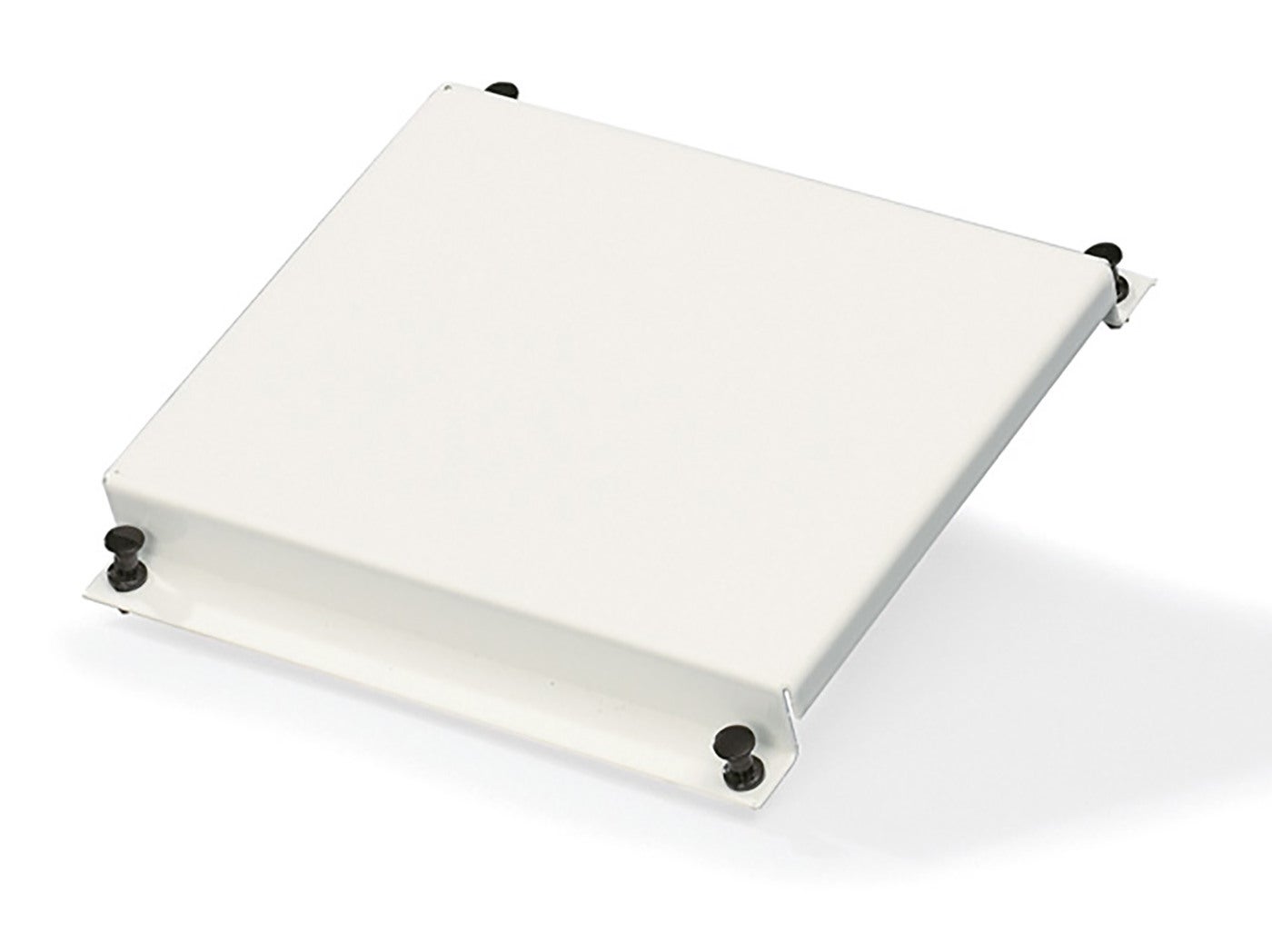

MOUNTING PLATE 136X166	E2270883	2270883	MPMM	Mounting plate for self-armament size 136x166,fits media mounting plate.
MOUNTING PLATE 307X156	E2270884	2270884	MPMS	Mounting plate for self-armament size 307x156,fits media mounting plate.
MOUNTING PLATE LEXCOM 12	E2271017	2271017	MP-LEX-12	Mounting plate Lex Com Office 12 outlets á 18,5x17,L58XW166XH166,fits media mounting plates.
MOUNTING PLATE LEXCOM 6	E2271018	2271018	MP-LEX-6	Mounting plate Lex Com Office 6 outlets á 18,5x17,L58XW166XH90,fits media mounting plates.
MOUNTING PLATE ELKO 12	E2271019	2271019	MP-ELKO	Mounting plate Elko slimline 12 outlets á 17,5x44 fits media mounting plate,L58XW166XH166
MOUNTING PLATE KEYSTONE 6xRJ45	E2271020	2271020	MPRM-6	Mounting plate keystone RJ45,6 hole á 14x20mm fits media mounting plate, L58XW499xH90.
