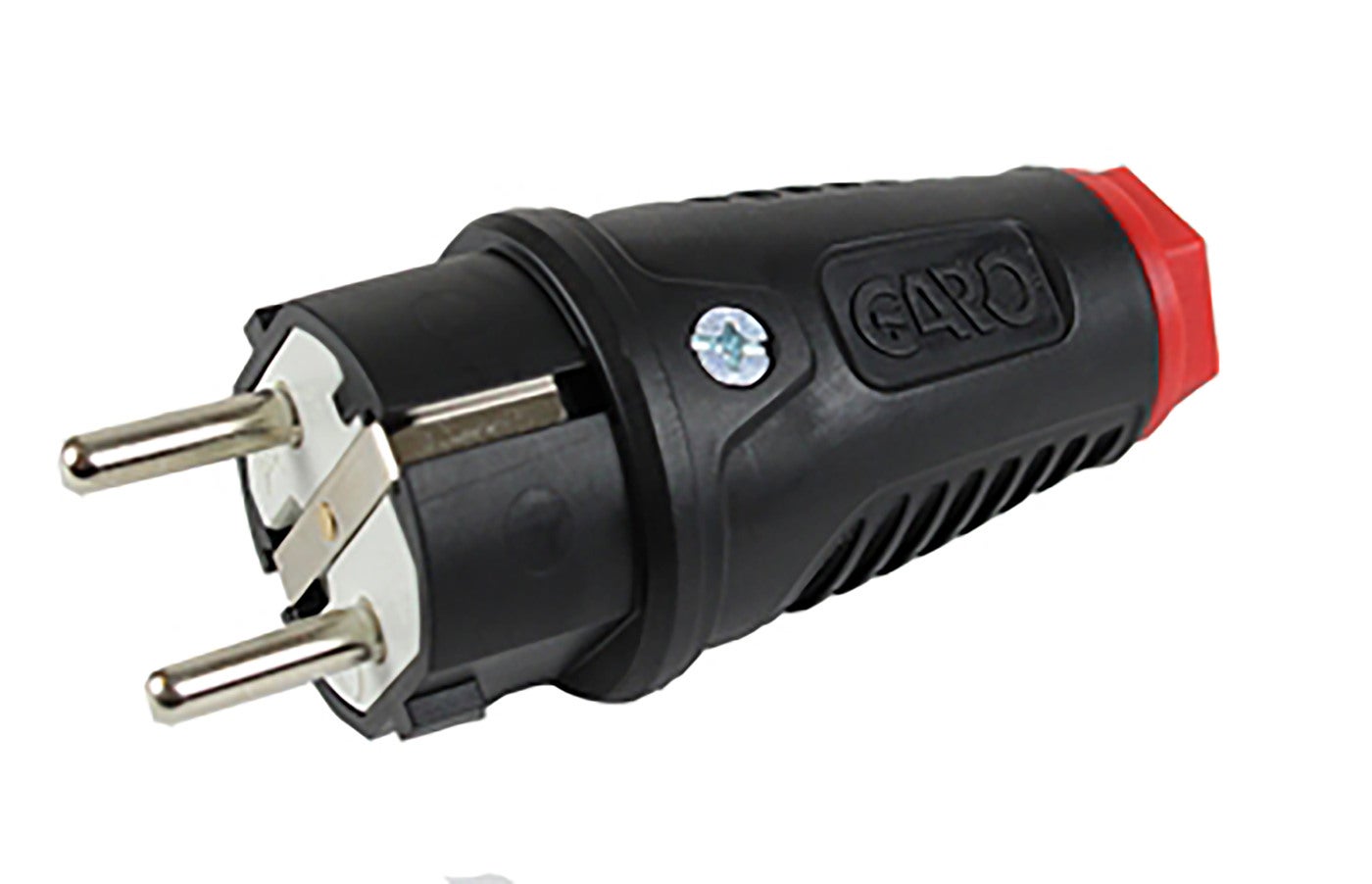

Plugs 16A IP54 Solid
Solid, a tough and durable range that can withstand just about everything, even being run over by construction vehicles. Plug 16A has cable clamps that are open for quicker handling and easier assembly. Plug 16A 3-poles polyamid (PA6) dual earthing system IP54
E-number
E2405262
E2405262
Article number
109735
109735
| Frequency [Hz] | 50Hz |
|---|---|
| Color | Black/Red |
| Rated current [A] | 16A |
| Rated voltage [V AC] | 250V AC |
| Number of poles | 3/2P+E |
| Connection type | Screwed terminal |
| Modelltype | Solid |
| Cable entry | Other |
| Contact material | CuZn |
| Phase inverter | No |
| Contact plating | Untreated |
| Plug angle | Straight |
| Pin/Sleeve | Pin |
| Degree of protection [IP] | IP54 |
| NetProductWeight | 0.07 |
| Name | PLUG 16A 3P P DES IP54 |
|---|---|
| E-number | E2405262 |
| Article number | 109735 |
| Type designation | PP-216 |
| Materials | Rubber |
| Standard | EN60309-2 |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| EngineerWidth | 42 |
| EngineerHeight | 42 |
| EngineerDepth | 102 |
