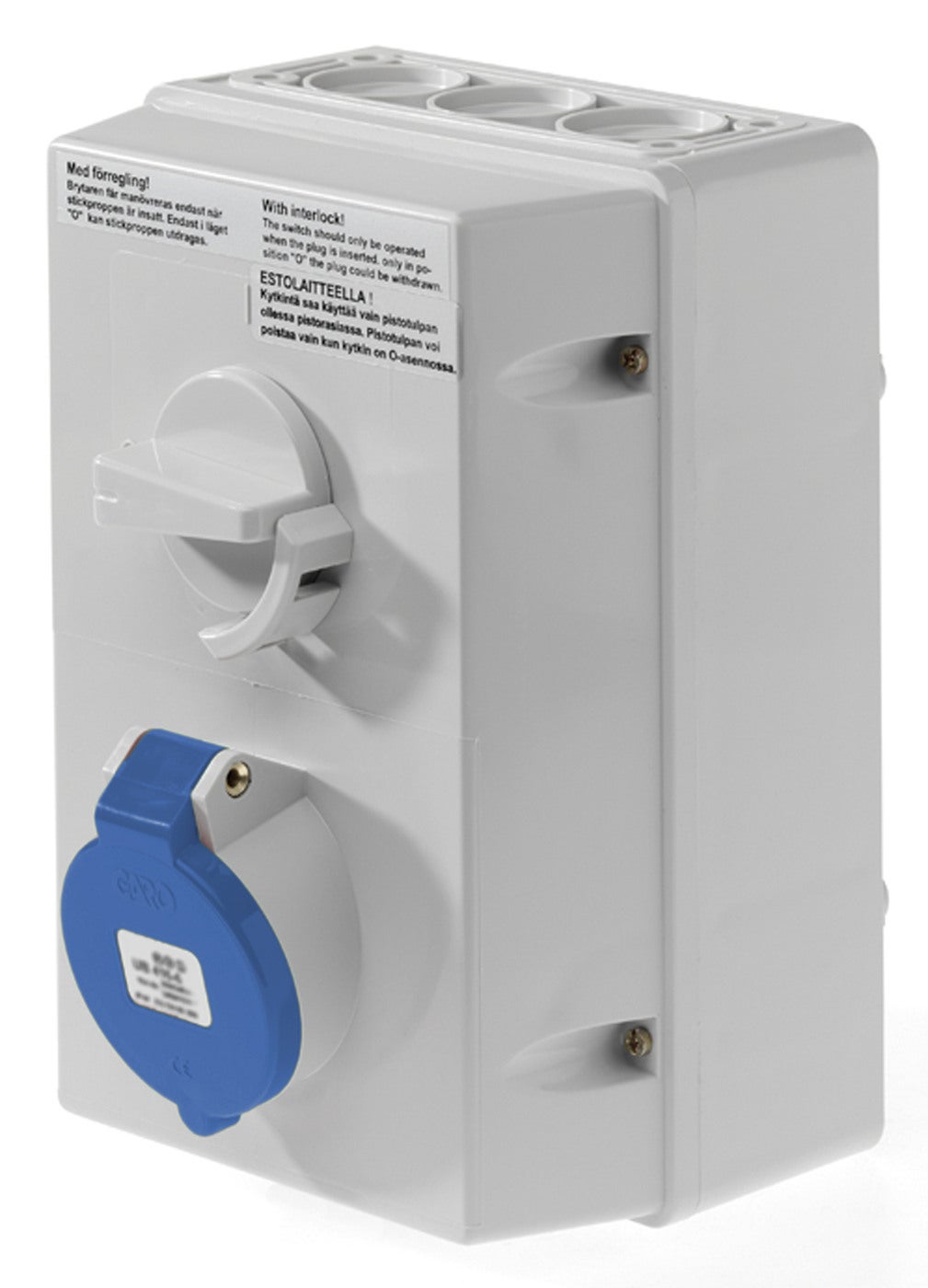

INTERLOCKED SOCKET 3P 16A 6h

Interlocked socket 16A IP44

GARO’s interlocked socket for wall mounting with one IEC/CEE socket on the front panel is lockable in open and closed positions, ample connection area with FL13 at the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Interlocked socket 3-poles 16A 6h
E-number
E2425743
Article number
2425743
Support
Standard EN61439-4
Housing material Plastic
Rated current [A] 16A
Clock hour position [h] 6h
Earthing terminal block Yes
Knockouts Ø32 Down [pcs] 3
Knockouts Ø32 Up [pcs] 3
Degree of protection [IP] IP44
Name INTERLOCKED SOCKET 3P 16A 6h
E-number E2425743
Article number 2425743
Type designation UB 216-6 S
Frequency [Hz] 50/60Hz
Color Blue
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E

More variants of Interlocked socket 16A IP44

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles NetProductWeight EngineerWidth EngineerHeight EngineerDepth
INTERLOCKED SOCKET 3P 16A 6h E2425743 2425743 UB 216-6 S 50/60Hz Blue 200-250V AC 3/2P+E

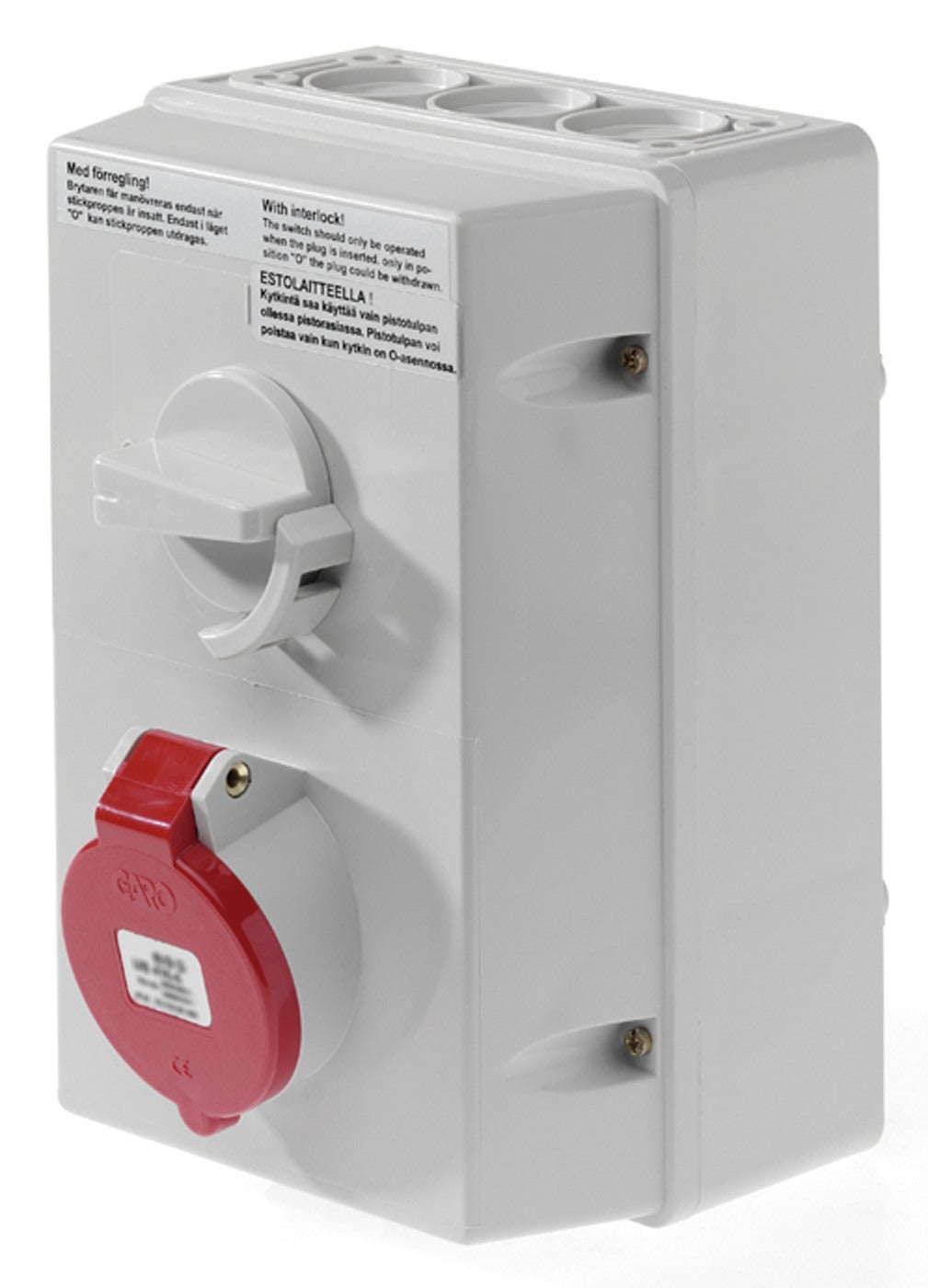

INTERLOCKED SOCKET 4P 16A 6h E2425749 2425749 UB 316-6 S 50/60Hz Red 400V AC 4/3P+E 1.05 160 143 220
INTERLOCKED SOCKET 5P 16A 6h E2425757 2425757 UB 416-6 S 50-60Hz Red 230/400V AC 5/3P+N+E

Accessories for Interlocked socket 16A IP44

Name E-number Article number Type designation Description
AUX SWITCH FOR UB AUX SWITCH FOR UB E3155360 3155360 HLPK KU/KUE Auxiliary switches
