Gbox with RCCB
GARO’s socket box, G-box equipped according to the characteristics below. All G-boxes are equipped with terminal blocks for connecting Cu 2//35 mm². For Al-cable connections, max 1//50 mm², thrust washers are used between the Al and Cu cables. The plastic material in the G-box is environmentally friendly and chemical-resistant. Outletbox equipped 01102-RCCB Gbox
-
OUTLETBOX 00008-RCCB GBOXE-number
E2468801Article number
2468801 -
OUTLETBOX 00305-RCCB GBOXE-number
E2468802Article number
2468802 -
OUTLETBOX 01205-RCCB GBOXE-number
E2468803Article number
2468803 -
OUTLETBOX 00103-RCCB GBOXE-number
E2468805Article number
2468805 -
OUTLETBOX 01102-RCCB GBOXE-number
E2468806Article number
2468806 -
OUTLETBOX 11103-RCCB GBOXE-number
E2468807Article number
2468807 -
OUTLETBOX 11305-RCCB GBOXE-number
E2468809Article number
2468809 -
OUTLETBOX 00060 GBOXE-number
E2468810Article number
2468810 -
OUTLETBOX 00202-RCCB GBOXE-number
E2468811Article number
2468811
| Materials | Plastic |
|---|---|
| Standard | EN61439-4 |
| Short-circuit current [kA] | 10kA |
| Color | Grey |
| Rated current [A] | 63A |
| Rated voltage [V AC] | 230/400V AC |
| Degree of protection [IP] | IP44 |

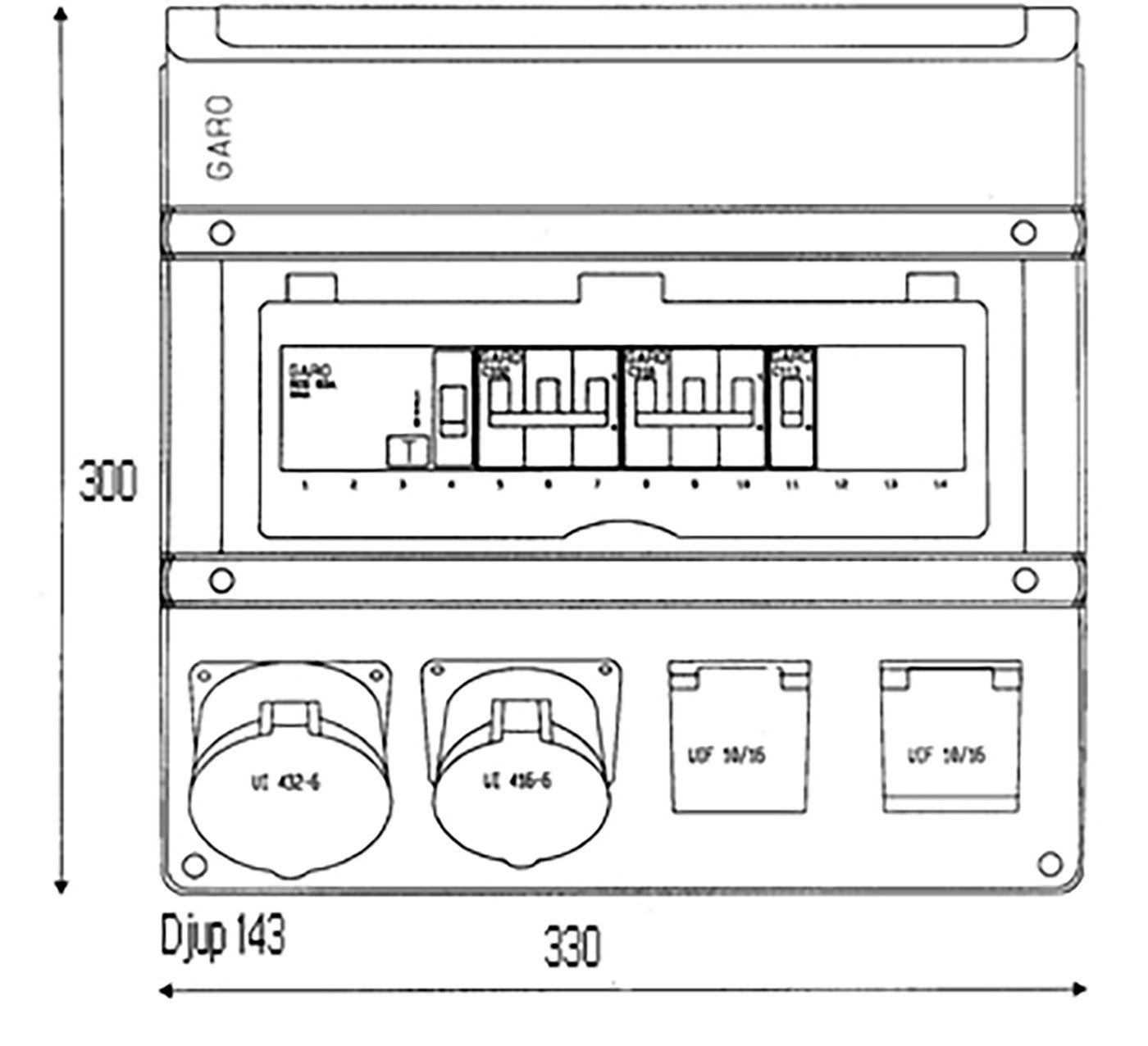

| EngineerWidth | 330 |
| Earth terminal [mm²] | 2x35mm² |

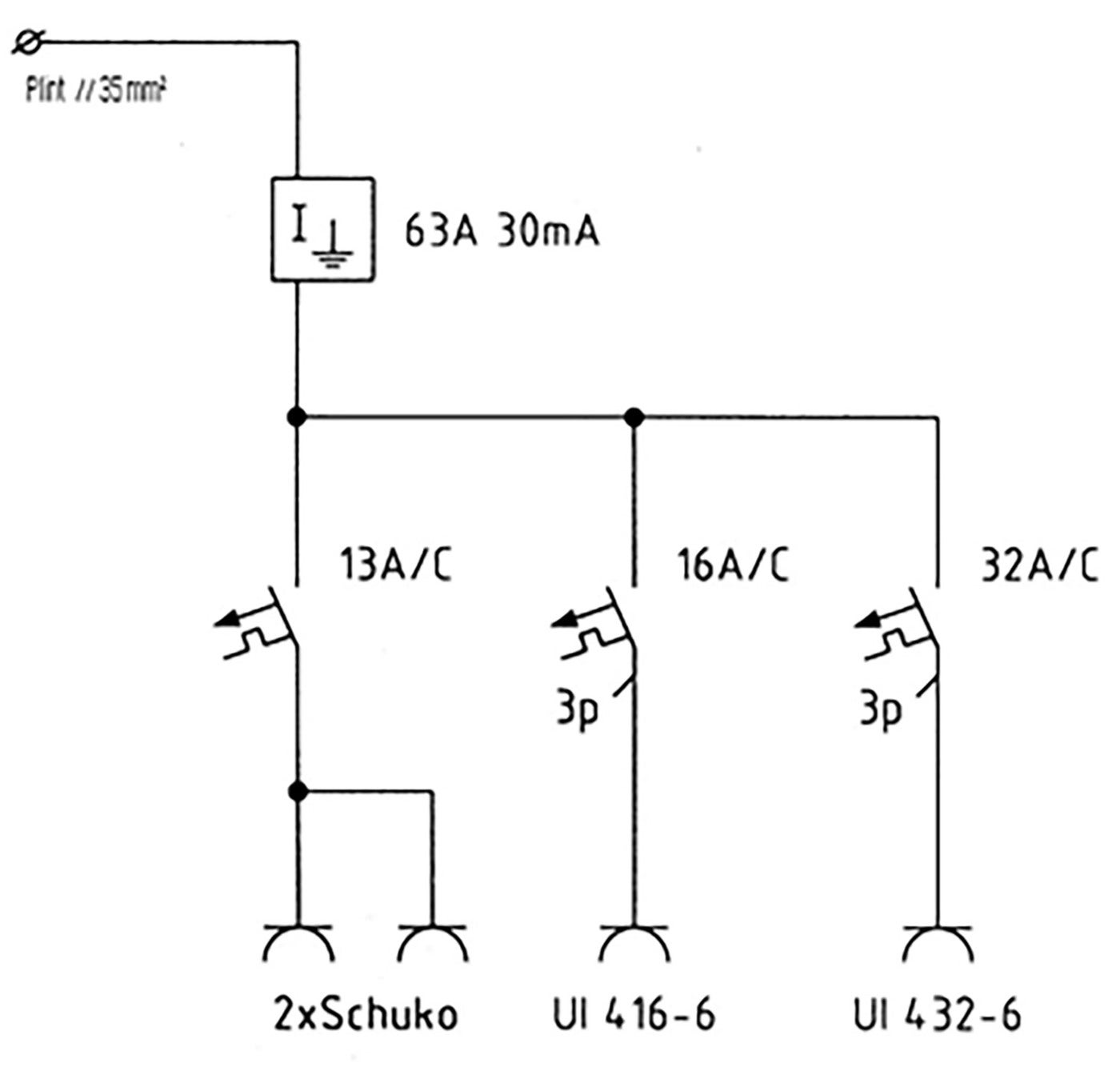

| Name | OUTLETBOX 01102-RCCB GBOX |
|---|---|
| E-number | E2468806 |
| Article number | 2468806 |
| Type designation | 01102-JFB |
| CEE socket outlet 16A | 1pcs 5P 16A 230/400V |
| Number of MCB 1P (1) | 1pcs C113 |
| Number of MCB 3P (1) | 1pcs C316 |
| Number of MCB 3P (2) | 1pcs C332 |
| Number of Schuko[pcs] | 2pcs |
| Number of RCCB [pcs] 1 | 1pcs 4P 63A |
| CEE socket outlet 32A | 1pcs 5P 32A 230/400V |
| Number of RCBO [pcs] | No |
| NetProductWeight | 4.9 |
| EngineerHeight | 300 |
| EngineerDepth | 143 |
