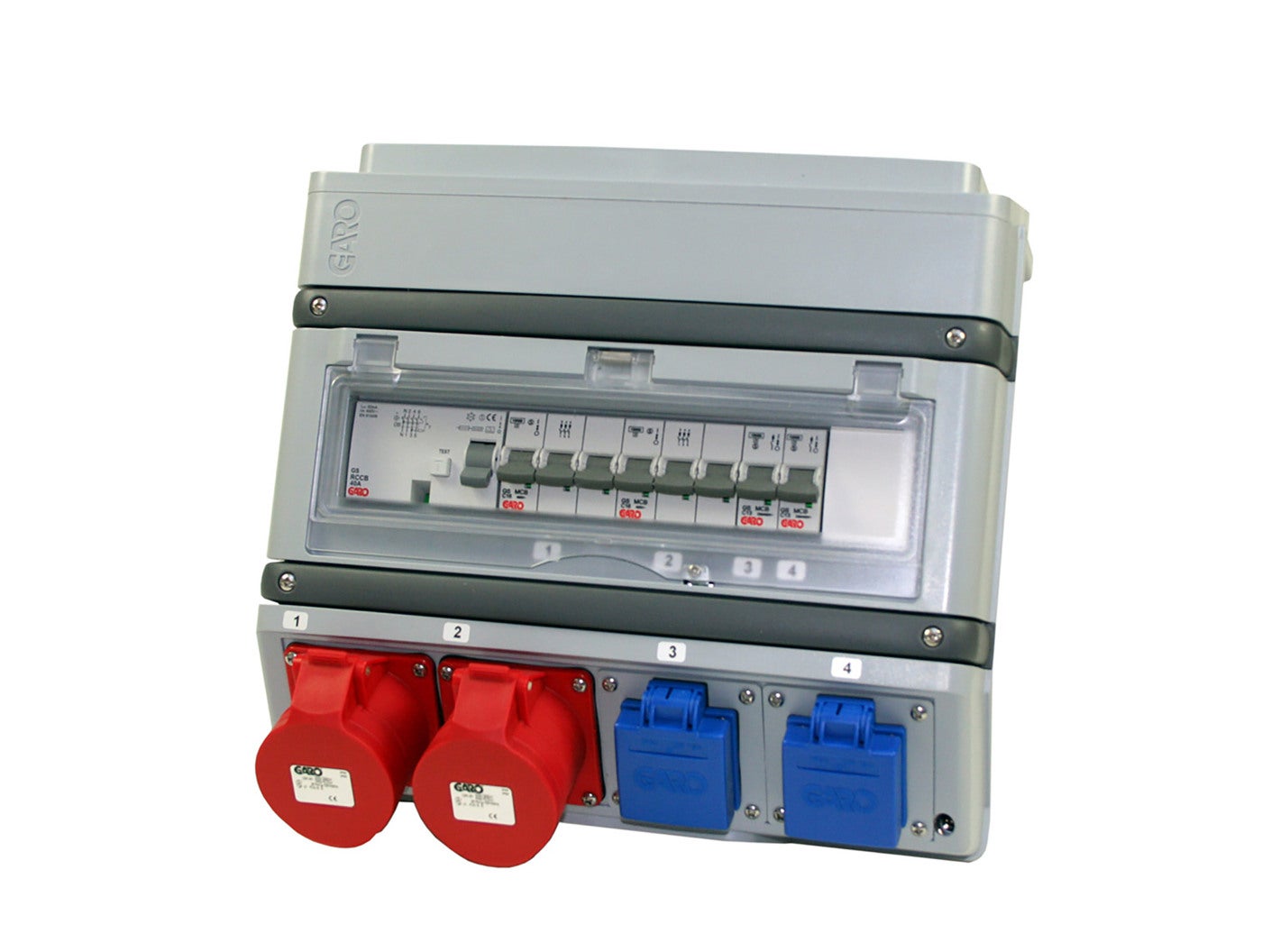

Gbox with RCCB IP44

GARO’s socket box, G-box equipped according to the characteristics below. All G-boxes are equipped with terminal blocks for connecting Cu 2//35 mm². For Al-cable connections, max 1//50 mm², thrust washers are used between the Al and Cu cables. The plastic material in the G-box is environmentally friendly and chemical-resistant. Outlet box equipped 00202-RCCB Gbox
E-number
E2468811
Article number
2468811
Support
Materials Plastic
Standard EN61439-4
Short-circuit current [kA] 10kA
Color Grey
Rated current [A] 63A
Rated voltage [V AC] 230/400V AC
Degree of protection [IP] IP44
Earth terminal [mm²] 2x35mm²
Name OUTLETBOX 00202-RCCB GBOX
E-number E2468811
Article number 2468811
Type designation 00202-JFB
CEE socket outlet 16A 2pcs 5P 16A 230/400V
Number of MCB 1P (1) 2pcs C113
Number of MCB 3P (1) 2pcs C316
Number of Schuko[pcs] 2pcs
Number of RCCB [pcs] 1 1pcs 4P 40A
Number of RCBO [pcs] No
NetProductWeight 5.1

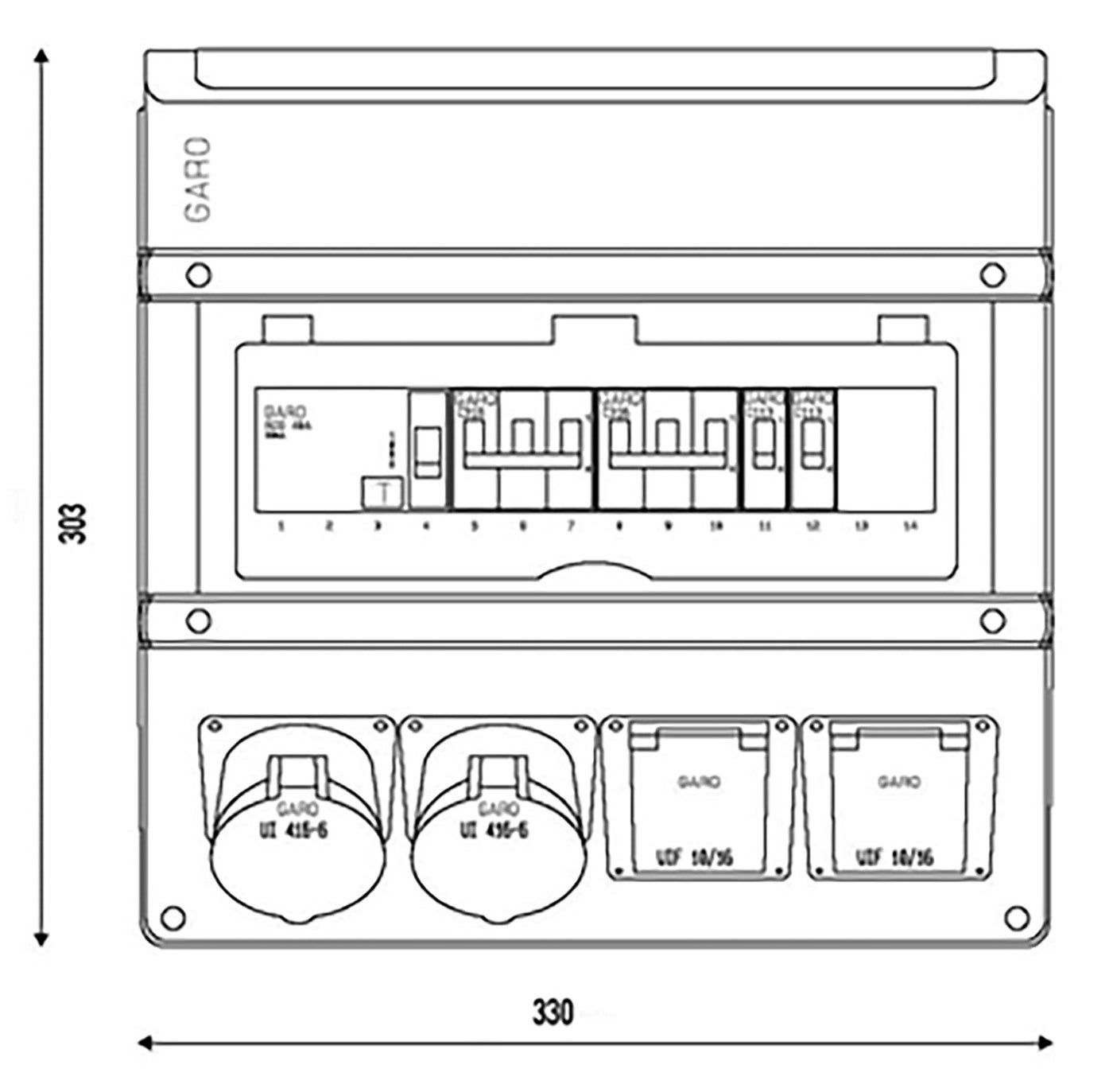

EngineerWidth 330
EngineerHeight 303
EngineerDepth 143

More variants of Gbox with RCCB IP44

E-number Article number Type designation CEE socket outlet 16A Number of MCB 1P (1) Number of MCB 1P (2) Number of MCB 3P (1) Number of MCB 3P (2) Number of Schuko[pcs] Number of RCCB [pcs] 1 CEE socket outlet 32A CEE socket outlet 63A Number of RCCB [pcs] 2 Number of MCB 3P (3) Number of RCBO [pcs] NetProductWeight EngineerWidth EngineerHeight EngineerDepth CEE socket outlet 16A (2)
OUTLETBOX 00008-RCCB GBOX E2468801 2468801 00008-JFB 4pcs C113 8pcs 1pcs 4P 40A No 3.9 330 386 132

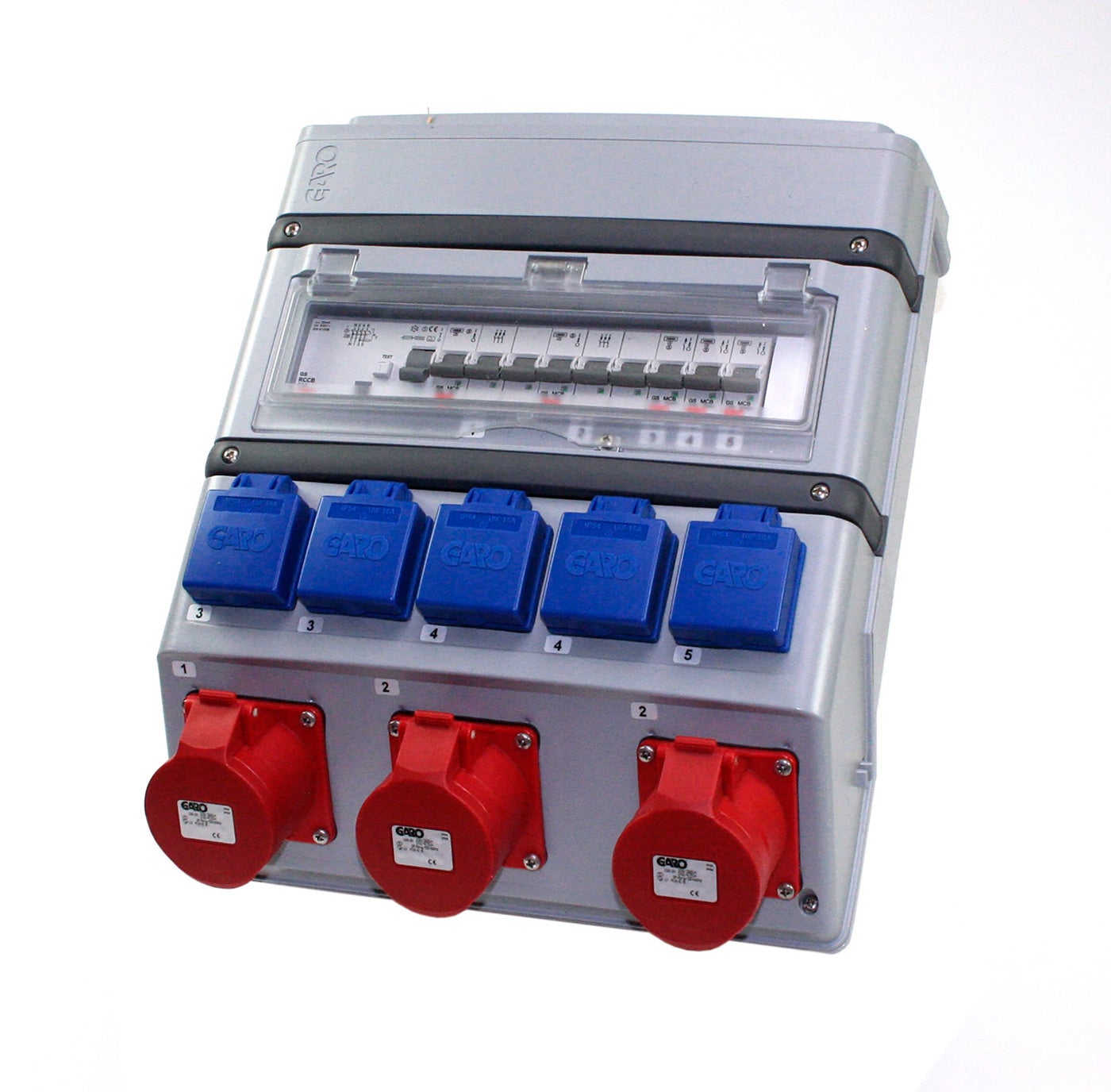

OUTLETBOX 00305-RCCB GBOX E2468802 2468802 00305-JFB 3pcs 5P 16A 230/400V 3pcs C113 2pcs C316 5pcs 5

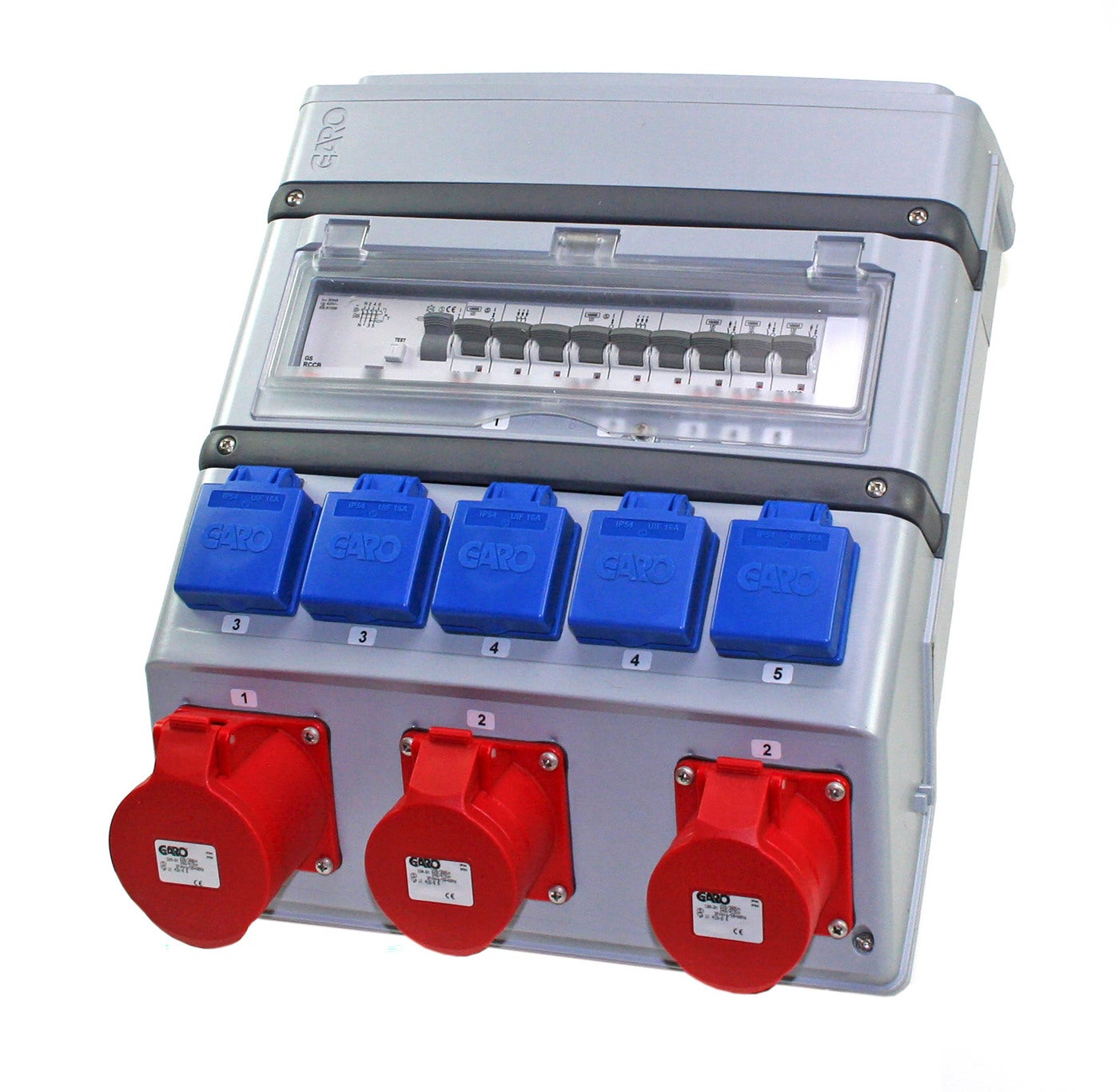

OUTLETBOX 01205-RCCB GBOX E2468803 2468803 01205-JFB 2pcs 5P 16A 230/400V 3pcs C113 1pcs C316 1pcs C332 5pcs 1pcs 4P 63A 1pcs 5P 32A 230/400V No 5

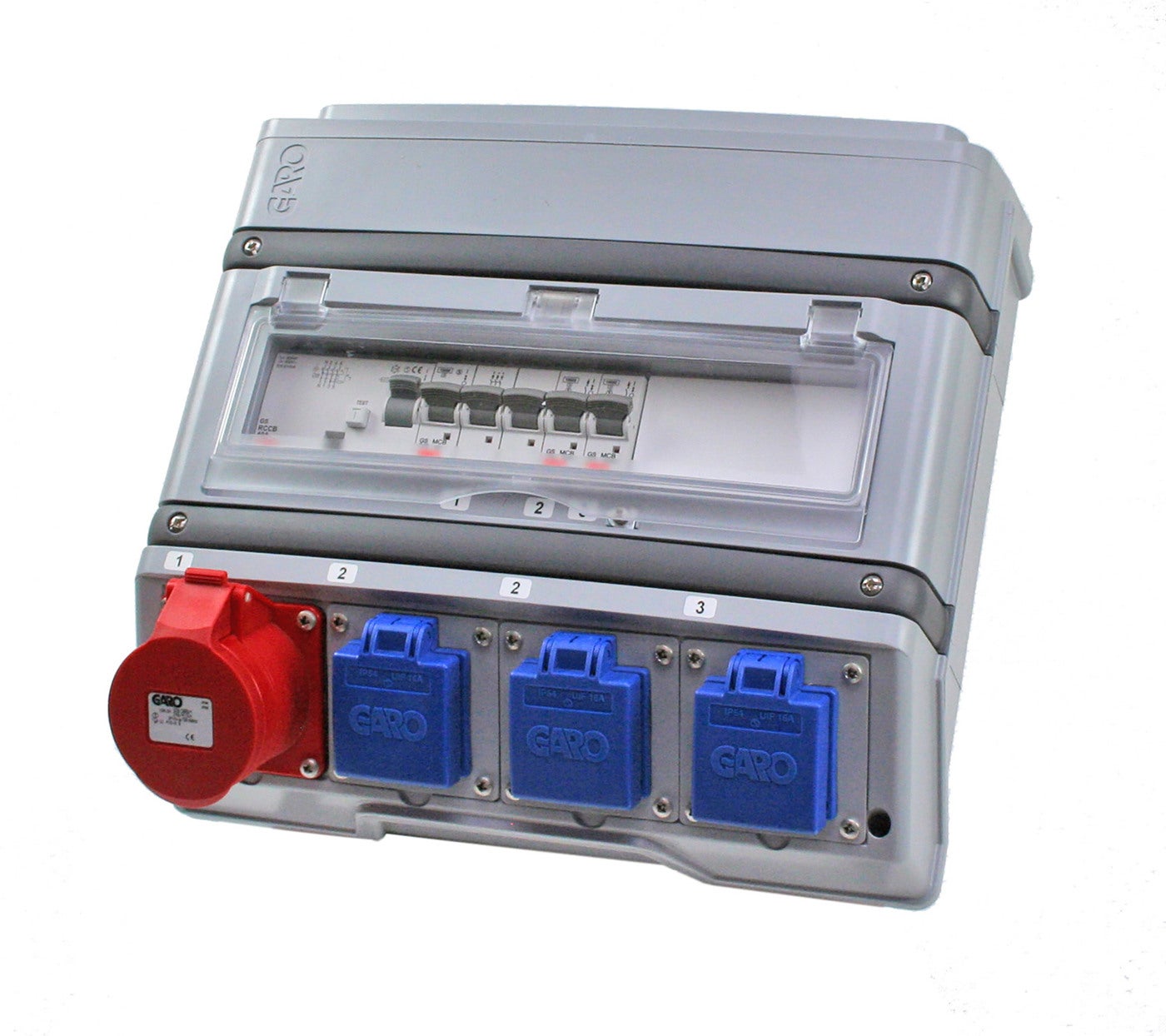

OUTLETBOX 00103-RCCB GBOX E2468805 2468805 00103-JFB 1pcs 5P 16A 230/400V 2pcs C113 1pcs C316 3pcs No 4 330 300 134 2pcs 3P 16A 230V

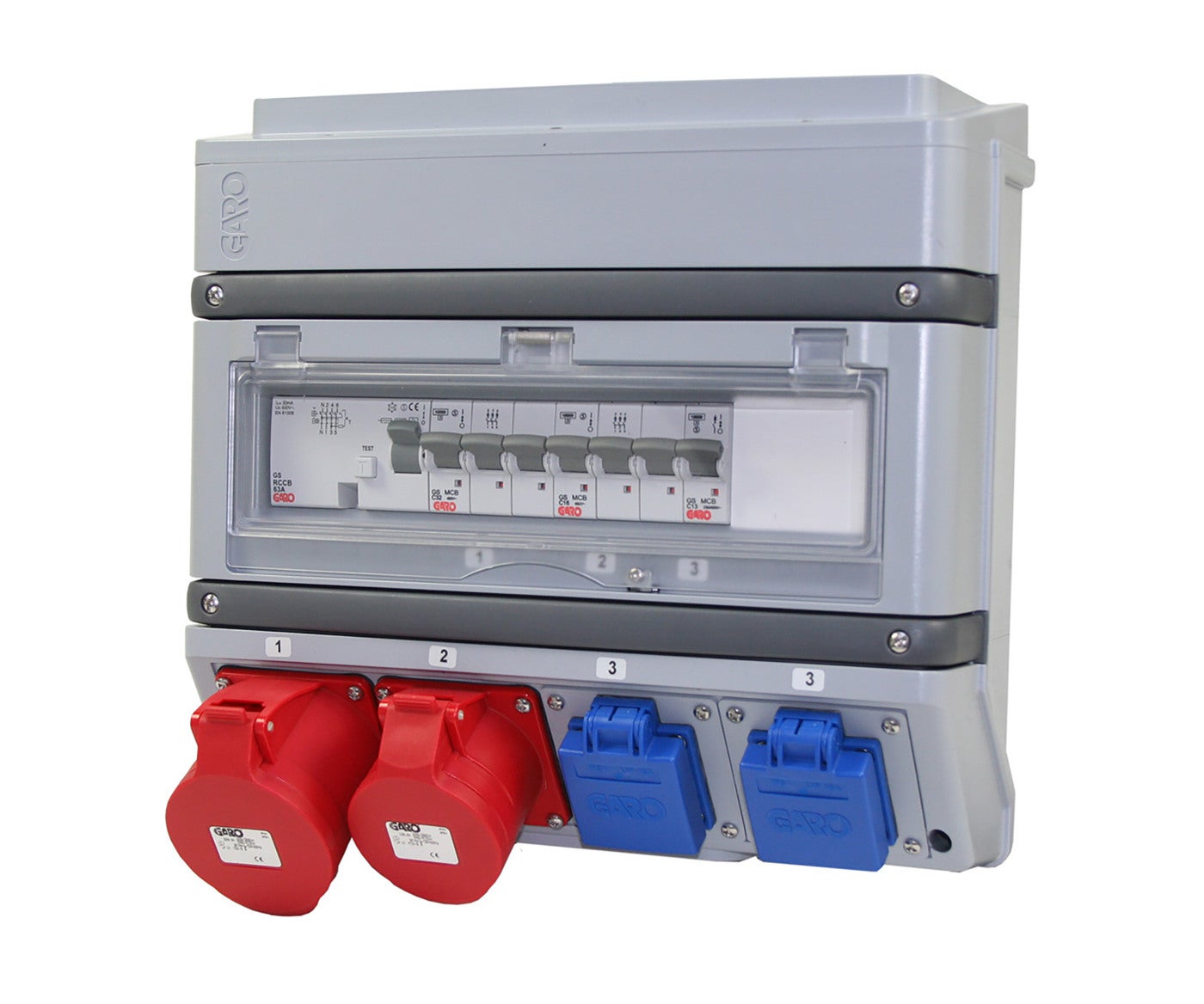

OUTLETBOX 01102-RCCB GBOX E2468806 2468806 01102-JFB 1pcs 5P 16A 230/400V 1pcs C113 1pcs C316 1pcs C332 2pcs 1pcs 4P 63A 1pcs 5P 32A 230/400V No 4.9 330 300 143

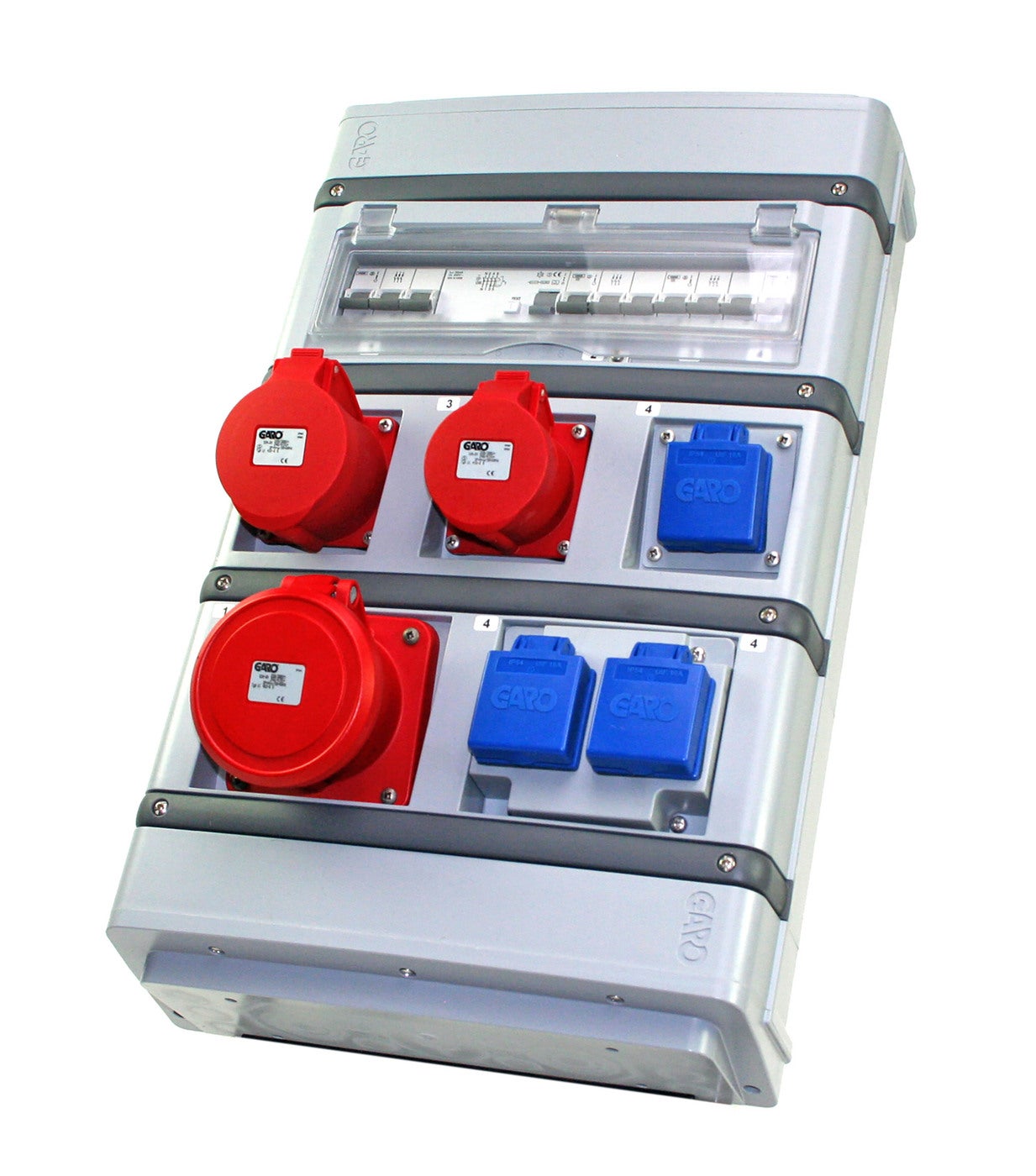

OUTLETBOX 11103-RCCB GBOX E2468807 2468807 11103-JFB 1pcs 5P 16A 230/400V 1pcs C113 1pcs C316 1pcs C332 3pcs 1pcs 5P 32A 230/400V 1pcs 5P 63A 230/400V 1pcs C363 No 6.8 330 540 200

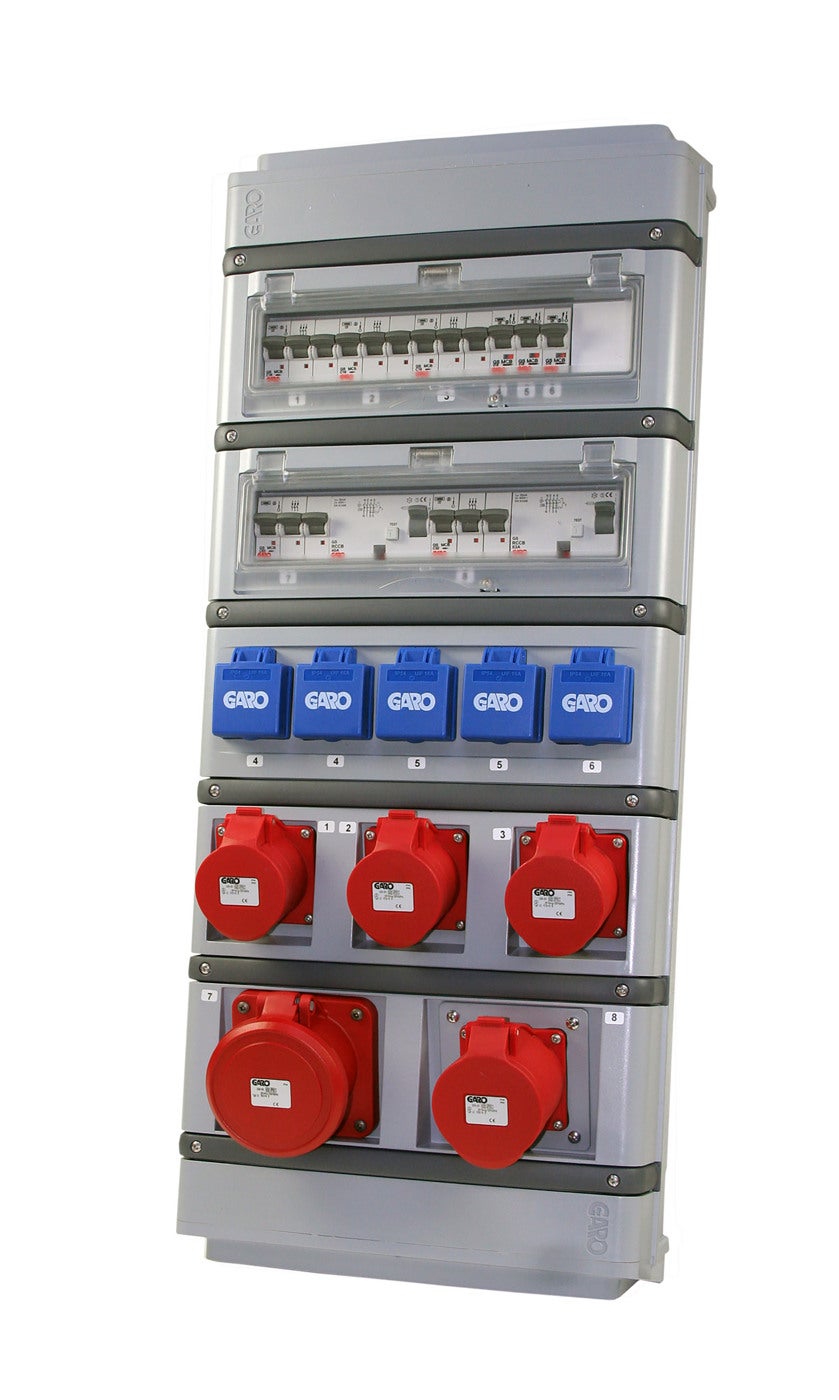

OUTLETBOX 11305-RCCB GBOX E2468809 2468809 11305-JFB 3pcs 5P 16A 230/400V 3pcs C113 3pcs C116 1pcs C332 1pcs C363 1pcs 4P 40A 1pcs 5P 32A 230/400V 1pcs 5P 63A 230/400V 1pcs 4P 63A No 11 330 790 200

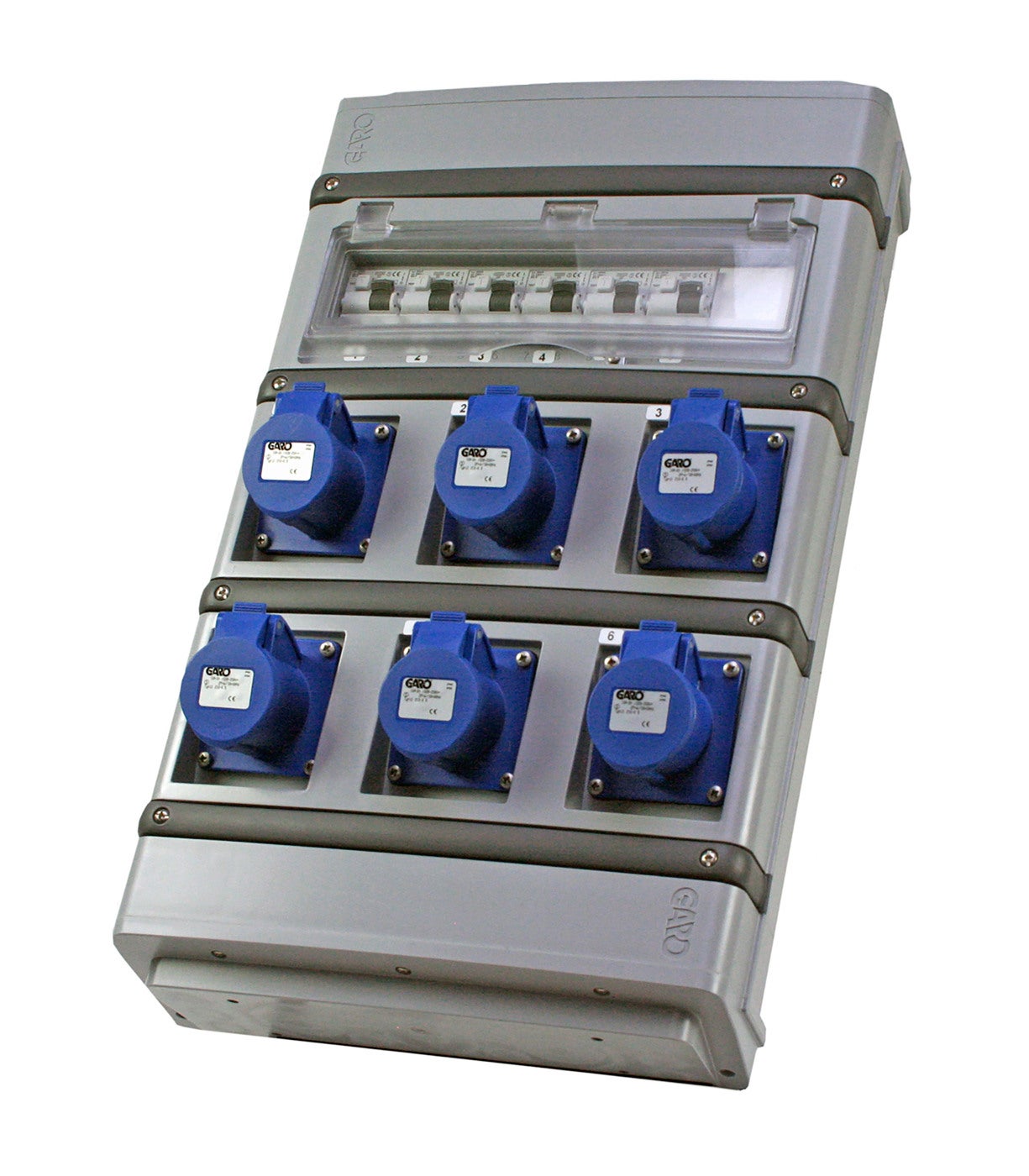

OUTLETBOX 00060 GBOX E2468810 2468810 00060 6pcs 3P 16A 230V 6pcs C2P 16A 5.9 330 540 156
OUTLETBOX 00202-RCCB GBOX E2468811 2468811 00202-JFB 2pcs 5P 16A 230/400V 2pcs C113 2pcs C316 2pcs 1pcs 4P 40A No 5.1 330 303 143

Accessories for Gbox with RCCB IP44

Name E-number Article number Type designation Description

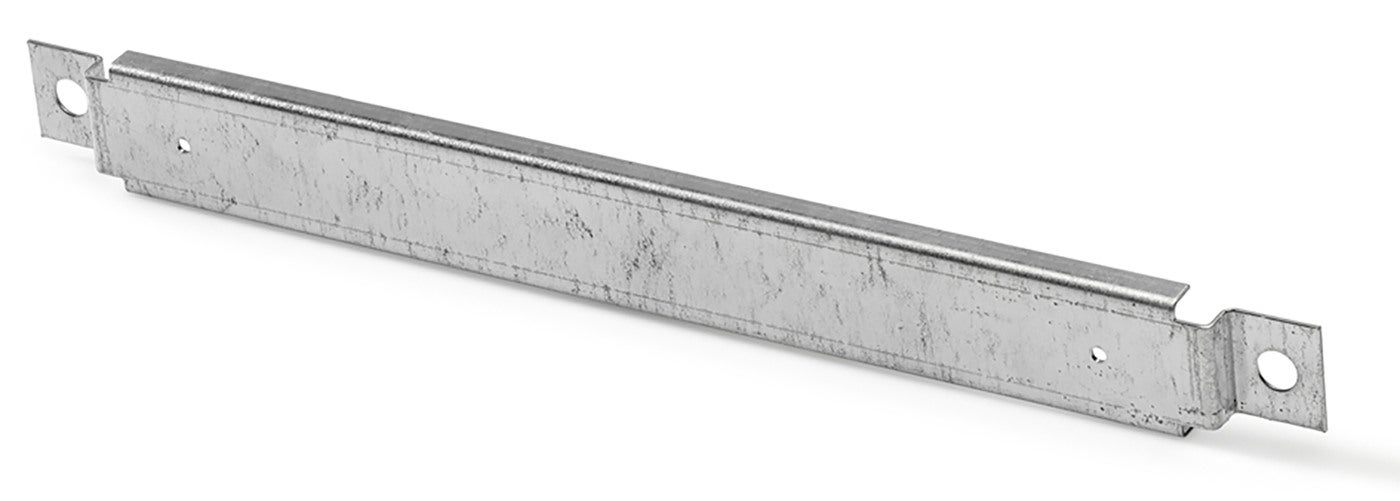

WALLPLATE G-BOX SIPOREX WALLPLATE G-BOX SIPOREX E2468850 2468850 VFSG Wallplate for siporex wall fits G-box and U-GBN

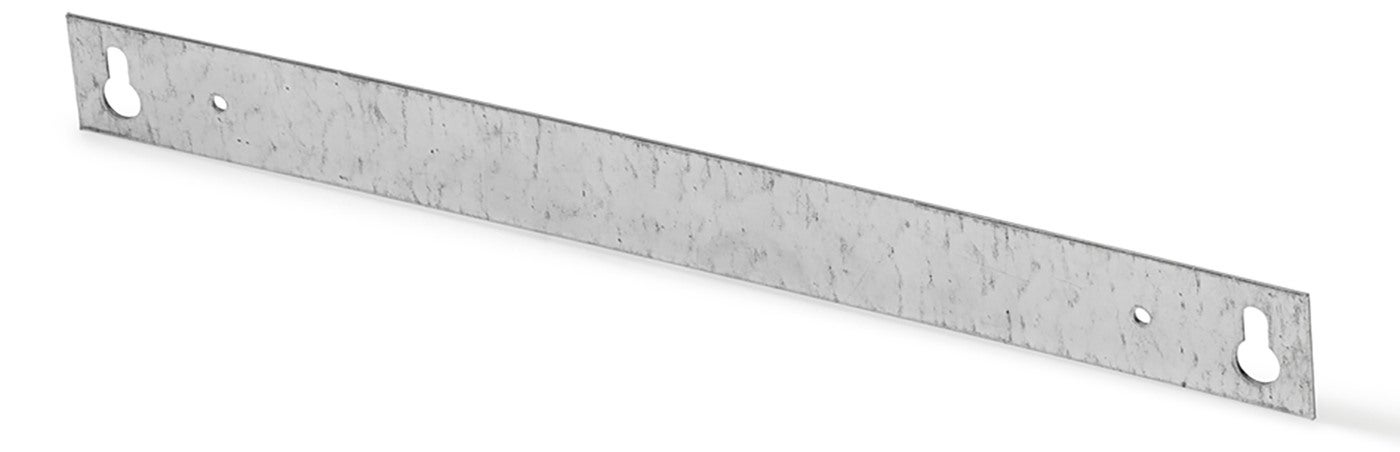

WALLPLATE G-BOX HOLE WALLPLATE G-BOX HOLE E2468851 2468851 VGF Wallplate for external attachment fits G-box and U-GBN.

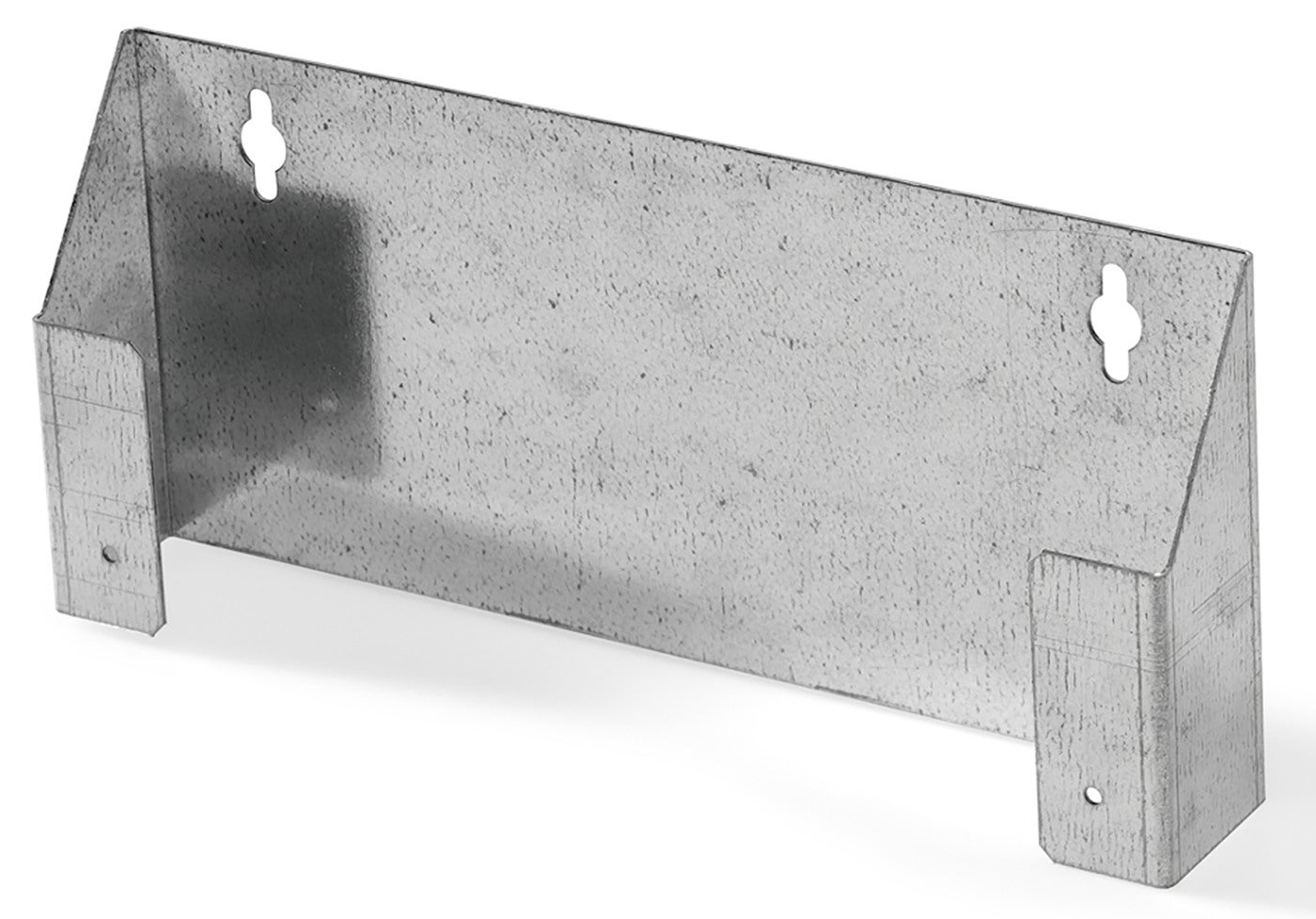

WALL DISTANCE G-BOX WALL DISTANCE G-BOX E2468852 2468852 VDG Wall distance to create distance for cables behind the enclosure fits G-box and U-GBN.

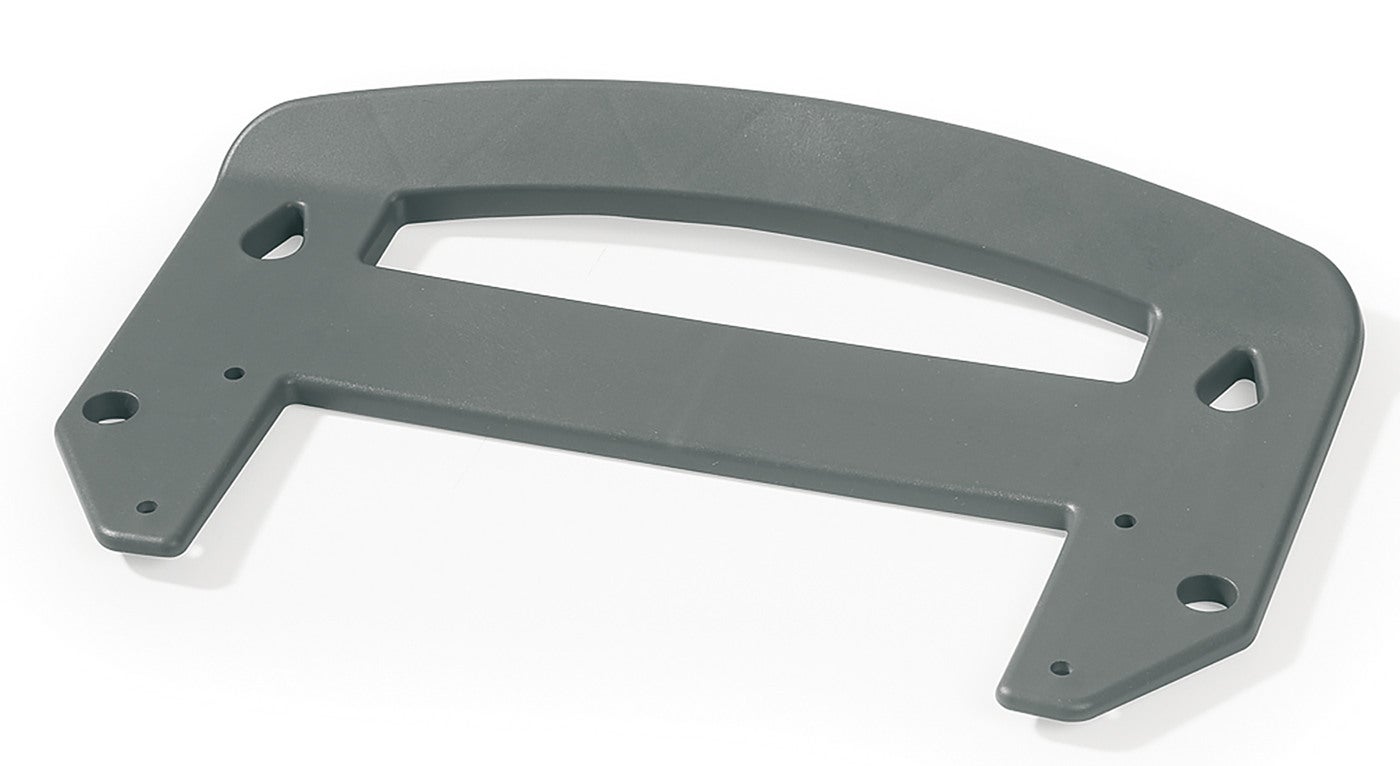

HANDLE G-BOX HANDLE G-BOX E2468853 2468853 HG Handle for G-box and U-GBN

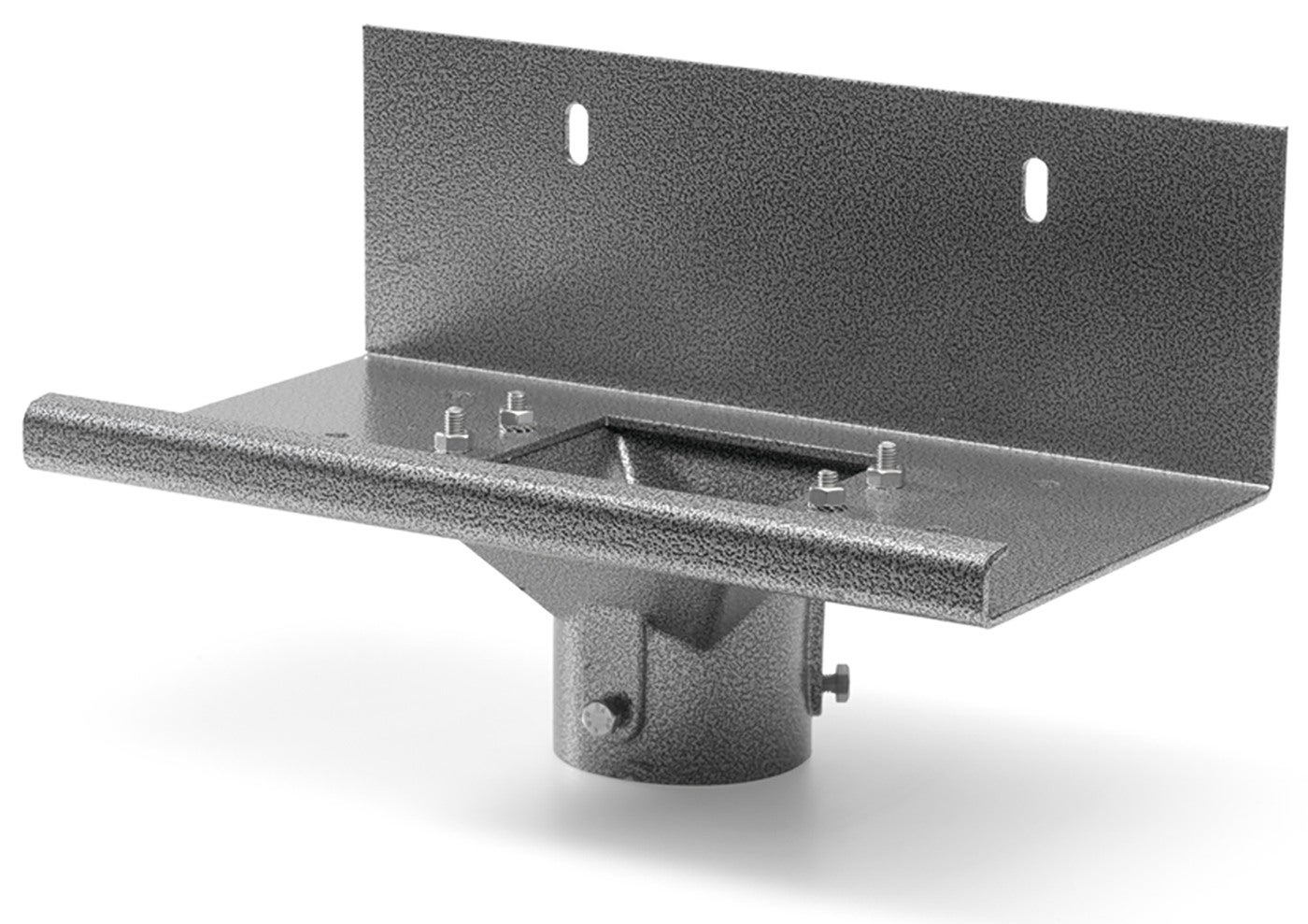

ADAPTERPLATE G-BOX ADAPTERPLATE G-BOX E2468854 2468854 APG Adapterplate for enclosure at Ø60mm pole fits G-box and U-GBN.

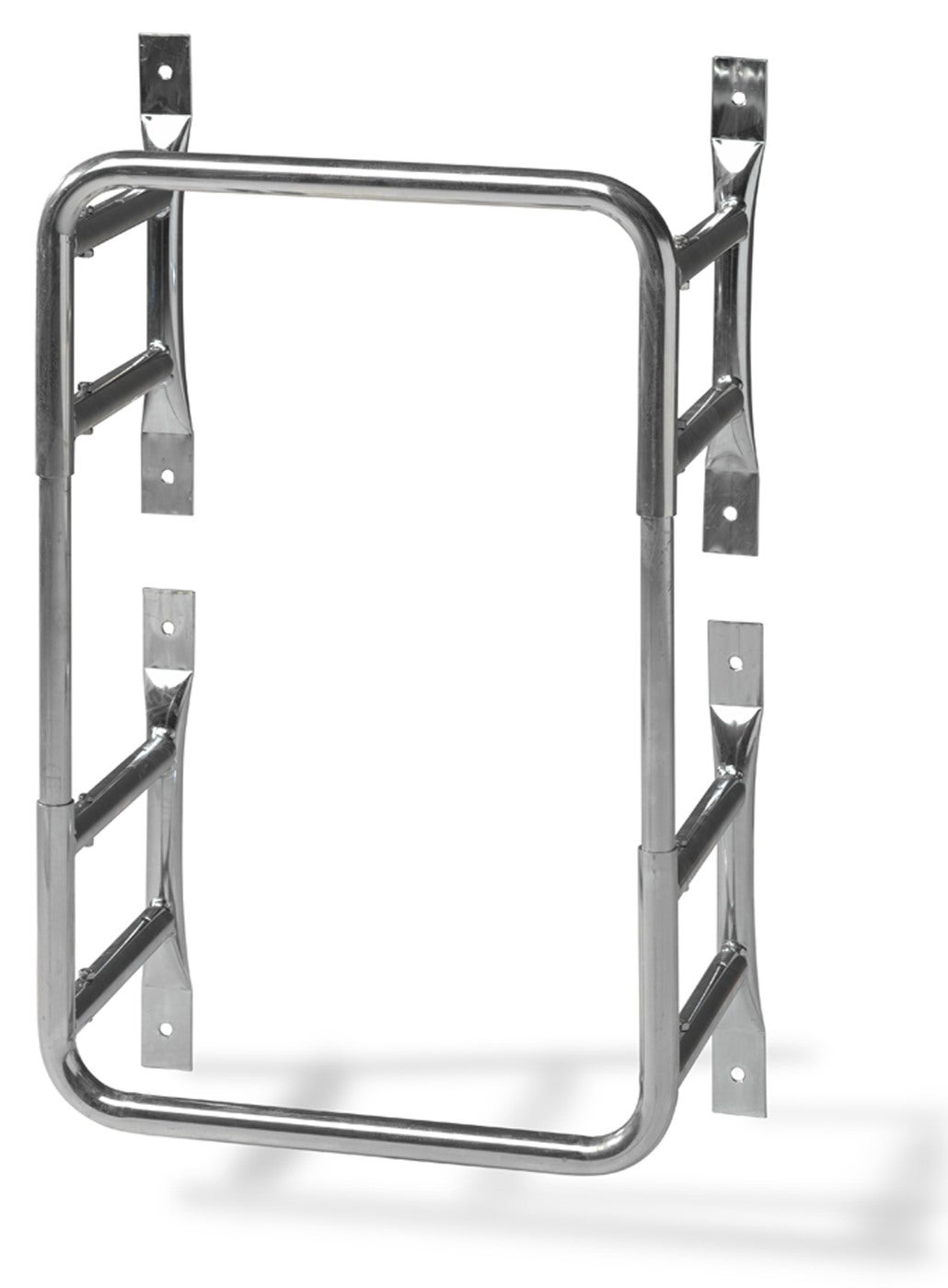

PROTECTIONFRAME G-BOX PROTECTIONFRAME G-BOX 2468855 2468855 STG Protection frame. Adjustable in height and depth,fits G-box and U-GBN.

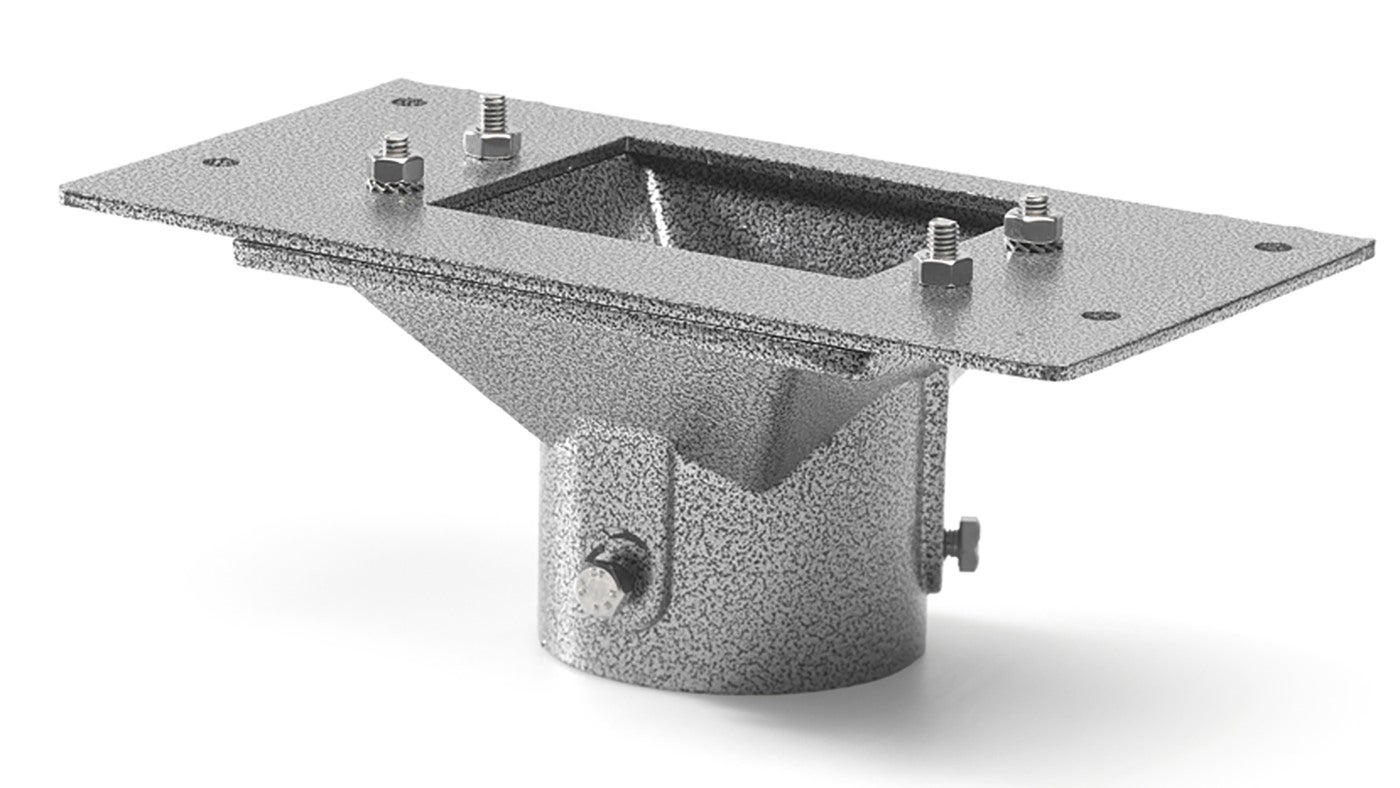

ADAPTERPLATE POLE G-BOX ADAPTERPLATE POLE G-BOX E2468856 2468856 APSG Adapterplate for pole to adapt at Ø60mm pole fits G-box and U-GBN.

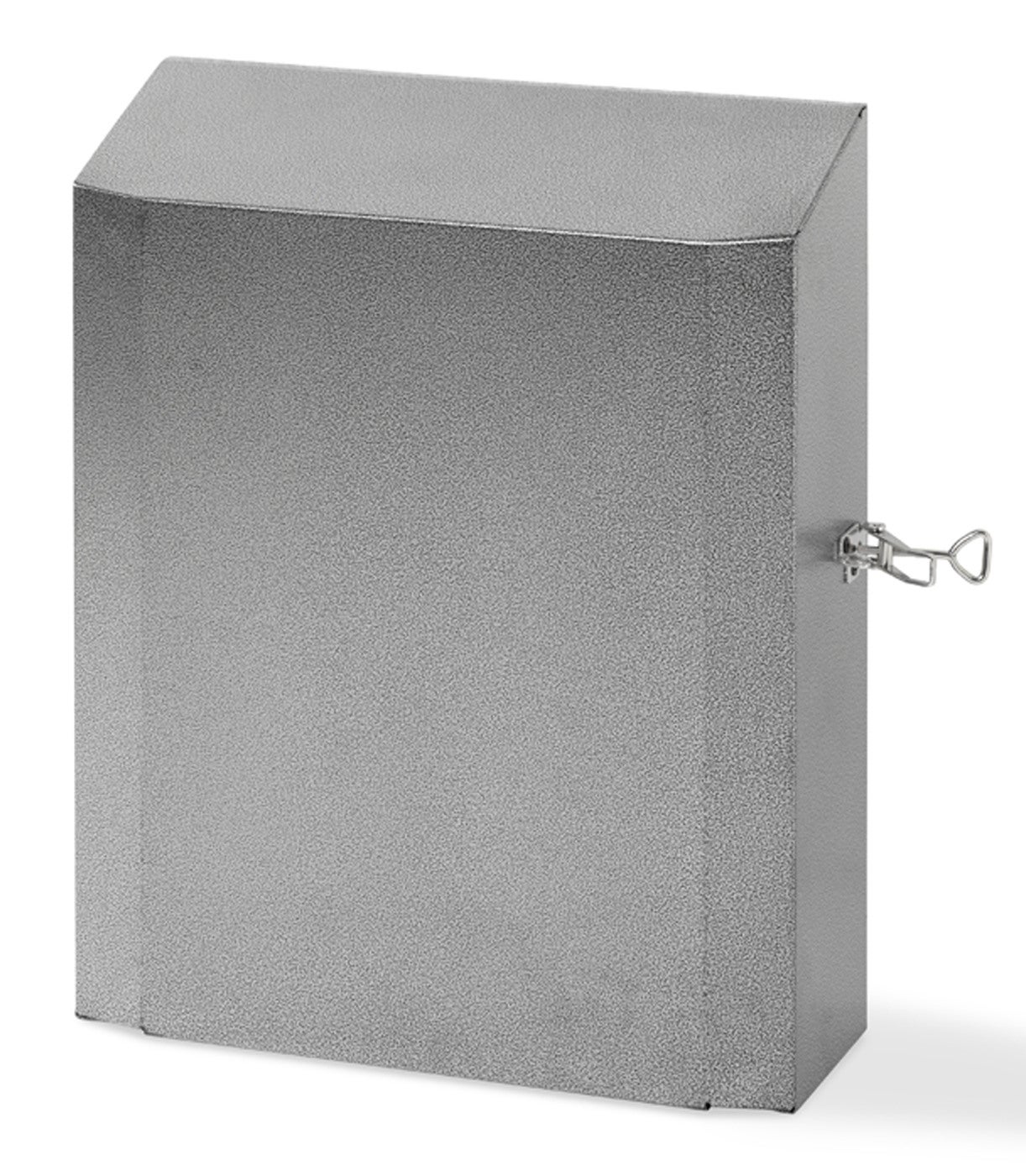

DOOR G-BOX DOOR G-BOX E2468857 2468857 DG Door for enclosure with lock for padlock and hinges fits G-box and U-GBN.

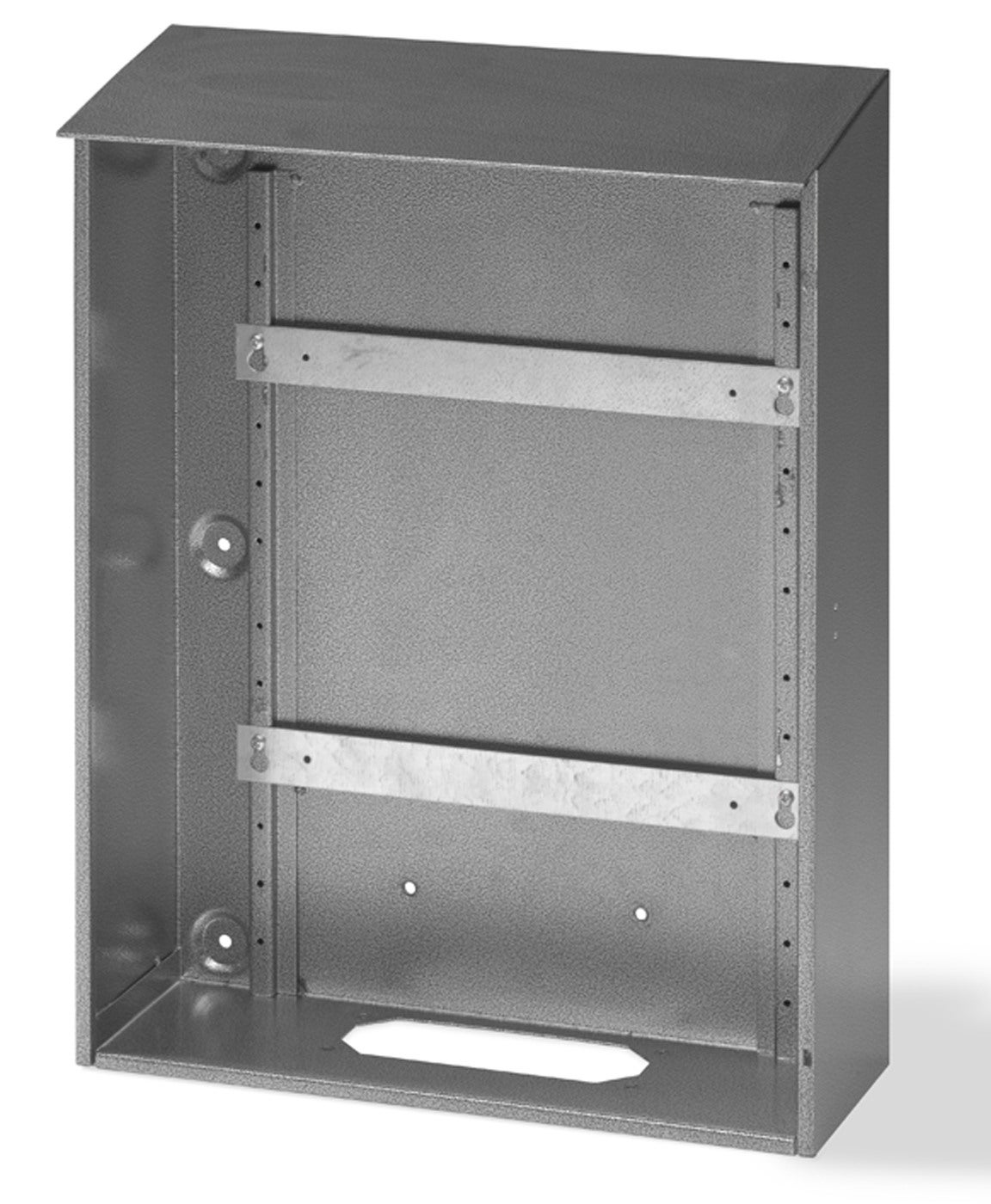

CABINET G-BOX CABINET G-BOX E2468858 2468858 SG Cabinet for G-box, made of stainless steel textured in grey-black shade. Comes with 2 wall brackets for easy mounting of G-box and U GBN in the cabinet.

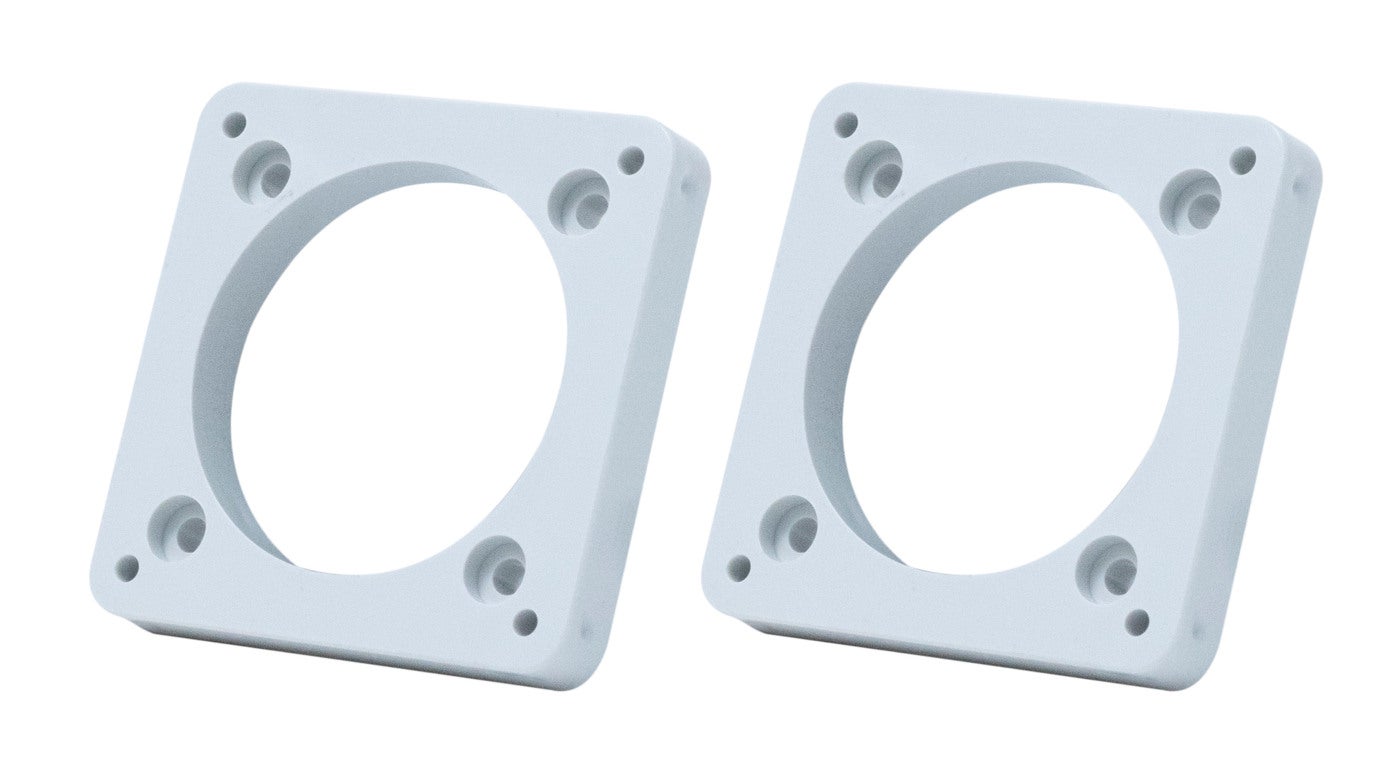

ADAPTER SCHUKO/UIL ADAPTER SCHUKO/UIL E2468973 2468973 AP2 SCH/UIL Adapter schuko/UIL 216
