• SOCKET STRAIGHT 5P 125A 6h WT - 1

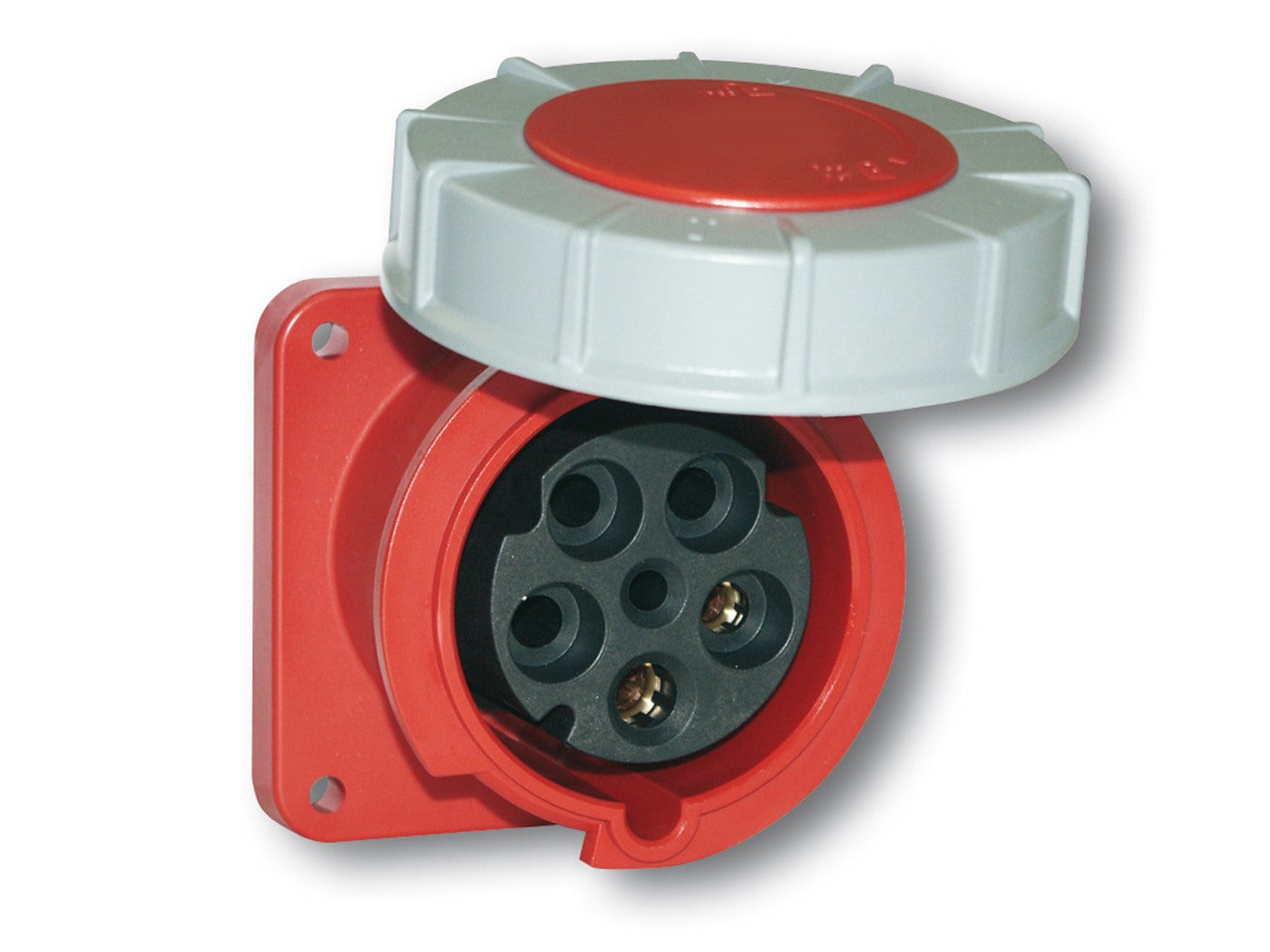

  • SOCKET STRAIGHT 5P 125A 6h WT - 2

Flanged sockets Basic Straight 125A IP67

Basic, our standard range with a screw function.Socket 125A recess mounting with straight mounting plate. Supplied including seal. Socket straight basic watertight 5-poles 125A 6h
E-number
E2425007
Article number
2425007
Support
Frequency [Hz] 50/60Hz
Housing material Plastic
Rated current [A] 125A
Wire flexible [mm²] 16-50mm²
Modelltype Basic
Wire solid [mm²] 16-70mm²
Degree of protection [IP] IP67
Name SOCKET STRAIGHT 5P 125A 6h WT
E-number E2425007
Article number 2425007
Type designation UIV 4125-6 S
Color Red
Rated voltage [V AC] 230/400V AC
Number of poles 5/3P+N+E
RAL-number RAL3000
Clock hour position [h] 6h
NetProductWeight 1
EngineerWidth 120
EngineerHeight 149
EngineerDepth 120

More variants of Flanged sockets Basic Straight 125A IP67

E-number Article number Type designation Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SOCKET STRAIGHT 3P 125A 6h WT E2424997 2424997 UIV 2125-6 S Blue 200-250V AC 3/2P+E RAL5017 6h 0.85 190 140 290
SOCKET STRAIGHT 4P 125A 6h WT E2425001 2425001 UIV 3125-6 S Red 400V AC 4/3P+E RAL3000 6h 0.95 190 140 290
SOCKET STRAIGHT 4P 125A 7h WT E2425002 2425002 UIV 3125-7 S Grey 480-500V AC 4/3P+E RAL9005 7h
SOCKET STRAIGHT 5P 125A 6h WT E2425007 2425007 UIV 4125-6 S Red 230/400V AC 5/3P+N+E RAL3000 6h 1 120 149 120
SOCKET STRAIGHT 5P 125A 9h WT E2425008 2425008 UIV 4125-9 S Blue 208-250V AC 5/3P+N+E RAL5017 9h
