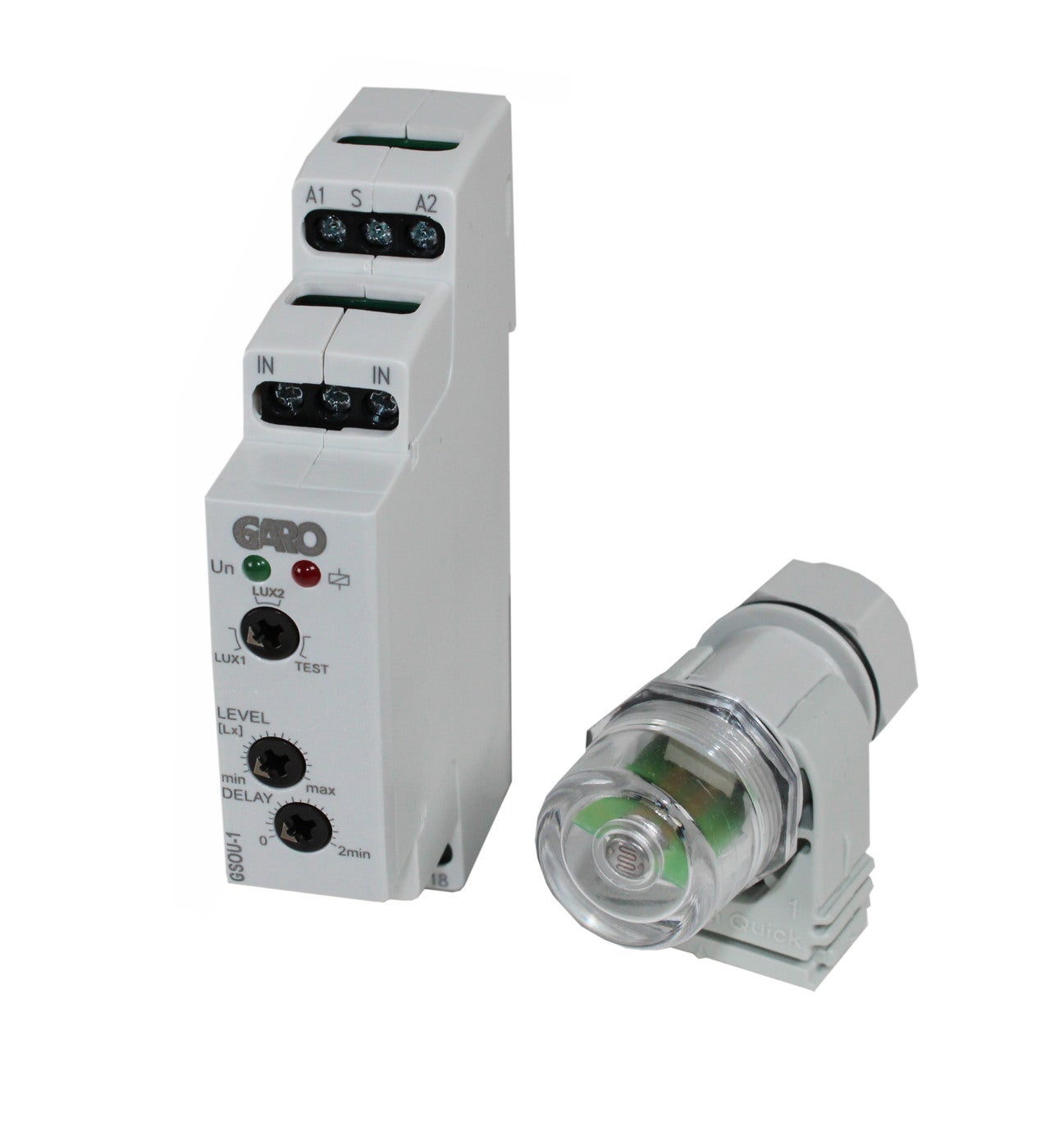

Light relays 1-module

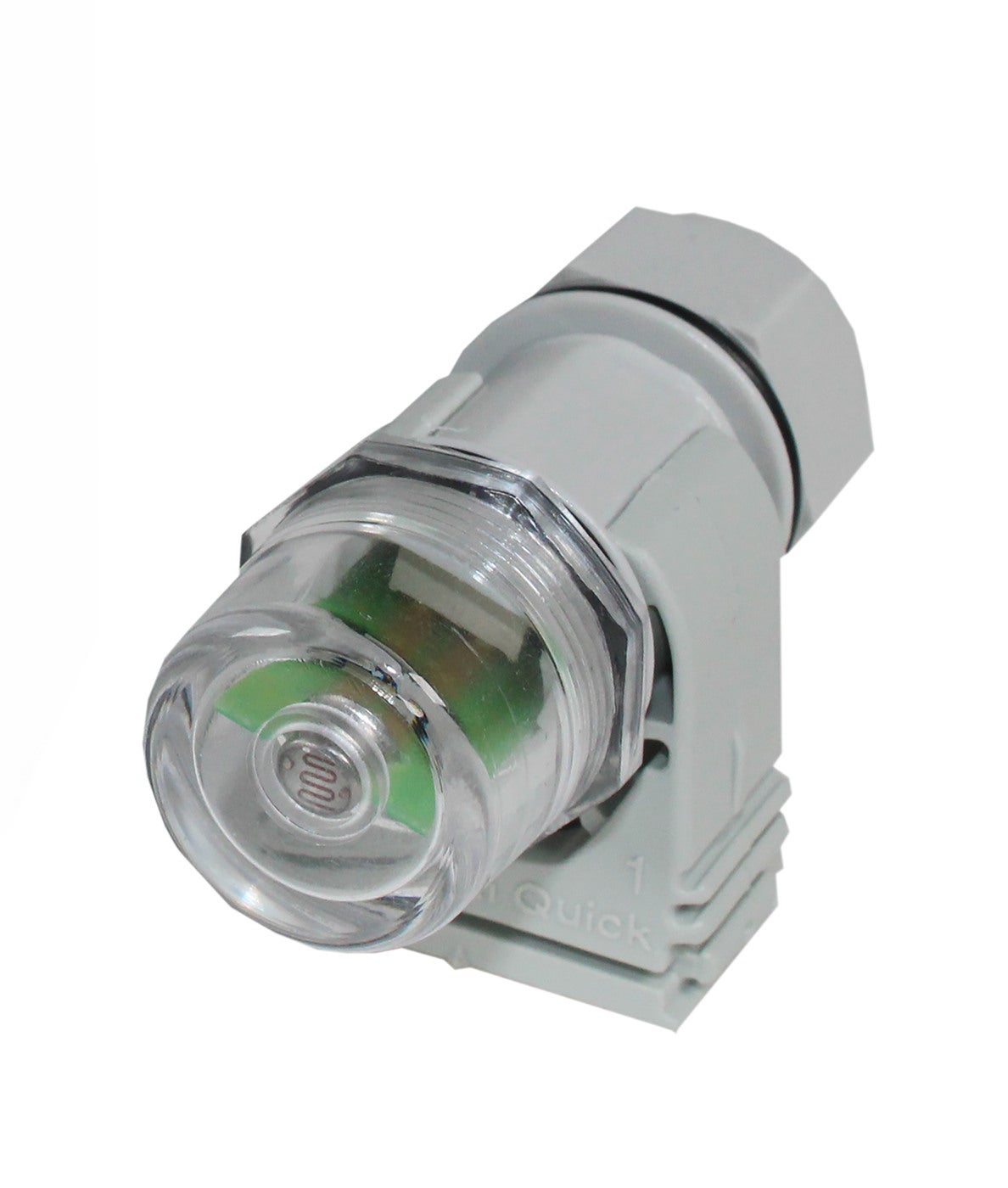

Light relay with external light sensor. The sensor can be set in two different intervals, 1-100 Lu or 100-50,000 Lu. Light relay 1 module
E-number
E1316560
E1316560
Article number
1316560
1316560
| Storage temperature [C] | -30C...+80C |
|---|---|
| Operation Temperature [C] | -25C...+55C |
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Green |
| Number of modules | 1 |
| Connection type | Screw |
| Mounting method | DIN-rail |
| Control line voltage | 230V AC |
| Voltage type | AC/DC |
| Degree of protection [IP] | IP20 |
| Name | LIGHT RELAY 1M |
|---|---|
| E-number | E1316560 |
| Article number | 1316560 |
| Type designation | GSOU-1 |
| Rated voltage [V AC] | 230V AC |
| Wire flexible [mm²] | 1,5-2,5mm² |
| NetProductWeight | 0.12 |
| EngineerWidth | 60 |
| EngineerHeight | 78 |
| EngineerDepth | 98 |
| Rated current AC1 230V [A] | 16A |
