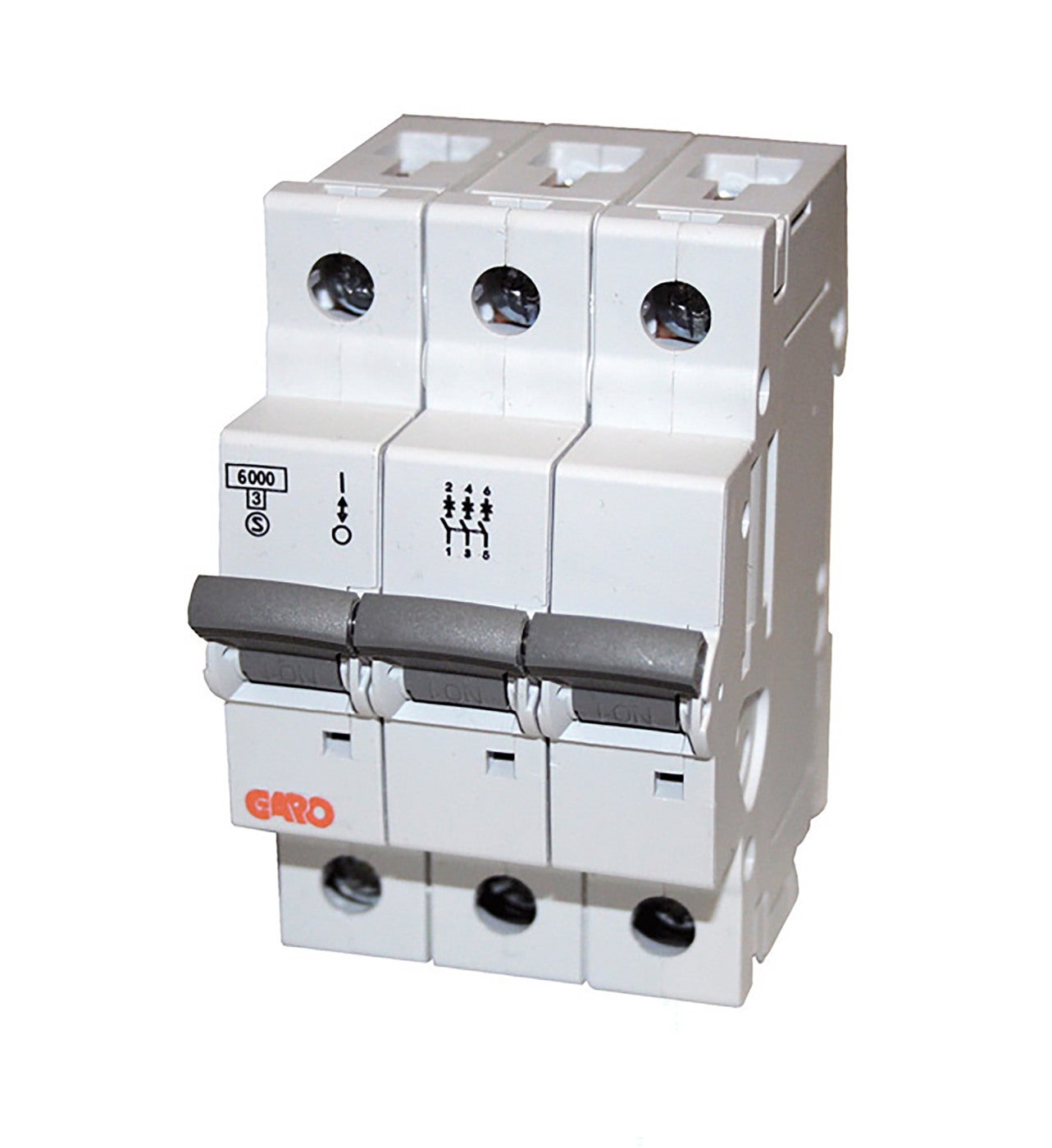

MCB C 3P 20A 6kA GR

Miniature circuit breaker 6kA 3-poles C-characteristics

Miniature circuit breaker 6kA 3-poles C-characteristics MCB GR C-Characteristic 20A 6kA 3-pole
E-number
E2142285
Article number
2142285
Support
Standard EN60898-1
Short-circuit current [kA] 6kA
Storage temperature [C] -35C...+55C
Operation Temperature [C] -25C...+55C
Frequency [Hz] 50/60Hz
Housing material Plastic
Color Grey
Rated voltage [V AC] 415 V AC
Number of modules 3
Number of poles 3
Tightening torque [Nm] 3,5Nm
Tripping characteristics C
Connection type Screw
Wire flexible [mm²] 1-25mm²
Degree of protection [IP] IP20
NetProductWeight 0.277
EngineerWidth 54
EngineerHeight 90
EngineerDepth 75
Name MCB C 3P 20A 6kA GR
E-number E2142285
Article number 2142285
Type designation MCB GR C320
Rated current [A] 20A

More variants of Miniature circuit breaker 6kA 3-poles C-characteristics

E-number Article number Type designation Rated current [A]
MCB C 3P 0,5A 6kA GR E2142270 2142270 MCB GR C3005 0,5A
MCB C 3P 1A 6kA GR E2142271 2142271 MCB GR C301 1A
MCB C 3P 2A 6kA GR E2142273 2142273 MCB GR C302 2A
MCB C 3P 4A 6kA GR E2142275 2142275 MCB GR C304 4A
MCB C 3P 6A 6kA GR E2142277 2142277 MCB GR C306 6A
MCB C 3P 10A 6kA GR E2142279 2142279 MCB GR C310 10A
MCB C 3P 13A 6kA GR E2142281 2142281 MCB GR C313 13A
MCB C 3P 16A 6kA GR E2142283 2142283 MCB GR C316 16A
MCB C 3P 20A 6kA GR E2142285 2142285 MCB GR C320 20A
MCB C 3P 25A 6kA GR E2142287 2142287 MCB GR C325 25A
MCB C 3P 32A 6kA GR E2142289 2142289 MCB GR C332 32A
MCB C 3P 40A 6kA GR E2142291 2142291 MCB GR C340 40A
MCB C 3P 50A 6kA GR E2142293 2142293 MCB GR C350 50A
MCB C 3P 63A 6kA GR E2142294 2142294 MCB GR C363 63A
