MCB C 1P 4A 6kA GR

Miniature circuit breaker 6kA 1-pole C-characteristics

Miniature circuit breaker 6kA 1-pole C-characteristics Miniature circuit breaker (MCB) C-characteristic 1-pole 4A 6kA
E-number
E2142107
Article number
2142107
Support
Standard EN60898-1
Short-circuit current [kA] 6kA
Storage temperature [C] -35C...+55C
Operation Temperature [C] -25C...+55C
Frequency [Hz] 50/60Hz
Housing material Plastic
Color Grey
Number of modules 1
Number of poles 1
Tripping characteristics C
Connection type Screw
Wire flexible [mm²] 1-25mm²
Degree of protection [IP] IP20
Claim prefuse [A] 125A
EngineerHeight 90
EngineerDepth 75
Name MCB C 1P 4A 6kA GR
E-number E2142107
Article number 2142107
Type designation MCB GR C104
Rated current [A] 4A
Rated voltage [V AC] 240-415V AC
Tightening torque [Nm] 3,5Nm
NetProductWeight 0.092
EngineerWidth 18

More variants of Miniature circuit breaker 6kA 1-pole C-characteristics

E-number Article number Type designation Rated current [A] Rated voltage [V AC] Tightening torque [Nm] NetProductWeight EngineerWidth
MCB C 1P 0,5A 6kA GR E2142101 2142101 MCB GR C1005 0,5A 240-415V AC 3,5Nm 0.092 18
MCB C 1P 1A 6kA GR E2142103 2142103 MCB GR C101 0,5A 240-415V AC 3,5Nm 0.092 18
MCB C 1P 2A 6kA GR E2142105 2142105 MCB GR C102 2A 240-415V AC 3,5Nm 0.092 18
MCB C 1P 4A 6kA GR E2142107 2142107 MCB GR C104 4A 240-415V AC 3,5Nm 0.092 18
MCB C 1P 6A 6kA GR E2142109 2142109 MCB GR C106 6A 240-415V AC 3,5Nm 0.092 18
MCB C 1P 10A 6kA GR E2142111 2142111 MCB GR C110 10A 240-415V AC 3,5Nm 0.092 18
MCB C 1P 13A 6kA GR E2142113 2142113 MCB GR C113 13A 240-415V AC 3,5Nm 0.092 18

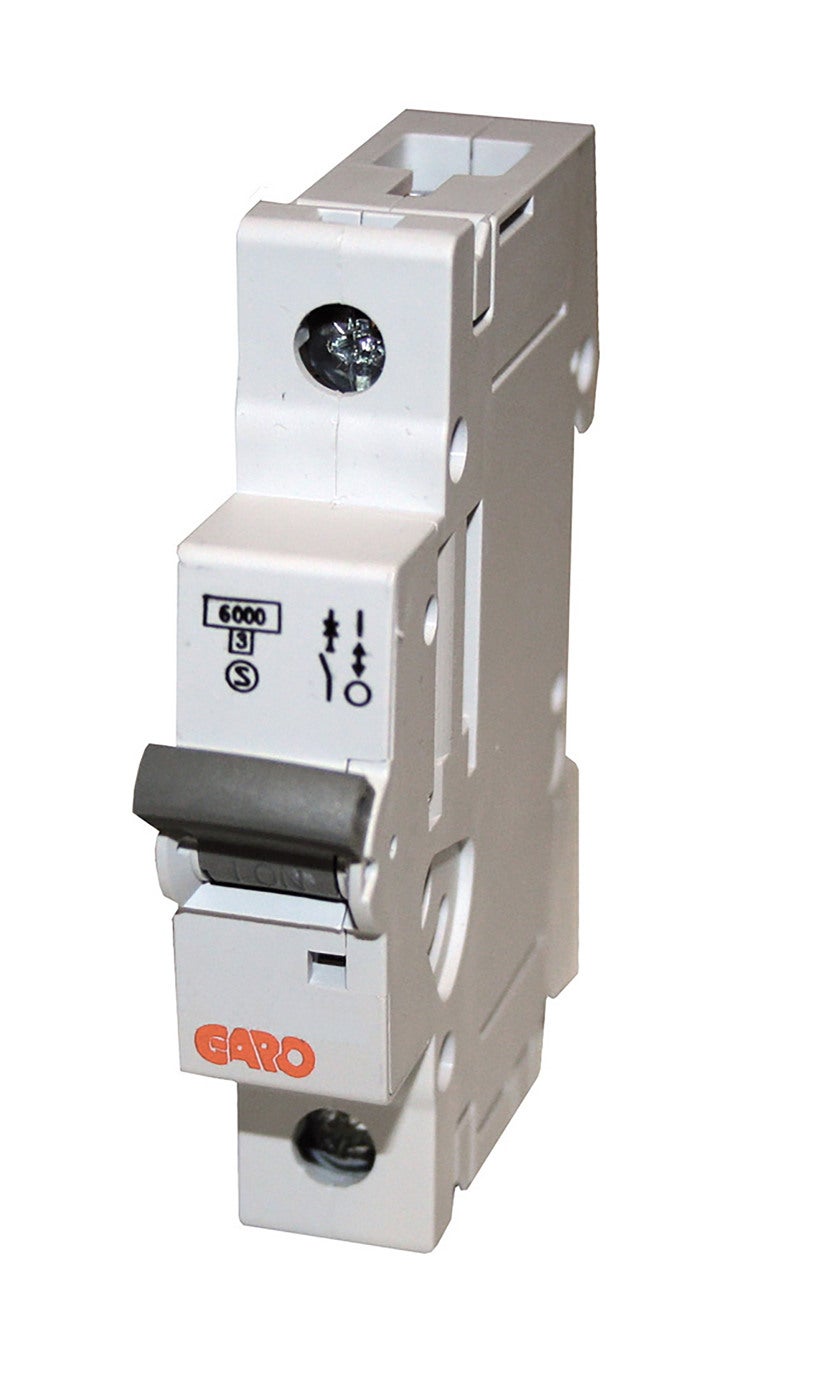

MCB C 1P 16A 6kA GR E2142115 2142115 MCB GR C116 16A 240-415V AC 3,5Nm 0.092 18
MCB C 1P 20A 6kA GR E2142117 2142117 MCB GR C120 20A 240-415V AC 3,5Nm 0.092 18
MCB C 1P 25A 6kA GR E2142119 2142119 MCB GR C125 25A 240-415V AC 2,5Nm 0.092 18
MCB C 1P 32A 6kA GR E2142121 2142121 MCB GR C132 32A 240-415V AC 3,5Nm 0.092 18
MCB C 1P 40A 6kA GR E2142123 2142123 MCB GR C140 40A 240-415V AC 3,5Nm 0.092 18
MCB C 1P 50A 6kA GR E2142125 2142125 MCB GR C150 50A 240-415V AC 3,5Nm 0.092 18
MCB C 1P 63A 6kA GR E2142127 2142127 MCB GR C163 63A 240-415V AC 3,5Nm 0.092 18
MCB C 1P 0,5A 6kA GR E2142129 2142129 MCB GR C2005 0,5A 415 V AC 3,5Nm 0.184 36
