RCBO C6 30mA 1P+N

RCBO 6kA 2P C 1modul

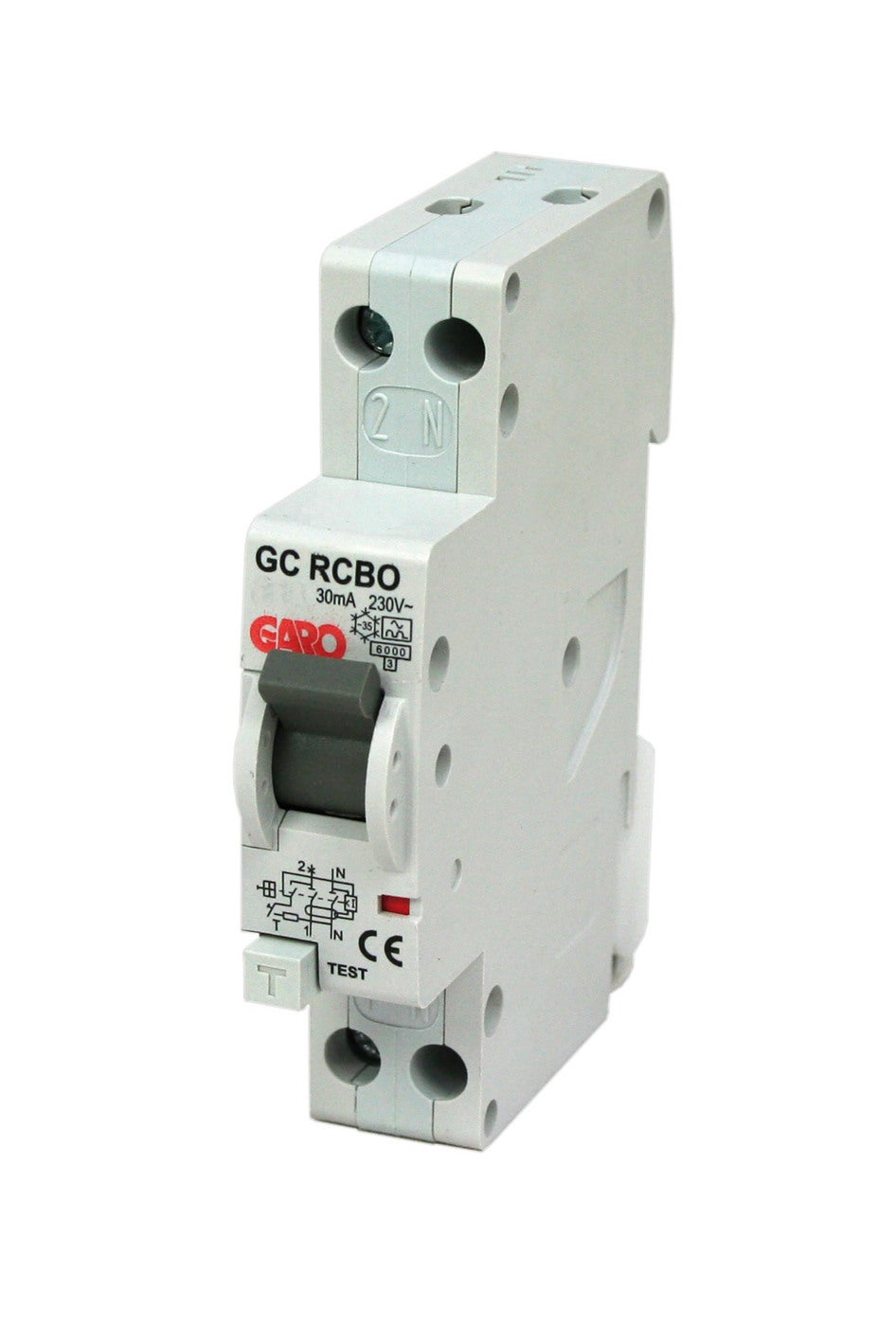

GARO Earth leakage circuit breaker (RCBO) 1-module is an electronic version that is ideal when space is limited as it is only 1 module wide. The design is suitable for the Swedish outdoor climate as it is tested and approved for -35 degrees. RCBO C6 30mA 1P+N
Article number
109936
Support
Name RCBO C6 30mA 1P+N
Article number 109936
NetProductWeight 0.22

More variants of RCBO 6kA 2P C 1modul

RCBO C6 30mA 1P+N
RCBO C6 30mA 1P+N
E-number
Article number
109936
Type designation
NetProductWeight
0.22
RCBO C 2P 6A 6kA U
RCBO C 2P 6A 6kA U
E-number
E2163337
Article number
111372
Type designation
RCBO C2P 6A 6kA U GC
Standard
EN61009-1
Short-circuit current [kA]
6kA
Storage temperature [C]
-35C...+55C
Operation Temperature [C]
-25C...+55C
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Grey
Rated current [A]
6A
Rated voltage [V AC]
230/400V AC
Number of modules
1
Number of poles
2
Tightening torque [Nm]
2,5Nm
Tripping characteristics
C
Connection type
Screw
Wire flexible [mm²]
1,5-2,5mm²
Mounting method
DIN-rail
Degree of protection [IP]
IP20
Sensitivity[mA]
30mA
Leakage current type
A
Claim prefuse [A]
100A
NetProductWeight
0.11
EngineerWidth
18
EngineerHeight
89
EngineerDepth
77
RCBO C 2P 10A 6kA U
RCBO C 2P 10A 6kA U
E-number
E2163338
Article number
111373
Type designation
RCBO C2P 10A 6kA U GC
Standard
EN61009-1
Short-circuit current [kA]
10kA
Storage temperature [C]
-35C...+55C
Operation Temperature [C]
-25C...+55C
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Grey
Rated current [A]
10A
Rated voltage [V AC]
230/400V AC
Number of modules
1
Number of poles
2
Tightening torque [Nm]
2,5Nm
Tripping characteristics
C
Connection type
Screw
Wire flexible [mm²]
1,5-2,5mm²
Mounting method
DIN-rail
Degree of protection [IP]
IP20
Sensitivity[mA]
30mA
Leakage current type
A
Claim prefuse [A]
100A
NetProductWeight
0.11
EngineerWidth
18
EngineerHeight
89
EngineerDepth
77
RCBO C 2P 13A 6kA U
RCBO C 2P 13A 6kA U
E-number
E2163339
Article number
111374
Type designation
RCBO C2P 13A 6kA U GC
Standard
EN61009-1
Short-circuit current [kA]
6kA
Storage temperature [C]
-35C...+55C
Operation Temperature [C]
-25C...+55C
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Grey
Rated current [A]
13A
Rated voltage [V AC]
230/400V AC
Number of modules
1
Number of poles
2
Tightening torque [Nm]
2,5Nm
Tripping characteristics
C
Connection type
Screw
Wire flexible [mm²]
1,5-2,5mm²
Mounting method
DIN-rail
Degree of protection [IP]
IP20
Sensitivity[mA]
30mA
Leakage current type
A
Claim prefuse [A]
100A
NetProductWeight
0.11
EngineerWidth
18
EngineerHeight
89
EngineerDepth
77
RCBO C 2P 16A 6kA U
RCBO C 2P 16A 6kA U
E-number
E2163340
Article number
111375
Type designation
RCBO C2P 16A 6kA U GC
Standard
EN61009-1
Short-circuit current [kA]
6kA
Storage temperature [C]
-35C...+55C
Operation Temperature [C]
-25C...+55C
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Grey
Rated current [A]
16A
Rated voltage [V AC]
230/400V AC
Number of modules
1
Number of poles
2
Tightening torque [Nm]
2,5Nm
Tripping characteristics
C
Connection type
Screw
Wire flexible [mm²]
1,5-2,5mm²
Mounting method
DIN-rail
Degree of protection [IP]
IP20
Sensitivity[mA]
30mA
Leakage current type
A
Claim prefuse [A]
100A
NetProductWeight
0.11
EngineerWidth
18
EngineerHeight
89
EngineerDepth
77
RCBO C 2P 20A 6kA U
RCBO C 2P 20A 6kA U
E-number
E2163341
Article number
111376
Type designation
RCBO C2P 20A 6kA U GC
Standard
EN61009-1
Short-circuit current [kA]
10kA
Storage temperature [C]
-35C...+55C
Operation Temperature [C]
-25C...+55C
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Grey
Rated current [A]
20A
Rated voltage [V AC]
230/400V AC
Number of modules
1
Number of poles
2
Tightening torque [Nm]
2,5Nm
Tripping characteristics
C
Connection type
Screw
Wire flexible [mm²]
1,5-2,5mm²
Mounting method
DIN-rail
Degree of protection [IP]
IP20
Sensitivity[mA]
30mA
Leakage current type
A
Claim prefuse [A]
100A
NetProductWeight
0.11
EngineerWidth
18
EngineerHeight
89
EngineerDepth
77
RCBO C 2P 25A 6kA U
RCBO C 2P 25A 6kA U
E-number
E2163342
Article number
111377
Type designation
RCBO C2P 25A 6kA U GC
Standard
EN61009-1
Short-circuit current [kA]
10kA
Storage temperature [C]
-35C...+55C
Operation Temperature [C]
-25C...+55C
Frequency [Hz]
50/60Hz
Housing material
Plastic
Color
Grey
Rated current [A]
25A
Rated voltage [V AC]
230/400V AC
Number of modules
1
Number of poles
2
Tightening torque [Nm]
2,5Nm
Tripping characteristics
C
Connection type
Screw
Wire flexible [mm²]
1,5-2,5mm²
Mounting method
DIN-rail
Degree of protection [IP]
IP20
Sensitivity[mA]
30mA
Leakage current type
A
Claim prefuse [A]
100A
NetProductWeight
0.11
EngineerWidth
18
EngineerHeight
89
EngineerDepth
77

More variants of RCBO 6kA 2P C 1modul

E-number Article number Type designation Standard Short-circuit current [kA] Storage temperature [C] Operation Temperature [C] Frequency [Hz] Housing material Color Rated current [A] Rated voltage [V AC] Number of modules Number of poles Tightening torque [Nm] Tripping characteristics Connection type Wire flexible [mm²] Mounting method Degree of protection [IP] Sensitivity[mA] Leakage current type Claim prefuse [A] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
RCBO C6 30mA 1P+N 109936 0.22
RCBO C 2P 6A 6kA U E2163337 111372 RCBO C2P 6A 6kA U GC EN61009-1 6kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 6A 230/400V AC 1 2 2,5Nm C Screw 1,5-2,5mm² DIN-rail IP20 30mA A 100A 0.11 18 89 77
RCBO C 2P 10A 6kA U E2163338 111373 RCBO C2P 10A 6kA U GC EN61009-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 10A 230/400V AC 1 2 2,5Nm C Screw 1,5-2,5mm² DIN-rail IP20 30mA A 100A 0.11 18 89 77
RCBO C 2P 13A 6kA U E2163339 111374 RCBO C2P 13A 6kA U GC EN61009-1 6kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 13A 230/400V AC 1 2 2,5Nm C Screw 1,5-2,5mm² DIN-rail IP20 30mA A 100A 0.11 18 89 77
RCBO C 2P 16A 6kA U E2163340 111375 RCBO C2P 16A 6kA U GC EN61009-1 6kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 16A 230/400V AC 1 2 2,5Nm C Screw 1,5-2,5mm² DIN-rail IP20 30mA A 100A 0.11 18 89 77
RCBO C 2P 20A 6kA U E2163341 111376 RCBO C2P 20A 6kA U GC EN61009-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 20A 230/400V AC 1 2 2,5Nm C Screw 1,5-2,5mm² DIN-rail IP20 30mA A 100A 0.11 18 89 77
RCBO C 2P 25A 6kA U E2163342 111377 RCBO C2P 25A 6kA U GC EN61009-1 10kA -35C...+55C -25C...+55C 50/60Hz Plastic Grey 25A 230/400V AC 1 2 2,5Nm C Screw 1,5-2,5mm² DIN-rail IP20 30mA A 100A 0.11 18 89 77
