Terminal profiles wallmounting

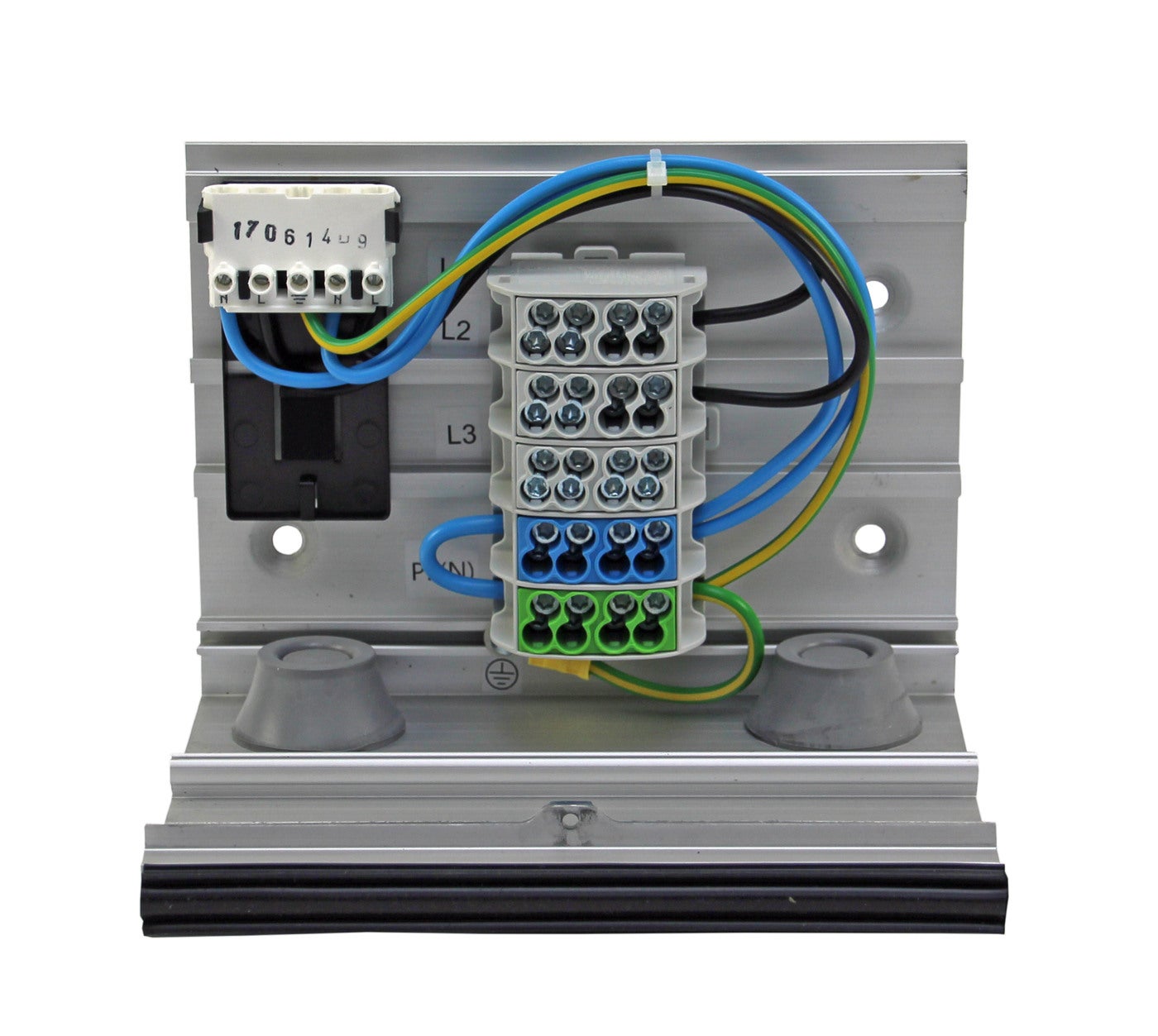

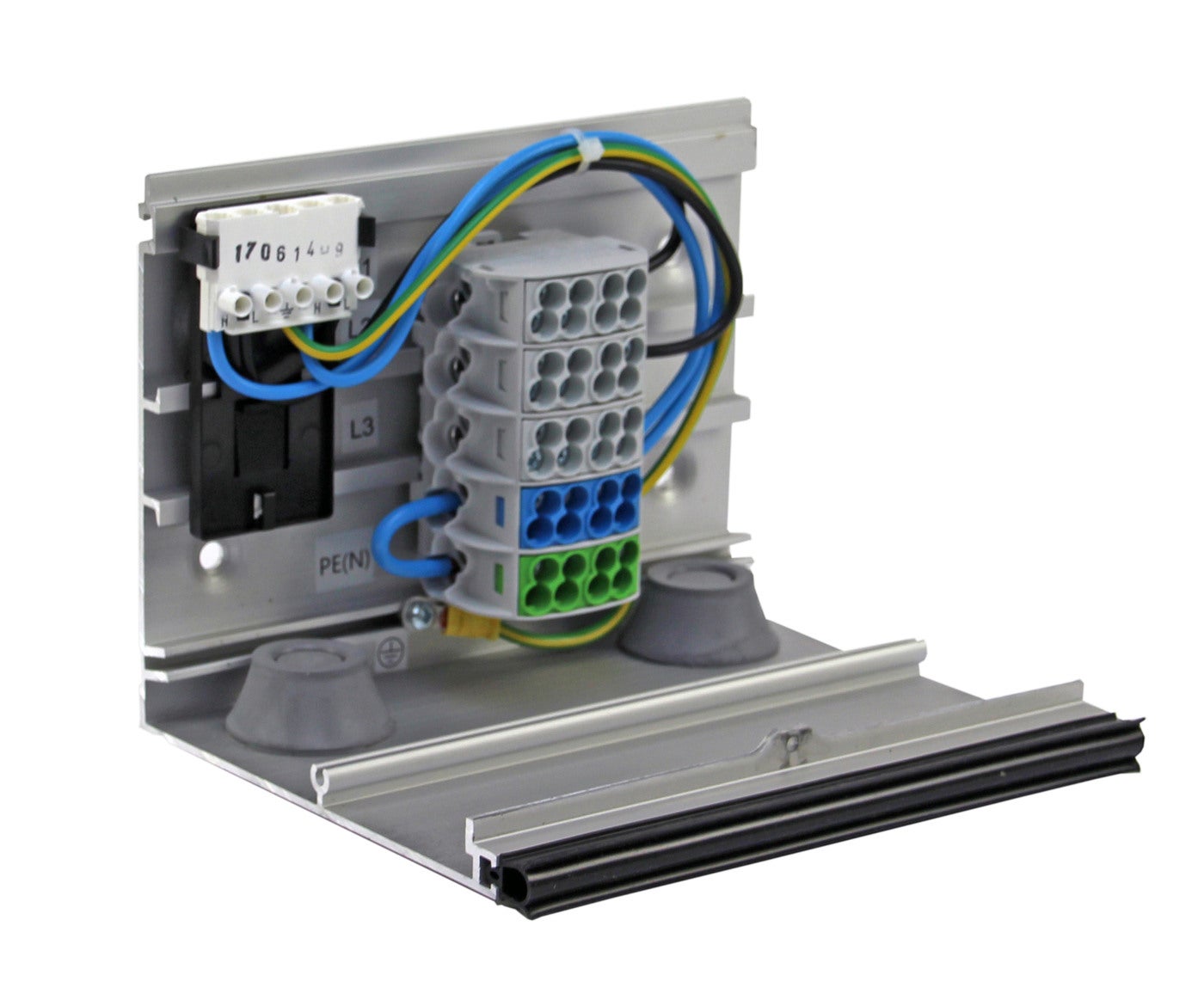

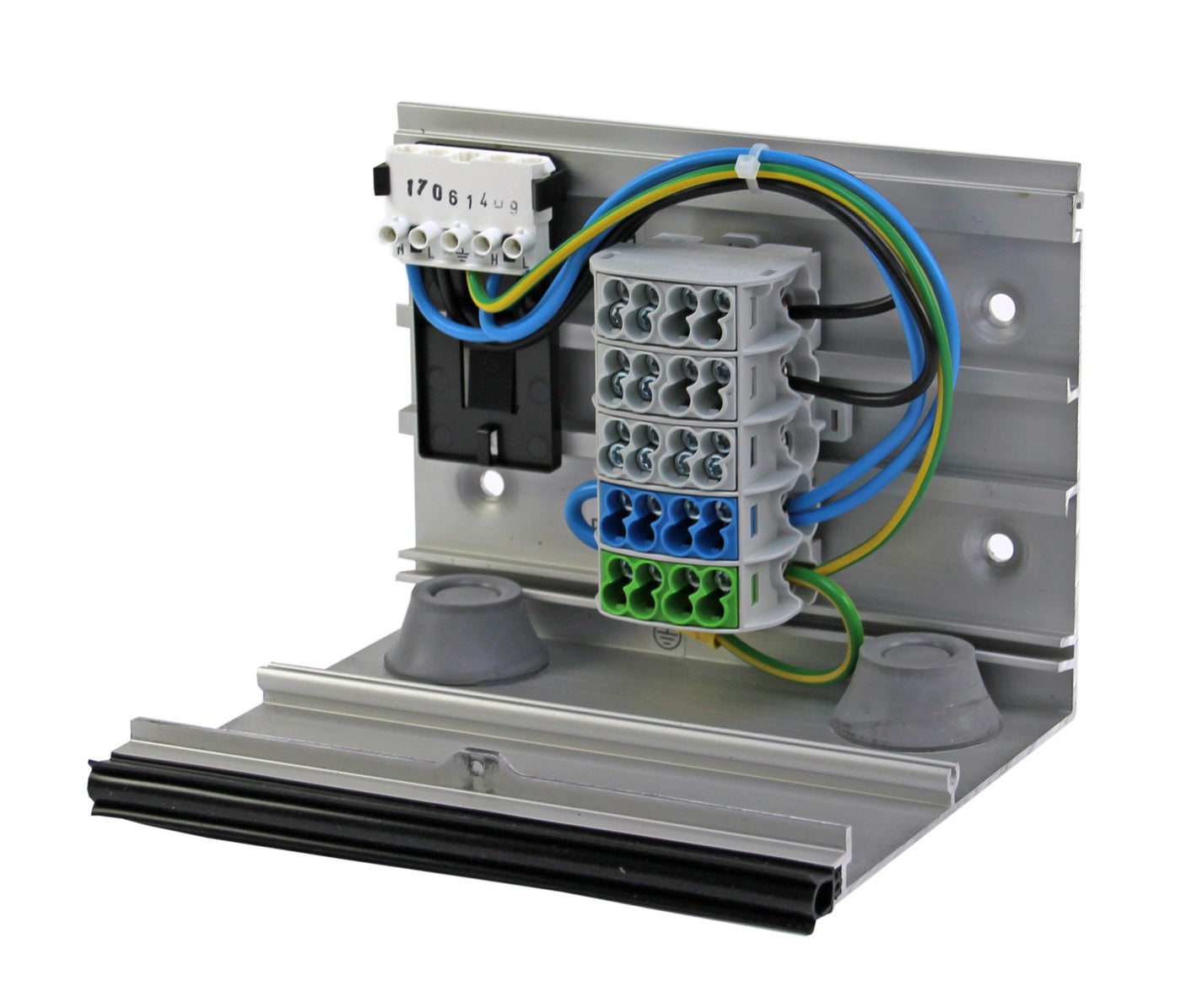

Terminal block section for wall mounting, in the terminal block, all the cables needed to connect the insert to electricity. The terminal block is mounted on the wall, the enclosure is mounted on the terminal block and finally the insert is assembled with a quick connection. Equipped with an installation friendly terminal 25mm2 prepared for outgoing electrical feed 16mm2 Al/Cu. The terminal block does not fit for older versions of P100 enclosure. Terminal profile wallmounted PN
E-number
E2449206
Article number
353010
Support
Type designation PNFR
Standard EN61439-3
Housing material Aluminium
Color Grey
Wire flexible [mm²] 1x25mm²+1x16mm²
Mounting method On pole
Modelltype PN100 Terminal profiles
NetProductWeight 0.9
Name TERMINALPROFILE WALL PN
E-number E2449206
Article number 353010

Accessories for Terminal profiles wallmounting

Name E-number Article number Type designation Description
TERMINAL 5P AL/CU MVC TERMINAL 5P AL/CU MVC E2670477 353155 P5-N Terminal 5-pole Al/Cu MVC
